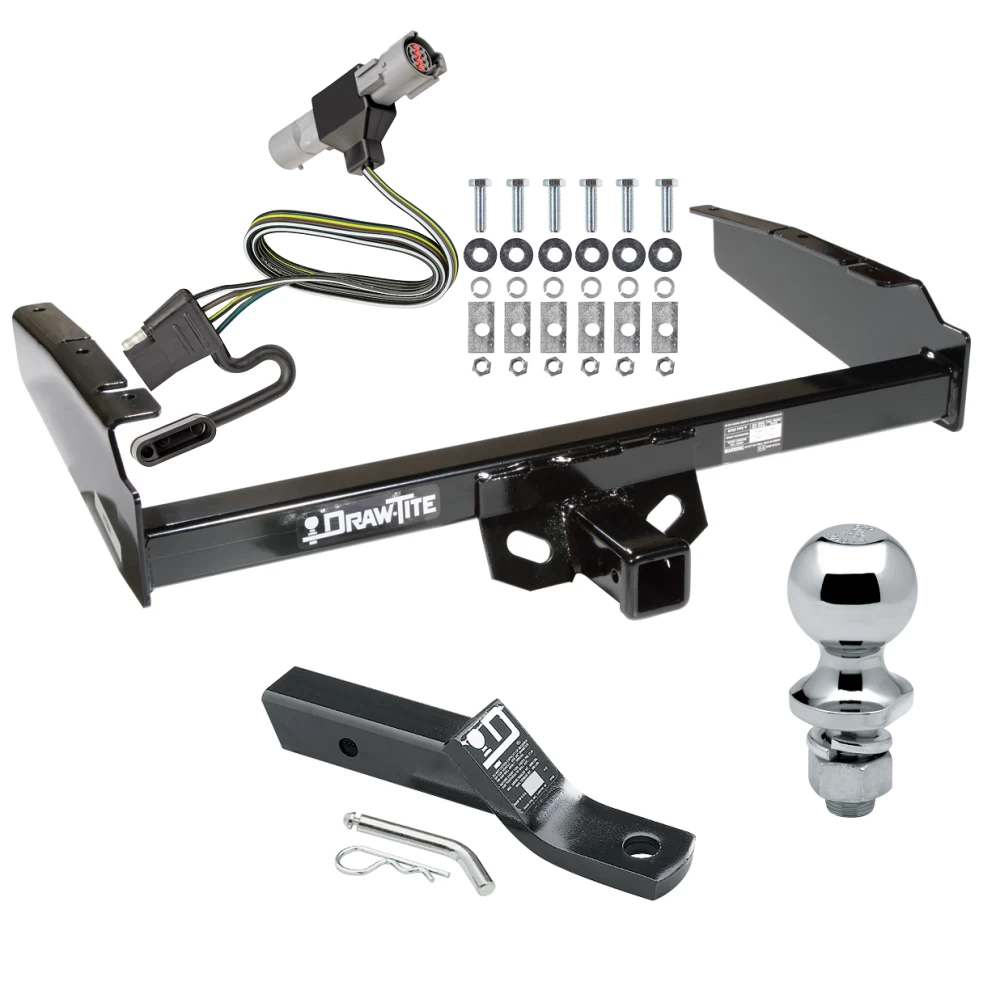

Trailer Tow Hitch For 87‑96 Ford F‑150 F‑250 F‑250 97 F‑250 F‑350 HD Complete Package w/ Wiring and 1‑7/8" Ball
Model: 41004 118316 23 63816Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1987 - 1993 Ford, F-150, All Styles
1994 - 1996 Ford, F-150, All Styles
1987 - 1993 Ford, F-250, All Styles
1994 - 1996 Ford, F-250, All Styles
1997 Ford, F-250, Heavy Duty
1987 - 1993 Ford, F-350, All Styles
1994 - 1996 Ford, F-350, All Styles
1997 Ford, F-350, Heavy Duty
| Part Number | 41004 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118316 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 87 88 89 90 91 92 93 94 95 96 97 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997
$245 80 $374.43 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$374.43 $245 80
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41004 118316 23 63816
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1987 - 1993 Ford, F-150, All Styles
1994 - 1996 Ford, F-150, All Styles
1987 - 1993 Ford, F-250, All Styles
1994 - 1996 Ford, F-250, All Styles
1997 Ford, F-250, Heavy Duty
1987 - 1993 Ford, F-350, All Styles
1994 - 1996 Ford, F-350, All Styles
1997 Ford, F-350, Heavy Duty
| Part Number | 41004 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118316 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 87 88 89 90 91 92 93 94 95 96 97 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997
Get Expert Help
Trailer Tow Hitch For 87-96 Ford F-150 F-250 F-250 97 F-250 F-350 HD Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Ford Pickups (Except Ranger)
Part Numbers:
- 41004
- 82563
- 44026
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Remove any lumps of undercoating or dirt from the frame rails to ensure a clean surface for installation.
-
Position the Receiver:
- Place the receiver on the vehicle frame as shown in the diagram.
- Ensure the receiver is centered.
-
Drill Holes:
- Use the receiver as a template to mark and drill three (3) 1/2" holes into the bottom of each frame rail.
-
Install Fasteners:
- Position the blocks inside the vehicle frame.
- Secure the hitch using the provided hardware:
- Hex bolts
- Flat washers
- Lock washers
- Nuts
- Tighten all fasteners to 75 lb-ft (102 N*m).
-
Adjust Spare Tire (if applicable):
- For vehicles equipped with a 16" spare tire, adjust the spare tire cradle to ensure proper stowage under the vehicle after hitch installation.
Hardware List:
- (6) Hex Bolts, 1/2"-13 x 1-3/4" GR5
- (6) Spacer Blocks, 7/16" x 1" x 2"
- (6) Flat Washers
- (6) Lock Washers
- (6) Hex Nuts
Notes:
- Due to vehicle variation, it may be necessary to adjust the step bumper upward.
- Hitch requires a 5/8" pin and clip if a stabilizing pin is not installed.
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks (Except Ranger)
Part Numbers:
- 41004
- 82563
- 44026
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Remove any lumps of undercoating or dirt from the frame rails to ensure a clean surface for installation.
-
Position the Receiver:
- Place the receiver on the vehicle frame as shown in the diagram.
- Ensure the receiver is centered.
-
Drill Holes:
- Use the receiver as a template to mark and drill three (3) 1/2" holes into the bottom of each frame rail.
-
Install Fasteners:
- Position the blocks inside the vehicle frame.
- Secure the hitch using the provided hardware:
- Hex bolts
- Flat washers
- Lock washers
- Nuts
- Tighten all fasteners to 75 lb-ft (102 N*m).
-
Adjust Spare Tire (if applicable):
- For vehicles equipped with a 16" spare tire, adjust the spare tire cradle to ensure proper stowage under the vehicle after hitch installation.
Hardware List:
- (6) Hex Bolts, 1/2"-13 x 1-3/4" GR5
- (6) Spacer Blocks, 7/16" x 1" x 2"
- (6) Flat Washers
- (6) Lock Washers
- (6) Hex Nuts
Notes:
- Due to vehicle variation, it may be necessary to adjust the step bumper upward.
- Hitch requires a 5/8" pin and clip if a stabilizing pin is not installed.
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118316
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied).
Step-by-Step Instructions:
-
Locate the vehicle’s taillight wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the harness connectors.
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-connector adapter between the harness connectors and lock into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or other mounting point using electrical tape or tie straps.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118316
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Taillight Wiring Harness:
- The taillight wiring harness is located along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the Harness Connectors:
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-Connector Adapter:
- Insert the T-connector adapter between the harness connectors and lock it into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Route the T-Connector Harness:
- Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Test the installation with a test light or trailer to ensure all connections function properly.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-connector adapter
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation.
Related Products
