Trailer Tow Hitch For 80‑97 Ford F‑100 F‑150 F‑250 F‑350 Receiver w/ 1‑7/8" and 2" Ball
Model: 41004 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball

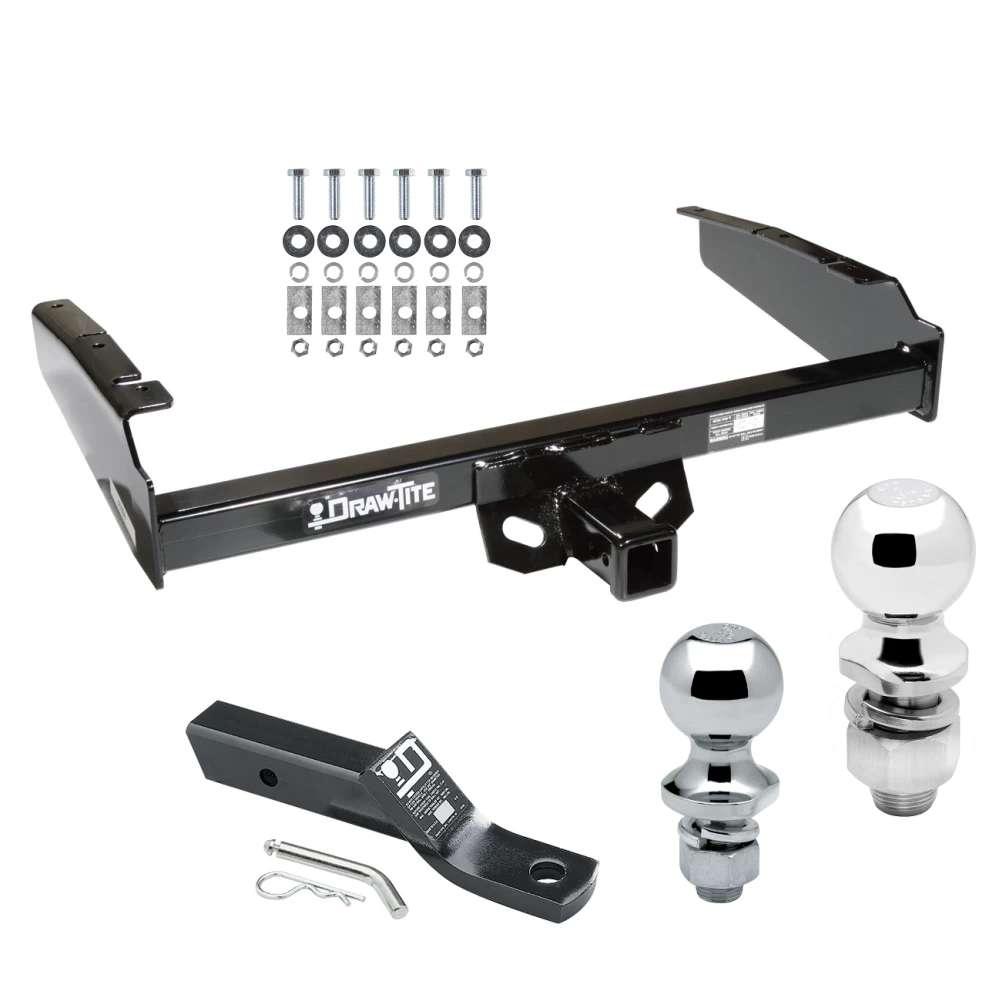

Installation Hardware
Installation Instructions
Fits The Following Vehicles
1980 - 1983 Ford, F-100, Except w/Custom Fascia
1980 - 1986 Ford, F-150, Except w/Custom Fascia
1987 - 1996 Ford, F-150, All Styles
1980 - 1986 Ford, F-250, Except w/Custom Fascia
1987 - 1996 Ford, F-250, All Styles
1980 - 1986 Ford, F-350, Except w/Custom Fascia
1987 - 1996 Ford, F-350, All Styles
1997 Ford, F-250, Heavy Duty
1997 Ford, F-350, Heavy Duty
Trailer Hitch Specs:
| Part Number | 41004 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997
$225 14 $350.07 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$350.07 $225 14
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $56.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41004 23 63845 63816
- Includes: Class 4 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1980 - 1983 Ford, F-100, Except w/Custom Fascia
1980 - 1986 Ford, F-150, Except w/Custom Fascia
1987 - 1996 Ford, F-150, All Styles
1980 - 1986 Ford, F-250, Except w/Custom Fascia
1987 - 1996 Ford, F-250, All Styles
1980 - 1986 Ford, F-350, Except w/Custom Fascia
1987 - 1996 Ford, F-350, All Styles
1997 Ford, F-250, Heavy Duty
1997 Ford, F-350, Heavy Duty
Trailer Hitch Specs:
| Part Number | 41004 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997
Get Expert Help
Trailer Tow Hitch For 80-97 Ford F-100 F-150 F-250 F-350 Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Ford Pickups (Except Ranger)
Part Numbers:
- 41004
- 82563
- 44026
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Remove any lumps of undercoating or dirt from the frame rails to ensure a clean surface for installation.
-
Position the Receiver:
- Place the receiver on the vehicle frame as shown in the diagram.
- Ensure the receiver is centered.
-
Drill Holes:
- Use the receiver as a template to mark and drill three (3) 1/2" holes into the bottom of each frame rail.
-
Install Fasteners:
- Position the blocks inside the vehicle frame.
- Secure the hitch using the provided hardware:
- Hex bolts
- Flat washers
- Lock washers
- Nuts
- Tighten all fasteners to 75 lb-ft (102 N*m).
-
Adjust Spare Tire (if applicable):
- For vehicles equipped with a 16" spare tire, adjust the spare tire cradle to ensure proper stowage under the vehicle after hitch installation.
Hardware List:
- (6) Hex Bolts, 1/2"-13 x 1-3/4" GR5
- (6) Spacer Blocks, 7/16" x 1" x 2"
- (6) Flat Washers
- (6) Lock Washers
- (6) Hex Nuts
Notes:
- Due to vehicle variation, it may be necessary to adjust the step bumper upward.
- Hitch requires a 5/8" pin and clip if a stabilizing pin is not installed.
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks (Except Ranger)
Part Numbers:
- 41004
- 82563
- 44026
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Remove any lumps of undercoating or dirt from the frame rails to ensure a clean surface for installation.
-
Position the Receiver:
- Place the receiver on the vehicle frame as shown in the diagram.
- Ensure the receiver is centered.
-
Drill Holes:
- Use the receiver as a template to mark and drill three (3) 1/2" holes into the bottom of each frame rail.
-
Install Fasteners:
- Position the blocks inside the vehicle frame.
- Secure the hitch using the provided hardware:
- Hex bolts
- Flat washers
- Lock washers
- Nuts
- Tighten all fasteners to 75 lb-ft (102 N*m).
-
Adjust Spare Tire (if applicable):
- For vehicles equipped with a 16" spare tire, adjust the spare tire cradle to ensure proper stowage under the vehicle after hitch installation.
Hardware List:
- (6) Hex Bolts, 1/2"-13 x 1-3/4" GR5
- (6) Spacer Blocks, 7/16" x 1" x 2"
- (6) Flat Washers
- (6) Lock Washers
- (6) Hex Nuts
Notes:
- Due to vehicle variation, it may be necessary to adjust the step bumper upward.
- Hitch requires a 5/8" pin and clip if a stabilizing pin is not installed.
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
