Product Details
- Brand: Draw-Tite
- Model: 41121 20252 23 63845 580407 7010

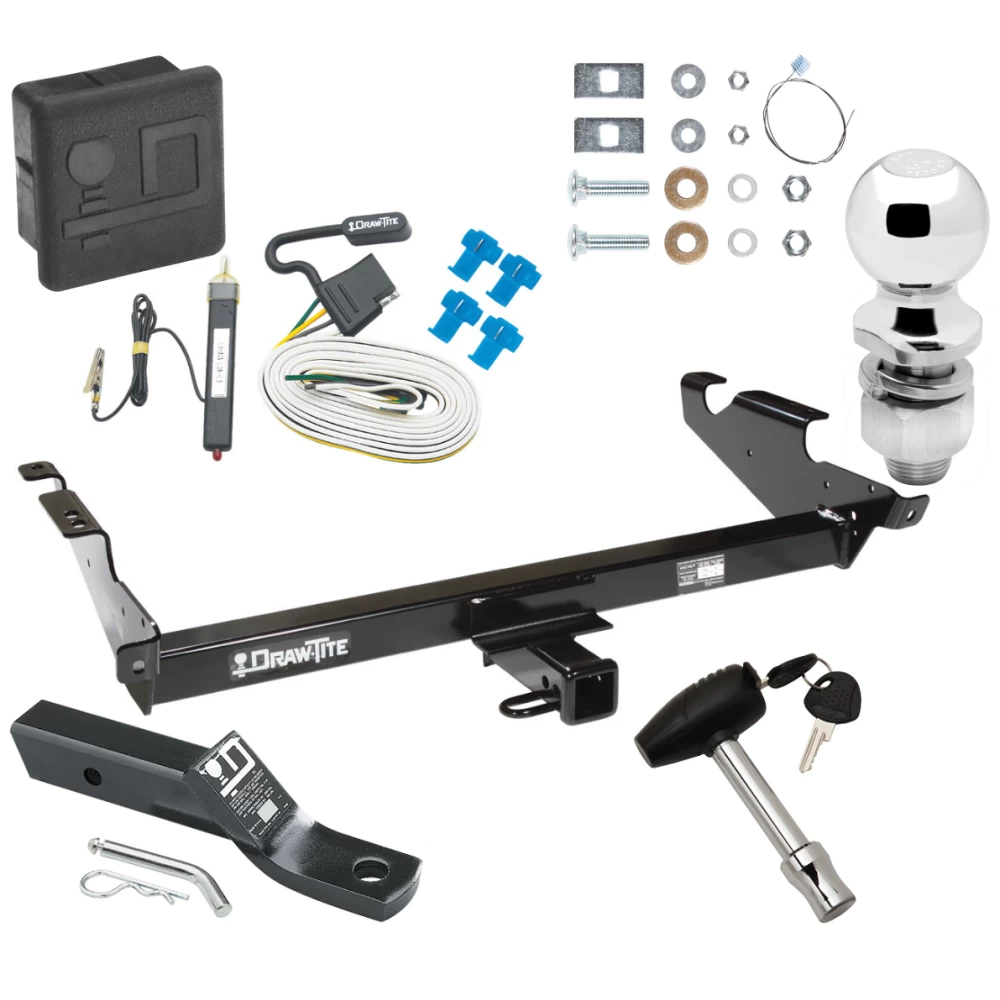

- Includes: Class 3 Trailer Tow Hitch, Wiring Connector, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 78-86 Chevy GMC G10 G20 G30 G1500 G2500 G3500 96 Classic Sport Vandura Rally Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chevrolet & GMC Vans
Part Numbers:
- 41121
- 87481
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- 9/16" Wrench and Socket
- 3/4" Wrench and Socket
Installation Time:
- Estimated: Not specified
Step-by-Step Instructions:
-
Remove Bumper Support Brackets:
- Remove the two lower bumper support brackets (one per side).
- Save the bolts and washers.
- Return the brackets to the vehicle owner.
-
Install Side Brackets:
- Place the left and right side brackets against the bottom of the vehicle frame.
- Attach with four (4) 1/2" bolts and washers removed in Step 1.
- Leave the bolts loose for now.
-
Install Bumper Bolts:
- Install two (2) 3/8" bumper bolts (removed in Step 1), along with two (2) 3/8" serrated washers and two (2) 3/8" lock nuts (provided in the parts package).
- Leave the lock nuts loose at this time.
Warning:
- Two 3/8" lock nuts must be used with two 3/8" bumper bolts to ensure the receiver does not loosen or separate from the vehicle.
-
Fishwire Carriage Bolts:
- Screw the pull wire onto a 1/2" carriage bolt.
- Feed the pull wire through a bolt plate and the large hole in the outboard side of the frame.
- Pull it out through the bottom hole of the frame.
- Repeat for the other side.
- Install two (2) 1/2" serrated washers, lock washers, and nuts on the bolts.
- Leave the nuts loose at this time.
-
Tighten Bolts and Nuts:
- Tighten bolts and nuts in the following order to ensure proper alignment:
- Torque the two (2) 3/8" lock nuts on the bumper to 30 ft-lb.
- Torque the 1/2" nuts and bolts to 75 ft-lb.
- Tighten bolts and nuts in the following order to ensure proper alignment:
Torque Specifications:
- 3/8" lock nuts: 30 ft-lb
- 1/2" nuts and bolts: 75 ft-lb
Hardware List:
- (4) 1/2" Carriage Bolts
- (4) 1/2" Serrated Washers
- (4) 1/2" Nuts
- (4) Bolt Plates
- (2) 3/8" Bumper Bolts
- (2) 3/8" Serrated Washers
- (2) 3/8" Lock Nuts
- (1) 1/2" Pull Wire
Safety Notes:
- Do not lubricate threads, as bolt failure may occur due to over-tightening.
- Do not drill or weld to this hitch.
- Regularly check the hitch to ensure all fasteners are tight and properly installed.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- Use only bolts, lock nuts, and washers supplied or approved by Towing Products for installation.
- This product complies with VESC regulation V-5 and is certified for safety specifications in New York State.
Installation Instructions for Vans
Part Numbers:
- 41121
- 87481
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- 9/16" Wrench and Socket
- 3/4" Wrench and Socket
Installation Time:
- Estimated: Not specified
Step-by-Step Instructions:
-
Remove Bumper Support Brackets:
- Remove the two lower bumper support brackets (one per side).
- Save the bolts and washers.
- Return the brackets to the vehicle owner.
-
Install Side Brackets:
- Place the left and right side brackets against the bottom of the vehicle frame.
- Attach with four (4) 1/2" bolts and washers removed in Step 1.
- Leave the bolts loose for now.
-
Install Bumper Bolts:
- Install two (2) 3/8" bumper bolts (removed in Step 1), along with two (2) 3/8" serrated washers and two (2) 3/8" lock nuts (provided in the parts package).
- Leave the lock nuts loose at this time.
Warning:
- Two 3/8" lock nuts must be used with two 3/8" bumper bolts to ensure the receiver does not loosen or separate from the vehicle.
-
Fishwire Carriage Bolts:
- Screw the pull wire onto a 1/2" carriage bolt.
- Feed the pull wire through a bolt plate and the large hole in the outboard side of the frame.
- Pull it out through the bottom hole of the frame.
- Repeat for the other side.
- Install two (2) 1/2" serrated washers, lock washers, and nuts on the bolts.
- Leave the nuts loose at this time.
-
Tighten Bolts and Nuts:
- Tighten bolts and nuts in the following order to ensure proper alignment:
- Torque the two (2) 3/8" lock nuts on the bumper to 30 ft-lb.
- Torque the 1/2" nuts and bolts to 75 ft-lb.
- Tighten bolts and nuts in the following order to ensure proper alignment:
Torque Specifications:
- 3/8" lock nuts: 30 ft-lb
- 1/2" nuts and bolts: 75 ft-lb
Hardware List:
- (4) 1/2" Carriage Bolts
- (4) 1/2" Serrated Washers
- (4) 1/2" Nuts
- (4) Bolt Plates
- (2) 3/8" Bumper Bolts
- (2) 3/8" Serrated Washers
- (2) 3/8" Lock Nuts
- (1) 1/2" Pull Wire
Safety Notes:
- Do not lubricate threads, as bolt failure may occur due to over-tightening.
- Do not drill or weld to this hitch.
- Regularly check the hitch to ensure all fasteners are tight and properly installed.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- Use only bolts, lock nuts, and washers supplied or approved by Towing Products for installation.
- This product complies with VESC regulation V-5 and is certified for safety specifications in New York State.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Trailer Light Wiring Kit
Part Number:
- 20252
Tools Required:
- Hot Air Gun or Appropriate Heat Source
- Wire Crimpers
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Taillight Wiring Harness
- Access the vehicle's taillight wiring harness.
- Using the provided instructions, identify the appropriate wires for connection:
- Green Wire: Right Turn & Stop
- Yellow Wire: Left Turn & Stop
- Brown Wire: Taillights
- White Wire: Ground
Step 2: Make the Electrical Connections
-
Match the color-coded wires from the wiring kit to the corresponding vehicle wires.
- Use a circuit tester to verify each wire's function before connecting.
- CAUTION: Test one wire at a time to prevent damage to electronic components.
-
Connect the wires using the provided insulated butt connectors:
- Strip the ends of each wire and seat them properly in the connector.
- Use a crimping tool designed for insulated splices to secure the connections.
-
Heat the connectors:
- Apply heat directly to the center of each splice using a hot air gun.
- Work from the center outward until the tubing recovers and adhesive flows.
- Allow the connections to cool before inspecting for integrity.
Step 3: Ground the System
- Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
- Do not drill into the vehicle floor or bed.
- Clean the area to remove dirt, rust, or undercoating.
- Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.
Step 4: Verify the Installation
- Test all connections using a circuit tester or trailer:
- Verify the functionality of taillights, turn signals, and brake lights.
- Ensure all connections are complete and secure.
- If issues are identified, double-check the wiring and connections for errors.
Step 5: Store the 4-Flat Connector
- Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.
Warnings and Notes:
- WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
- NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
- NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.
Maintenance:
- Inspect the wiring harness periodically for damage, corrosion, or loose connections.
- Reapply heat to connectors if the adhesive seal weakens.
Specifications:
- Maximum Load:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- Recommended Grounding Hole Size: 3/32 inches
Installation Instructions for Trailer Light Wiring Kit
Part Number:
- 20252
Tools Required:
- Hot Air Gun or Appropriate Heat Source
- Wire Crimpers
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Taillight Wiring Harness
- Access the vehicle's taillight wiring harness.
- Using the provided instructions, identify the appropriate wires for connection:
- Green Wire: Right Turn & Stop
- Yellow Wire: Left Turn & Stop
- Brown Wire: Taillights
- White Wire: Ground
Step 2: Make the Electrical Connections
-
Match the color-coded wires from the wiring kit to the corresponding vehicle wires.
- Use a circuit tester to verify each wire's function before connecting.
- CAUTION: Test one wire at a time to prevent damage to electronic components.
-
Connect the wires using the provided insulated butt connectors:
- Strip the ends of each wire and seat them properly in the connector.
- Use a crimping tool designed for insulated splices to secure the connections.
-
Heat the connectors:
- Apply heat directly to the center of each splice using a hot air gun.
- Work from the center outward until the tubing recovers and adhesive flows.
- Allow the connections to cool before inspecting for integrity.
Step 3: Ground the System
- Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
- Do not drill into the vehicle floor or bed.
- Clean the area to remove dirt, rust, or undercoating.
- Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.
Step 4: Verify the Installation
- Test all connections using a circuit tester or trailer:
- Verify the functionality of taillights, turn signals, and brake lights.
- Ensure all connections are complete and secure.
- If issues are identified, double-check the wiring and connections for errors.
Step 5: Store the 4-Flat Connector
- Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.
Warnings and Notes:
- WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
- NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
- NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.
Maintenance:
- Inspect the wiring harness periodically for damage, corrosion, or loose connections.
- Reapply heat to connectors if the adhesive seal weakens.
Specifications:
- Maximum Load:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- Recommended Grounding Hole Size: 3/32 inches
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
20252 Rev. A 2-6-07
