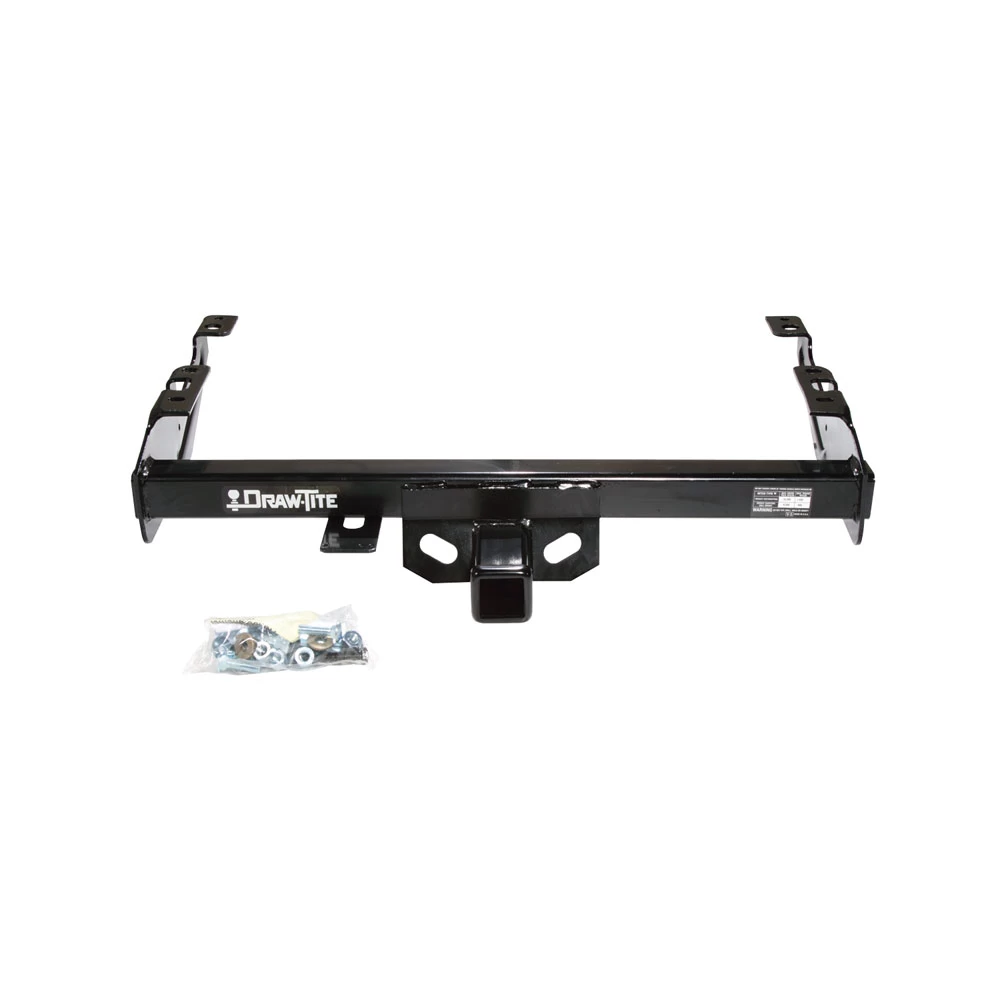

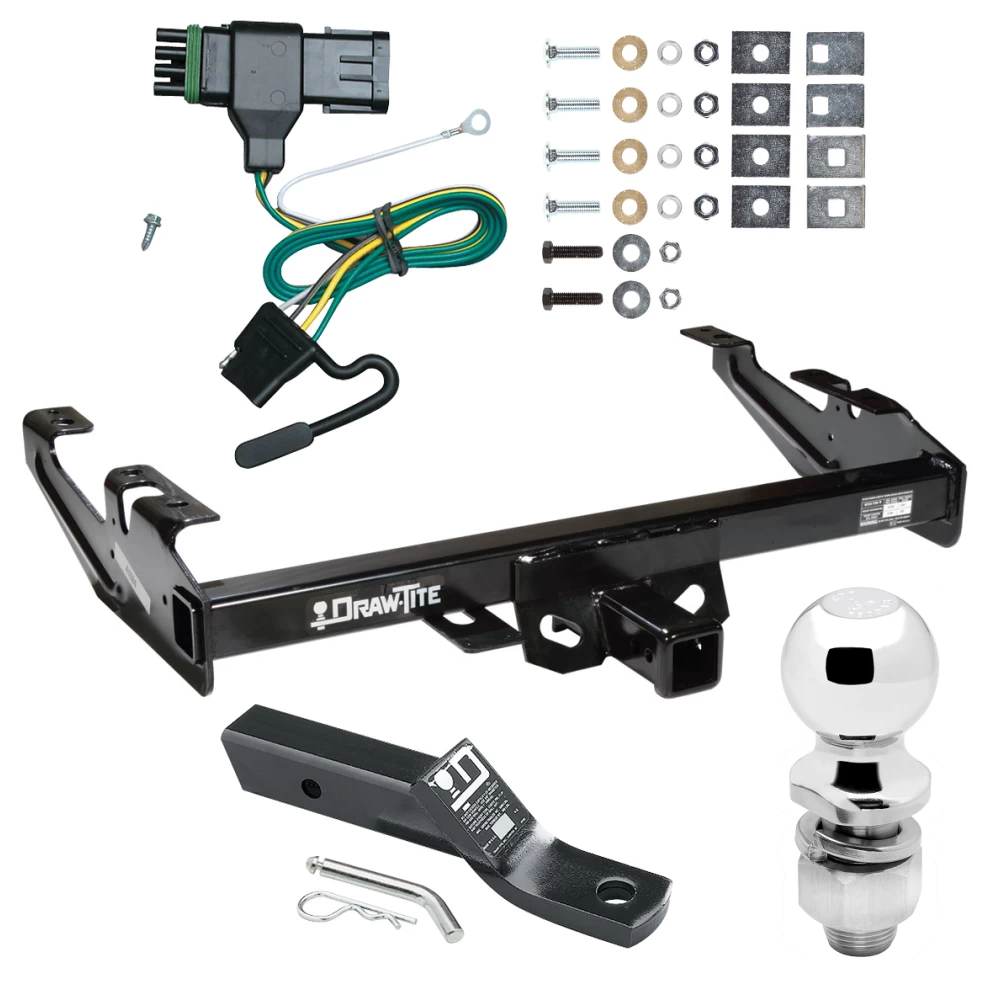

Trailer Tow Hitch For 88‑00 Chevy GMC C/K C1500 C2500 C3500 K1500 K2500 K3500 Complete Package w/ Wiring and 2" Ball
Model: 41524 118315 23 63845Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, Regular & Extended Cabs
1992 - 2000 Chevrolet, C2500, Crew Cab
1988 - 2000 Chevrolet, C3500, Regular & Extended Cabs
1992 - 2000 Chevrolet, C3500, Crew Cab
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, Regular & Extended Cabs
1992 - 2000 Chevrolet, K2500, Crew Cab
1988 - 2000 Chevrolet, K3500, Regular & Extended Cabs
1992 - 2000 Chevrolet, K3500, Crew Cab
1988 - 1999 GMC, C1500, All Styles
1988 - 2000 GMC, C2500, All Styles
1988 - 2000 GMC, C3500, All Styles
1988 - 1999 GMC, K1500, All Styles
1988 - 2000 GMC, K2500, All Styles
1988 - 2000 GMC, K3500, All Styles
Trailer Hitch Specs:
| Part Number | 41524 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118315 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$311 44 $476.15 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$476.15 $311 44
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $77.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41524 118315 23 63845
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball

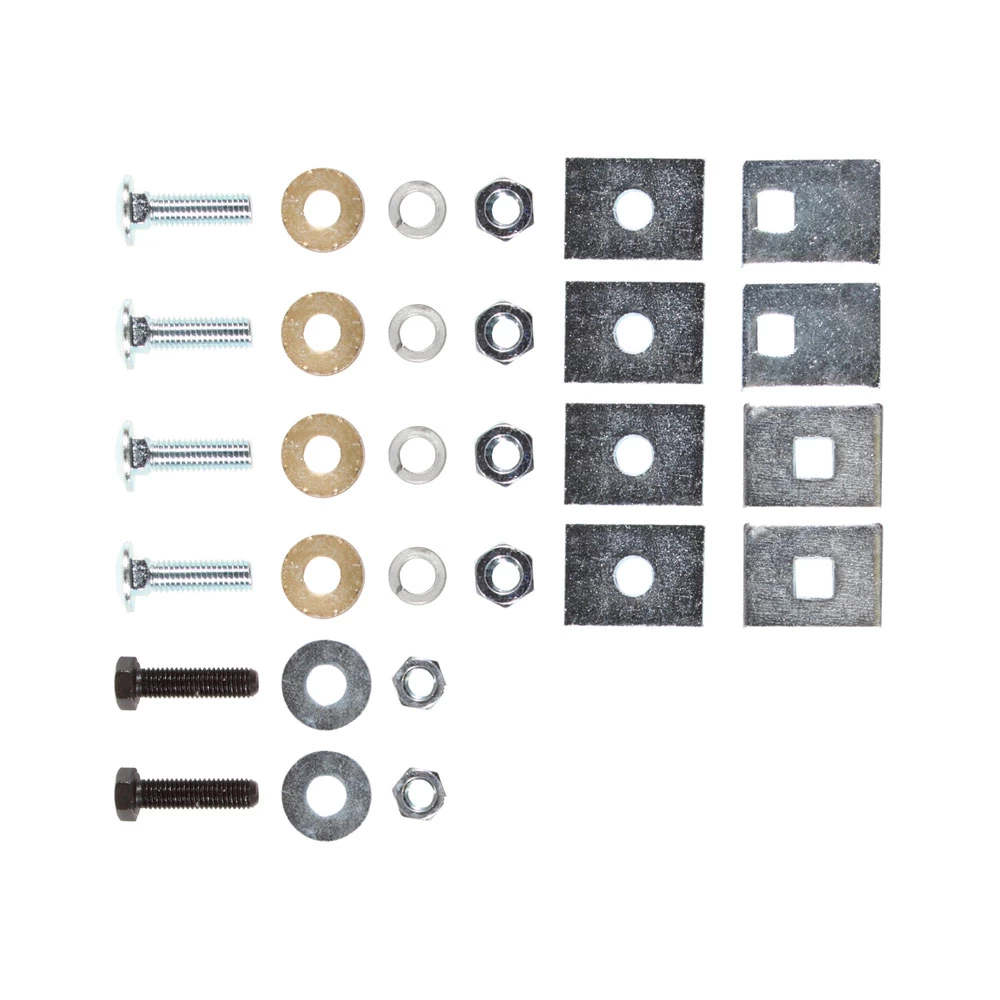

Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, Regular & Extended Cabs
1992 - 2000 Chevrolet, C2500, Crew Cab
1988 - 2000 Chevrolet, C3500, Regular & Extended Cabs
1992 - 2000 Chevrolet, C3500, Crew Cab
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, Regular & Extended Cabs
1992 - 2000 Chevrolet, K2500, Crew Cab
1988 - 2000 Chevrolet, K3500, Regular & Extended Cabs
1992 - 2000 Chevrolet, K3500, Crew Cab
1988 - 1999 GMC, C1500, All Styles
1988 - 2000 GMC, C2500, All Styles
1988 - 2000 GMC, C3500, All Styles
1988 - 1999 GMC, K1500, All Styles
1988 - 2000 GMC, K2500, All Styles
1988 - 2000 GMC, K3500, All Styles
Trailer Hitch Specs:
| Part Number | 41524 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118315 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 88-00 Chevy GMC C/K C1500 C2500 C3500 K1500 K2500 K3500 Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Chevrolet/GMC Full-Size Pickups (All Models)
Part Numbers:
- 41524
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 7/8", 13mm, 19mm, 21mm
Step-by-Step Instructions:
-
Lower Vehicle Spare Tire (if present):
- Remove the vehicle's spare tire to provide clearance for hitch installation.
-
Remove Factory Bumper Brackets:
- Remove bumper brackets and ground wire bolt from the driver’s side frame bracket, if applicable.
- Retain these for reinstallation.
-
Position Hitch:
- Position the hitch on the vehicle frame.
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- 1/2"-13 x 1-3/4" GR5 carriage bolts.
- 1/4" x 1-1/2" x 2" blocks (3719, 1540).
- Lock washers and hex nuts.
- Ensure the fasteners are oriented as shown in Figures 1 and 2.
- Secure the hitch using the provided hardware:
-
Drill Forward Holes:
- Drill forward attachment holes through the frame using the hitch as a guide (on 8' bed models).
-
Reinstall Bumper Brackets:
- Reinstall the factory bumper brackets and ground wire bolt removed earlier.
-
Torque Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft.
- Tighten M12 x 1.75 CL10.9 bolts to 75 lb-ft.
-
Check Clearance:
- Ensure there is clearance between the brake lines, axle tailpipe, and stowed spare tire.
- Relocate spare tire if necessary for proper clearance.
-
Raise Spare Tire:
- Reinstall the spare tire and confirm it is securely stowed.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft
- M12 x 1.75 CL10.9 bolts: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Spacer Blocks, 1/4" x 1-1/2" x 2" (3719, 1540)
- (6) Lock Washers, 1/2"
- (6) Hex Nuts, 1/2"-13
- (2) M12 x 1.75 x 45mm CL10.9 Bolts
- (2) Conical Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- On vehicles without a factory bumper, it may be necessary to relocate the license plate mounting bracket.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Full-Size Pickup Trucks (All Models)
Part Numbers:
- 41524
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 7/8", 13mm, 19mm, 21mm
Step-by-Step Instructions:
-
Lower Vehicle Spare Tire (if present):
- Remove the vehicle's spare tire to provide clearance for hitch installation.
-
Remove Factory Bumper Brackets:
- Remove bumper brackets and ground wire bolt from the driver’s side frame bracket, if applicable.
- Retain these for reinstallation.
-
Position Hitch:
- Position the hitch on the vehicle frame.
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- 1/2"-13 x 1-3/4" GR5 carriage bolts.
- 1/4" x 1-1/2" x 2" blocks (3719, 1540).
- Lock washers and hex nuts.
- Ensure the fasteners are oriented as shown in Figures 1 and 2.
- Secure the hitch using the provided hardware:
-
Drill Forward Holes:
- Drill forward attachment holes through the frame using the hitch as a guide (on 8' bed models).
-
Reinstall Bumper Brackets:
- Reinstall the factory bumper brackets and ground wire bolt removed earlier.
-
Torque Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft.
- Tighten M12 x 1.75 CL10.9 bolts to 75 lb-ft.
-
Check Clearance:
- Ensure there is clearance between the brake lines, axle tailpipe, and stowed spare tire.
- Relocate spare tire if necessary for proper clearance.
-
Raise Spare Tire:
- Reinstall the spare tire and confirm it is securely stowed.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft
- M12 x 1.75 CL10.9 bolts: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Spacer Blocks, 1/4" x 1-1/2" x 2" (3719, 1540)
- (6) Lock Washers, 1/2"
- (6) Hex Nuts, 1/2"-13
- (2) M12 x 1.75 x 45mm CL10.9 Bolts
- (2) Conical Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- On vehicles without a factory bumper, it may be necessary to relocate the license plate mounting bracket.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118315
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied).
- Drill with a 3/32" drill bit.
Step-by-Step Instructions:
-
Locate the vehicle’s taillight wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the harness connectors.
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-connector adapter between the harness connectors and lock into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Note: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area.
- Drill a 3/32" hole and secure the white wire with an eyelet using the screw provided.
-
Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or other mounting point using electrical tape or tie straps.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-connector adapter.
- Screw for grounding.
- Eyelet for white wire.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118315
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied)
- Drill with a 3/32" drill bit
Step-by-Step Instructions:
-
Locate the Vehicle’s Taillight Wiring Harness:
- The taillight wiring harness is located along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the Harness Connectors:
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-Connector Adapter:
- Insert the T-connector adapter between the harness connectors and lock it into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Note: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area.
- Drill a 3/32" hole and secure the white wire with an eyelet using the provided screw.
-
Route the T-Connector Harness:
- Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Test the installation with a test light or trailer to ensure all connections function properly.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-connector adapter
- Screw for grounding
- Eyelet for white wire
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation.
Related Products
