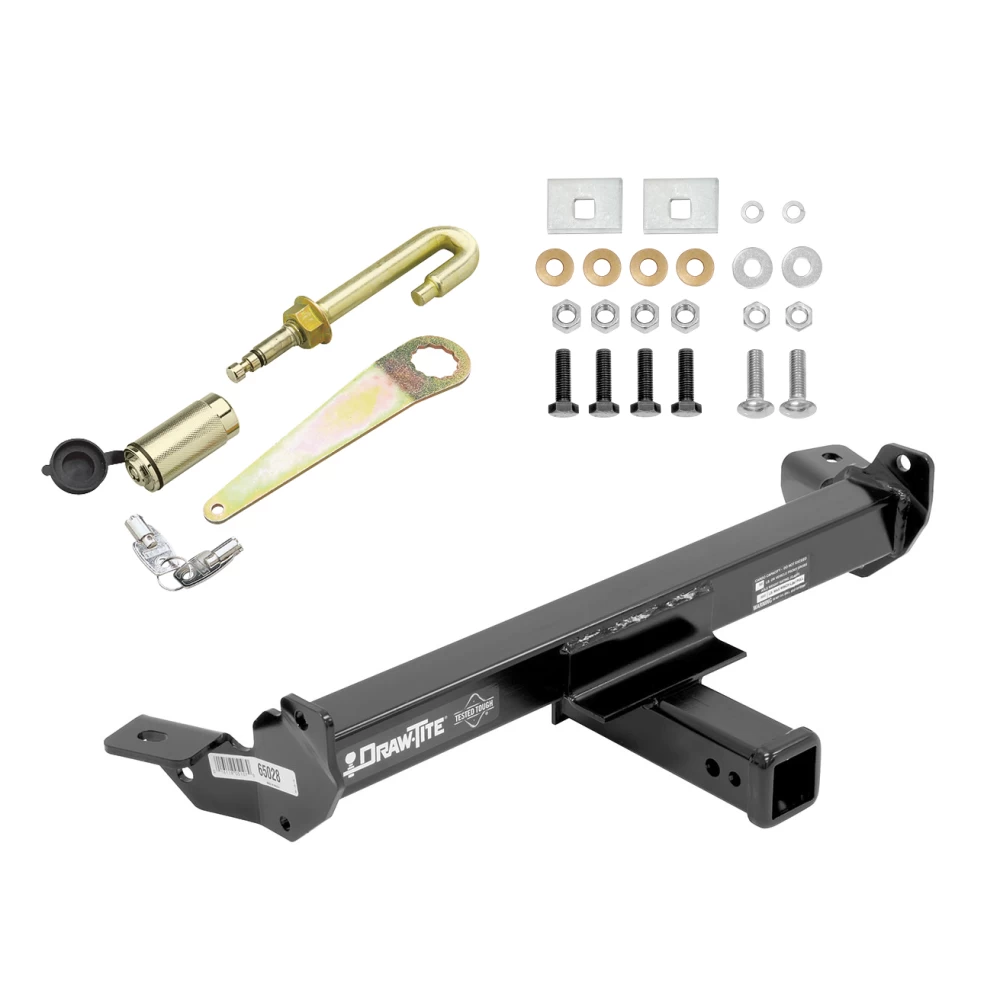

Front Mount Trailer Tow Hitch For 99‑07 Chevy Silverado Suburban GMC Sierra Yukon 1500 2500 3500 w/ J‑Pin Anti‑Rattle Lock

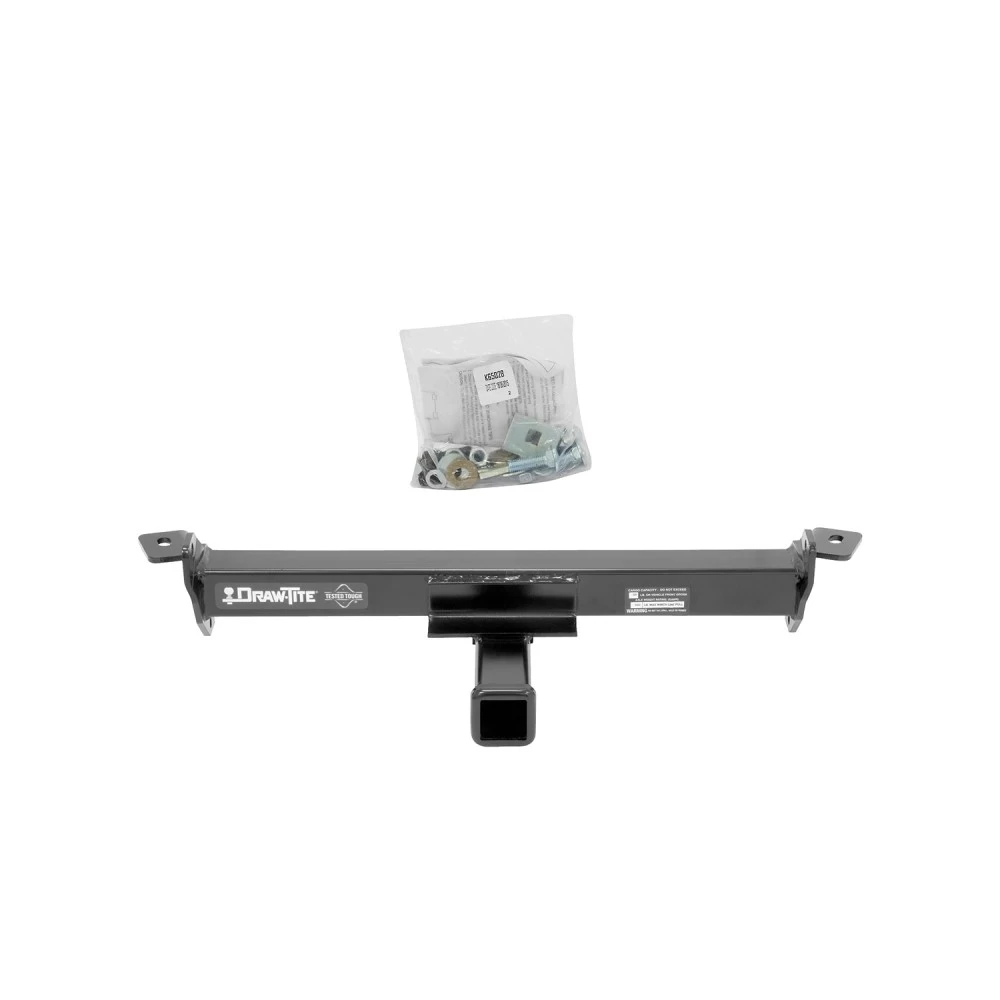

Model: 65028 63201Custom Fit Front Mount Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2004 Chevrolet, Silverado 2500, All Styles
1999 - 2004 GMC, Sierra 2500, All Styles
2000 - 2006 Chevrolet, Suburban 2500, All Styles
2000 - 2006 GMC, Yukon XL 2500, All Styles
2001 - 2007 Chevrolet, Silverado 1500 HD, All Styles
2001 - 2007 Chevrolet, Silverado 2500 HD, All Styles
2001 - 2007 Chevrolet, Silverado 3500, All Styles
2001 - 2007 GMC, Sierra 1500 HD, All Styles
2001 - 2007 GMC, Sierra 2500 HD, All Styles
2001 - 2007 GMC, Sierra 3500, All Styles
Trailer Hitch Specs:
| Part Number | 65028 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
$269 31 $428.01 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$428.01 $269 31
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $67.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 65028 63201
- Includes: Front Mount Hitch Receiver, J-Pin Anti-Rattle Device
Compatibility Chart
Custom Fit Front Mount Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2004 Chevrolet, Silverado 2500, All Styles
1999 - 2004 GMC, Sierra 2500, All Styles
2000 - 2006 Chevrolet, Suburban 2500, All Styles
2000 - 2006 GMC, Yukon XL 2500, All Styles
2001 - 2007 Chevrolet, Silverado 1500 HD, All Styles
2001 - 2007 Chevrolet, Silverado 2500 HD, All Styles
2001 - 2007 Chevrolet, Silverado 3500, All Styles
2001 - 2007 GMC, Sierra 1500 HD, All Styles
2001 - 2007 GMC, Sierra 2500 HD, All Styles
2001 - 2007 GMC, Sierra 3500, All Styles
Trailer Hitch Specs:
| Part Number | 65028 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Front Mount Trailer Tow Hitch For 99-07 Chevy Silverado Suburban GMC Sierra Yukon 1500 2500 3500 w/ J-Pin Anti-Rattle Lock Install Notes
Installation Instructions for Chevrolet Silverado 2500/2500HD/3500, Suburban 2500, GMC Sierra 2500/2500HD/3500, Yukon XL 2500 (2WD & 4WD)
(Vehicles with Amber Turn Signals)
Part Numbers:
- 65028
Tools Required:
- 3/4" Wrench
- 7/8" Wrench
- 18mm Wrench
- Drill with 9/16" Drill Bit
- Torque Wrench

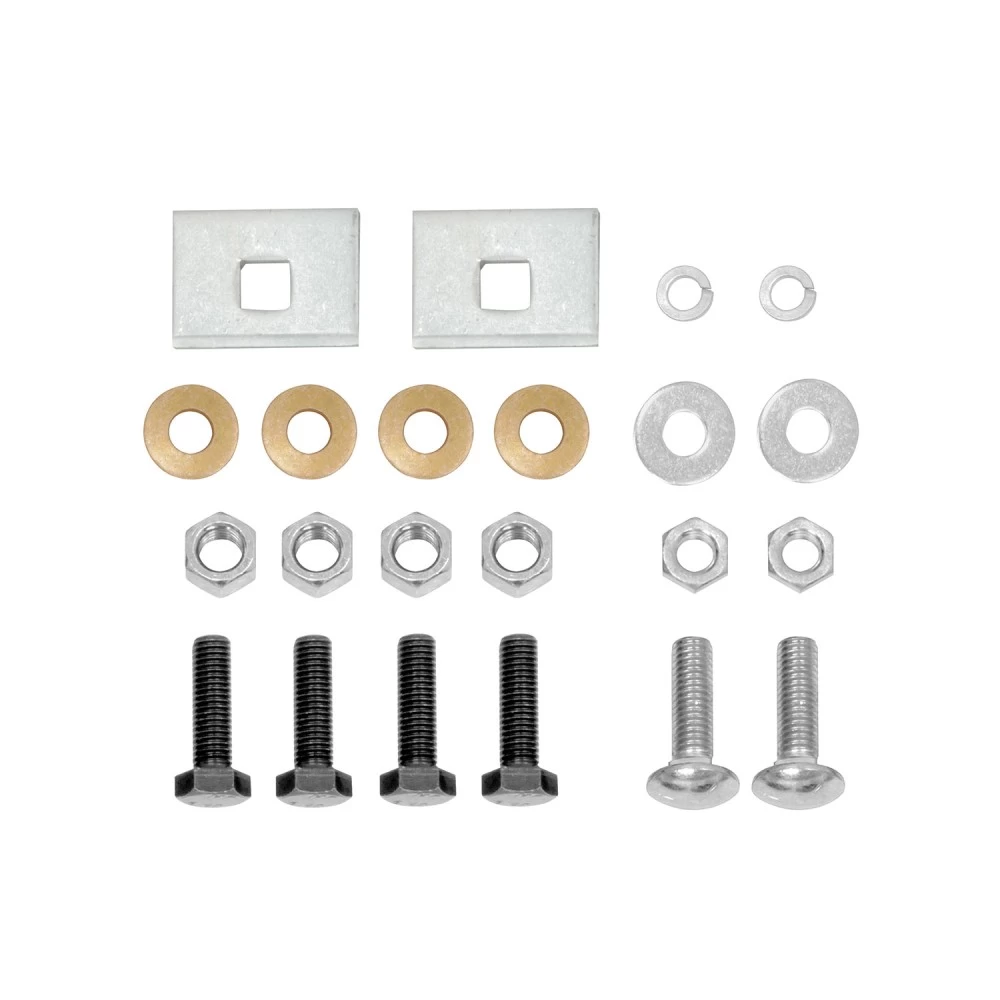

Parts List:
- (2) 1/2"-13 x 1-3/4" Carriage Bolts
- (2) 1/2"-13 Hex Nuts
- (4) 1/2" Conical Washers
- (2) 1/2" Flat Washers
- (2) M12 x 1.75 x 45 Hex Bolts
- (4) M12 Hex Nuts
- (2) 2" x 1.5" x 1/4" Spacers
Step-by-Step Instructions:
-
Remove Tow Hooks (If Present):
- Remove the tow hook fasteners from inside the frame and bottom of the frame.
- Return the tow hooks and fasteners to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the existing holes in the frame.
-
Install Fasteners:
- Install the hitch using the supplied M12 hex bolts, hex nuts, and conical washers.
- If necessary, use 1/2" flat washers as spacers between the hitch and frame rails to ensure proper alignment.
-
Enlarge Holes (If Required):
- Due to variations in tow hook mounting holes, it may be necessary to enlarge the 1/2" holes in the hitch to 9/16" holes.
-
Optional Fascia Trimming:
- On 2002 and later models, the fascia may need to be pushed up 1-1/2" or trimmed for proper clearance.
- Consult the vehicle owner before trimming.
-
Torque Fasteners:
- Torque all M12 CL10.9 fasteners to 75 ft-lbs (102 N-m).
- Torque all 1/2" GR5 fasteners to 75 ft-lbs (102 N-m).
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle frame to prevent water or exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do NOT use a torch to enlarge mounting holes.
- This product complies with SAE J684 and VESC Regulation V-5 standards.
End of Instructions
Installation Instructions for Chevrolet Silverado 2500/2500HD/3500, Suburban 2500, GMC Sierra 2500/2500HD/3500, Yukon XL 2500 (2WD & 4WD)
(Vehicles with Amber Turn Signals)
Part Numbers:
- 65028
Tools Required:
- 3/4" Wrench
- 7/8" Wrench
- 18mm Wrench
- Drill with 9/16" Drill Bit
- Torque Wrench
Parts List:
- (2) 1/2"-13 x 1-3/4" Carriage Bolts
- (2) 1/2"-13 Hex Nuts
- (4) 1/2" Conical Washers
- (2) 1/2" Flat Washers
- (2) M12 x 1.75 x 45 Hex Bolts
- (4) M12 Hex Nuts
- (2) 2" x 1.5" x 1/4" Spacers
Step-by-Step Instructions:
-
Remove Tow Hooks (If Present):
- Remove the tow hook fasteners from inside the frame and bottom of the frame.
- Return the tow hooks and fasteners to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the existing holes in the frame.
-
Install Fasteners:
- Install the hitch using the supplied M12 hex bolts, hex nuts, and conical washers.
- If necessary, use 1/2" flat washers as spacers between the hitch and frame rails to ensure proper alignment.
-
Enlarge Holes (If Required):
- Due to variations in tow hook mounting holes, it may be necessary to enlarge the 1/2" holes in the hitch to 9/16" holes.
-
Optional Fascia Trimming:
- On 2002 and later models, the fascia may need to be pushed up 1-1/2" or trimmed for proper clearance.
- Consult the vehicle owner before trimming.
-
Torque Fasteners:
- Torque all M12 CL10.9 fasteners to 75 ft-lbs (102 N-m).
- Torque all 1/2" GR5 fasteners to 75 ft-lbs (102 N-m).
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle frame to prevent water or exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
