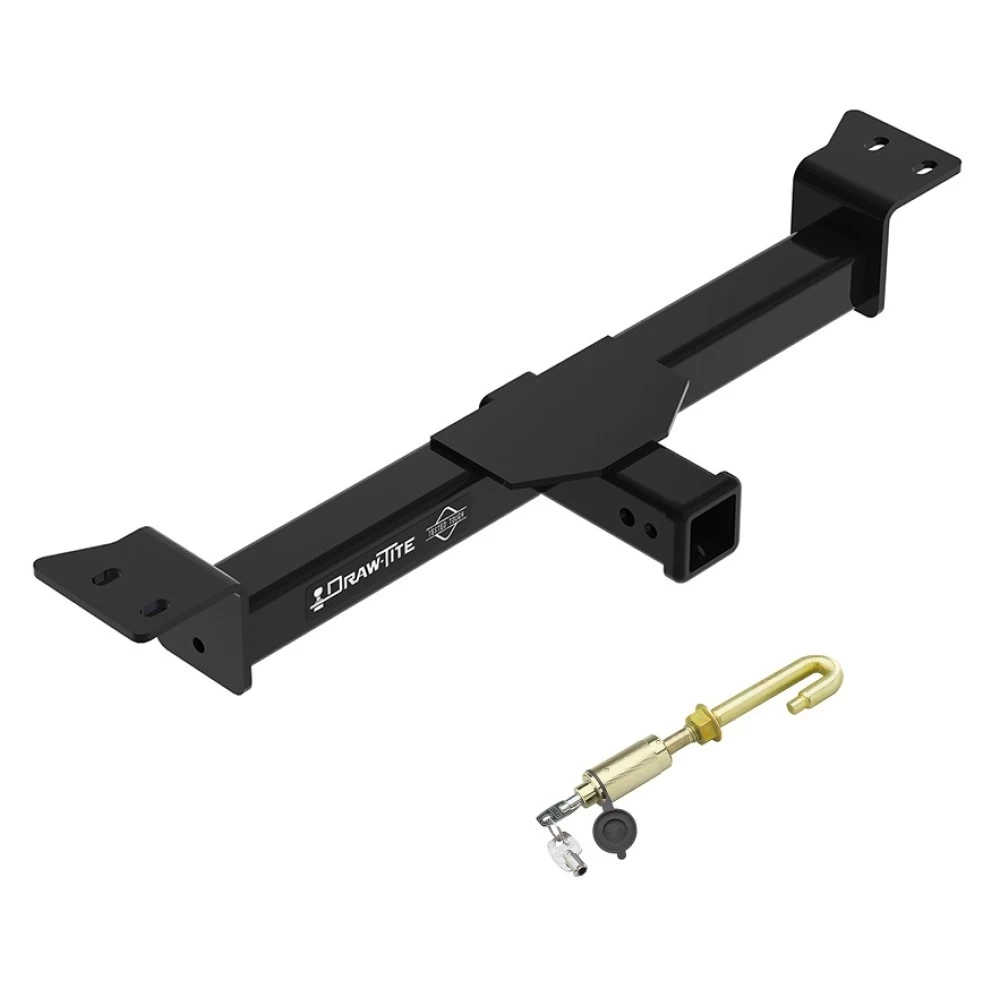

Front Mount Trailer Tow Hitch For 07‑21 Toyota Tundra Sequoia w/ J‑Pin Anti‑Rattle Lock
Model: 65080 63201Custom Fit Front Mount Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2021 Toyota, Tundra, All Styles
2007 - 2021 Toyota, Sequoia, All Styles
Trailer Hitch Specs:
| Part Number | 65080 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
$251 76 $400.67 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$400.67 $251 76
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 65080 63201
- Includes: Front Mount Hitch Receiver, J-Pin Anti-Rattle Device
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Custom Fit Front Mount Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2021 Toyota, Tundra, All Styles
2007 - 2021 Toyota, Sequoia, All Styles
Trailer Hitch Specs:
| Part Number | 65080 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Front Mount Trailer Tow Hitch For 07-21 Toyota Tundra Sequoia w/ J-Pin Anti-Rattle Lock Install Notes
Installation Instructions for Toyota Tundra and Toyota Sequoia (Front Mounted Receiver)
Part Numbers:
- 65080
- CQT65080
Tools Required:
- 17mm Socket
- 18mm Socket
- Ratchet
- Torque Wrench
- Utility Knife (for trimming, if needed)
- 4” Hole Saw (optional for skid shield modification)
- Safety Glasses
Step-by-Step Instructions:
-
Remove Front Tow Hooks:
- Use a 17mm socket to remove the (2) M12 bolts securing the tow hooks on both sides of the vehicle.
- Set the tow hooks aside for reinstallation in later steps.
-
Raise the Hitch into Position:
- Position the hitch on the frame rails where the tow hooks were located.
- Align the hitch holes with the existing mounting holes.
-
Install Fasteners:
- Install the supplied M12 x 1.25 x 55mm bolts with 1/2” conical washers (teeth side toward the hitch).
- Use (2) bolts and washers per side.
-
Torque the Fasteners:
- Using a torque wrench, tighten all M12 hardware to 42 lb-ft (57 N-m).
-
Trim the Skid Shield (If Required):
- If the vehicle is equipped with a front skid shield, remove it.
- Enlarge the 4” hole shown in Figure 2 to allow for oil filter access.
- Reinstall the trimmed skid shield once the hitch is securely mounted.
Hardware List:
- (4) M12 x 1.25 x 55mm Hex Bolts (CL 8.8)
- (4) 1/2” Conical Toothed Washers
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and components remain secure.
- If the hitch is removed, plug all holes in the vehicle frame to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Always wear eye protection when working under the vehicle.
- Do NOT use a torch to cut or enlarge holes in the frame or body panels.
- This product complies with SAE J684 and VESC Regulation V-5 safety standards.
End of Instructions
Installation Instructions for Front Mounted Receiver
Part Numbers:
- 65080
- CQT65080
Tools Required:
- 17mm Socket
- 18mm Socket
- Ratchet
- Torque Wrench
- Utility Knife (for trimming, if needed)
- 4” Hole Saw (optional for skid shield modification)
- Safety Glasses
Step-by-Step Instructions:
-
Remove Front Tow Hooks:
- Use a 17mm socket to remove the (2) M12 bolts securing the tow hooks on both sides of the vehicle.
- Set the tow hooks aside for reinstallation in later steps.
-
Raise the Hitch into Position:
- Position the hitch on the frame rails where the tow hooks were located.
- Align the hitch holes with the existing mounting holes.
-
Install Fasteners:
- Install the supplied M12 x 1.25 x 55mm bolts with 1/2” conical washers (teeth side toward the hitch).
- Use (2) bolts and washers per side.
-
Torque the Fasteners:
- Using a torque wrench, tighten all M12 hardware to 42 lb-ft (57 N-m).
-
Trim the Skid Shield (If Required):
- If the vehicle is equipped with a front skid shield, remove it.
- Enlarge the 4” hole shown in Figure 2 to allow for oil filter access.
- Reinstall the trimmed skid shield once the hitch is securely mounted.
Hardware List:
- (4) M12 x 1.25 x 55mm Hex Bolts (CL 8.8)
- (4) 1/2” Conical Toothed Washers
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and components remain secure.
- If the hitch is removed, plug all holes in the vehicle frame to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Always wear eye protection when working under the vehicle.
- Do NOT use a torch to cut or enlarge holes in the frame or body panels.
- This product complies with SAE J684 and VESC Regulation V-5 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
