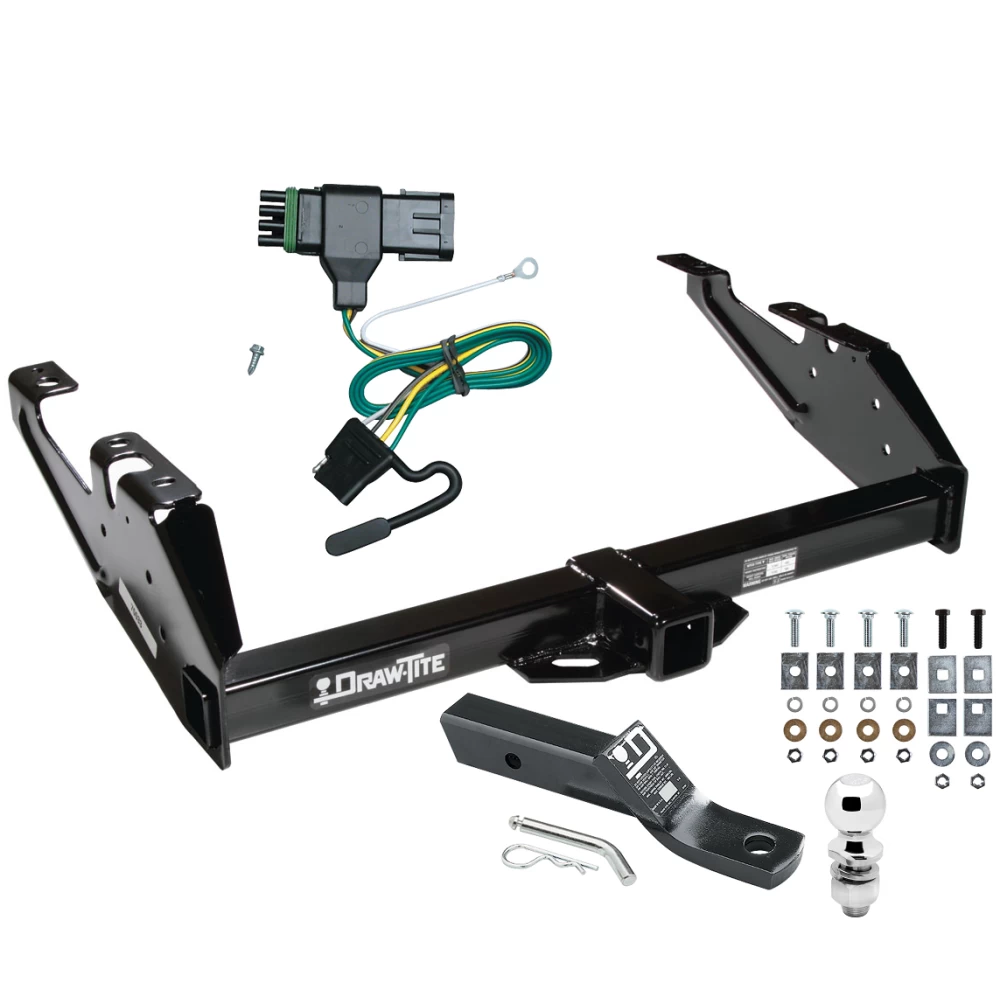

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 88-00 Chevy GMC C/K Pickup Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Chevrolet Full-Size Pickup and GMC Full-Size Pickup (All Models)
Part Numbers:
- 51021
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 7/8", 13mm, 18mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove and discard the M12 hex bolts from the end of each frame rail if present.
-
Remove Ground Wire:
- Detach the ground wire and ground wire bolt from the driver’s side frame rail if present.
-
Position Receiver:
- Lift the receiver into position, aligning the slots in the receiver with the weldnuts in the vehicle frame.
- For vehicles without a bumper, align the slot in the receiver with the fore/aft slot near the end of the frame.
-
Install Fasteners:
- Install the M12 hex bolts (supplied) and conical washers through the receiver into the weldnuts in the vehicle frame.
- Install the remaining fasteners as shown in the instructions.
-
Reinstall Ground Wire:
- Secure the ground wire and ground wire bolt to the hole in the side of the receiver side bracket.
-
Spacer Installation for 6' Beds:
- On 6' bed models with heavy-duty suspension, position the spacer (Item 3) at the forward-most attachment on the driver’s side to ensure clearance of rivets. The spacer must sit flat on the frame.
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft. (102 N*M).
- Tighten all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (2) Hex Bolts: M12 x 1.75 x 45mm
- (2) Hex Nuts: M12 x 1.75
- (4) Hex Bolts: 1/2"-13 x 1.75"
- (4) Lock Washers: 1/2"
- (4) Hex Nuts: 1/2"-13
- (4) Flat Washers: 1/2"
- (4) Conical Washers: 1/2"
- (2) Spacers: 0.188" x 1.50" x 2.00"
- (4) Spacers: 0.250" x 1.50" x 2.00"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the hitch ball are properly tightened.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions when working under a vehicle, and wear eye protection.
- Do not use a torch to cut access or attachment holes.
Specifications:
- Weight Carrying:
- Max Tongue Weight: 500 lb. (227 kg)
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Weight Distributing:
- Max Tongue Weight: 1,000 lb. (454 kg)
- Max Gross Trailer Weight: 10,000 lb. (4,540 kg)
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Installation Instructions for Full-Size Pickup (All Models)
Part Numbers:
- 51021
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 7/8", 13mm, 18mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove and discard the M12 hex bolts from the end of each frame rail if present.
-
Remove Ground Wire:
- Detach the ground wire and ground wire bolt from the driver’s side frame rail if present.
-
Position Receiver:
- Lift the receiver into position, aligning the slots in the receiver with the weldnuts in the vehicle frame.
- For vehicles without a bumper, align the slot in the receiver with the fore/aft slot near the end of the frame.
-
Install Fasteners:
- Install the M12 hex bolts (supplied) and conical washers through the receiver into the weldnuts in the vehicle frame.
- Install the remaining fasteners as shown in the instructions.
-
Reinstall Ground Wire:
- Secure the ground wire and ground wire bolt to the hole in the side of the receiver side bracket.
-
Spacer Installation for 6' Beds:
- On 6' bed models with heavy-duty suspension, position the spacer (Item 3) at the forward-most attachment on the driver’s side to ensure clearance of rivets. The spacer must sit flat on the frame.
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft. (102 N*M).
- Tighten all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (2) Hex Bolts: M12 x 1.75 x 45mm
- (2) Hex Nuts: M12 x 1.75
- (4) Hex Bolts: 1/2"-13 x 1.75"
- (4) Lock Washers: 1/2"
- (4) Hex Nuts: 1/2"-13
- (4) Flat Washers: 1/2"
- (4) Conical Washers: 1/2"
- (2) Spacers: 0.188" x 1.50" x 2.00"
- (4) Spacers: 0.250" x 1.50" x 2.00"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the hitch ball are properly tightened.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions when working under a vehicle, and wear eye protection.
- Do not use a torch to cut access or attachment holes.
Specifications:
- Weight Carrying:
- Max Tongue Weight: 500 lb. (227 kg)
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Weight Distributing:
- Max Tongue Weight: 1,000 lb. (454 kg)
- Max Gross Trailer Weight: 10,000 lb. (4,540 kg)
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118315
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied).
- Drill with a 3/32" drill bit.
Step-by-Step Instructions:
-
Locate the vehicle’s taillight wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the harness connectors.
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-connector adapter between the harness connectors and lock into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Note: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area.
- Drill a 3/32" hole and secure the white wire with an eyelet using the screw provided.
-
Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or other mounting point using electrical tape or tie straps.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-connector adapter.
- Screw for grounding.
- Eyelet for white wire.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118315
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied)
- Drill with a 3/32" drill bit
Step-by-Step Instructions:
-
Locate the Vehicle’s Taillight Wiring Harness:
- The taillight wiring harness is located along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the Harness Connectors:
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-Connector Adapter:
- Insert the T-connector adapter between the harness connectors and lock it into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Note: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area.
- Drill a 3/32" hole and secure the white wire with an eyelet using the provided screw.
-
Route the T-Connector Harness:
- Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Test the installation with a test light or trailer to ensure all connections function properly.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-connector adapter
- Screw for grounding
- Eyelet for white wire
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation.
