Product Details
- Brand: Draw-Tite
- Model: 75034 118311 23 63816

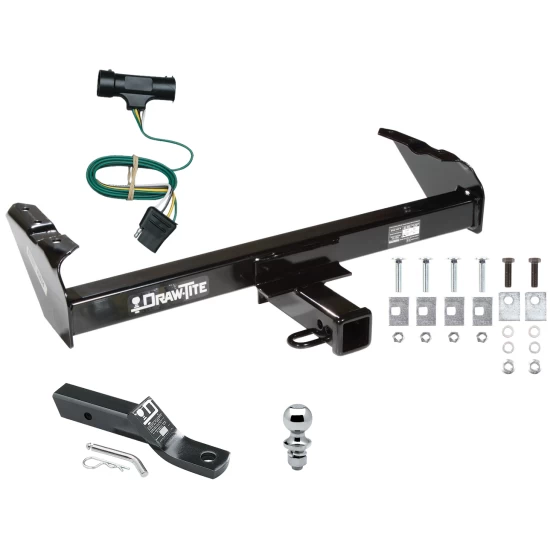

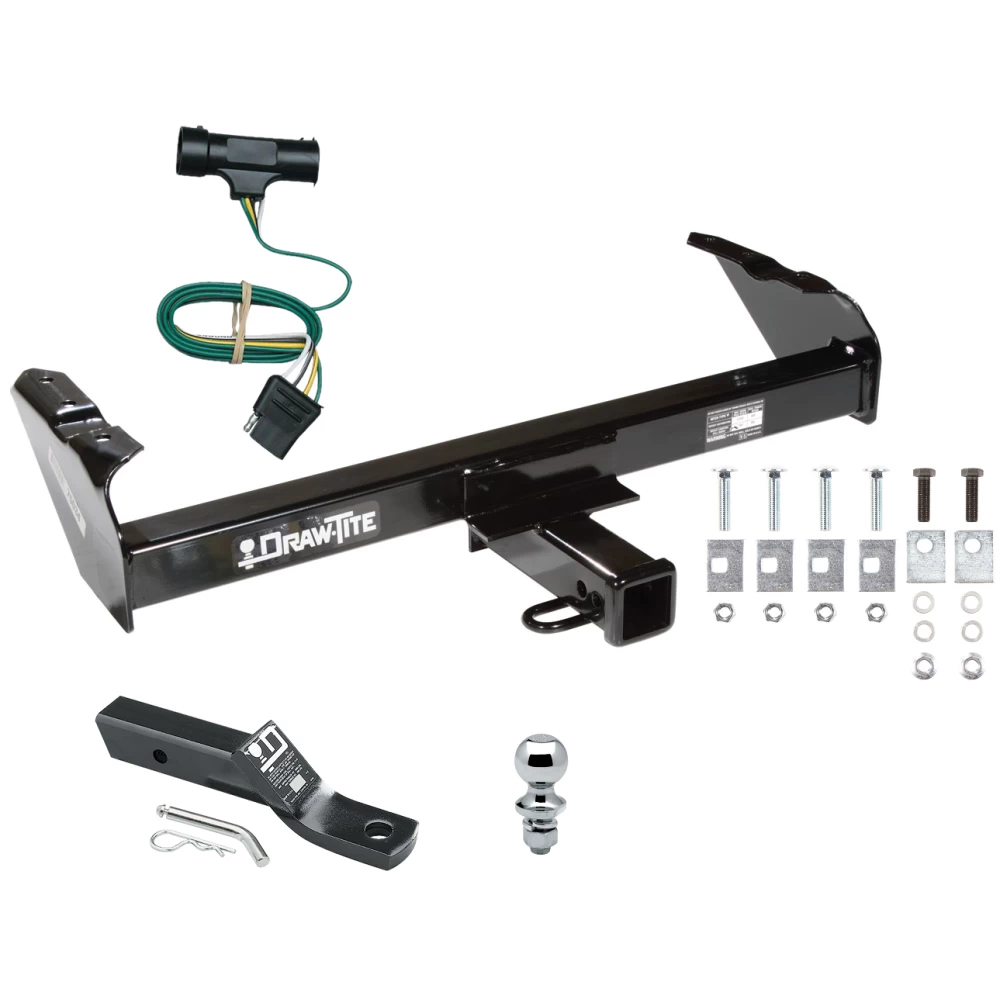

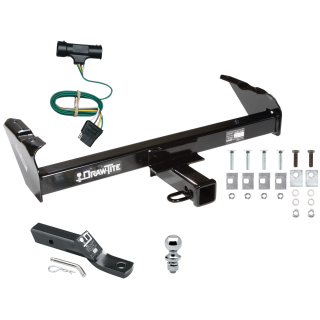

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 67-84 GMC 73-84 Chevy C/K Pickup Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Chevrolet & GMC C/K Series, Ford F-Series, and International Pickups
Part Numbers:
- 75034
- 44736
- 87034
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 5,000 lbs
- Max Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Remove Exhaust Pipes:
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-
Prepare Frame Rail:
- Remove undercoating from attachment surfaces.
- Position the receiver on the vehicle and ensure it is centered.
-
Clear Rivets (For Some Models):
- For some Chevrolet and GMC units with 6’ beds, grind or file the top of the rivet flush to ensure adequate clearance with the hitch.
-
Drill Holes:
- Use the receiver as a template to drill 1/2" holes into the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided fasteners, placing blocks between the frame and hitch where necessary. Tighten all bolts to specified torque values.
-
Reconnect Exhaust Pipes:
- Reconnect the exhaust pipes to the clamp.
-
Reinstall Spare Tire:
- If retaining under-box tire storage, modify the spare tire carrier as needed to ensure proper fit.
Hardware List:
- (6) Carriage Bolt 1/2"-13 x 2-1/4" GR5
- (6) Block 1/4" x 1-1/2" x 2"
- (6) Lock Washer
- (6) Hex Nut
Torque Specifications:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Additional Notes:
-
1981 and Later Chevrolet & GMC with Step Bumpers:
- Remove and retain support brackets for reinstallation if the hitch is removed.
- The step bumper should not be used for towing if the brackets are removed.
-
Optional J-Pin Locking Stabilizer available for added security (order separately).
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
Installation Instructions for Full-Size Pickups (Chevrolet & GMC C/K Series, Ford F-Series, and International Pickups)
Part Numbers:
- 75034
- 44736
- 87034
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 5,000 lbs
- Max Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Remove Exhaust Pipes:
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-
Prepare Frame Rail:
- Remove undercoating from attachment surfaces.
- Position the receiver on the vehicle and ensure it is centered.
-
Clear Rivets (For Some Models):
- For some models, grind or file the top of the rivet flush to ensure adequate clearance with the hitch.
-
Drill Holes:
- Use the receiver as a template to drill 1/2" holes into the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided fasteners, placing blocks between the frame and hitch where necessary. Tighten all bolts to specified torque values.
-
Reconnect Exhaust Pipes:
- Reconnect the exhaust pipes to the clamp.
-
Reinstall Spare Tire:
- If retaining under-box tire storage, modify the spare tire carrier as needed to ensure proper fit.
Hardware List:
- (6) 1/2"-13 x 2-1/4" GR5 Carriage Bolts
- (6) 1/4" x 1-1/2" x 2" Blocks
- (6) Lock Washers
- (6) Hex Nuts
Torque Specifications:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Additional Notes:
-
1981 and Later Models with Step Bumpers:
- Remove and retain support brackets for reinstallation if the hitch is removed.
- The step bumper should not be used for towing if the brackets are removed.
-
Optional J-Pin Locking Stabilizer available for added security (order separately).
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution: Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. circuit rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. Circuit Rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
