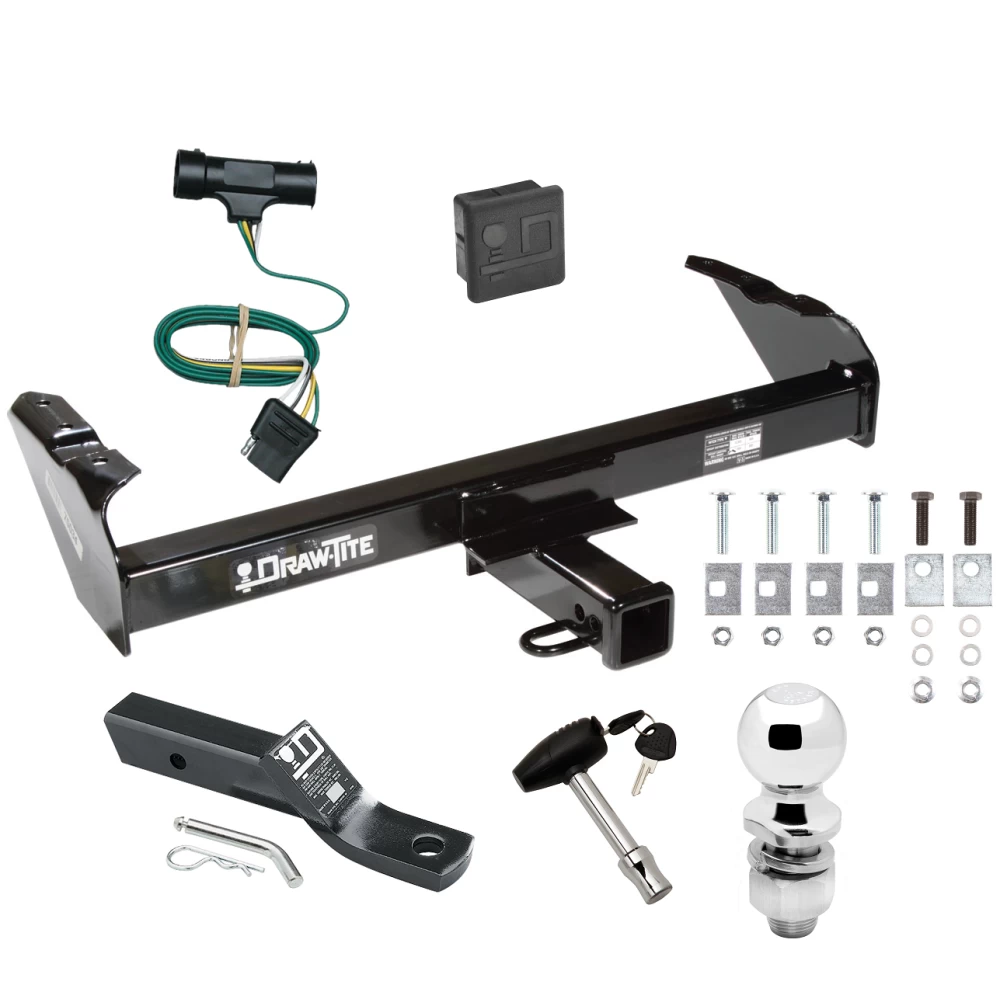

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 67-84 GMC 73-84 Chevy C/K Pickup Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Chevrolet & GMC C/K Series, Ford F-Series, and International Pickups
Part Numbers:
- 75034
- 44736
- 87034
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 5,000 lbs
- Max Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Remove Exhaust Pipes:
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-
Prepare Frame Rail:
- Remove undercoating from attachment surfaces.
- Position the receiver on the vehicle and ensure it is centered.
-
Clear Rivets (For Some Models):
- For some Chevrolet and GMC units with 6’ beds, grind or file the top of the rivet flush to ensure adequate clearance with the hitch.
-
Drill Holes:
- Use the receiver as a template to drill 1/2" holes into the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided fasteners, placing blocks between the frame and hitch where necessary. Tighten all bolts to specified torque values.
-
Reconnect Exhaust Pipes:
- Reconnect the exhaust pipes to the clamp.
-
Reinstall Spare Tire:
- If retaining under-box tire storage, modify the spare tire carrier as needed to ensure proper fit.
Hardware List:
- (6) Carriage Bolt 1/2"-13 x 2-1/4" GR5
- (6) Block 1/4" x 1-1/2" x 2"
- (6) Lock Washer
- (6) Hex Nut
Torque Specifications:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Additional Notes:
-
1981 and Later Chevrolet & GMC with Step Bumpers:
- Remove and retain support brackets for reinstallation if the hitch is removed.
- The step bumper should not be used for towing if the brackets are removed.
-
Optional J-Pin Locking Stabilizer available for added security (order separately).
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
Installation Instructions for Full-Size Pickups (Chevrolet & GMC C/K Series, Ford F-Series, and International Pickups)
Part Numbers:
- 75034
- 44736
- 87034
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 5,000 lbs
- Max Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Remove Exhaust Pipes:
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-
Prepare Frame Rail:
- Remove undercoating from attachment surfaces.
- Position the receiver on the vehicle and ensure it is centered.
-
Clear Rivets (For Some Models):
- For some models, grind or file the top of the rivet flush to ensure adequate clearance with the hitch.
-
Drill Holes:
- Use the receiver as a template to drill 1/2" holes into the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided fasteners, placing blocks between the frame and hitch where necessary. Tighten all bolts to specified torque values.
-
Reconnect Exhaust Pipes:
- Reconnect the exhaust pipes to the clamp.
-
Reinstall Spare Tire:
- If retaining under-box tire storage, modify the spare tire carrier as needed to ensure proper fit.
Hardware List:
- (6) 1/2"-13 x 2-1/4" GR5 Carriage Bolts
- (6) 1/4" x 1-1/2" x 2" Blocks
- (6) Lock Washers
- (6) Hex Nuts
Torque Specifications:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Additional Notes:
-
1981 and Later Models with Step Bumpers:
- Remove and retain support brackets for reinstallation if the hitch is removed.
- The step bumper should not be used for towing if the brackets are removed.
-
Optional J-Pin Locking Stabilizer available for added security (order separately).
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution: Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. circuit rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. Circuit Rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
