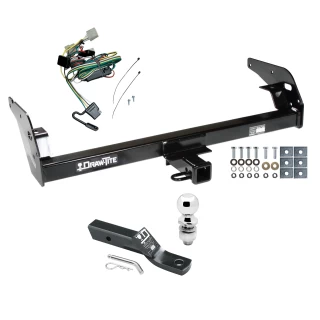

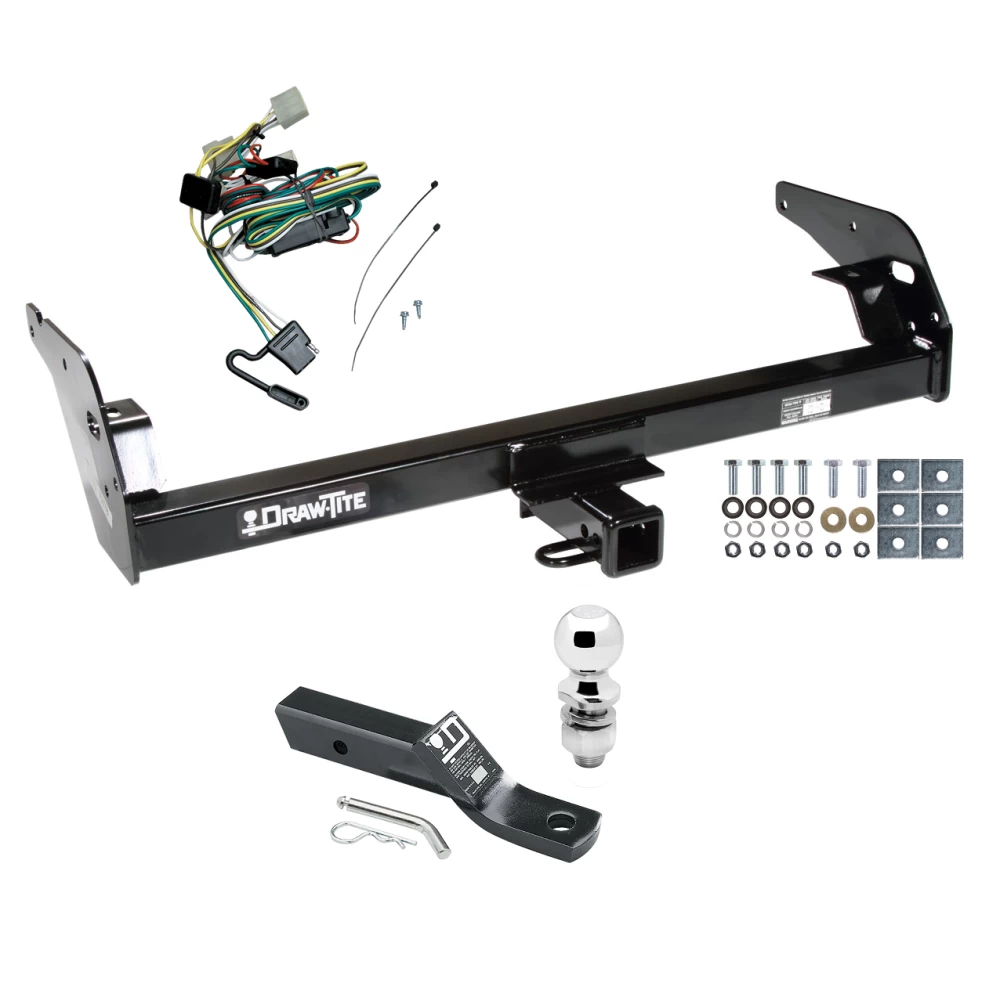

Trailer Tow Hitch For 95‑04 Toyota Tacoma Complete Package w/ Wiring and 2" Ball
Model: 75078 118379 23 63845Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1995 - 2004 Toyota, Tacoma, (App. starts with 95-1/2)
Trailer Hitch Specs:
| Part Number | 75078 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118379 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | Torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 95 96 97 98 99 00 01 02 03 04 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
$321 56 $471.50 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$471.50 $321 56
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $80.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75078 118379 23 63845
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1995 - 2004 Toyota, Tacoma, (App. starts with 95-1/2)
Trailer Hitch Specs:
| Part Number | 75078 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118379 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | Torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 95 96 97 98 99 00 01 02 03 04 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch For 95-04 Toyota Tacoma Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Toyota Tacoma
Part Numbers:
- 75078
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
- Torque Wrench
Step-by-Step Instructions:
-
Disconnect License Plate Light Wiring:
- Disconnect the wiring connection from the bumper to prepare for removal.
-
Remove Bumper:
- Remove the two bolts mounting the bumper to the bumper brackets on each side and remove the bumper.
-
Remove Bumper Brackets:
- Remove the bumper brackets from the frame rails by removing the two bolts on each side.
-
Install Receiver:
- Position the receiver on the frame and install the 1/2" bolt and block through the rear-most hole in the frame rail into the angle bracket, as shown in the diagram.
-
Reinstall Bumper Brackets:
- Place the bumper brackets over the receiver side bracket, ensuring the tab fits into the hole provided in the side bracket.
-
Reinstall Bumper:
- Place blocks between the bumper mounts and bumper brackets. Use the fasteners removed in Step 2 to reinstall the bumper. Reconnect the license plate wiring connection.
-
Tighten Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- M12 CL8.8: 68 lb-ft (92 N*m)
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.25 x 35mm CL8.8 Bolts
- (8) Lock Washers, M12
- (8) Flat Washers (Hardened), M12
- (2) 1/2"-13 x 1-1/2" GR5 Bolts
- (2) Blocks (1097-002)
- (2) Conical Toothed Washers
- (2) Heavy Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,495 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Toyota Tacoma
Part Numbers:
- 75078
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
- Torque Wrench
Step-by-Step Instructions:
-
Disconnect License Plate Light Wiring:
- Disconnect the wiring connection from the bumper to prepare for removal.
-
Remove Bumper:
- Remove the two bolts mounting the bumper to the bumper brackets on each side and remove the bumper.
-
Remove Bumper Brackets:
- Remove the bumper brackets from the frame rails by removing the two bolts on each side.
-
Install Receiver:
- Position the receiver on the frame and install the 1/2" bolt and block through the rear-most hole in the frame rail into the angle bracket, as shown in the diagram.
-
Reinstall Bumper Brackets:
- Place the bumper brackets over the receiver side bracket, ensuring the tab fits into the hole provided in the side bracket.
-
Reinstall Bumper:
- Place blocks between the bumper mounts and bumper brackets. Use the fasteners removed in Step 2 to reinstall the bumper. Reconnect the license plate wiring connection.
-
Tighten Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- M12 CL8.8: 68 lb-ft (92 N*m)
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.25 x 35mm CL8.8 Bolts
- (8) Lock Washers, M12
- (8) Flat Washers (Hardened), M12
- (2) 1/2"-13 x 1-1/2" GR5 Bolts
- (2) Blocks (1097-002)
- (2) Conical Toothed Washers
- (2) Heavy Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,495 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118379
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- Drill with a 3/32" drill bit.
- Screw or cable ties (provided in the kit).
Step-by-Step Instructions:
-
Remove both tail light assemblies to access the connectors.
- The lens cover, seal, and housing will separate when the screws are removed.
-
Starting on the left (driver’s) side, route the T-Connector’s harness containing the 3 bonded wires from under the vehicle through the tail light opening.
-
Disconnect the vehicle’s wiring harness connector from the tail light assembly.
- Plug the T-Connector between the separated halves, ensuring the connectors are fully inserted and secure.
-
Route the connector with the green wire across the vehicle along the vehicle frame.
- Pass the wire out from under the vehicle through the right (passenger’s) side tail light opening.
- Repeat step 3 using the connector with the green wire.
-
Locate a suitable grounding point near the connector.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Note: Do not drill into the vehicle floor or other exposed surfaces.
-
Test the installation with a test light or trailer.
-
Reinstall the tail light assemblies removed in step 1.
-
Ensure the seals are securely in place.
-
Secure the black box and wires to the vehicle frame using the provided screw or cable ties.
-
Specifications:
- This unit is rated for 4 amps per circuit.
-
Hardware List:
- T-Connector adapter.
- Black box.
- Eyelet and screw.
- Cable ties.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118379
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- Drill with a 3/32" drill bit
- Screw or cable ties (provided in the kit)
Step-by-Step Instructions:
-
Remove Tail Light Assemblies:
- Remove both tail light assemblies to access the connectors.
- The lens cover, seal, and housing will separate when the screws are removed.
-
Route the Harness:
- Starting on the left (driver’s) side, route the T-Connector’s harness containing the three bonded wires from under the vehicle through the tail light opening.
-
Connect the T-Connector:
- Disconnect the vehicle’s wiring harness connector from the tail light assembly.
- Plug the T-Connector between the separated halves, ensuring the connectors are fully inserted and secure.
-
Route the Green Wire:
- Route the connector with the green wire across the vehicle along the vehicle frame.
- Pass the wire out from under the vehicle through the right (passenger’s) side tail light opening.
- Repeat Step 3 using the connector with the green wire.
-
Secure the Ground Wire:
- Locate a suitable grounding point near the connector.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Note: Do not drill into the vehicle floor or other exposed surfaces.
-
Test the Installation:
- Test the installation using a test light or trailer to ensure proper functionality.
-
Reinstall Tail Light Assemblies:
- Reinstall the tail light assemblies removed in Step 1.
- Ensure the seals are securely in place.
-
Secure the Black Box:
- Secure the black box and wires to the vehicle frame using the provided screw or cable ties.
Specifications:
- Max Current: 4 amps per circuit
Hardware List:
- T-Connector adapter
- Black box
- Eyelet and screw
- Cable ties
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
