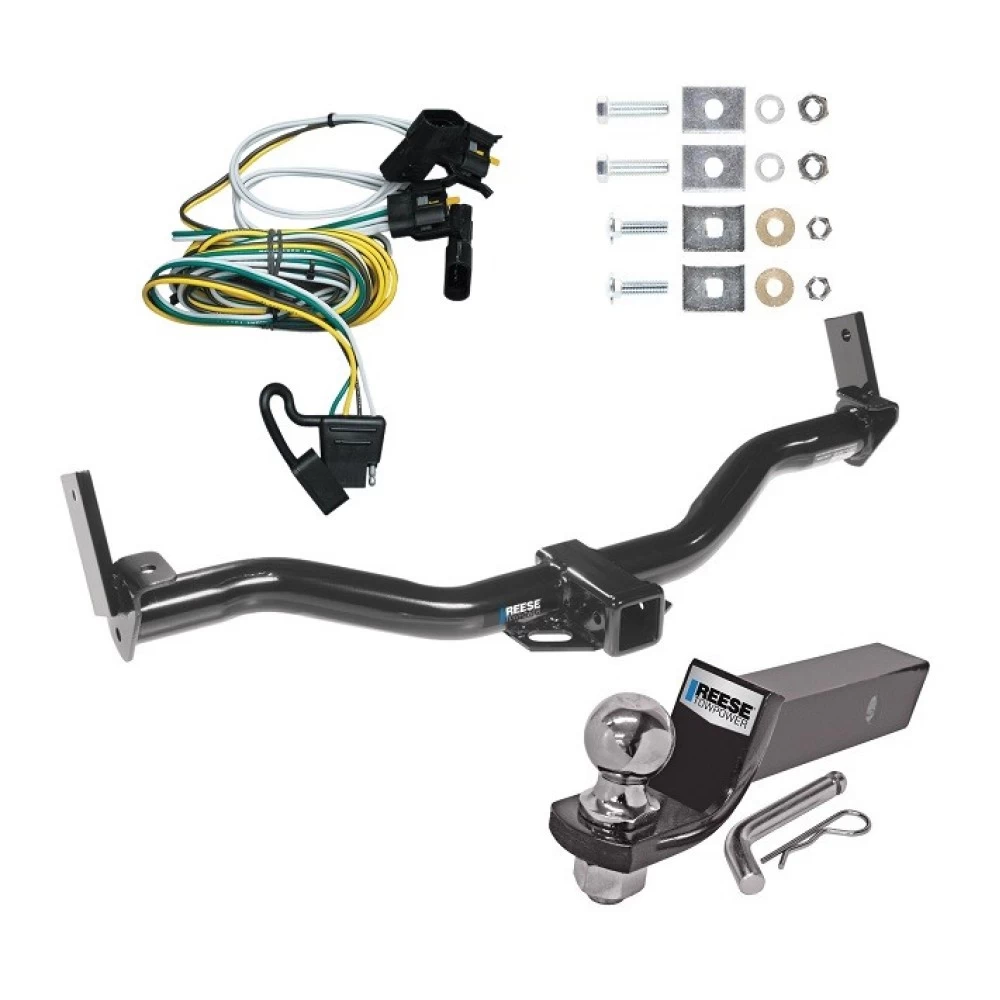

Reese Trailer Tow Hitch For 01-03 Ford Explorer Sport Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Ford Explorer, Mazda Navajo, and Mercury Mountaineer
Part Numbers:
- 75083
- 70647
- 44067
- 33051
- 78166 UH
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tow Hooks (if equipped):
- Remove tow hooks from the vehicle frame and return them to the owner for reinstallation if the hitch is later removed.
-
Position Hitch:
- Raise the receiver into position under the vehicle, placing upright bars against the outboard vertical surface of the frame. Align the hole in the upright bar with the existing slot in the frame on both sides.
-
Loosely Install Fasteners:
- Install fasteners through the slot in the frame and upright bar as shown in the diagram.
-
Fastener Installation by Model Year:
- 1994 and Prior Models:
- Use the hitch as a template and drill a 1/2" hole in the bottom of the vehicle frame on both sides. Install the remaining fasteners as shown in the diagram.
- 1995 and Later Models:
- Install the remaining fasteners in the hitch bracket and the bottom of the vehicle frame on both sides as shown in the diagram.
- 1994 and Prior Models:
-
Tighten Fasteners:
- Tighten all 1/2" fasteners to 75 lb-ft (102 N*m).
- Tighten all 9/16" fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 1/2"-13: 75 lb-ft (102 N*m)
- 9/16"-12: 110 lb-ft (149 N*m)
Hardware List:
- (2) Carriage Bolts, 1/2"-13 x 1.75"
- (2) Blocks (Frame Spacer)
- (2) Conical Washers, 1/2"
- (2) Hex Nuts, 1/2"-13
- (2) Bolts, 9/16"-12 x 2.00"
- (2) Blocks (Reinforcement Bracket Spacer)
- (2) Lock Washers, 9/16"
- (2) Hex Nuts, 9/16"-12
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
Additional Notes:
- Will not fit models with a 16" spare tire (1998 and later).
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Ford Explorer, Mazda Navajo, and Mercury Mountaineer
Part Numbers:
- 75083
- 70647
- 44067
- 33051
- 78166 UH
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tow Hooks (if equipped):
- Remove tow hooks from the vehicle frame and return them to the owner for reinstallation if the hitch is later removed.
-
Position Hitch:
- Raise the receiver into position under the vehicle, placing upright bars against the outboard vertical surface of the frame. Align the hole in the upright bar with the existing slot in the frame on both sides.
-
Loosely Install Fasteners:
- Install fasteners through the slot in the frame and upright bar as shown in the diagram.
-
Fastener Installation by Model Year:
- 1994 and Prior Models:
- Use the hitch as a template and drill a 1/2" hole in the bottom of the vehicle frame on both sides. Install the remaining fasteners as shown in the diagram.
- 1995 and Later Models:
- Install the remaining fasteners in the hitch bracket and the bottom of the vehicle frame on both sides as shown in the diagram.
- 1994 and Prior Models:
-
Tighten Fasteners:
- Tighten all 1/2" fasteners to 75 lb-ft (102 N*m).
- Tighten all 9/16" fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 1/2"-13: 75 lb-ft (102 N*m)
- 9/16"-12: 110 lb-ft (149 N*m)
Hardware List:
- (2) 1/2"-13 x 1.75" Carriage Bolts
- (2) Frame Spacer Blocks
- (2) 1/2" Conical Washers
- (2) 1/2"-13 Hex Nuts
- (2) 9/16"-12 x 2.00" Bolts
- (2) Reinforcement Bracket Spacer Blocks
- (2) 9/16" Lock Washers
- (2) 9/16"-12 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
Additional Notes:
- Will not fit models with a 16" spare tire (1998 and later).
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
