Trailer Tow Hitch For 96‑02 Toyota 4Runner Complete Package w/ Wiring and 1‑7/8" Ball

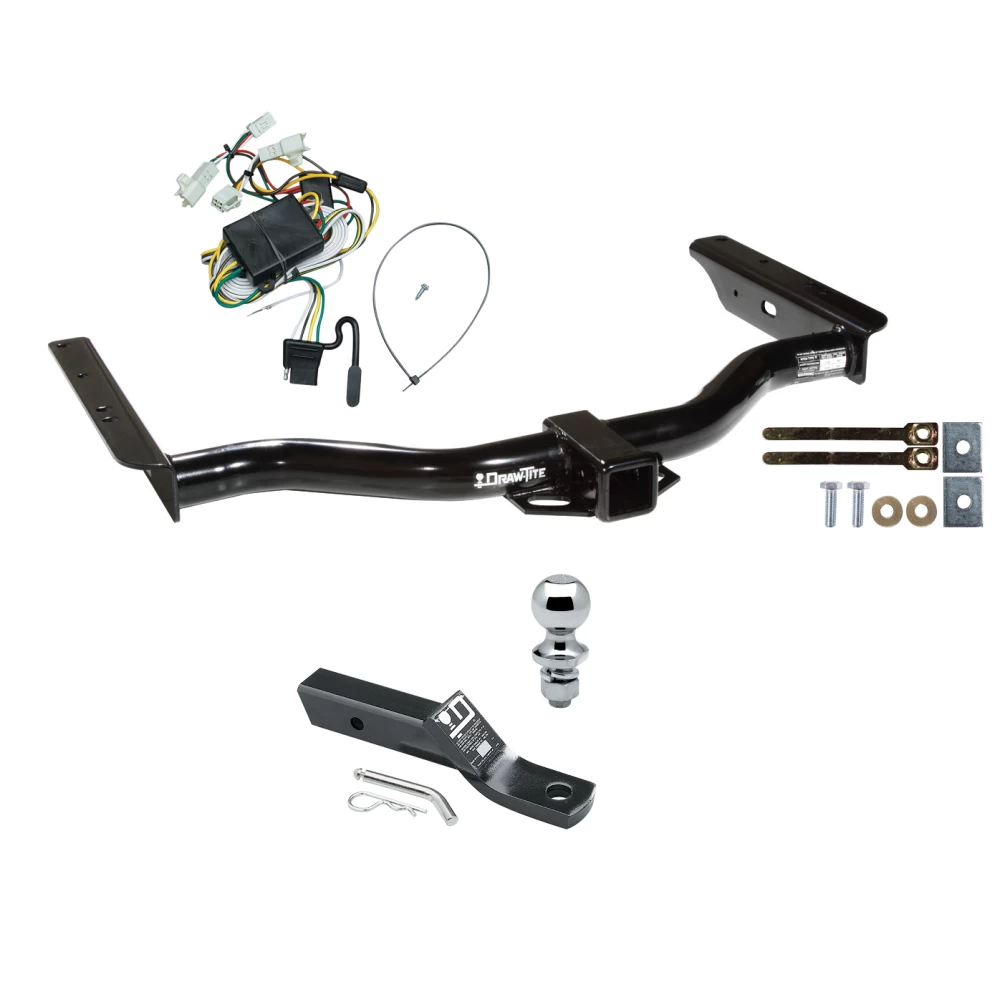

Model: 75091 118341 23 63816Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2002 Toyota, 4Runner, All Styles
Trailer Hitch Specs:
| Part Number | 75091 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 118341 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$336 35 $501.46 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$501.46 $336 35
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $84.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75091 118341 23 63816
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2002 Toyota, 4Runner, All Styles
Trailer Hitch Specs:
| Part Number | 75091 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 118341 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 96-02 Toyota 4Runner Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Toyota 4Runner (Pre-2003 Models)
Part Numbers:
- N78142
- UHAUL 44752N
- N75091
- N87747
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 18mm
- Drill Bits: None required
Step-by-Step Instructions:
- Remove two hooks from the vehicle frame and return them to the owner for reinstallation of the hitch after removing the tow hook.
- Raise the hitch into position and align side brackets with existing M12 bolt holes. Install M12 bolts into frame rails. Reinstall existing bolts that were removed in Step 1.
- Forward Attachment:
- Insert a 1/2" x 1-1/2" x 2" block (1097-002) from the end of the frame. Install the hex bolt and conical tooth washer with handle nut (1333) as shown above.
- Tighten all M12 fasteners to 58 lb-ft.
- Tighten all 1/2" hex bolts to 50 lb-ft.
Hardware List:
- 1/2"-13 x 1.50" GR5 Hex Bolt
- Conical Tooth Washer
- Handle Nut
- 1/2" x 1-1/2" x 2" Block (1097-002)
Safety Notes:
- Spare tire may need to be repositioned slightly forward to avoid contact with the receiver tube.
- Hitch complies with safety specifications for connecting devices and towing systems (SAE J684 and V-5 regulations).
Specifications:
- Maximum Load:
- Tongue Weight: 500 lbs
- Gross Trailer Weight: 5,000 lbs
- Weight Distributing Tongue Weight: 750 lbs
- Weight Distributing Gross Trailer Weight: 7,500 lbs
- Hitch Type: Class III
Note: This product complies with federal regulations and safety standards for towing systems.
Installation Instructions for Toyota 4Runner (Pre-2003 Models)
Part Numbers:
- N78142
- UHAUL 44752N
- N75091
- N87747
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 18mm
- Drill Bits: None required
Step-by-Step Instructions:
-
Remove Existing Hooks
- Remove two hooks from the vehicle frame and set them aside for reinstallation.
- Ensure the tow hook is removed to allow proper hitch installation.
-
Position the Hitch
- Raise the hitch into position, aligning the side brackets with the existing M12 bolt holes on the frame rails.
- Install the M12 bolts into the frame rails and reinstall the existing bolts removed in Step 1.
-
Install Forward Attachment
- Insert a 1/2" x 1-1/2" x 2" block into the end of the frame.
- Install the 1/2" hex bolt, conical tooth washer, and handle nut as per the provided diagram.
-
Tighten Fasteners
- Torque all M12 fasteners to 58 lb-ft.
- Torque all 1/2" hex bolts to 50 lb-ft.
Hardware List:
- (1) 1/2"-13 x 1.50" GR5 Hex Bolt
- (1) Conical Tooth Washer
- (1) Handle Nut
- (1) 1/2" x 1-1/2" x 2" Block
Safety Notes:
- The spare tire may need to be repositioned slightly forward to avoid contact with the receiver tube.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components remain secure.
- Always wear safety glasses when working beneath the vehicle.
Specifications:
- Maximum Load:
- Tongue Weight: 500 lbs
- Gross Trailer Weight: 5,000 lbs
- Weight Distributing Tongue Weight: 750 lbs
- Weight Distributing Gross Trailer Weight: 7,500 lbs
- Hitch Type: Class III
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118341
Wiring Access Location:
- Tail light wiring harness near the rear interior panels on both sides of the vehicle.
Tools Required:
- Drill with a 3/32" drill bit.
- Screwdriver.
Step-by-Step Instructions:
-
Open the rear door of the vehicle and remove the five screws attaching the threshold panel.
-
Remove the shade latch screws located on each side of the vehicle (Fig. A).
- Carefully pull the plastic trim panels away from the side of the vehicle to expose the vehicle wiring (Fig. B).
-
Locate the vehicle’s tail light wiring harness.
- This harness will have connection points on both sides with connectors matching the ends of the T-Connector adapter.
-
Separate the harness connectors on the left (driver’s) side.
- Note: Be careful not to damage the locking tabs.
-
Insert the T-Connector harness containing the yellow wire between the harness connectors and lock into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Repeat steps 4 and 5 on the right (passenger) side using the connector containing the green wire.
-
Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
- Caution: Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Test the installation with a test light or trailer.
-
Route the yellow wire under the threshold panel.
-
Secure the threshold and side panels with the screws removed in steps 1 and 2.
-
Specifications:
- This unit is rated for 4 amps per circuit.
-
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Cable ties.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118341
Wiring Access Location:
- Tail light wiring harness near the rear interior panels on both sides of the vehicle.
Tools Required:
- Drill with a 3/32" drill bit.
- Screwdriver.
Step-by-Step Instructions:
-
Open the rear door of the vehicle and remove the five screws attaching the threshold panel.
-
Remove the shade latch screws located on each side of the vehicle (Fig. A).
- Carefully pull the plastic trim panels away from the side of the vehicle to expose the vehicle wiring (Fig. B).
-
Locate the vehicle’s tail light wiring harness.
- This harness will have connection points on both sides with connectors matching the ends of the T-Connector adapter.
-
Separate the harness connectors on the left (driver’s) side.
- Note: Be careful not to damage the locking tabs.
-
Insert the T-Connector harness containing the yellow wire between the harness connectors and lock into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Repeat steps 4 and 5 on the right (passenger) side using the connector containing the green wire.
-
Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
- Caution: Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Test the installation with a test light or trailer.
-
Route the yellow wire under the threshold panel.
-
Secure the threshold and side panels with the screws removed in steps 1 and 2.
-
Specifications:
- This unit is rated for 4 amps per circuit.
-
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Cable ties.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
