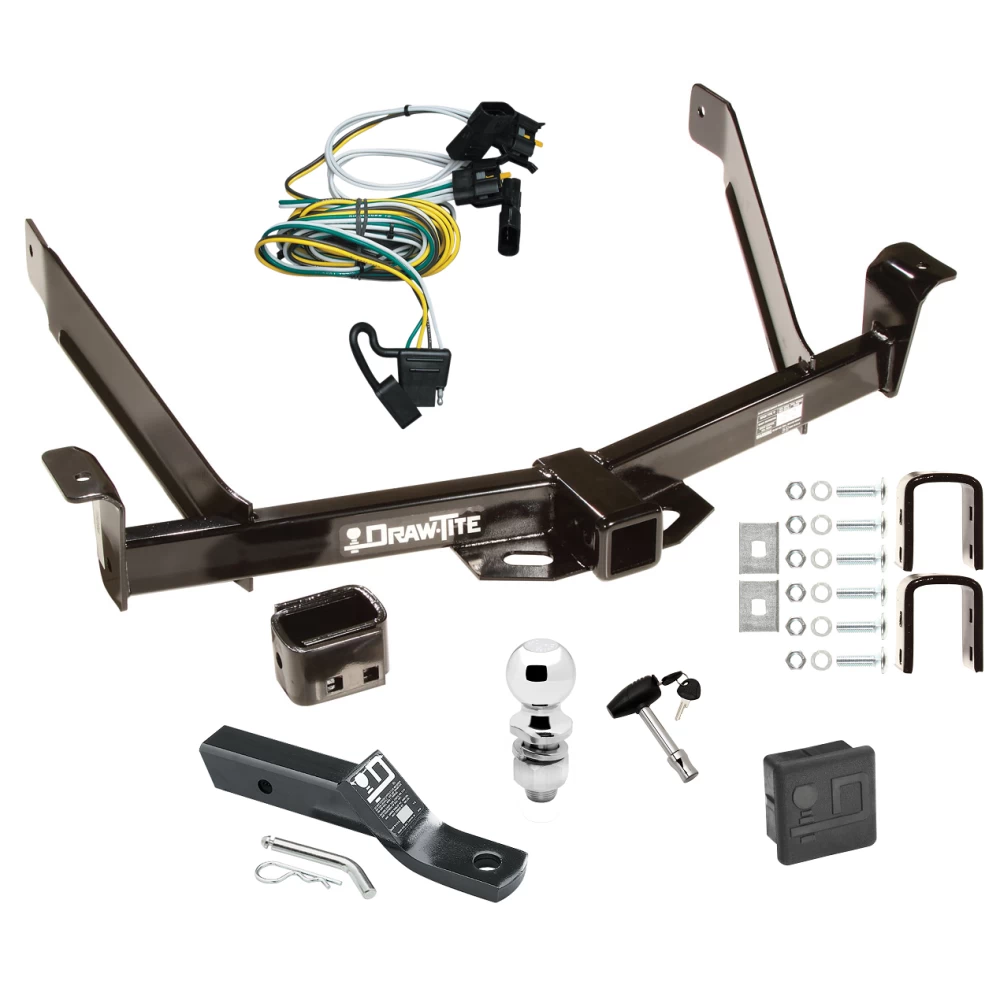

Trailer Tow Hitch For 01-03 Ford Explorer Sport All Styles Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Ford Explorer 2 & 4 Door, Mazda Navajo, and Mercury Mountaineer
Part Numbers:
- 75096
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
Attachment of Hitch-to-Frame Adapter Brackets:
-
Remove Tow Hooks (If Equipped):
- Remove the tow hooks from the vehicle frame and return them to the owner for possible reinstallation if the hitch is removed.
-
Attach Adapter Brackets:
- Secure the adapter brackets to the rearmost existing holes in the vertical surfaces of the vehicle frame. These holes are approximately 18" from the rear end of the frame.
-
Position Adapter Brackets:
- Orient the brackets as shown in Figure 1. Align the brackets with the existing holes in the frame.
-
Install Bracket-to-Frame Fasteners:
- Tighten the bracket-to-frame fasteners as shown in Figure 2.
Attachment of Hitch Assembly to Vehicle:
-
Measure and Adjust Brackets:
- Ensure spacing between the "Long" hitch brackets is 33-7/8". Adjust if needed for proper alignment.
-
Raise Hitch into Position:
- Align the hitch holes with the holes in the adapter bracket:
- Use the lower holes in the adapter bracket for the passenger side.
- Use the upper holes in the adapter bracket for the driver’s side.
- Align the hitch holes with the holes in the adapter bracket:
-
Secure Hitch:
- Install hitch-to-adapter bracket fasteners as shown in Figure 3.
-
Drill Holes for 1994 and Prior Models:
- Using the hitch as a template, drill a 1/2" hole through the frame rail.
-
Install Fasteners for 1994 and Later Models:
- Secure the hitch assembly using the provided fasteners.
-
Tighten All Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (6) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (6) Lock Washers
- (6) Hex Nuts
- (6) Blocks (1/4" x 1-1/2" x 2")
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for SUV Models
Part Numbers:
- 75096
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
Attachment of Hitch-to-Frame Adapter Brackets:
-
Remove Tow Hooks (If Equipped):
- Remove the tow hooks from the vehicle frame and return them to the owner for possible reinstallation if the hitch is removed.
-
Attach Adapter Brackets:
- Secure the adapter brackets to the rearmost existing holes in the vertical surfaces of the vehicle frame. These holes are approximately 18" from the rear end of the frame.
-
Position Adapter Brackets:
- Orient the brackets as shown in Figure 1. Align the brackets with the existing holes in the frame.
-
Install Bracket-to-Frame Fasteners:
- Tighten the bracket-to-frame fasteners as shown in Figure 2.
Attachment of Hitch Assembly to Vehicle:
-
Measure and Adjust Brackets:
- Ensure spacing between the "Long" hitch brackets is 33-7/8". Adjust if needed for proper alignment.
-
Raise Hitch into Position:
- Align the hitch holes with the holes in the adapter bracket:
- Use the lower holes in the adapter bracket for the passenger side.
- Use the upper holes in the adapter bracket for the driver’s side.
- Align the hitch holes with the holes in the adapter bracket:
-
Secure Hitch:
- Install hitch-to-adapter bracket fasteners as shown in Figure 3.
-
Drill Holes for 1994 and Prior Models:
- Using the hitch as a template, drill a 1/2" hole through the frame rail.
-
Install Fasteners for 1994 and Later Models:
- Secure the hitch assembly using the provided fasteners.
-
Tighten All Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (6) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (6) Lock Washers
- (6) Hex Nuts
- (6) Blocks (1/4" x 1-1/2" x 2")
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
