Product Details
- Brand: Reese
- Model: 33019 119178 23 63816

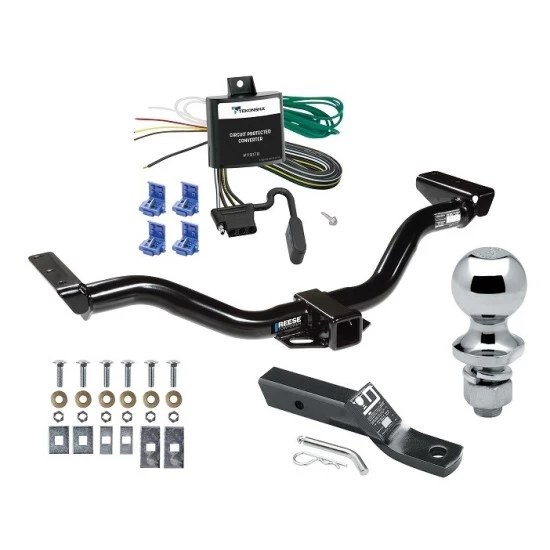

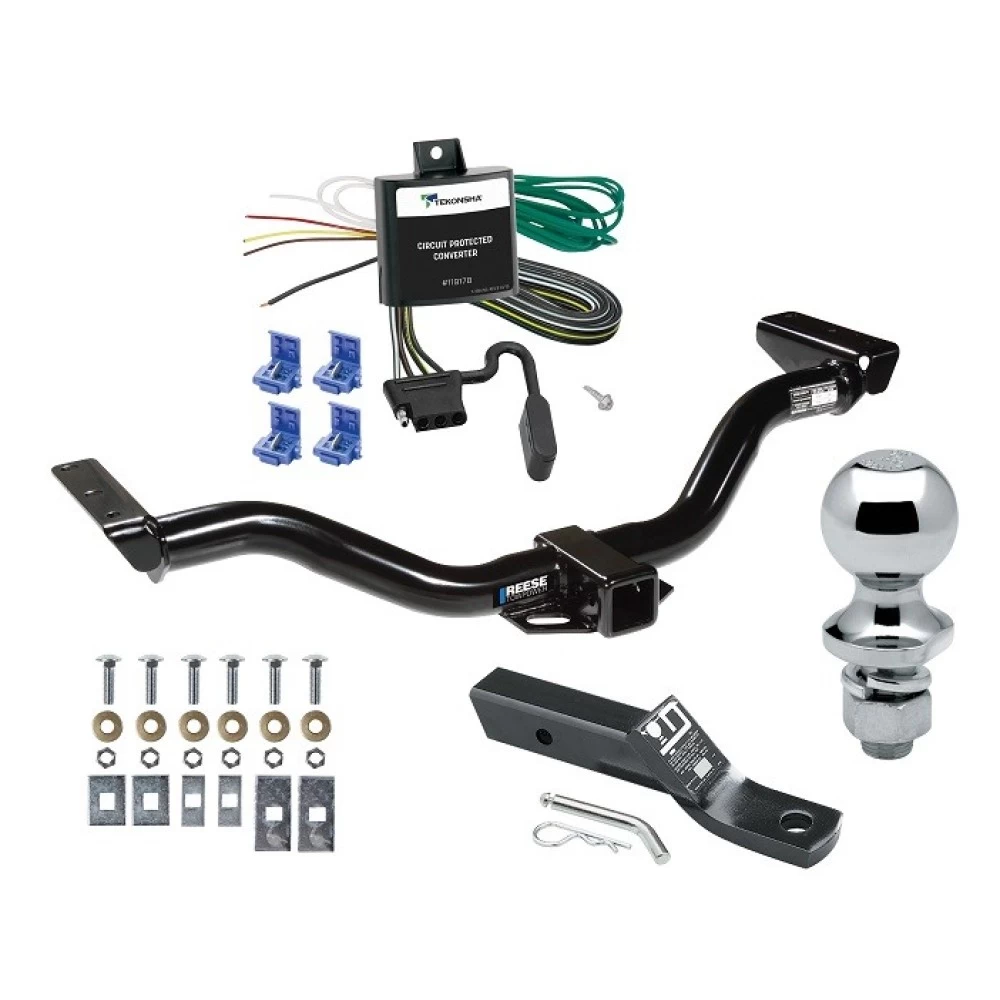

- Includes: Class 3 Trailer Tow Hitch, Taillight Converter with Integrated Circuit Protection, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help

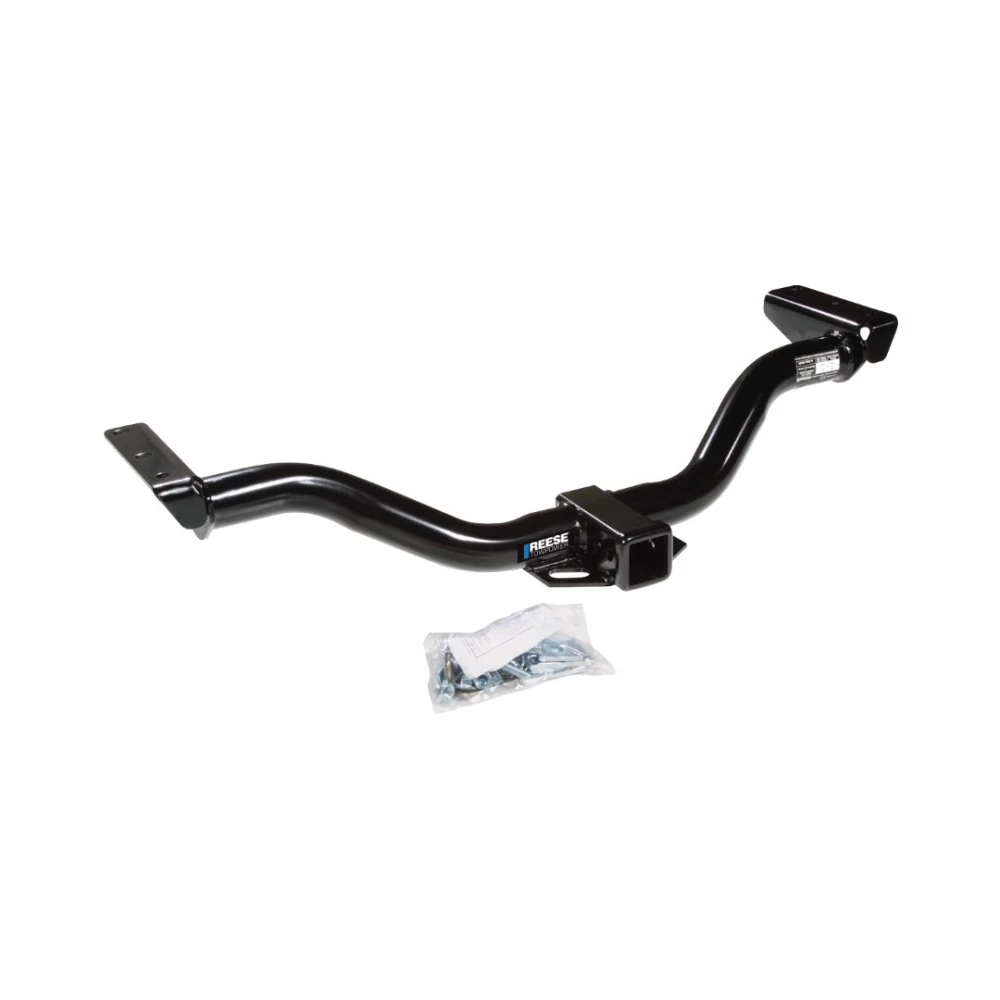

Reese Trailer Tow Hitch For 00-04 Nissan Xterra Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Nissan Xterra
Part Numbers:
- 75107
- 44717
- 78193 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 7/8"
Step-by-Step Instructions:
-
Loosen Spare Tire:
- Loosen the spare tire to allow sufficient clearance for hitch installation.
-
Raise Hitch into Position:
- Position the hitch against the vehicle frame, aligning the mounting holes with the factory-drilled holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware kit:
- Carriage bolts, spacer blocks, conical toothed washers, and hex nuts.
- Refer to the diagram for the correct placement of each fastener.
- Secure the hitch using the provided hardware kit:
-
Tighten Spare Tire:
- Tighten the spare tire back into place after the hitch is fully secured.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks, 1/4" x 1" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (6) Conical Toothed Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR2
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always observe proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,497 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with safety specifications and requirements for connecting devices and towing systems, including V.E.S.C. Regulation V-5 and SAE J684.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Nissan Xterra
Part Numbers:
- 75107
- 44717
- 78193 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 7/8"
Step-by-Step Instructions:
-
Loosen Spare Tire:
- Loosen the spare tire to allow sufficient clearance for hitch installation.
-
Raise Hitch into Position:
- Position the hitch against the vehicle frame, aligning the mounting holes with the factory-drilled holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware kit:
- Carriage bolts, spacer blocks, conical toothed washers, and hex nuts.
- Refer to the diagram for the correct placement of each fastener.
- Secure the hitch using the provided hardware kit:
-
Tighten Spare Tire:
- Tighten the spare tire back into place after the hitch is fully secured.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks, 1/4" x 1" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (6) Conical Toothed Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR2
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always observe proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,497 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with safety specifications and requirements for connecting devices and towing systems, including V.E.S.C. Regulation V-5 and SAE J684.
- Ensure all fasteners are properly torqued before towing.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
