Product Details
- Brand: Draw-Tite
- Model: 75107 119178 23 63845 580407 7010

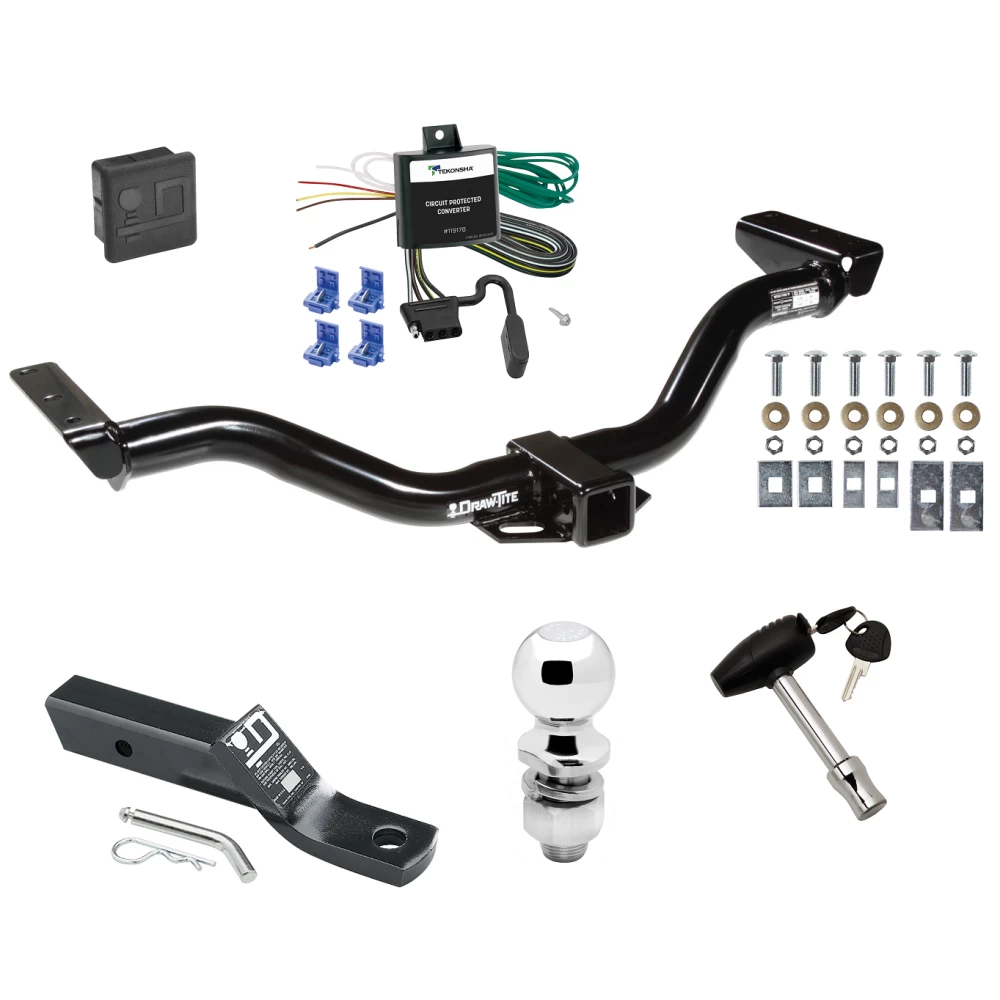

- Includes: Class 3 Trailer Tow Hitch, Taillight Converter with Integrated Circuit Protection, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 00-04 Nissan Xterra Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Nissan Xterra
Part Numbers:
- 75107
- 44717
- 78193 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 7/8"
Step-by-Step Instructions:
-
Loosen Spare Tire:
- Loosen the spare tire to allow sufficient clearance for hitch installation.
-
Raise Hitch into Position:
- Position the hitch against the vehicle frame, aligning the mounting holes with the factory-drilled holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware kit:
- Carriage bolts, spacer blocks, conical toothed washers, and hex nuts.
- Refer to the diagram for the correct placement of each fastener.
- Secure the hitch using the provided hardware kit:
-
Tighten Spare Tire:
- Tighten the spare tire back into place after the hitch is fully secured.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks, 1/4" x 1" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (6) Conical Toothed Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR2
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always observe proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,497 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with safety specifications and requirements for connecting devices and towing systems, including V.E.S.C. Regulation V-5 and SAE J684.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Nissan Xterra
Part Numbers:
- 75107
- 44717
- 78193 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 7/8"
Step-by-Step Instructions:
-
Loosen Spare Tire:
- Loosen the spare tire to allow sufficient clearance for hitch installation.
-
Raise Hitch into Position:
- Position the hitch against the vehicle frame, aligning the mounting holes with the factory-drilled holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware kit:
- Carriage bolts, spacer blocks, conical toothed washers, and hex nuts.
- Refer to the diagram for the correct placement of each fastener.
- Secure the hitch using the provided hardware kit:
-
Tighten Spare Tire:
- Tighten the spare tire back into place after the hitch is fully secured.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks, 1/4" x 1" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (6) Conical Toothed Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR2
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always observe proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,497 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with safety specifications and requirements for connecting devices and towing systems, including V.E.S.C. Regulation V-5 and SAE J684.
- Ensure all fasteners are properly torqued before towing.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
