Product Details
- Brand: Draw-Tite
- Model: 75112 118344 23 63816

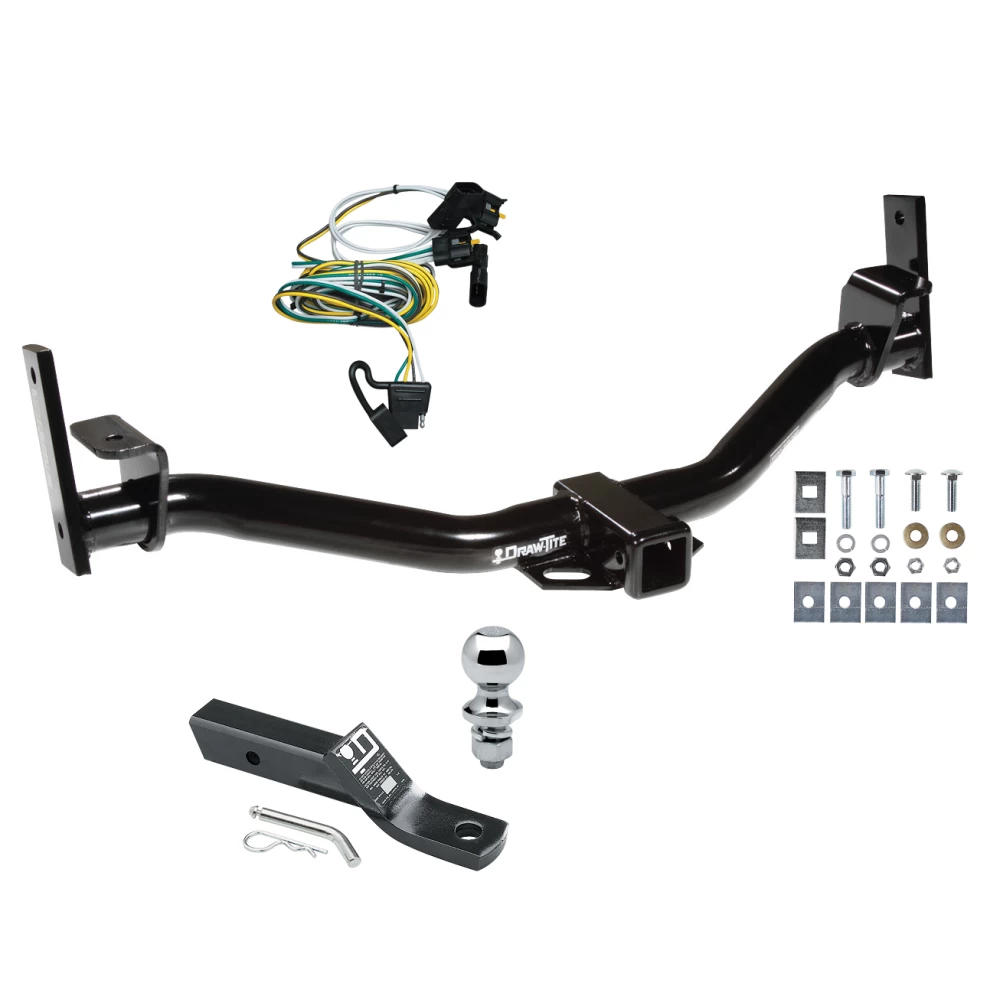

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 02-03 Ford Explorer Trac Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Ford Explorer Sport Trac
Part Numbers:
- 51141
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
-
Position Receiver:
- Raise the hitch receiver into position, aligning it with the attachment points on the vehicle frame.
-
Secure Fasteners:
- Install the fasteners as shown in the provided diagram.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all 9/16"-12 GR5 fasteners to 110 Lb.-Ft. (149 N*M).
Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2” GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4” GR5
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2”
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2”
- (2) Lock Washers: 9/16”
- (2) Conical Toothed Washers
- (2) Hex Nuts: 9/16"-12
- (2) Hex Nuts: 1/2"-13
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions when working beneath a vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Max Tongue Weight: 500 lb. (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb. (2,724 kg)
- Max Tongue Weight: 600 lb. (272 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 requirements for towing systems.
Installation Instructions for Full-Size SUV (All Models)
Part Numbers:
- 51141
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
-
Position Receiver:
- Raise the hitch receiver into position, aligning it with the attachment points on the vehicle frame.
-
Secure Fasteners:
- Install the fasteners as shown in the provided diagram.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all 9/16"-12 GR5 fasteners to 110 Lb.-Ft. (149 N*M).
Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2” GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4” GR5
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2”
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2”
- (2) Lock Washers: 9/16”
- (2) Conical Toothed Washers
- (2) Hex Nuts: 9/16"-12
- (2) Hex Nuts: 1/2"-13
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions when working beneath a vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Max Tongue Weight: 500 lb. (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb. (2,724 kg)
- Max Tongue Weight: 600 lb. (272 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 requirements for towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
