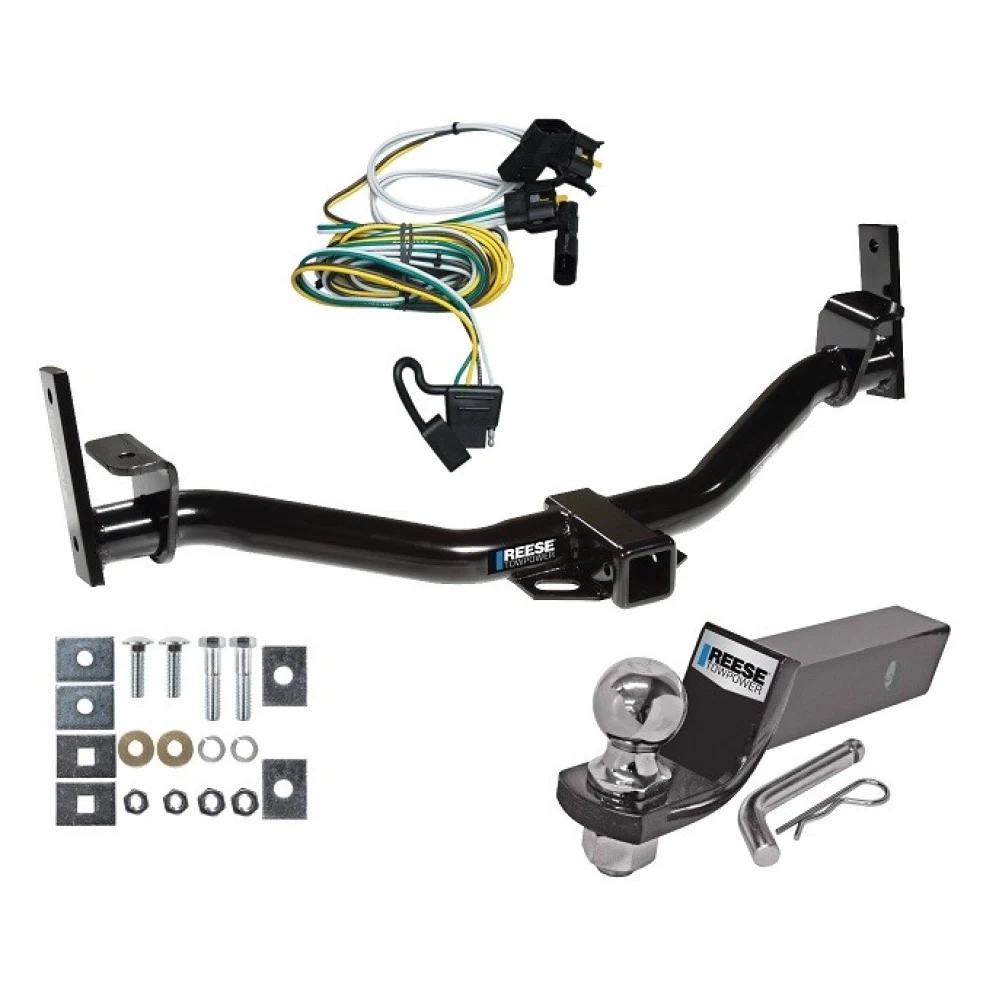

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 02-03 Ford Explorer Trac Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Ford Explorer Sport Trac
Part Numbers:
- 75112
- 44718
- 87008
- 78206 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
- Raise the receiver into position and attach it with the fasteners as shown.
- Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
- Tighten all 9/16"-12 GR5 fasteners with a torque wrench to 110 lb-ft (149 N·m).
Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2" GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2"
- (2) Conical Toothed Washers
- (2) Lock Washers – 9/16"
- (2) Hex Nuts: 1/2"-13
- (2) Hex Nuts: 9/16"-12
Safety Notes:
- Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any hitch or ball that has been damaged.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Tongue Weight: 500 lbs (227 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the towing vehicle manufacturer’s weight rating or the hitch's maximum load rating, whichever is lower.
Installation Instructions for Ford Explorer Sport Trac
Part Numbers:
- 75112
- 44718
- 87008
- 78206 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
- Raise the receiver into position and attach it with the fasteners as shown.
- Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
- Tighten all 9/16"-12 GR5 fasteners with a torque wrench to 110 lb-ft (149 N·m).
Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2" GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2"
- (2) Conical Toothed Washers
- (2) Lock Washers – 9/16"
- (2) Hex Nuts: 1/2"-13
- (2) Hex Nuts: 9/16"-12
Safety Notes:
- Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any hitch or ball that has been damaged.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Tongue Weight: 500 lbs (227 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the towing vehicle manufacturer’s weight rating or the hitch's maximum load rating, whichever is lower.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
