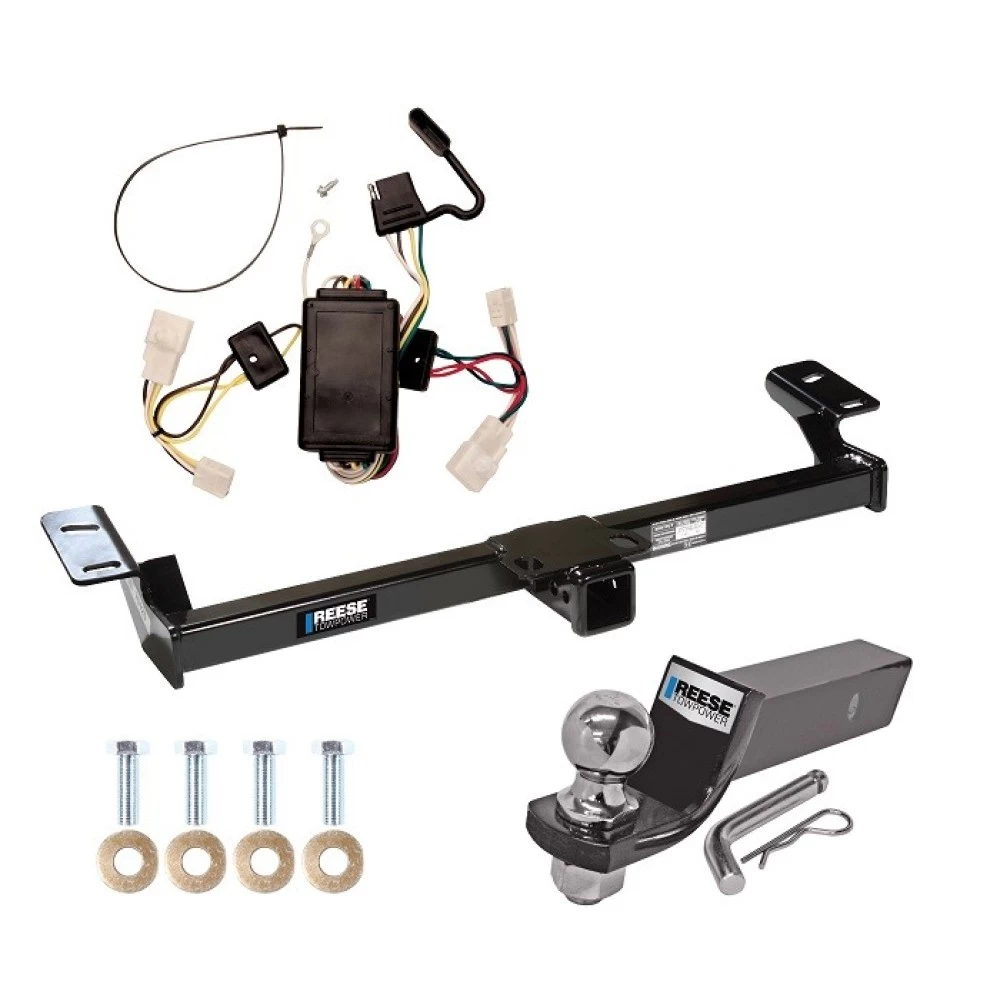

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Reese Trailer Tow Hitch For 96-00 Toyota RAV4 Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Toyota RAV4
Part Numbers:
- 75125
- 44734
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 17mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Bolts and Tie-Down Brackets:
- Remove the two bolts and tie-down brackets from the vehicle frame on each side.
- Return the tie-down brackets to the vehicle owner for reinstallation if the hitch is removed.
-
Raise Hitch into Position:
- Raise the hitch into position and install two (2) M12 x 1.25 x 35mm bolts and conical toothed washers into the existing weld nuts on each side.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Warning:
- Early 1996 Models: If the vehicle is equipped with M10 fasteners, do not install the hitch.
- Failure to heed this warning could result in serious injury or death.
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (4) M12 x 1.25 x 35mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Do not use with weight-distributing hitches (spring bar type).
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Installation Instructions for Toyota RAV4
Part Numbers:
- 75125
- 44734
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 17mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Bolts and Tie-Down Brackets:
- Remove the two bolts and tie-down brackets from the vehicle frame on each side.
- Return the tie-down brackets to the vehicle owner for reinstallation if the hitch is removed.
-
Raise Hitch into Position:
- Raise the hitch into position and install two (2) M12 x 1.25 x 35mm bolts and conical toothed washers into the existing weld nuts on each side.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Warning:
- Early 1996 Models: If the vehicle is equipped with M10 fasteners, do not install the hitch.
- Failure to heed this warning could result in serious injury or death.
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (4) M12 x 1.25 x 35mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Do not use with weight-distributing hitches (spring bar type).
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118388
- Application: Toyota RAV4
Tools Required:
- Trim Panel Remover
- Philips Head Screwdriver
- Drill with 3/32” drill bit
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear hatch and fold the rear seats forward.
- Temporarily remove the rear threshold plate, storage covers, and floor covering.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver’s and passenger’s sides.
- Several trim panel fasteners must be removed to detach the panels.
- Set aside all components carefully to avoid damage.
-
Access the Vehicle Wiring Harness:
- Locate the vehicle’s taillight wiring harness on both the driver’s and passenger’s sides.
- The wiring harness will have a connection point matching the T-Connector ends.
- Separate the connectors carefully without breaking the locking tabs.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure the connectors are fully inserted and that the locking tabs are engaged.
-
Install the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire across the threshold to the passenger side.
- Insert the T-Connector between the passenger-side taillight wiring connectors.
- Verify that all connectors are securely locked.
-
Ground the White Wire:
- Locate a suitable grounding point near the driver’s side wiring harness.
- Drill a 3/32” hole into clean, bare metal.
- Secure the white wire using the provided eyelet and screw.
Caution: Always verify what is behind the surface before drilling to avoid vehicle damage or injury.
-
Mount the Black Converter Box:
- Locate a flat, protected area near the driver-side taillight to mount the black converter box.
- Secure the converter box using the provided screw or cable tie.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure all loose wires.
- Route the wiring harness away from areas where it could be pinched, cut, or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment.
- Store the connector in the compartment when not in use.
-
Reassemble Vehicle Components:
- Reinstall the trim panels, threshold plate, storage covers, and floor covering.
- Ensure that no wires are pinched or damaged during reassembly.
-
Test the Installation:
- Connect a trailer or use a test light to verify the functionality of:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Connect a trailer or use a test light to verify the functionality of:
Specifications:
- Stop/Turn Lights: 2.1 amps maximum per side
- Taillights: 5 amps maximum
Safety Notes:
- Verify all connections are secure and test the trailer lights before towing.
- Do not exceed the specified amperage ratings to avoid circuit overloads.
- Periodically inspect the wiring harness for damage or wear.
Warnings:
- Overloaded circuits can cause fires or electrical failure.
- Follow all safety precautions when working near electrical systems.
- Route wires carefully to avoid sharp edges, moving parts, or heat sources.
Technical Support:
For additional assistance, contact the manufacturer’s support team.
Note: Store the 4-flat connector securely in the storage compartment when not in use to prevent damage.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118388
- Application: Toyota RAV4
Tools Required:
- Trim Panel Remover
- Philips Head Screwdriver
- Drill with 3/32” drill bit
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear hatch and fold the rear seats forward.
- Temporarily remove the rear threshold plate, storage covers, and floor covering.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver’s and passenger’s sides.
- Several trim panel fasteners must be removed to detach the panels.
- Set aside all components carefully to avoid damage.
-
Access the Vehicle Wiring Harness:
- Locate the vehicle’s taillight wiring harness on both the driver’s and passenger’s sides.
- The wiring harness will have a connection point matching the T-Connector ends.
- Separate the connectors carefully without breaking the locking tabs.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure the connectors are fully inserted and that the locking tabs are engaged.
-
Install the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire across the threshold to the passenger side.
- Insert the T-Connector between the passenger-side taillight wiring connectors.
- Verify that all connectors are securely locked.
-
Ground the White Wire:
- Locate a suitable grounding point near the driver’s side wiring harness.
- Drill a 3/32” hole into clean, bare metal.
- Secure the white wire using the provided eyelet and screw.
Caution: Always verify what is behind the surface before drilling to avoid vehicle damage or injury.
-
Mount the Black Converter Box:
- Locate a flat, protected area near the driver-side taillight to mount the black converter box.
- Secure the converter box using the provided screw or cable tie.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure all loose wires.
- Route the wiring harness away from areas where it could be pinched, cut, or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment.
- Store the connector in the compartment when not in use.
-
Reassemble Vehicle Components:
- Reinstall the trim panels, threshold plate, storage covers, and floor covering.
- Ensure that no wires are pinched or damaged during reassembly.
-
Test the Installation:
- Connect a trailer or use a test light to verify the functionality of:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Connect a trailer or use a test light to verify the functionality of:
Specifications:
- Stop/Turn Lights: 2.1 amps maximum per side
- Taillights: 5 amps maximum
Safety Notes:
- Verify all connections are secure and test the trailer lights before towing.
- Do not exceed the specified amperage ratings to avoid circuit overloads.
- Periodically inspect the wiring harness for damage or wear.
Warnings:
- Overloaded circuits can cause fires or electrical failure.
- Follow all safety precautions when working near electrical systems.
- Route wires carefully to avoid sharp edges, moving parts, or heat sources.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
