Trailer Tow Hitch For 96‑00 Toyota RAV4 Deluxe Package Wiring 2" Ball and Lock
Model: 75125 118388 23 63845 580407 7010Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2000 Toyota, RAV4, All Styles
Trailer Hitch Specs:
| Part Number | 75125 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118388 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | Torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 96 97 98 99 00 1996 1997 1998 1999 2000
$302 68 $470.75 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$470.75 $302 68
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $75.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75125 118388 23 63845 580407 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description

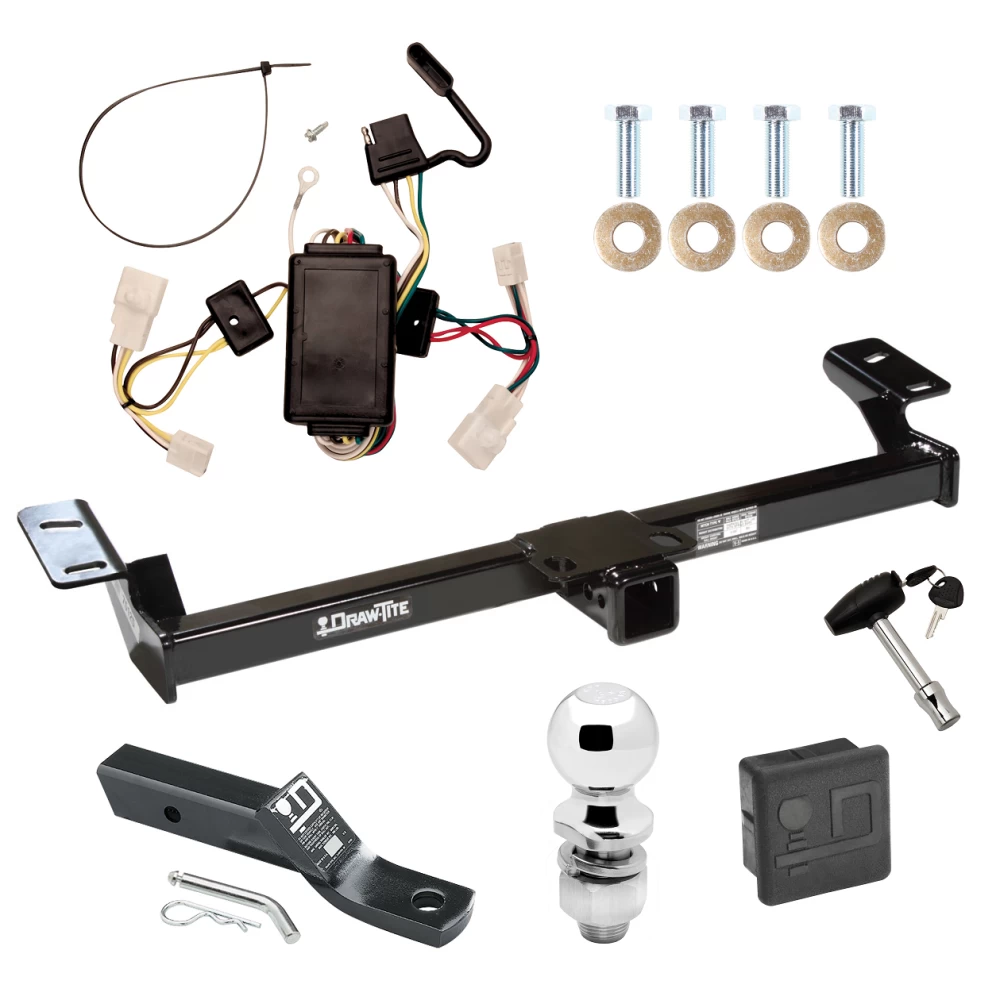

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2000 Toyota, RAV4, All Styles
Trailer Hitch Specs:
| Part Number | 75125 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118388 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | Torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 96 97 98 99 00 1996 1997 1998 1999 2000
Get Expert Help
Trailer Tow Hitch For 96-00 Toyota RAV4 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Toyota RAV4
Part Numbers:
- 75125
- 44734
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 17mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Bolts and Tie-Down Brackets:
- Remove the two bolts and tie-down brackets from the vehicle frame on each side.
- Return the tie-down brackets to the vehicle owner for reinstallation if the hitch is removed.
-
Raise Hitch into Position:
- Raise the hitch into position and install two (2) M12 x 1.25 x 35mm bolts and conical toothed washers into the existing weld nuts on each side.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Warning:
- Early 1996 Models: If the vehicle is equipped with M10 fasteners, do not install the hitch.
- Failure to heed this warning could result in serious injury or death.
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (4) M12 x 1.25 x 35mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Do not use with weight-distributing hitches (spring bar type).
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Installation Instructions for Toyota RAV4
Part Numbers:
- 75125
- 44734
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 17mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Bolts and Tie-Down Brackets:
- Remove the two bolts and tie-down brackets from the vehicle frame on each side.
- Return the tie-down brackets to the vehicle owner for reinstallation if the hitch is removed.
-
Raise Hitch into Position:
- Raise the hitch into position and install two (2) M12 x 1.25 x 35mm bolts and conical toothed washers into the existing weld nuts on each side.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Warning:
- Early 1996 Models: If the vehicle is equipped with M10 fasteners, do not install the hitch.
- Failure to heed this warning could result in serious injury or death.
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (4) M12 x 1.25 x 35mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Do not use with weight-distributing hitches (spring bar type).
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118388
- Application: Toyota RAV4
Tools Required:
- Trim Panel Remover
- Philips Head Screwdriver
- Drill with 3/32” drill bit
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear hatch and fold the rear seats forward.
- Temporarily remove the rear threshold plate, storage covers, and floor covering.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver’s and passenger’s sides.
- Several trim panel fasteners must be removed to detach the panels.
- Set aside all components carefully to avoid damage.
-
Access the Vehicle Wiring Harness:
- Locate the vehicle’s taillight wiring harness on both the driver’s and passenger’s sides.
- The wiring harness will have a connection point matching the T-Connector ends.
- Separate the connectors carefully without breaking the locking tabs.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure the connectors are fully inserted and that the locking tabs are engaged.
-
Install the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire across the threshold to the passenger side.
- Insert the T-Connector between the passenger-side taillight wiring connectors.
- Verify that all connectors are securely locked.
-
Ground the White Wire:
- Locate a suitable grounding point near the driver’s side wiring harness.
- Drill a 3/32” hole into clean, bare metal.
- Secure the white wire using the provided eyelet and screw.
Caution: Always verify what is behind the surface before drilling to avoid vehicle damage or injury.
-
Mount the Black Converter Box:
- Locate a flat, protected area near the driver-side taillight to mount the black converter box.
- Secure the converter box using the provided screw or cable tie.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure all loose wires.
- Route the wiring harness away from areas where it could be pinched, cut, or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment.
- Store the connector in the compartment when not in use.
-
Reassemble Vehicle Components:
- Reinstall the trim panels, threshold plate, storage covers, and floor covering.
- Ensure that no wires are pinched or damaged during reassembly.
-
Test the Installation:
- Connect a trailer or use a test light to verify the functionality of:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Connect a trailer or use a test light to verify the functionality of:
Specifications:
- Stop/Turn Lights: 2.1 amps maximum per side
- Taillights: 5 amps maximum
Safety Notes:
- Verify all connections are secure and test the trailer lights before towing.
- Do not exceed the specified amperage ratings to avoid circuit overloads.
- Periodically inspect the wiring harness for damage or wear.
Warnings:
- Overloaded circuits can cause fires or electrical failure.
- Follow all safety precautions when working near electrical systems.
- Route wires carefully to avoid sharp edges, moving parts, or heat sources.
Technical Support:
For additional assistance, contact the manufacturer’s support team.
Note: Store the 4-flat connector securely in the storage compartment when not in use to prevent damage.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118388
- Application: Toyota RAV4
Tools Required:
- Trim Panel Remover
- Philips Head Screwdriver
- Drill with 3/32” drill bit
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear hatch and fold the rear seats forward.
- Temporarily remove the rear threshold plate, storage covers, and floor covering.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver’s and passenger’s sides.
- Several trim panel fasteners must be removed to detach the panels.
- Set aside all components carefully to avoid damage.
-
Access the Vehicle Wiring Harness:
- Locate the vehicle’s taillight wiring harness on both the driver’s and passenger’s sides.
- The wiring harness will have a connection point matching the T-Connector ends.
- Separate the connectors carefully without breaking the locking tabs.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure the connectors are fully inserted and that the locking tabs are engaged.
-
Install the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire across the threshold to the passenger side.
- Insert the T-Connector between the passenger-side taillight wiring connectors.
- Verify that all connectors are securely locked.
-
Ground the White Wire:
- Locate a suitable grounding point near the driver’s side wiring harness.
- Drill a 3/32” hole into clean, bare metal.
- Secure the white wire using the provided eyelet and screw.
Caution: Always verify what is behind the surface before drilling to avoid vehicle damage or injury.
-
Mount the Black Converter Box:
- Locate a flat, protected area near the driver-side taillight to mount the black converter box.
- Secure the converter box using the provided screw or cable tie.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure all loose wires.
- Route the wiring harness away from areas where it could be pinched, cut, or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment.
- Store the connector in the compartment when not in use.
-
Reassemble Vehicle Components:
- Reinstall the trim panels, threshold plate, storage covers, and floor covering.
- Ensure that no wires are pinched or damaged during reassembly.
-
Test the Installation:
- Connect a trailer or use a test light to verify the functionality of:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Connect a trailer or use a test light to verify the functionality of:
Specifications:
- Stop/Turn Lights: 2.1 amps maximum per side
- Taillights: 5 amps maximum
Safety Notes:
- Verify all connections are secure and test the trailer lights before towing.
- Do not exceed the specified amperage ratings to avoid circuit overloads.
- Periodically inspect the wiring harness for damage or wear.
Warnings:
- Overloaded circuits can cause fires or electrical failure.
- Follow all safety precautions when working near electrical systems.
- Route wires carefully to avoid sharp edges, moving parts, or heat sources.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Related Products
