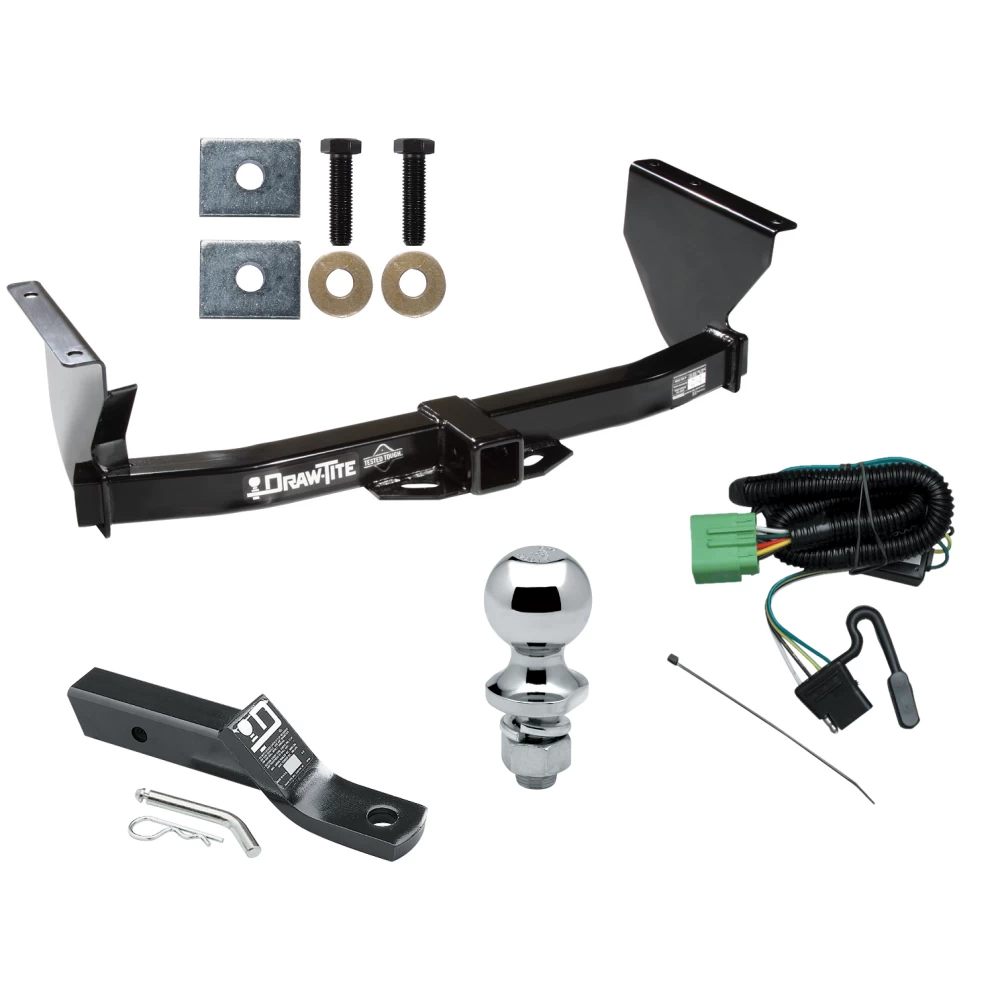

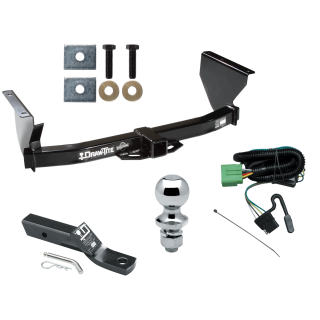

Trailer Tow Hitch For 99‑04 Jeep Grand Cherokee Complete Package w/ Wiring and 1‑7/8" Ball
Model: 75139 118369 23 63816 *Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2004 Jeep, Grand Cherokee, All Styles
Trailer Hitch Specs:
| Part Number | 75139 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118369 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Shank Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$282 60 $429.68 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$429.68 $282 60
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75139 118369 23 63816 *
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2004 Jeep, Grand Cherokee, All Styles
Trailer Hitch Specs:
| Part Number | 75139 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118369 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Shank Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 99-04 Jeep Grand Cherokee Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Jeep Grand Cherokee
Part Numbers:
- 75139
- 87601
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 18mm, 19mm (Torque wrench for all fasteners)
- No drill required.
Step-by-Step Instructions:
-
Remove Tow Hook Bracket:
- If present, remove the tow hook bracket.
-
Remove M12 Fasteners:
- Remove the M12 fasteners from the five rearmost vehicle frame weld nuts.
- The skid shield will remain in place.
-
Raise Hitch into Position:
- Install or re-install the fasteners as shown in the diagram.
- For vehicles equipped with reinforcement bars, use the existing M12 fasteners.
-
Tighten Fasteners:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft.
Hardware List (for vehicles without reinforcement bars):
- M12 x 1.75 x 45mm CL10.9 bolts
- Lock washers
- Flat washers (hardened)
- 3/16" x 1-1/2" x 2" blocks (Part #: 4833-001)
Optional Components:
- Locking stabilizing pin (Order J-Pin separately)
Safety Notes:
- Regularly check that all fasteners and hitch components are properly tightened.
- If the hitch is removed, plug any holes in the trunk or body panels to prevent water and exhaust fumes from entering the vehicle.
- Replace any hitch or ball that has been damaged.
- Observe appropriate safety precautions and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type:
- Weight Distributing: 7,500 lbs. Max Gross Trailer Weight, 750 lbs. Max Tongue Weight
- Weight Carrying (Ball Mount): 5,000 lbs. Max Gross Trailer Weight, 500 lbs. Max Tongue Weight
- This product complies with safety standards per SAE J684 and New York V.E.S.C. Regulation V-5.
Note: Ensure all fasteners are installed and tightened correctly to ensure a secure hitch installation.
Installation Instructions for Jeep Grand Cherokee
Part Numbers:
- 75139
- 87601
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 18mm, 19mm (Torque wrench for all fasteners)
- No drill required.
Step-by-Step Instructions:
-
Remove Tow Hook Bracket:
- If present, remove the tow hook bracket.
-
Remove M12 Fasteners:
- Remove the M12 fasteners from the five rearmost vehicle frame weld nuts.
- The skid shield will remain in place.
-
Raise Hitch into Position:
- Install or re-install the fasteners as shown in the diagram.
- For vehicles equipped with reinforcement bars, use the existing M12 fasteners.
-
Tighten Fasteners:
- Tighten all M12 CL10.9 fasteners to 75 Lb.-Ft.
Hardware List (for vehicles without reinforcement bars):
- M12 x 1.75 x 45mm CL10.9 bolts
- Lock washers
- Flat washers (hardened)
- 3/16" x 1-1/2" x 2" blocks (Part #: 4833-001)
Optional Components:
- Locking stabilizing pin (Order J-Pin separately)
Safety Notes:
- Regularly check that all fasteners and hitch components are properly tightened.
- If the hitch is removed, plug any holes in the trunk or body panels to prevent water and exhaust fumes from entering the vehicle.
- Replace any hitch or ball that has been damaged.
- Observe appropriate safety precautions and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type:
- Weight Distributing: 7,500 lbs. Max Gross Trailer Weight, 750 lbs. Max Tongue Weight
- Weight Carrying (Ball Mount): 5,000 lbs. Max Gross Trailer Weight, 500 lbs. Max Tongue Weight
- This product complies with safety standards per SAE J684 and New York V.E.S.C. Regulation V-5.
Note: Ensure all fasteners are installed and tightened correctly to ensure a secure hitch installation.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118369
Wiring Access Location:
- Behind the rear interior trim panel on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
-
Open the rear door of the vehicle.
- Temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
-
Locate the vehicle’s green trailer tow plug behind the trim panel removed in step 1.
-
Plug the T-Connector harness into the vehicle’s connector.
- Secure the connection using the red locking tab.
-
Test the installation with a test light or trailer.
-
Reinstall the threshold, trim panel, cargo net, and cover removed in step 1.
- Specifications:
- This unit is rated for 4 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Product Information:
- Part Numbers: 118369
- Wiring Access Location: Behind the rear interior trim panel on the driver’s side of the vehicle.
Tools Required:
- None specified
Step-by-Step Instructions:
-
Prepare the Interior:
- Open the rear door of the vehicle.
- Temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
-
Locate the Trailer Tow Plug:
- Locate the vehicle’s green trailer tow plug behind the trim panel removed in Step 1.
-
Connect the T-Connector Harness:
- Plug the T-Connector harness into the vehicle’s connector.
- Secure the connection by sliding the red locking tab into place.
-
Test the Installation:
- Use a test light or connect a trailer to verify the proper operation of the T-Connector.
- Confirm that all trailer lights (running lights, brake lights, and turn signals) function correctly.
-
Reinstall Interior Components:
- Reinstall the threshold, trim panel, cargo net, and cargo cover removed in Step 1.
Specifications:
- Current Rating: 4 amps per circuit
Notes:
- Ensure all connections are clean and securely fastened to prevent loose connections.
- Regularly inspect the wiring harness for damage or debris.
- Verify trailer lights before towing.
Safety Notes:
- Do not exceed the 4-amp maximum rating per circuit to avoid damage.
- Always verify the trailer lighting system before towing.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information: For complete warranty instructions, refer to the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
