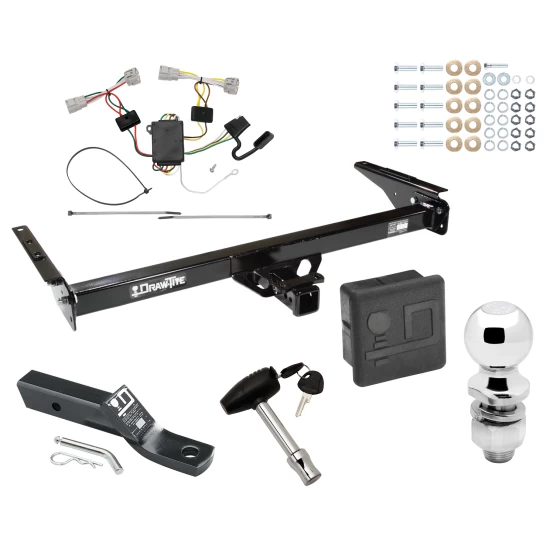

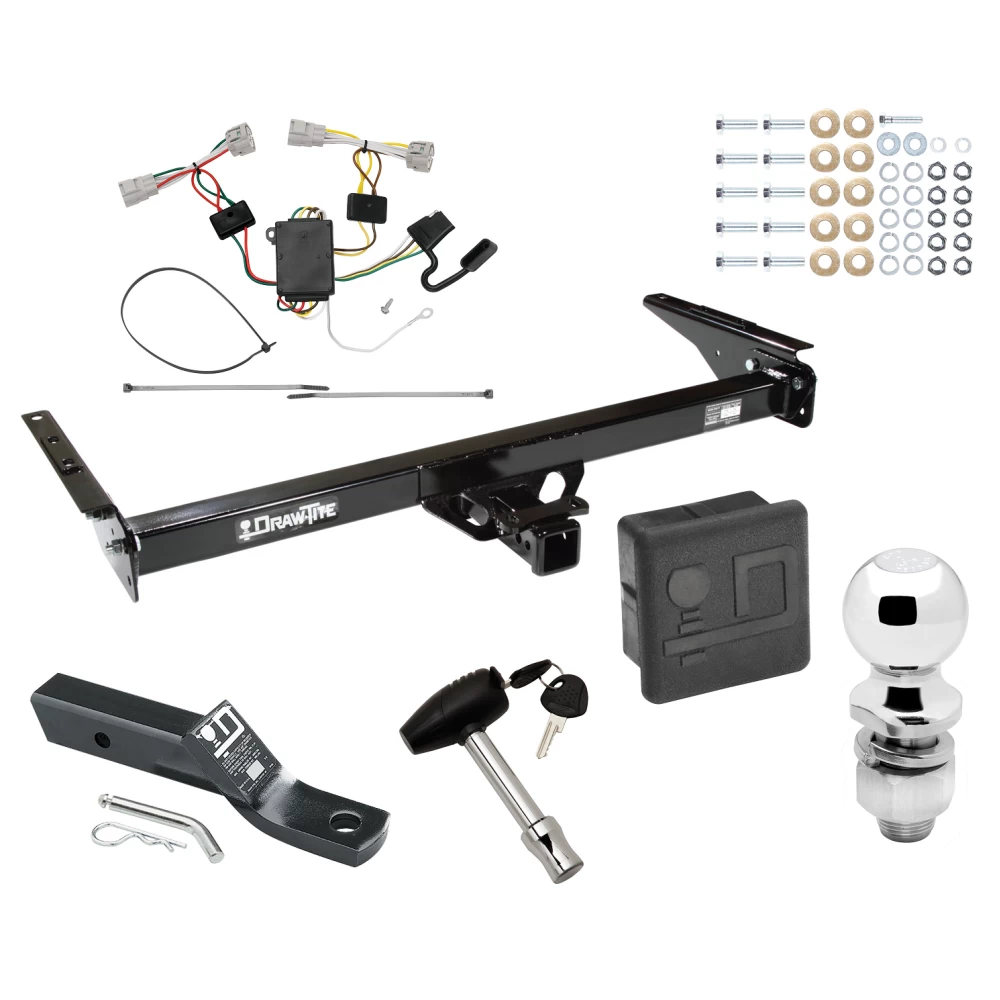

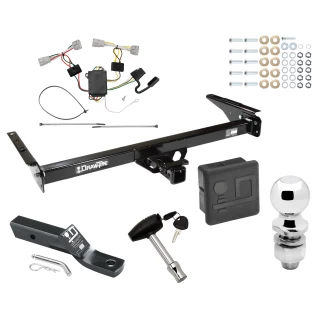

Trailer Tow Hitch For 93‑98 Toyota T100 Deluxe Package Wiring 2" Ball and Lock
Model: 75144 118496 23 63845 580407 7010Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1993 - 1998 Toyota, T100, All Styles
Trailer Hitch Specs:
| Part Number | 75144 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,000 lbs |
| Max Tongue Weight | 500/700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118496 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 93 94 95 96 97 98 1993 1994 1995 1996 1997 1998
$442 96 $671.94 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$671.94 $442 96
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $110.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75144 118496 23 63845 580407 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1993 - 1998 Toyota, T100, All Styles
Trailer Hitch Specs:
| Part Number | 75144 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,000 lbs |
| Max Tongue Weight | 500/700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118496 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 93 94 95 96 97 98 1993 1994 1995 1996 1997 1998
Get Expert Help
Trailer Tow Hitch For 93-98 Toyota T100 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Toyota T100 Pickup (2WD & 4WD)
Part Numbers:
- 33022
- 75144
- 87490
Tools Required:
- 9/16" Socket
- 18mm Wrench
- 7/32" Allen Wrench
- Torque Wrench
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 7,000 lb. (3,175 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 700 lb. (317 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Consult the vehicle owner's manual for towing recommendations and limitations.
Step-by-Step Instructions:
-
Remove Existing Hardware:
- For all trucks, remove the two inner bolts along the bottom of the bumper using an Allen wrench.
- For 4x4 trucks, remove the four (2 each side) 12mm bolts securing the frame reinforcement to the frame above the leaf spring.
-
Install Frame Brackets:
- Position the left and right frame brackets (A and B) with the flanges pointing outward over the holes where the hardware was removed.
- Install bolts (D), lock washers (H), serrated washers (J), and nuts (I).
- For 4x4 trucks, use the existing nuts in the reinforcement brackets.
- For 2WD trucks, use the existing nut in the frame.
- Note: Extra nuts and washers may remain in the parts bag after installation for 4x4 trucks.
-
Install Center Section:
- Position the center section (C) between the frame brackets (A) and (B). Adjust the rear end of the hitch to sit just below the bumper.
- Install bolts (D) through the center section and frame brackets. Secure with lock washers (H) and nuts (I).
-
Attach Bumper Bar:
- Align the holes in bar (K) at the rear end of the hitch with the bolt holes in the bottom of the bumper.
- Install bolts (E) with lock washers (F) and serrated washers (L) into the bottom of the bumper.
-
Torque Fasteners:
- Torque 3/8" bolts (E) to 35 Lb.-Ft.
- Torque the 12mm nuts (I) securing the center section (C) to 75 Lb.-Ft.
- Torque the 12mm bolts (D) in the frame brackets (A) and (B) to 75 Lb.-Ft.
Hardware List:
- (6) Bolts: M12 x 1.25 x 35mm
- (6) Helical Lock Washers
- (6) Serrated Washers
- (4) Bolts: 3/8"-16 x 1-1/4"
- (4) Helical Lock Washers
- (4) Serrated Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug any holes in the vehicle frame to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe all safety precautions and wear eye protection when working beneath the vehicle.
- Do not lubricate threads or drill/weld on this hitch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements for the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- This warranty is limited to replacement of defective parts only and does not cover labor or incidental damages.
Installation Instructions for Toyota T100 Pickup (2WD & 4WD)
Part Numbers:
- 33022
- 75144
- 87490
Tools Required:
- 9/16" Socket
- 18mm Wrench
- 7/32" Allen Wrench
- Torque Wrench
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 7,000 lb. (3,175 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 700 lb. (317 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Consult the vehicle owner's manual for towing recommendations and limitations.
Step-by-Step Instructions:
-
Remove Existing Hardware:
- For all trucks, remove the two inner bolts along the bottom of the bumper using an Allen wrench.
- For 4x4 trucks, remove the four (2 each side) 12mm bolts securing the frame reinforcement to the frame above the leaf spring.
-
Install Frame Brackets:
- Position the left and right frame brackets (A and B) with the flanges pointing outward over the holes where the hardware was removed.
- Install bolts (D), lock washers (H), serrated washers (J), and nuts (I).
- For 4x4 trucks, use the existing nuts in the reinforcement brackets.
- For 2WD trucks, use the existing nut in the frame.
- Note: Extra nuts and washers may remain in the parts bag after installation for 4x4 trucks.
-
Install Center Section:
- Position the center section (C) between the frame brackets (A) and (B). Adjust the rear end of the hitch to sit just below the bumper.
- Install bolts (D) through the center section and frame brackets. Secure with lock washers (H) and nuts (I).
-
Attach Bumper Bar:
- Align the holes in bar (K) at the rear end of the hitch with the bolt holes in the bottom of the bumper.
- Install bolts (E) with lock washers (F) and serrated washers (L) into the bottom of the bumper.
-
Torque Fasteners:
- Torque 3/8" bolts (E) to 35 Lb.-Ft.
- Torque the 12mm nuts (I) securing the center section (C) to 75 Lb.-Ft.
- Torque the 12mm bolts (D) in the frame brackets (A) and (B) to 75 Lb.-Ft.
Hardware List:
- (6) Bolts: M12 x 1.25 x 35mm
- (6) Helical Lock Washers
- (6) Serrated Washers
- (4) Bolts: 3/8"-16 x 1-1/4"
- (4) Helical Lock Washers
- (4) Serrated Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug any holes in the vehicle frame to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe all safety precautions and wear eye protection when working beneath the vehicle.
- Do not lubricate threads or drill/weld on this hitch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements for the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- This warranty is limited to replacement of defective parts only and does not cover labor or incidental damages.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118496
Vehicle-Specific Instructions:
Toyota Tacoma:
-
Open the tailgate and remove the vehicle’s tail lights.
- Carefully pry the housings away from the vehicle, being cautious not to break the alignment tabs.
-
Locate the vehicle’s wiring harness attached to each tail light housing.
- The connectors will match the ends of the T-Connector adapter.
-
On the driver’s side, plug the T-Connector end with the yellow wire between the wiring connections.
- Ensure the T-Connector is fully inserted with the locking tabs in place.
-
Route the T-Connector harness:
- Pass the green wire and the 4-flat connector out through the hole between the bumper and the vehicle body.
- Route the green wire to the passenger side, avoiding any areas that could pinch or damage the wire.
- Repeat step 3 for the passenger side using the green wire.
-
Locate the ground stud in the driver’s side tail light pocket.
- Secure the T-Connector’s ring terminal to the stud using the provided nut.
-
Route the 4-flat connector to the center of the vehicle and secure the black box to the vehicle using the cable tie provided.
- Use additional cable ties to secure the remaining harness, avoiding any areas that might pinch or cut the wires.
-
Reinstall the tail lights.
Toyota T100:
-
Locate the vehicle’s taillight wiring harness near the rear frame.
- The harness will have connection points on both sides matching the T-Connector ends.
-
Separate the connections, being careful not to break the locking tabs.
- Ensure all surfaces are clean.
-
On the driver’s side, plug the T-Connector end with the yellow wire between the connections.
- Ensure it is fully inserted with the locking tabs in place.
-
Repeat step 3 on the passenger side using the T-Connector end with the green wire.
-
Locate a suitable grounding point near the adapter, such as the vehicle frame or crossmember.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire with the provided eyelet and screw.
-
Route the 4-flat connector to the center of the vehicle and secure the black box with a cable tie.
- Secure the remaining harness with cable ties.
Tools Required:
- 10mm socket and ratchet or 10mm wrench.
- Drill with a 3/32" drill bit (for Toyota T100 grounding).
Testing and Final Steps:
-
Test the installation with a test light or trailer to verify functionality.
- Warning: Ensure all connections are complete for the T-Connector to function properly.
-
Do not exceed the towing manufacturer's rating or:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail light: (7.5 amps).
Hardware List:
- T-Connector adapter.
- Cable ties.
- Eyelet and screw (for grounding on Toyota T100).
Safety Notes:
- Avoid drilling into exposed vehicle surfaces.
- Secure all wires to prevent damage or rattling.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118496
Vehicle-Specific Instructions:
Toyota Tacoma:
-
Open the tailgate and remove the vehicle’s tail lights.
- Carefully pry the housings away from the vehicle, being cautious not to break the alignment tabs.
-
Locate the vehicle’s wiring harness attached to each tail light housing.
- The connectors will match the ends of the T-Connector adapter.
-
On the driver’s side, plug the T-Connector end with the yellow wire between the wiring connections.
- Ensure the T-Connector is fully inserted with the locking tabs in place.
-
Route the T-Connector harness:
- Pass the green wire and the 4-flat connector out through the hole between the bumper and the vehicle body.
- Route the green wire to the passenger side, avoiding any areas that could pinch or damage the wire.
- Repeat step 3 for the passenger side using the green wire.
-
Locate the ground stud in the driver’s side tail light pocket.
- Secure the T-Connector’s ring terminal to the stud using the provided nut.
-
Route the 4-flat connector to the center of the vehicle and secure the black box to the vehicle using the cable tie provided.
- Use additional cable ties to secure the remaining harness, avoiding any areas that might pinch or cut the wires.
-
Reinstall the tail lights.
Toyota T100:
-
Locate the vehicle’s taillight wiring harness near the rear frame.
- The harness will have connection points on both sides matching the T-Connector ends.
-
Separate the connections, being careful not to break the locking tabs.
- Ensure all surfaces are clean.
-
On the driver’s side, plug the T-Connector end with the yellow wire between the connections.
- Ensure it is fully inserted with the locking tabs in place.
-
Repeat step 3 on the passenger side using the T-Connector end with the green wire.
-
Locate a suitable grounding point near the adapter, such as the vehicle frame or crossmember.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire with the provided eyelet and screw.
-
Route the 4-flat connector to the center of the vehicle and secure the black box with a cable tie.
- Secure the remaining harness with cable ties.
Tools Required:
- 10mm socket and ratchet or 10mm wrench.
- Drill with a 3/32" drill bit (for Toyota T100 grounding).
Testing and Final Steps:
-
Test the installation with a test light or trailer to verify functionality.
- Warning: Ensure all connections are complete for the T-Connector to function properly.
-
Do not exceed the towing manufacturer's rating or:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail light: (7.5 amps).
Hardware List:
- T-Connector adapter.
- Cable ties.
- Eyelet and screw (for grounding on Toyota T100).
Safety Notes:
- Avoid drilling into exposed vehicle surfaces.
- Secure all wires to prevent damage or rattling.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Consult the vehicle owner’s manual for additional details.
Related Products
