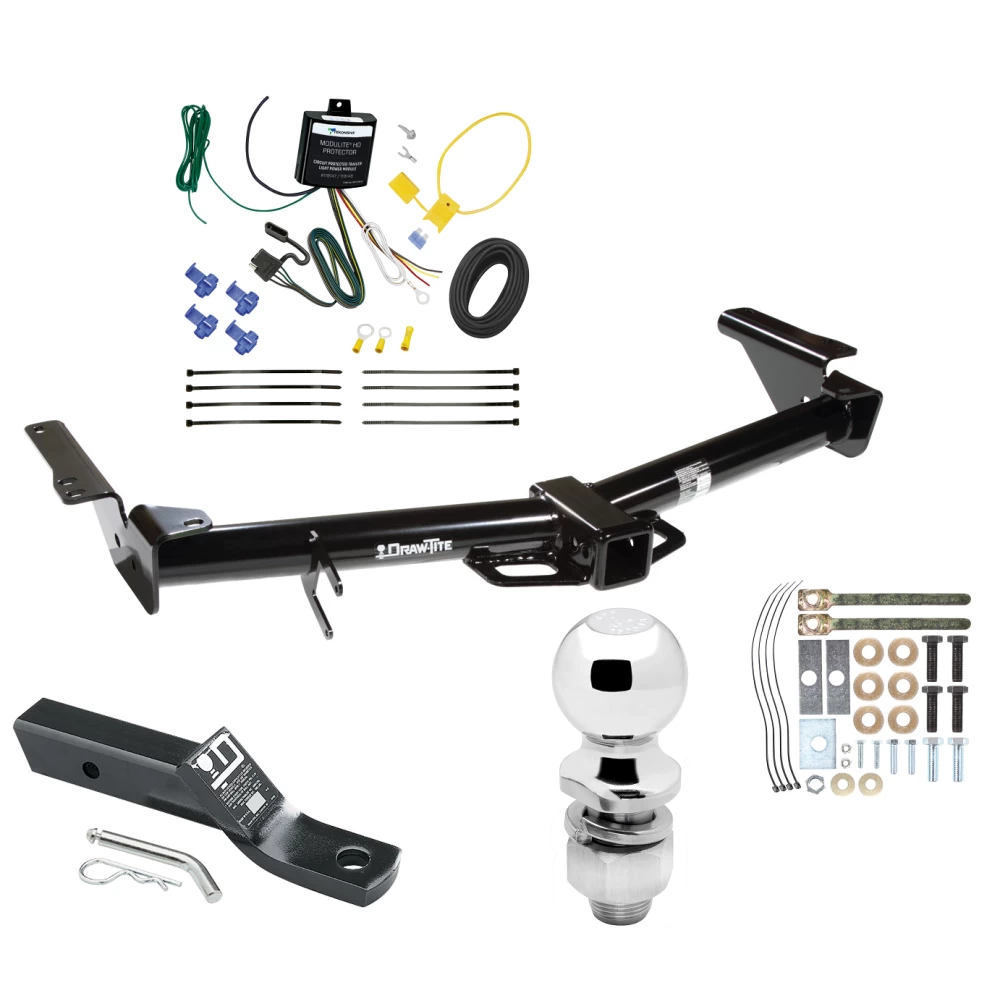

Trailer Tow Hitch For 03‑09 Lexus GX470 07‑09 Toyota 4Runner Complete Package w/ Wiring and 2" Ball
Model: 75155 119148 23 63845Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2009 Lexus, GX470, All Styles
2007 - 2009 Toyota, 4Runner, All Styles

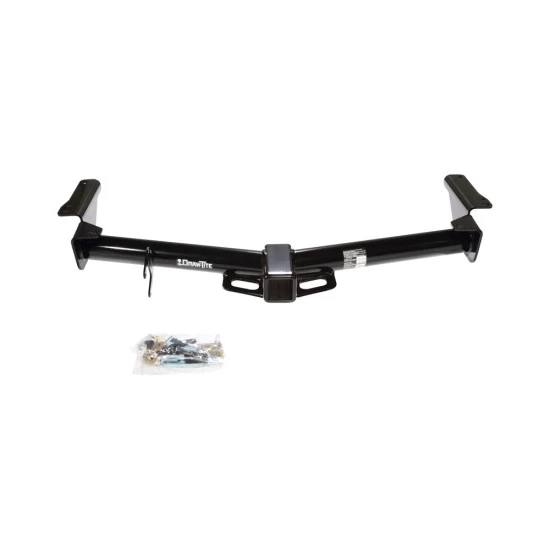

Trailer Hitch Specs:
| Part Number | 75155 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 7,300 lbs |
| Max Tongue Weight | 600/730 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 119148 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$346 96 $524.15 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$524.15 $346 96
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $86.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75155 119148 23 63845
- Includes: Class 4 Trailer Tow Hitch, ModuLite HD Protector Trailer Light Power Module & Installation Kit, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2009 Lexus, GX470, All Styles
2007 - 2009 Toyota, 4Runner, All Styles
Trailer Hitch Specs:
| Part Number | 75155 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 7,300 lbs |
| Max Tongue Weight | 600/730 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 119148 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 03-09 Lexus GX470 07-09 Toyota 4Runner Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Lexus GX470 and Toyota 4Runner
Part Numbers:
- 44548
- 75155
- 70779
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 1/2", 3/4", 10mm, 12mm, 13mm, 17mm
- Drill Bits: None
- Other Tools: Tin Snips
Step-by-Step Instructions:
-
Remove Factory Components:
- Remove the (6) bolts securing the (2) fascia support brackets. Return the brackets and fasteners to the vehicle owner for future reinstallation if the hitch is removed.
- For vehicles with a factory hitch, remove it as the rear fascia must be removed and reinstalled.
-
Prepare the Vehicle:
- Remove the tow hook and electrical bracket from the vehicle frame, returning them to the owner with fasteners.
- If applicable, unplug the wiring connector from the impact bar and remove any plastic wire holders.
-
For Toyota 4Runner Only:
- Trim fascia tabs near the bottom of the impact bar as needed.
-
Install the Hitch:
- Raise the hitch into position, ensuring the factory 7-way connector is above the hitch's crosstube during installation.
- Align side brackets with existing tow hook holes at the frame rails' ends. Secure with fasteners.
-
Secure the Components:
- Insert the nut block handle assembly (M12) into the impact bar slots and install the M12 hex bolt with a 1/2" conical washer.
- Attach the factory 7-way connector to the hitch's provided electrical bracket using (2) 1/4" hex bolts and flange nuts.
-
Install Zip Cable Ties:
- Attach the provided zip cable ties (4) through the spare tire bracket to create a loop. Feed the remaining (2) zip cable ties through the fascia tabs and the large loop, securing them together.

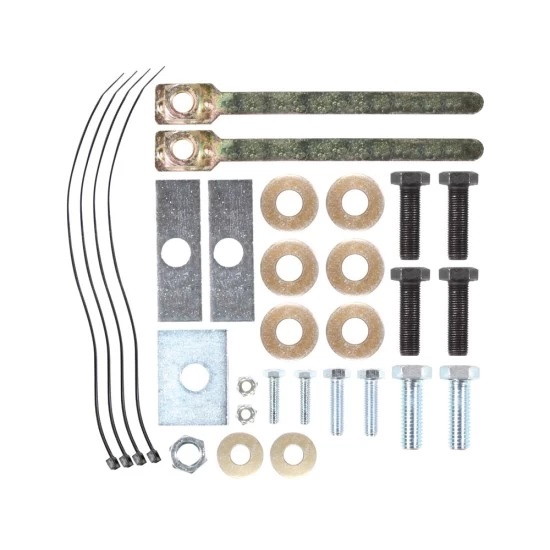

Hardware List:
- (6) Hex Bolts: M12 x 1.25 x 40mm CL10.9
- (6) Conical Washers: 1/2"
- (2) Nut Block Handle Assemblies: M12
- (2) Hex Bolts: 1/4"-20 x 1" GR5
- (2) Flange Nuts: 1/4"
- (2) Hex Bolts: M8 x 1.25 x 30mm CL10.9
- (2) Conical Washers: 3/8"
- (4) Cable Ties
Torque Specifications:
- M8 Fasteners: 20 lb-ft (27 N·m)
- M12 Fasteners: 68 lb-ft (92 N·m)
- 1/4" GR5 Fasteners: 8 lb-ft (11 N·m)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 7,300 lbs (3,314 kg)
- Tongue Weight: 730 lbs (331 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the vehicle manufacturer’s maximum weight rating or the hitch's maximum load rating, whichever is lower.
Installation Instructions for Lexus GX470 and Toyota 4Runner
Part Numbers:
- 44548
- 75155
- 70779
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 1/2", 3/4", 10mm, 12mm, 13mm, 17mm
- Drill Bits: None
- Other Tools: Tin Snips
Step-by-Step Instructions:
-
Remove Factory Components:
- Remove the (6) bolts securing the (2) fascia support brackets. Return the brackets and fasteners to the vehicle owner for future reinstallation if the hitch is removed.
- For vehicles with a factory hitch, remove it as the rear fascia must be removed and reinstalled.
-
Prepare the Vehicle:
- Remove the tow hook and electrical bracket from the vehicle frame, returning them to the owner with fasteners.
- If applicable, unplug the wiring connector from the impact bar and remove any plastic wire holders.
-
For Toyota 4Runner Only:
- Trim fascia tabs near the bottom of the impact bar as needed.
-
Install the Hitch:
- Raise the hitch into position, ensuring the factory 7-way connector is above the hitch's crosstube during installation.
- Align side brackets with existing tow hook holes at the frame rails' ends. Secure with fasteners.
-
Secure the Components:
- Insert the nut block handle assembly (M12) into the impact bar slots and install the M12 hex bolt with a 1/2" conical washer.
- Attach the factory 7-way connector to the hitch's provided electrical bracket using (2) 1/4" hex bolts and flange nuts.
-
Install Zip Cable Ties:
- Attach the provided zip cable ties (4) through the spare tire bracket to create a loop. Feed the remaining (2) zip cable ties through the fascia tabs and the large loop, securing them together.
Hardware List:
- (6) Hex Bolts: M12 x 1.25 x 40mm CL10.9
- (6) Conical Washers: 1/2"
- (2) Nut Block Handle Assemblies: M12
- (2) Hex Bolts: 1/4"-20 x 1" GR5
- (2) Flange Nuts: 1/4"
- (2) Hex Bolts: M8 x 1.25 x 30mm CL10.9
- (2) Conical Washers: 3/8"
- (4) Cable Ties
Torque Specifications:
- M8 Fasteners: 20 lb-ft (27 N·m)
- M12 Fasteners: 68 lb-ft (92 N·m)
- 1/4" GR5 Fasteners: 8 lb-ft (11 N·m)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 7,300 lbs (3,314 kg)
- Tongue Weight: 730 lbs (331 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the vehicle manufacturer’s maximum weight rating or the hitch's maximum load rating, whichever is lower.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Modulite® HD Protector Vehicle Wiring
Part Number:
- 119148
Tools Required:
- Phillips Head #2 Screwdriver
- Wire Cutters
- Wire Strippers/Wire Crimpers
- Tester or Volt Meter
- Socket & Ratchet Set
- Drill with 3/32” Drill Bit
- Double-Sided Tape
Step-by-Step Instructions:
Tow Vehicle Inputs - Determination:
- Disconnect and isolate the vehicle's negative battery terminal.
- Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
- Splice the tow harness input wires to the vehicle as determined.
- Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.
Harness Installation:
- Determine the mounting location of the module and secure it using the double-sided tape provided.
- Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
- Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
- Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15 amp fuse yet.
- Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.
Completion:
- Secure the harness with cable ties provided to prevent damage or rattling.
- Reconnect the vehicle's negative battery cable.
- Insert the 15 amp fuse into the fuse holder and close the cap.
- Test the installation using a test light or trailer. Check each function independently and in combination.
Hardware List:
- 8 × Cable Ties, 8.5”
- 1 × 15 AMP Fuse
- 2 × Ring Terminals
- 1 × Fuse Holder
- 2 × Yellow Butt Connectors
- 1 × Self-Tapping Screw
- 4 × Blue Taps
- 1 × Spade Terminal
Wiring Outputs:
- White Wire: Ground
- Brown Wire: Tail
- Yellow Wire: Left Turn/Brake
- Green Wire: Right Turn/Brake
- Red Wire: Stop (for 3-wire systems only)
Safety Notes:
- Always read and follow all warnings and instructions included with the product and the vehicle's manual.
- Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
- Wear safety glasses and use all necessary safety precautions during installation.
Troubleshooting Guide:
- 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
- No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.
Specifications:
- Installation Time: Approximately 45 minutes
- Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
For warranty information, please download the full installation PDF.
Related Products
