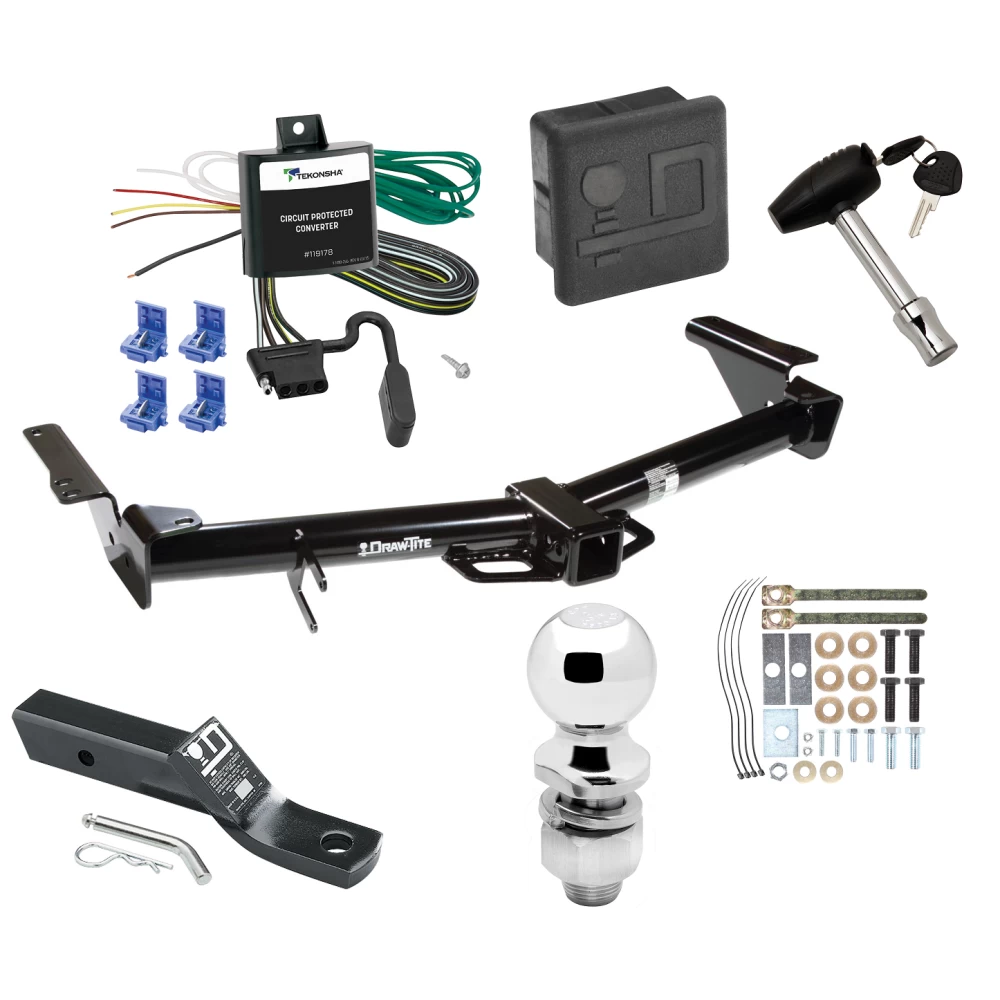

- Includes: Class 4 Trailer Tow Hitch, Taillight Converter with Integrated Circuit Protection, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 03-06 Toyota 4Runner Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Lexus GX470 and Toyota 4Runner
Part Numbers:
- 44548
- 75155
- 70779
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 1/2", 3/4", 10mm, 12mm, 13mm, 17mm
- Drill Bits: None
- Other Tools: Tin Snips
Step-by-Step Instructions:
-
Remove Factory Components:
- Remove the (6) bolts securing the (2) fascia support brackets. Return the brackets and fasteners to the vehicle owner for future reinstallation if the hitch is removed.
- For vehicles with a factory hitch, remove it as the rear fascia must be removed and reinstalled.
-
Prepare the Vehicle:
- Remove the tow hook and electrical bracket from the vehicle frame, returning them to the owner with fasteners.
- If applicable, unplug the wiring connector from the impact bar and remove any plastic wire holders.
-
For Toyota 4Runner Only:
- Trim fascia tabs near the bottom of the impact bar as needed.
-
Install the Hitch:
- Raise the hitch into position, ensuring the factory 7-way connector is above the hitch's crosstube during installation.
- Align side brackets with existing tow hook holes at the frame rails' ends. Secure with fasteners.
-
Secure the Components:
- Insert the nut block handle assembly (M12) into the impact bar slots and install the M12 hex bolt with a 1/2" conical washer.
- Attach the factory 7-way connector to the hitch's provided electrical bracket using (2) 1/4" hex bolts and flange nuts.
-
Install Zip Cable Ties:
- Attach the provided zip cable ties (4) through the spare tire bracket to create a loop. Feed the remaining (2) zip cable ties through the fascia tabs and the large loop, securing them together.
Hardware List:
- (6) Hex Bolts: M12 x 1.25 x 40mm CL10.9
- (6) Conical Washers: 1/2"
- (2) Nut Block Handle Assemblies: M12
- (2) Hex Bolts: 1/4"-20 x 1" GR5
- (2) Flange Nuts: 1/4"
- (2) Hex Bolts: M8 x 1.25 x 30mm CL10.9
- (2) Conical Washers: 3/8"
- (4) Cable Ties
Torque Specifications:
- M8 Fasteners: 20 lb-ft (27 N·m)
- M12 Fasteners: 68 lb-ft (92 N·m)
- 1/4" GR5 Fasteners: 8 lb-ft (11 N·m)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 7,300 lbs (3,314 kg)
- Tongue Weight: 730 lbs (331 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the vehicle manufacturer’s maximum weight rating or the hitch's maximum load rating, whichever is lower.
Installation Instructions for Lexus GX470 and Toyota 4Runner
Part Numbers:
- 44548
- 75155
- 70779
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 1/2", 3/4", 10mm, 12mm, 13mm, 17mm
- Drill Bits: None
- Other Tools: Tin Snips
Step-by-Step Instructions:
-
Remove Factory Components:
- Remove the (6) bolts securing the (2) fascia support brackets. Return the brackets and fasteners to the vehicle owner for future reinstallation if the hitch is removed.
- For vehicles with a factory hitch, remove it as the rear fascia must be removed and reinstalled.
-
Prepare the Vehicle:
- Remove the tow hook and electrical bracket from the vehicle frame, returning them to the owner with fasteners.
- If applicable, unplug the wiring connector from the impact bar and remove any plastic wire holders.
-
For Toyota 4Runner Only:
- Trim fascia tabs near the bottom of the impact bar as needed.
-
Install the Hitch:
- Raise the hitch into position, ensuring the factory 7-way connector is above the hitch's crosstube during installation.
- Align side brackets with existing tow hook holes at the frame rails' ends. Secure with fasteners.
-
Secure the Components:
- Insert the nut block handle assembly (M12) into the impact bar slots and install the M12 hex bolt with a 1/2" conical washer.
- Attach the factory 7-way connector to the hitch's provided electrical bracket using (2) 1/4" hex bolts and flange nuts.
-
Install Zip Cable Ties:
- Attach the provided zip cable ties (4) through the spare tire bracket to create a loop. Feed the remaining (2) zip cable ties through the fascia tabs and the large loop, securing them together.
Hardware List:
- (6) Hex Bolts: M12 x 1.25 x 40mm CL10.9
- (6) Conical Washers: 1/2"
- (2) Nut Block Handle Assemblies: M12
- (2) Hex Bolts: 1/4"-20 x 1" GR5
- (2) Flange Nuts: 1/4"
- (2) Hex Bolts: M8 x 1.25 x 30mm CL10.9
- (2) Conical Washers: 3/8"
- (4) Cable Ties
Torque Specifications:
- M8 Fasteners: 20 lb-ft (27 N·m)
- M12 Fasteners: 68 lb-ft (92 N·m)
- 1/4" GR5 Fasteners: 8 lb-ft (11 N·m)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 7,300 lbs (3,314 kg)
- Tongue Weight: 730 lbs (331 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the vehicle manufacturer’s maximum weight rating or the hitch's maximum load rating, whichever is lower.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
