Product Details
- Brand: Draw-Tite
- Model: 75193 118356 23 63845

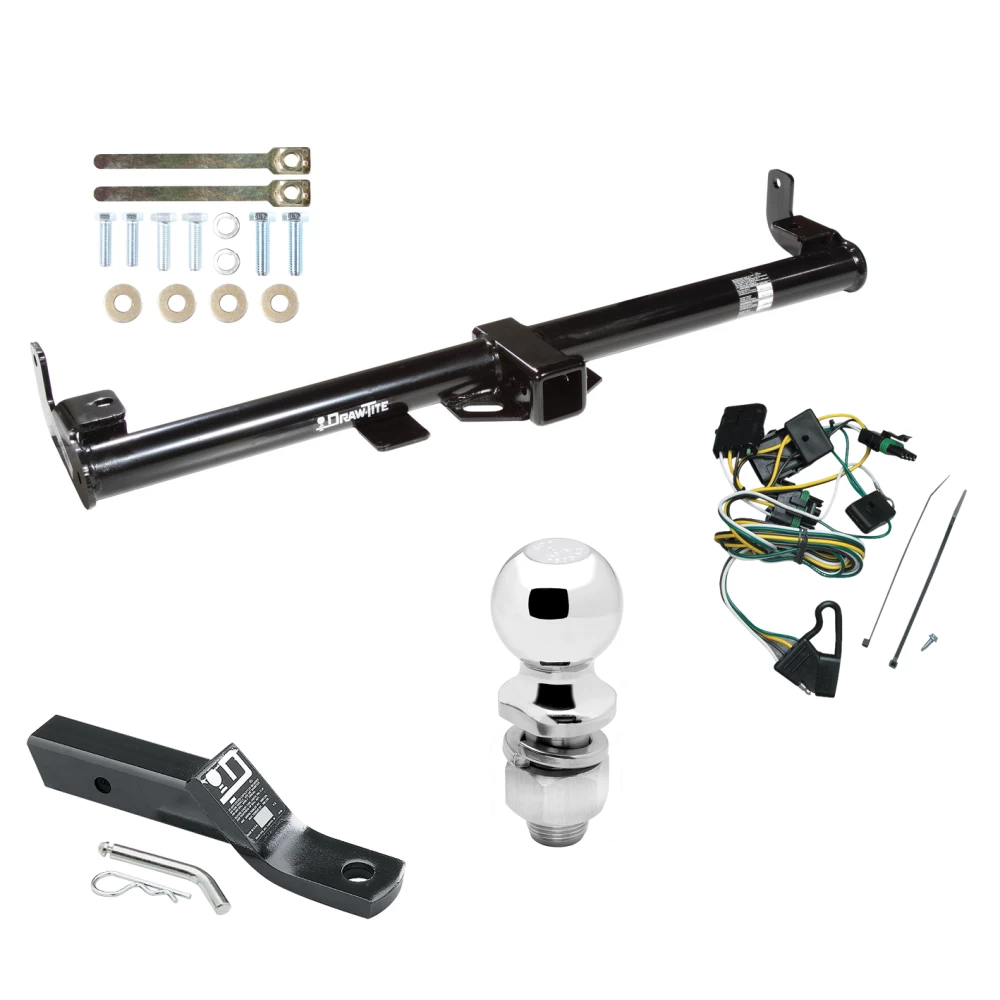

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 97 Jeep Wrangler TJ Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Jeep Wrangler
Part Numbers:
- 75193
- 87431
- 44565
- 33036
Wiring Access Location:
- SUV5, SUV7
Tools Required:
- Wrenches: 5/8", 3/4"
- Torque Wrench
- Drill Bits: None
Notes:
- Hitch requires 5/8” pin and clip.
Step-by-Step Instructions:
- Remove the existing bolt from the frame/bumper attachment (one from each side of the vehicle).
- If equipped, remove tow hooks and return them to the customer.
- Raise the hitch into position as shown in the diagram.
- Replace the bolt removed in Step 1 with either 7/16-14 x 1-1/2” bolts or M12 x 1.75 x 40mm bolts, depending on the vehicle model.
- Install the remaining fasteners as shown in the diagram.
- Tighten all fasteners as follows:
- 7/16 GR5 fasteners: 50 lb-ft (68 N·m)
- 1/2 GR5 fasteners: 50 lb-ft (68 N·m)
- M12 CL8.8 fasteners: 68 lb-ft (91 N·m)
Hardware List:
- (2) 7/16-14 x 1.50 GR5 Hex Bolts
- (2) 1/2-13 x 1.75 GR5 Hex Bolts
- (2) M12 x 1.75 x 40mm CL8.8 Hex Bolts
- (2) 7/16” Conical Toothed Washers
- (2) 1/2” Conical Toothed Washers
- (2) 1/2” Lock Washers
- (2) 1/2-13 Handle Nut Assemblies
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Jeep Wrangler
Part Numbers:
- 75193
- 87431
- 44565
- 33036
Wiring Access Location:
- SUV5, SUV7
Tools Required:
- Wrenches: 5/8", 3/4"
- Torque Wrench
- Drill Bits: None
Notes:
- Hitch requires 5/8” pin and clip.
Step-by-Step Instructions:
- Remove the existing bolt from the frame/bumper attachment (one from each side of the vehicle).
- If equipped, remove tow hooks and return them to the customer.
- Raise the hitch into position as shown in the diagram.
- Replace the bolt removed in Step 1 with either 7/16-14 x 1-1/2” bolts or M12 x 1.75 x 40mm bolts, depending on the vehicle model.
- Install the remaining fasteners as shown in the diagram.
- Tighten all fasteners as follows:
- 7/16 GR5 fasteners: 50 lb-ft (68 N·m)
- 1/2 GR5 fasteners: 50 lb-ft (68 N·m)
- M12 CL8.8 fasteners: 68 lb-ft (91 N·m)
Hardware List:
- (2) 7/16-14 x 1.50 GR5 Hex Bolts
- (2) 1/2-13 x 1.75 GR5 Hex Bolts
- (2) M12 x 1.75 x 40mm CL8.8 Hex Bolts
- (2) 7/16” Conical Toothed Washers
- (2) 1/2” Conical Toothed Washers
- (2) 1/2” Lock Washers
- (2) 1/2-13 Handle Nut Assemblies
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118356
Wiring Access Location:
- Underneath the vehicle behind the rear protective covers on both sides.
Tools Required:
- Drill with a 3/32" drill bit.
- Screw or cable ties (provided in the kit).
Step-by-Step Instructions:
-
Temporarily remove the protective covers under the vehicle next to the rear bumper.
- Locate the vehicle’s wiring harnesses underneath the vehicle behind the protective covers.
- These harnesses will have connection points matching the ends of the T-Connector on both sides.
-
Starting on the driver’s side:
- Separate the vehicle’s wiring harness connectors.
- Note: Be careful not to damage the locking tabs.
- Ensure the mating surfaces are free of dirt. Clean if necessary.
-
Insert the T-Connector containing the yellow wire between the vehicle connectors.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Repeat steps 2 and 3 for the passenger’s side using the T-Connector containing the green wire.
-
Locate a suitable grounding point near the adapter, such as the vehicle frame or cross member.
- Caution: Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Test the installation with a test light or trailer.
-
Bundle and secure wires to the vehicle’s crossmember using the provided cable ties.
-
Reinstall the protective covers removed in step 1.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Cable ties.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118356
Wiring Access Location:
- Underneath the vehicle behind the rear protective covers on both sides.
Tools Required:
- Drill with a 3/32" drill bit.
- Screw or cable ties (provided in the kit).
Step-by-Step Instructions:
-
Remove Protective Covers:
- Temporarily remove the protective covers under the vehicle next to the rear bumper.
- Locate the vehicle’s wiring harnesses underneath the vehicle behind the protective covers.
- These harnesses will have connection points matching the ends of the T-Connector on both sides.
-
Install the Driver-Side T-Connector:
- Starting on the driver’s side, separate the vehicle’s wiring harness connectors.
- Note: Be careful not to damage the locking tabs.
- Ensure the mating surfaces are free of dirt. Clean if necessary.
-
Connect the Yellow-Wire T-Connector:
- Insert the T-Connector containing the yellow wire between the vehicle connectors.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Install the Passenger-Side T-Connector:
- Repeat steps 2 and 3 for the passenger’s side using the T-Connector containing the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the adapter, such as the vehicle frame or cross member.
- Caution: Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Test the Installation:
- Use a test light or connect a trailer to verify proper functionality.
-
Secure the Wiring Harness:
- Bundle and secure wires to the vehicle’s crossmember using the provided cable ties.
-
Reinstall Protective Covers:
- Reinstall the protective covers removed in step 1.
Specifications:
- Rated Current: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Eyelet and screw
- Cable ties
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
