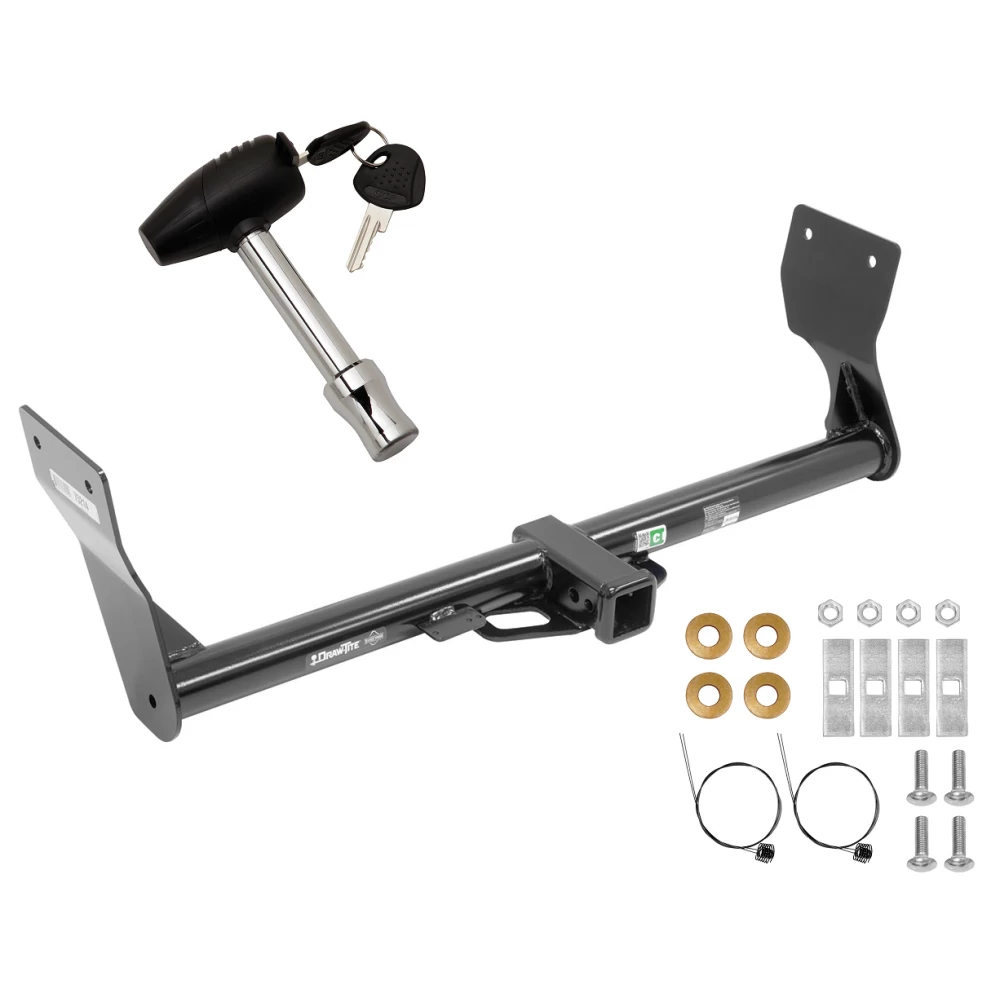

Trailer Tow Hitch For 15‑24 Ford Edge SE SEL Titanium w/ Security Lock Pin Key
Model: 75214 580407Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 - 2024 Ford, Edge, All Styles
2015 - 2018 Ford, Edge, SE and SEL
2015 - 2015 Ford, Edge, Titanium
Trailer Hitch Specs:
| Part Number | 75214 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$218 49 $343.84 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$343.84 $218 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75214 580407
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Description
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 - 2024 Ford, Edge, All Styles
2015 - 2018 Ford, Edge, SE and SEL
2015 - 2015 Ford, Edge, Titanium
Trailer Hitch Specs:
| Part Number | 75214 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 15-24 Ford Edge SE SEL Titanium w/ Security Lock Pin Key Install Notes
Installation Instructions for Ford Edge
Part Numbers:
- 75214
- 87684
- 44766
Applications:
- 2015-Current Ford Edge (Visit the manufacturer's website for the most up-to-date information regarding application years and trim levels.)
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 5.5mm, 10mm, 3/4"
- Flat Head Screwdriver
- Utility Knife
- Lubricant or Soapy Water
- Marker
- Tape Measure
- File
Installation Time:
- Approximately 30 minutes (for professional installers)
Step-by-Step Instructions:
-
Remove Appearance Panels:
- On both sides near the wheel well, remove the panels covering the frame rails.
- Remove (2) hex nuts (M10 socket) and (2) hex nuts (M5.5 socket) from the bottom of the frame rails on each side.
- Trim or remove the panels once the hitch is in place.
-
Lower the Exhaust:
- Disconnect the rubber isolators on both sides of the exhaust. Support the exhaust to prevent damage.
- Note: Spraying a lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal.
-
Install Fasteners:
- Feed the coiled end of the pull wire through the rearward hole and out the access hole.
- Attach the spacer and carriage bolt to the pull wire, then feed the fasteners into position through the hole.
- Repeat the process for both frame rails. For forward holes, repeat as necessary.
- If the carriage bolt is a tight fit, use a file or wrench to widen the access hole (see Figure 3).
-
Position the Fasteners:
- Pull the pull wire with fasteners into position. Leave the pull wires attached.
- Push the fasteners back into the frame rails with the pull wires to allow the hitch to go into position.
-
Raise the Hitch:
- Feed the pull wires through the hitch holes, then pull the fasteners back through the frame rails and hitch brackets.
-
Secure the Hitch:
- Feed a conical washer over the pull wire, then use the washer to hold the bolt in place.
- Remove the pull wires and attach the hex nuts. Tighten to hold the hitch in place.
- Push the hitch upward into the frame and tighten all fasteners.
-
Torque Specifications:
- Tighten all 1/2-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
-
Reinstall the Exhaust:
- Raise the exhaust back into position, using lubricant or soapy water on the metal hanger rod.
- Work on one side at a time. Push the rubber isolator outward while attaching the remaining metal rod into position.
-
Trim Appearance Panels:
- If necessary, trim the panels removed in step 1 or return them to the owner.
- Use a marker to outline the area to be trimmed, then use a utility knife to trim. Reinstall the panels.

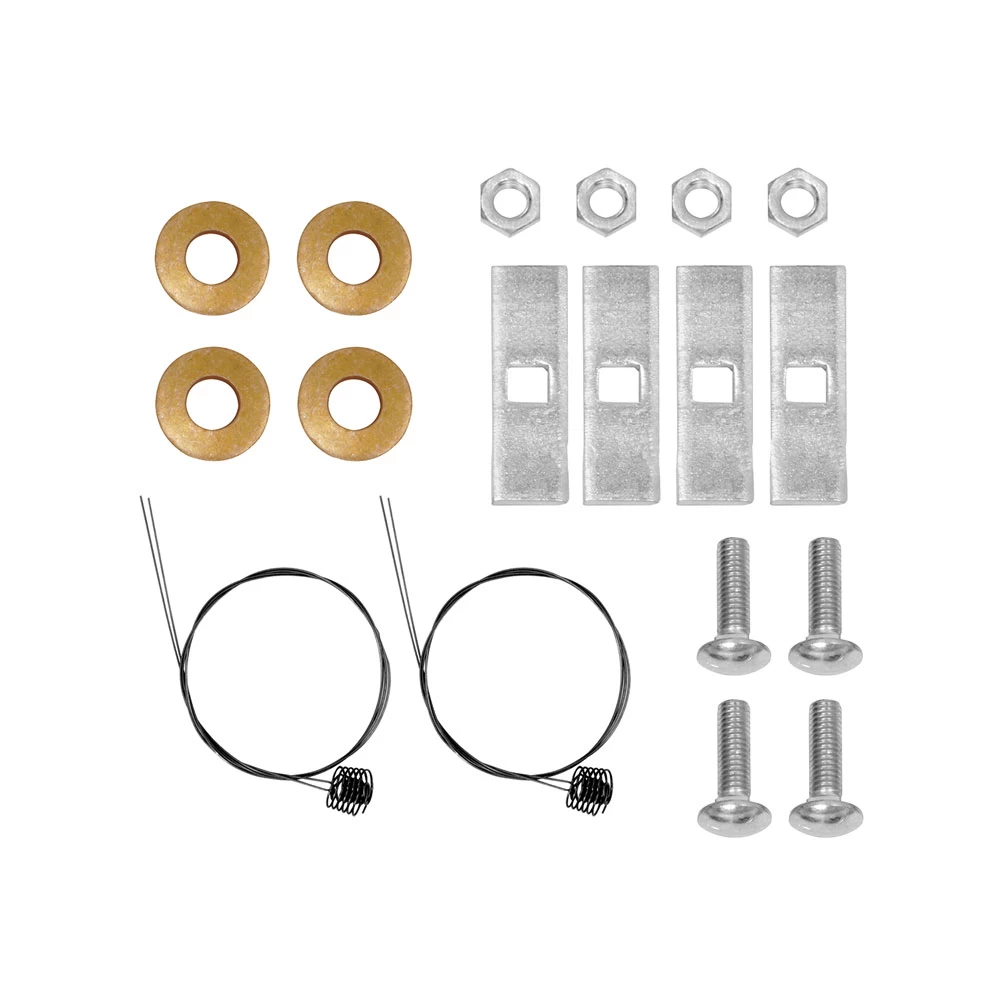

Hardware List:
- (4) 1/2-13 x 1.75 GR5 Carriage Bolts
- (4) 0.250 x 1 x 3 Spacers
- (4) 1/2” Conical Washers
- (4) 1/2-13 GR2 Hex Nuts
- (4) 1/2-13 Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Ford Edge
Part Numbers:
- 75214
- 87684
- 44766
Applications:
- 2015-Current Ford Edge
(Visit the manufacturer's website for the most up-to-date information regarding application years and trim levels.)
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 5.5mm, 10mm, 3/4"
- Flat Head Screwdriver
- Utility Knife
- Lubricant or Soapy Water
- Marker
- Tape Measure
- File
Installation Time:
- Approximately 30 minutes (for professional installers)
Step-by-Step Instructions:
-
Remove Appearance Panels:
- On both sides near the wheel well, remove the panels covering the frame rails.
- Remove (2) hex nuts (M10 socket) and (2) hex nuts (M5.5 socket) from the bottom of the frame rails on each side.
- Trim or remove the panels once the hitch is in place.
-
Lower the Exhaust:
- Disconnect the rubber isolators on both sides of the exhaust. Support the exhaust to prevent damage.
- Note: Spraying a lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal.
-
Install Fasteners:
- Feed the coiled end of the pull wire through the rearward hole and out the access hole.
- Attach the spacer and carriage bolt to the pull wire, then feed the fasteners into position through the hole.
- Repeat the process for both frame rails. For forward holes, repeat as necessary.
- If the carriage bolt is a tight fit, use a file or wrench to widen the access hole (see Figure 3).
-
Position the Fasteners:
- Pull the pull wire with fasteners into position. Leave the pull wires attached.
- Push the fasteners back into the frame rails with the pull wires to allow the hitch to go into position.
-
Raise the Hitch:
- Feed the pull wires through the hitch holes, then pull the fasteners back through the frame rails and hitch brackets.
-
Secure the Hitch:
- Feed a conical washer over the pull wire, then use the washer to hold the bolt in place.
- Remove the pull wires and attach the hex nuts. Tighten to hold the hitch in place.
- Push the hitch upward into the frame and tighten all fasteners.
-
Torque Specifications:
- Tighten all 1/2-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
-
Reinstall the Exhaust:
- Raise the exhaust back into position, using lubricant or soapy water on the metal hanger rod.
- Work on one side at a time. Push the rubber isolator outward while attaching the remaining metal rod into position.
-
Trim Appearance Panels:
- If necessary, trim the panels removed in step 1 or return them to the owner.
- Use a marker to outline the area to be trimmed, then use a utility knife to trim. Reinstall the panels.
Hardware List:
- (4) 1/2-13 x 1.75 GR5 Carriage Bolts
- (4) 0.250 x 1 x 3 Spacers
- (4) 1/2” Conical Washers
- (4) 1/2-13 GR2 Hex Nuts
- (4) 1/2-13 Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
