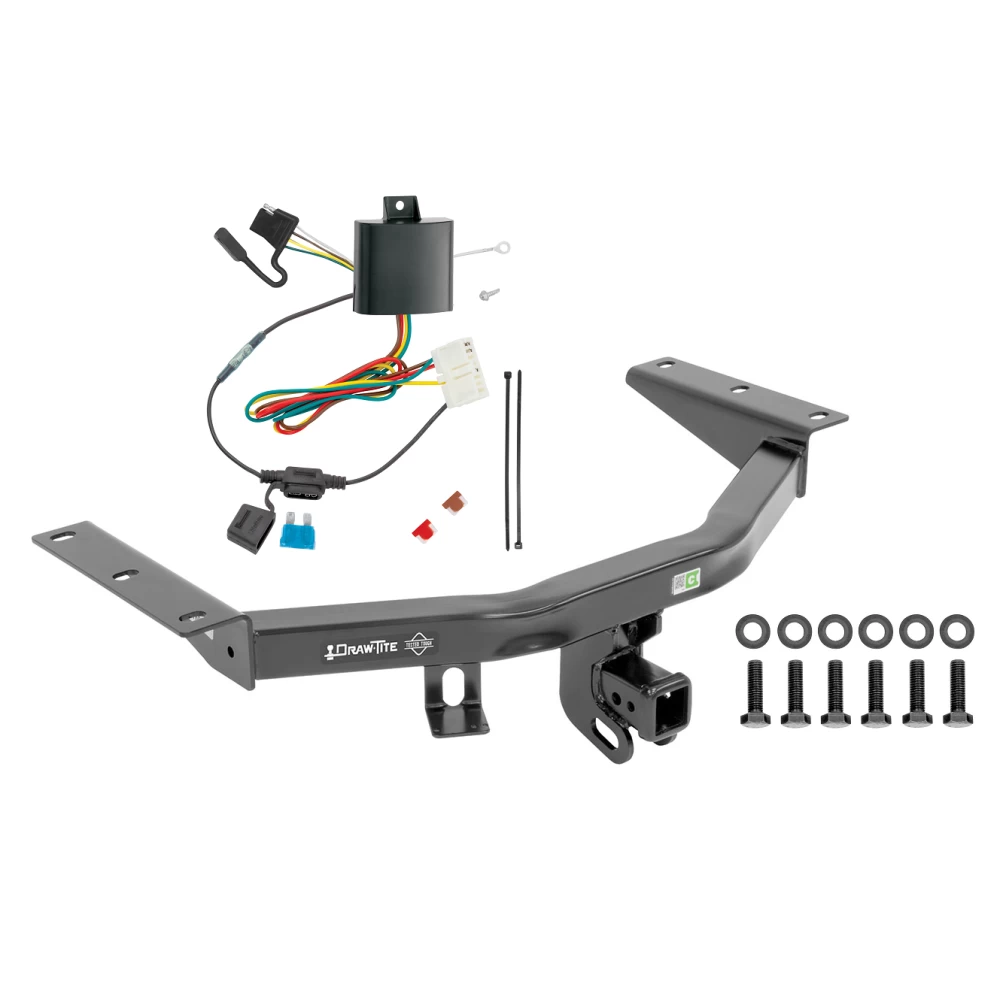

Trailer Tow Hitch For 14‑20 Acura MDX w/ Wiring Harness Kit
Model: 75225 118628Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2020 Acura, MDX, Except w/Full Size Spare Tire
Trailer Hitch Specs:
| Part Number | 75225 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900 / 900 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118628 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 2014 2015 2016 2017 2018 2019 2020
$279 67 $389.12 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$389.12 $279 67
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $69.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75225 118628
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2020 Acura, MDX, Except w/Full Size Spare Tire
Trailer Hitch Specs:
| Part Number | 75225 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900 / 900 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118628 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch For 14-20 Acura MDX w/ Wiring Harness Kit Install Notes
Installation Instructions for Honda Pilot and Acura MDX
Part Numbers:
- 75225
- 87691
- 44778
Applications:
- 2014-Current Honda Pilot
- 2014-Current Acura MDX (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 22mm
- Flat Head Screwdriver
- 3" Socket Extension
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Open the trunk and use the tools provided in the storage compartment to lower the spare tire (see Figure 2).
-
Install Hitch:
- Raise the hitch into position and loosely install M14 bolts (6 total) with conical washers into the weldnuts on the vehicle frame (see Figure 3).
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners with a torque wrench to 148 lb-ft (201 N·m).
-
Reinstall Spare Tire:
- Raise the spare tire back into position, ensuring it does not interfere with the hitch.
Hardware List:
- (6) M14 x 1.50 x 45mm CL10.9 Bolts
- (6) 5/8” Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Honda Pilot and Acura MDX
Part Numbers:
- 75225
- 87691
- 44778
Applications:
- 2014-Current Honda Pilot
- 2014-Current Acura MDX
(*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 22mm
- Flat Head Screwdriver
- 3" Socket Extension
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Open the trunk and use the tools provided in the storage compartment to lower the spare tire (see Figure 2).
-
Install Hitch:
- Raise the hitch into position and loosely install M14 bolts (6 total) with conical washers into the weldnuts on the vehicle frame (see Figure 3).
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners with a torque wrench to 148 lb-ft (201 N·m).
-
Reinstall Spare Tire:
- Raise the spare tire back into position, ensuring it does not interfere with the hitch.
Hardware List:
- (6) M14 x 1.50 x 45mm CL10.9 Bolts
- (6) 5/8” Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-One® T-Connector for Acura MDX
Part Numbers:
- 118628
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove cargo nets and the cargo floor hatch to access the spare tire area.
- It may be helpful to fold the rear seats forward.
-
Access the Relay and Fuse Box:
- Open the cover to access the relays and fuses in the junction box.
-
Connect the T-Connector:
- Remove the fuse from the supplied fuse holder.
- Route the white T-One® T-Connector end up and behind the trim panel to the junction box area.
- Plug the T-One® T-Connector into the corresponding connection in the electric junction box.
Caution:
- Ensure all connector surfaces are clean and free of dirt.
- Be careful not to damage the locking tabs, and ensure all connectors are fully inserted with locking tabs in place.
-
Mount the Black Box Module:
- Mount the T-One® T-Connector's black box module below the rear threshold in the spare tire compartment.
- Choose a surface that is free of moisture and mounted high enough to avoid direct contact with water or liquid substances.
-
Install Fuses:
- Locate the fuse panel schematic inside the box cover.
- Insert the fuses into positions 2 and 11 as shown in the diagram.
- Install the 15-amp fuse into the fuse holder from Step 3.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector over to the jack storage area.
- Replace the black cargo liner and store the 4-flat wire in the jack compartment when not in use.
-
Reinstall Removed Components:
- Reinstall the threshold, storage covers, floor covering, and any other items removed during installation.
- Be careful not to pinch or cut the wires.
Safety Notes:
- All connections must be complete for the T-One® T-Connector to function properly.
- Test and verify the installation with a test light or trailer once installed.
- Overloading circuits can cause fires. Do not exceed the product's stated ratings.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Acura MDX
Part Numbers:
- 118628
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove cargo nets and the cargo floor hatch to access the spare tire area.
- It may be helpful to fold the rear seats forward.
-
Access the Relay and Fuse Box:
- Open the cover to access the relays and fuses in the junction box.
-
Connect the T-Connector:
- Remove the fuse from the supplied fuse holder.
- Route the white T-One® T-Connector end up and behind the trim panel to the junction box area.
- Plug the T-One® T-Connector into the corresponding connection in the electric junction box.
Caution:
- Ensure all connector surfaces are clean and free of dirt.
- Be careful not to damage the locking tabs, and ensure all connectors are fully inserted with locking tabs in place.
-
Mount the Black Box Module:
- Mount the T-One® T-Connector's black box module below the rear threshold in the spare tire compartment.
- Choose a surface that is free of moisture and mounted high enough to avoid direct contact with water or liquid substances.
-
Install Fuses:
- Locate the fuse panel schematic inside the box cover.
- Insert the fuses into positions 2 and 11 as shown in the diagram.
- Install the 15-amp fuse into the fuse holder from Step 3.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector over to the jack storage area.
- Replace the black cargo liner and store the 4-flat wire in the jack compartment when not in use.
-
Reinstall Removed Components:
- Reinstall the threshold, storage covers, floor covering, and any other items removed during installation.
- Be careful not to pinch or cut the wires.
Safety Notes:
- All connections must be complete for the T-One® T-Connector to function properly.
- Test and verify the installation with a test light or trailer once installed.
- Overloading circuits can cause fires. Do not exceed the product's stated ratings.
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Store these instructions for future reference.
