Product Details
- Brand: Draw-Tite
- Model: 75278 23 63845 63816

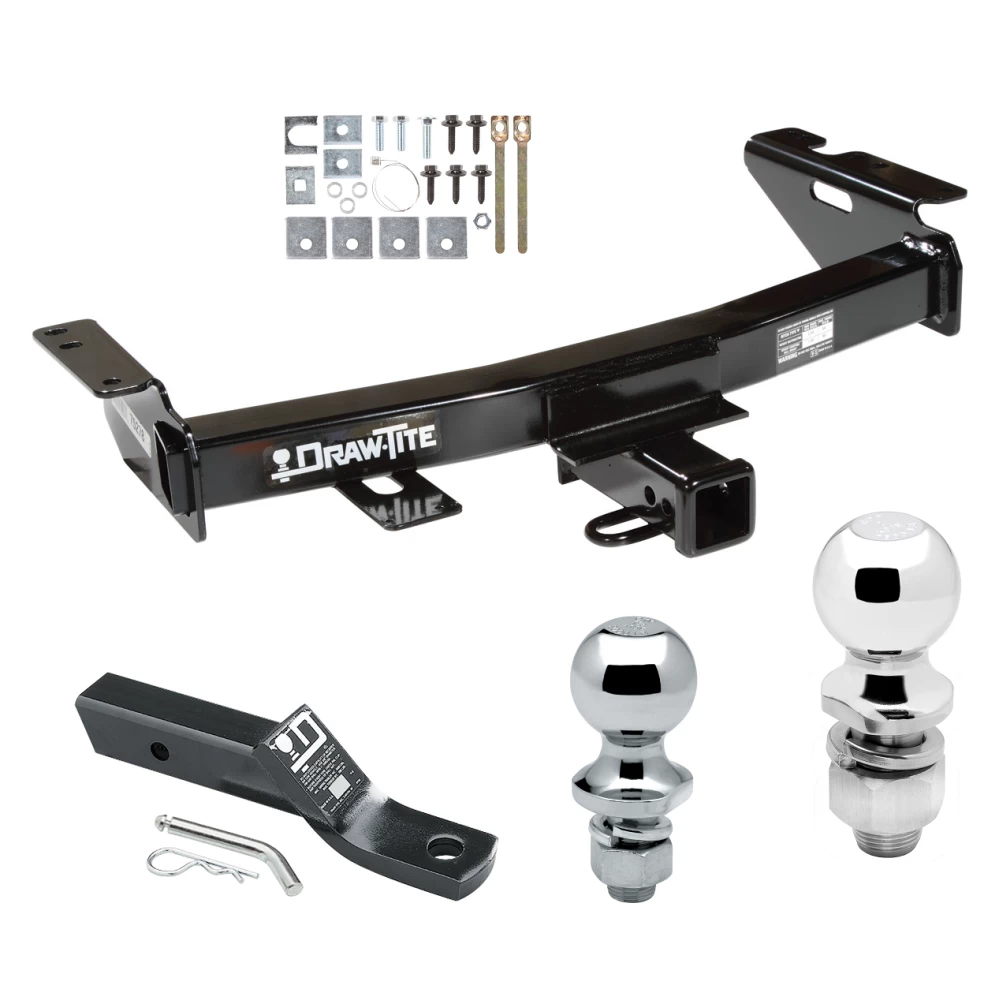

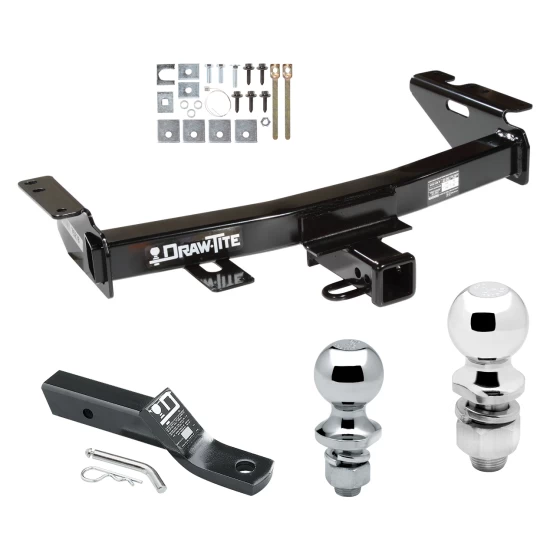

- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 97-09 Chevy Venture Uplander Oldsmobile Silhouette Pontiac Montana Buick Terraza Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Chevrolet Venture, Pontiac Trans Sport, Buick Terraza, Saturn Relay, and Oldsmobile Silhouette
Part Numbers:
- 75278
- 33094
- 87410
- 44574
- 75133 (U-Haul)
Applications:
- Chevrolet Venture & Uplander
- Pontiac Trans Sport & Montana & SV6
- Buick Terraza
- Saturn Relay
- Oldsmobile Silhouette
Tools Required:
- 1/2” Pull Wire (Provided)
- Wrenches: 10mm, 15mm, 3/4", 7/8", 17mm
- Drill Bits: 1/2”
Wiring Access Location:
- Refer to vehicle-specific instructions.
Step-by-Step Instructions:
-
Lower the Exhaust:
- Detach the exhaust hanger on the passenger side to lower the vehicle exhaust.
-
Lower Load-Leveling Compressor (if applicable):
- Detach the compressor on the driver’s side by removing (1) M10 bolt and (2) M6 nuts.
Note: Trim the vertical tab on the compressor bracket if it interferes with the adjacent M10 bolt.
-
Install the Hitch:
- Raise the hitch into position and secure it with M10 x 1.50 x 35mm CL10.9 bolts and 3/8” conical washers into the existing weldnuts on both sides.
-
Drill Holes for Additional Fasteners:
- Use the rearmost holes in the hitch side brackets as a template to drill 1/2” holes in the vehicle frame rails.
- For 2004 and older models:
- Long wheelbase: Drill an additional 1/2” hole through the forwardmost passenger-side bracket location.
- Short wheelbase: Align the forwardmost passenger-side bracket hole with the existing slot in the frame rail.
- For 2005 and newer models:
- Align the forwardmost slot in the passenger-side bracket with the existing weldnut in the frame rail.
-
Fishwire Fasteners (Passenger Side):
- Use the provided pull wire to guide carriage bolts and spacer blocks through the existing slot in the frame rail and into position at the forwardmost hole.
Note: Spacer block placement varies by model year and wheelbase:
- 2004 and older short wheelbase: Place (2) blocks between the frame rail and hitch.
- 2004 and older long wheelbase: Place (2) blocks between the hitch and lock washer.
- 2005 and newer: Secure bolts through the fender support bar, hitch slot, and existing weldnut.
-
Secure Rear Fasteners:
- Insert handle nuts through square holes inside the frame rail.
- Install hex bolts and lock washers through the rearmost holes drilled in Step 4.
-
Reattach Components:
- Reinstall the exhaust hanger and load-leveling compressor using M10 fasteners.
Note for AWD Models: Pass the exhaust hanger through the 3” slot in the hitch side bracket. Use (2) 1/4” spacer blocks to reattach the hanger bracket.
Hardware List:
- (2) 1/4” x 1.50” x 2.00” Spacer Blocks
- (3) 1/2” Lock Washers
- (2) 1/2-13 x 1.50” GR5 Bolts
- (1) 1/2-13 x 2.00” GR5 Carriage Bolt
- (2) 1/2-13 Handle Nut Assemblies
- (5) M10 x 1.50 x 35mm CL10.9 Bolts
- (5) 3/8” Conical Washers
Torque Specifications:
- Tighten all M6 CL8.8 fasteners to 5 lb-ft (7 N·m).
- Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Chevrolet Venture, Pontiac Trans Sport, Buick Terraza, Saturn Relay, and Oldsmobile Silhouette
Part Numbers:
- 75278
- 33094
- 87410
- 44574
- 75133 (U-Haul)
Applications:
- Chevrolet Venture & Uplander
- Pontiac Trans Sport & Montana & SV6
- Buick Terraza
- Saturn Relay
- Oldsmobile Silhouette
Tools Required:
- 1/2” Pull Wire (Provided)
- Wrenches: 10mm, 15mm, 3/4", 7/8", 17mm
- Drill Bits: 1/2”
Wiring Access Location:
- Refer to vehicle-specific instructions.
Step-by-Step Instructions:
-
Lower the Exhaust:
- Detach the exhaust hanger on the passenger side to lower the vehicle exhaust.
-
Lower Load-Leveling Compressor (if applicable):
- Detach the compressor on the driver’s side by removing (1) M10 bolt and (2) M6 nuts.
Note: Trim the vertical tab on the compressor bracket if it interferes with the adjacent M10 bolt.
-
Install the Hitch:
- Raise the hitch into position and secure it with M10 x 1.50 x 35mm CL10.9 bolts and 3/8” conical washers into the existing weldnuts on both sides.
-
Drill Holes for Additional Fasteners:
- Use the rearmost holes in the hitch side brackets as a template to drill 1/2” holes in the vehicle frame rails.
- For 2004 and older models:
- Long wheelbase: Drill an additional 1/2” hole through the forwardmost passenger-side bracket location.
- Short wheelbase: Align the forwardmost passenger-side bracket hole with the existing slot in the frame rail.
- For 2005 and newer models:
- Align the forwardmost slot in the passenger-side bracket with the existing weldnut in the frame rail.
-
Fishwire Fasteners (Passenger Side):
- Use the provided pull wire to guide carriage bolts and spacer blocks through the existing slot in the frame rail and into position at the forwardmost hole.
Note: Spacer block placement varies by model year and wheelbase:
- 2004 and older short wheelbase: Place (2) blocks between the frame rail and hitch.
- 2004 and older long wheelbase: Place (2) blocks between the hitch and lock washer.
- 2005 and newer: Secure bolts through the fender support bar, hitch slot, and existing weldnut.
-
Secure Rear Fasteners:
- Insert handle nuts through square holes inside the frame rail.
- Install hex bolts and lock washers through the rearmost holes drilled in Step 4.
-
Reattach Components:
- Reinstall the exhaust hanger and load-leveling compressor using M10 fasteners.
Note for AWD Models: Pass the exhaust hanger through the 3” slot in the hitch side bracket. Use (2) 1/4” spacer blocks to reattach the hanger bracket.
Hardware List:
- (2) 1/4” x 1.50” x 2.00” Spacer Blocks
- (3) 1/2” Lock Washers
- (2) 1/2-13 x 1.50” GR5 Bolts
- (1) 1/2-13 x 2.00” GR5 Carriage Bolt
- (2) 1/2-13 Handle Nut Assemblies
- (5) M10 x 1.50 x 35mm CL10.9 Bolts
- (5) 3/8” Conical Washers
Torque Specifications:
- Tighten all M6 CL8.8 fasteners to 5 lb-ft (7 N·m).
- Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
