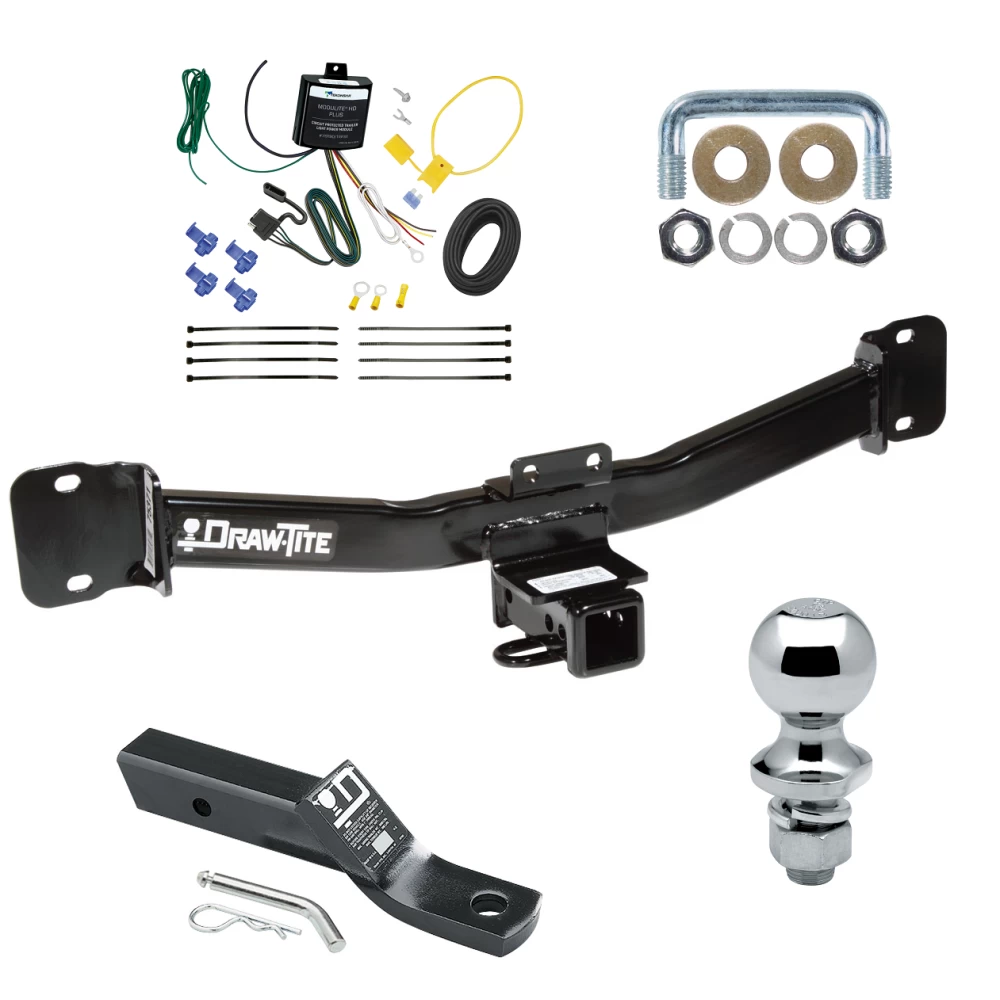

Trailer Tow Hitch For 04-10 BMW X3 Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for BMW X3
Part Numbers:
- 75371
- 44531
- 87403
Applications:
- 2004-2005 Models
- 2006 and Newer Models
Tools Required:
- Wrenches: 8mm, 10mm, 18mm, 11/16", T-20 Torx
- Drill Bits: 1/2"
- Utility Knife
Step-by-Step Instructions:
-
Remove Rear Fascia:
- For 2004-2005 Models:
- Remove the access door at the bottom of the fascia and return it to the vehicle owner.
- Open the tailgate, remove corner trim pieces, and unscrew two fasteners, one on each side.
- Remove two screws from each wheel well, pull the plastic trim away from the fascia, and remove three additional screws per side.
- Detach one screw and two plastic nuts from the bottom of the fascia.
- Pull the fascia straight back to remove.
- For 2006 and Newer Models:
- Follow similar steps, ensuring the fascia is detached carefully.
- For 2004-2005 Models:
-
Trim Fascia (if required):
- For 2004-2005 Models:
- Trim the inner fascia to match the profile of the access door.
- For 2006 and Newer Models:
- Trim both the inner and outer fascia. Use a 9.5” wide profile for hitches with electrical brackets and 6.5” wide for hitches without them. Ensure measurements are taken from the centerline of the fascia.
- For 2004-2005 Models:
-
Remove Bumper:
- Detach two nuts on each side to remove the bumper. Retain these nuts for reinstallation.
-
Align Hitch and Bumper:
- Clamp the hitch and bumper together off the vehicle.
- Align the mounting holes, ensuring the threaded hole in the bumper is on the passenger side.
- Drill two holes in the bumper using the hitch bracket as a template.
-
Install U-Bolt:
- Feed the U-bolt through the bumper bracket and bumper. Secure it finger-tight.
-
Attach Hitch and Bumper:
- Raise the hitch and bumper into position, sandwiching the hitch between the vehicle's end panel and bumper.
- Reattach using the nuts removed earlier.
-
Reinstall Fascia:
- Reattach the fascia, ensuring all fasteners are secure.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 lb-ft (41 N·m).
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (1) 3/8" U-Bolt
- (2) 3/8" Conical Washers
- (2) 3/8" Lock Washers
- (2) 3/8"-16 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75371
- 44531
- 87403
Applications:
- 2004-2005 Models
- 2006 and Newer Models
Tools Required:
- Wrenches: 8mm, 10mm, 18mm, 11/16", T-20 Torx
- Drill Bits: 1/2"
- Utility Knife
Step-by-Step Instructions:
-
Remove Rear Fascia:
- For 2004-2005 Models:
- Remove the access door at the bottom of the fascia and return it to the vehicle owner.
- Open the tailgate, remove corner trim pieces, and unscrew two fasteners, one on each side.
- Remove two screws from each wheel well, pull the plastic trim away from the fascia, and remove three additional screws per side.
- Detach one screw and two plastic nuts from the bottom of the fascia.
- Pull the fascia straight back to remove.
- For 2006 and Newer Models:
- Follow similar steps, ensuring the fascia is detached carefully.
- For 2004-2005 Models:
-
Trim Fascia (if required):
- For 2004-2005 Models:
- Trim the inner fascia to match the profile of the access door.
- For 2006 and Newer Models:
- Trim both the inner and outer fascia. Use a 9.5” wide profile for hitches with electrical brackets and 6.5” wide for hitches without them. Ensure measurements are taken from the centerline of the fascia.
- For 2004-2005 Models:
-
Remove Bumper:
- Detach two nuts on each side to remove the bumper. Retain these nuts for reinstallation.
-
Align Hitch and Bumper:
- Clamp the hitch and bumper together off the vehicle.
- Align the mounting holes, ensuring the threaded hole in the bumper is on the passenger side.
- Drill two holes in the bumper using the hitch bracket as a template.
-
Install U-Bolt:
- Feed the U-bolt through the bumper bracket and bumper. Secure it finger-tight.
-
Attach Hitch and Bumper:
- Raise the hitch and bumper into position, sandwiching the hitch between the vehicle's end panel and bumper.
- Reattach using the nuts removed earlier.
-
Reinstall Fascia:
- Reattach the fascia, ensuring all fasteners are secure.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 lb-ft (41 N·m).
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (1) 3/8" U-Bolt
- (2) 3/8" Conical Washers
- (2) 3/8" Lock Washers
- (2) 3/8"-16 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 119191
Wiring Access Location:
- Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.
Tools Required:
- Drill with a 3/32" drill bit.
- Phillips head #2 screwdriver.
- Wire cutters, wire strippers/crimpers.
- Tester or volt meter.
- Socket and ratchet set.
- Double-sided tape (provided).
Step-by-Step Instructions:
Installation of the Module:
-
Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
-
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
-
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Routing Power to the Battery:
-
Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.
Finalizing Installation:
-
Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
-
Reconnect the vehicle’s negative (-) battery cable.
-
Insert the 15-amp fuse into the fuse holder and close the cap.
-
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).
Hardware List:
- T-Connector adapter.
- 15-amp fuse.
- Fuse holder.
- Eyelet and self-tapping screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Handle all components with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Read and follow all vehicle warnings and installation instructions.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
