Product Details
- Brand: Draw-Tite
- Model: 75421 118410 23 63845 580407 7010

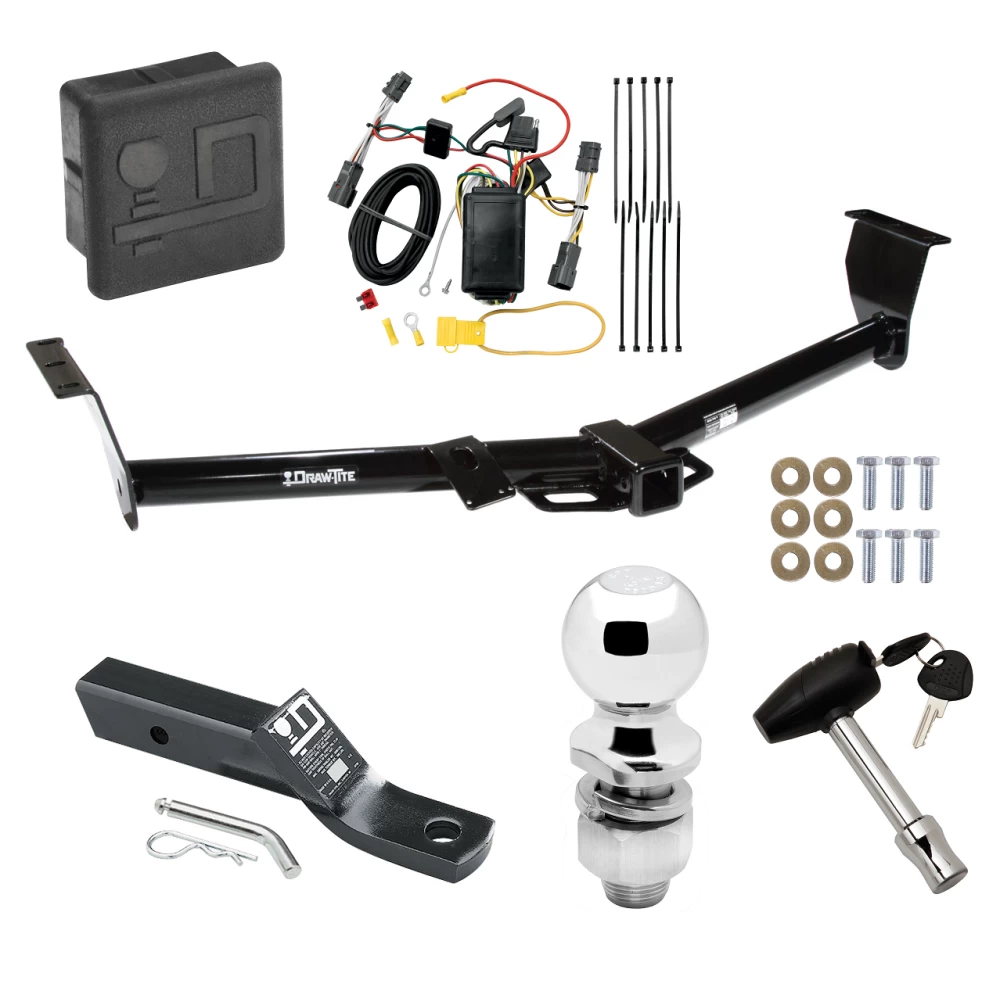

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 07-09 Hyundai Entourage 06-12 14 KIA Sedona Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Kia Sedona Van and Hyundai Entourage
Part Numbers:
- 75421
- 44537
- 70761
- 78211 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1 & SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the exhaust from its hangers to provide better access to the frame fastener locations.
-
Position the Hitch:
- Raise the hitch on the passenger side over the exhaust pipe.
- Slowly rotate the hitch into its proper position under the vehicle.
-
Secure the Hitch:
- Loosely install all provided bolts into the existing weldnuts in the frame.
- Push the hitch forward against the installed bolts for proper alignment.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 lb-ft (103 N·m).
-
Reattach the Exhaust:
- Reattach the exhaust hangers to their original positions.
Hardware List:
- (6) M12 x 1.25 Hex Bolts
- (6) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75421
- 44537
- 70761
- 78211 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1 & SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the exhaust from its hangers to provide better access to the frame fastener locations.
-
Position the Hitch:
- Raise the hitch on the passenger side over the exhaust pipe.
- Slowly rotate the hitch into its proper position under the vehicle.
-
Secure the Hitch:
- Loosely install all provided bolts into the existing weldnuts in the frame.
- Push the hitch forward against the installed bolts for proper alignment.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 lb-ft (103 N·m).
-
Reattach the Exhaust:
- Reattach the exhaust hangers to their original positions.
Hardware List:
- (6) M12 x 1.25 Hex Bolts
- (6) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

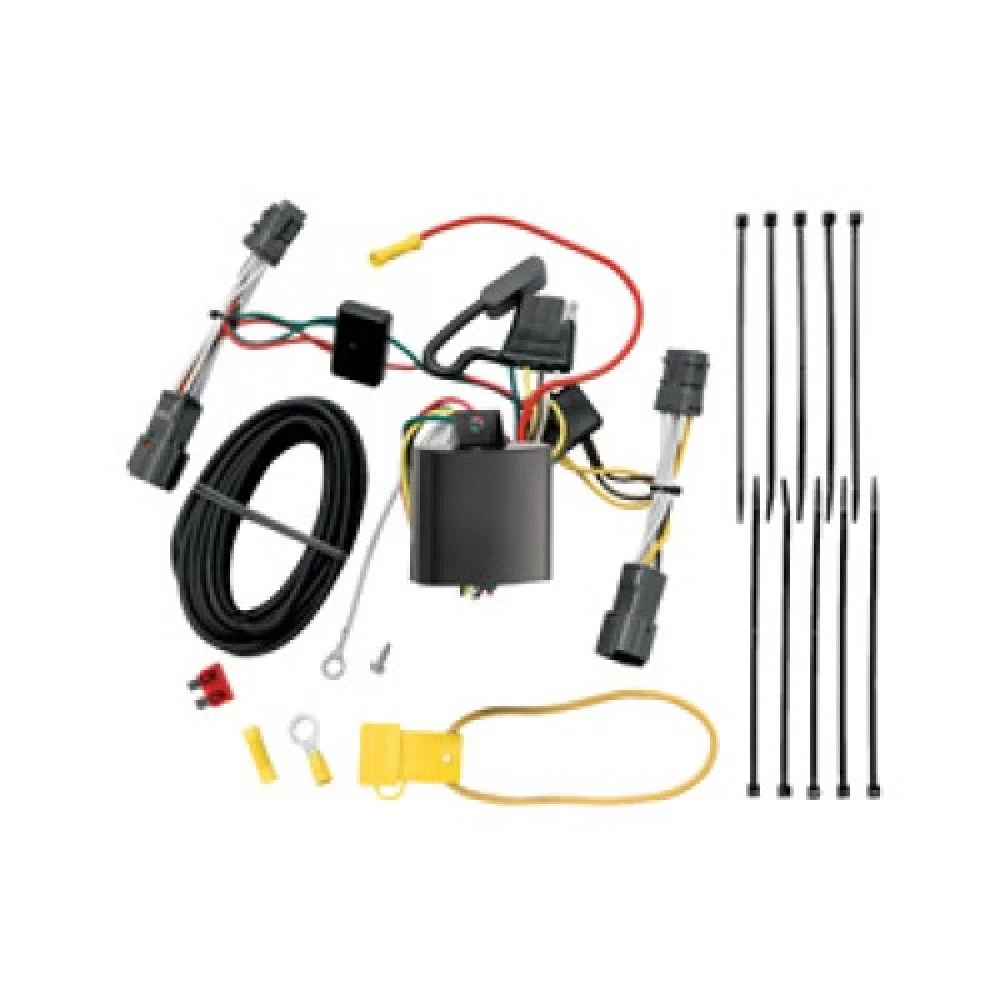

Installation Instructions for T-Connector Adapter
Part Numbers:
- 118410
Tools Required:
- Drill with 3/32" Drill Bit
- Phillips Head Screwdriver
- Wire Crimpers
- Wire Cutters
Step-by-Step Instructions:
-
Remove the Rear Taillight Assemblies:
- Open the rear door and remove both taillight housing assemblies by removing three screws for each light.
- Carefully pry the taillight housing assembly away from the vehicle, avoiding damage to alignment tabs.
-
Driver’s Side Connection:
- Disconnect the vehicle wiring harness from the taillight socket.
- Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.
-
Route the Wiring:
- On the driver’s side, route the T-Connector end with the green wire and the 4-flat connector down through the opening between the bumper and body.
- Route the green wire to the passenger side, being careful to avoid hot pipes, heat shields, the fuel tank, or other points that may damage the wire.
- Bring the green wire up through the opening on the passenger side and repeat Step 2 for the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Avoid drilling into the vehicle floor or bed.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
- Route the black 12-gauge wire along the frame rail from the front of the vehicle to the rear driver’s side taillight area.
- Connect the black wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
-
Reconnect the Battery and Install the Fuse:
- Reconnect the vehicle's negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
-
Mount the Black Box and Secure Wiring:
- Clean a flat area behind the driver’s side taillight assembly with rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the T-Connector harness with cable ties to prevent damage or rattling, avoiding areas that could cut or pinch the wire.
-
Reinstall the Taillight Assemblies:
- Position the vehicle wiring harness between the housing and the vehicle body.
- Reinstall the taillight housing assemblies.
-
Test the Installation:
- Verify the T-Connector functionality using a test light or trailer.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Store the 4-flat connector in a suitable location under the vehicle when not in use.
- Refer to the vehicle owner’s manual for additional information.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118410
Tools Required:
- Drill with 3/32" Drill Bit
- Phillips Head Screwdriver
- Wire Crimpers
- Wire Cutters
Step-by-Step Instructions:
-
Remove the Rear Taillight Assemblies:
- Open the rear door and remove both taillight housing assemblies by removing three screws for each light.
- Carefully pry the taillight housing assembly away from the vehicle, avoiding damage to alignment tabs.
-
Driver’s Side Connection:
- Disconnect the vehicle wiring harness from the taillight socket.
- Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.
-
Route the Wiring:
- On the driver’s side, route the T-Connector end with the green wire and the 4-flat connector down through the opening between the bumper and body.
- Route the green wire to the passenger side, being careful to avoid hot pipes, heat shields, the fuel tank, or other points that may damage the wire.
- Bring the green wire up through the opening on the passenger side and repeat Step 2 for the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Avoid drilling into the vehicle floor or bed.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
- Route the black 12-gauge wire along the frame rail from the front of the vehicle to the rear driver’s side taillight area.
- Connect the black wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
-
Reconnect the Battery and Install the Fuse:
- Reconnect the vehicle's negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
-
Mount the Black Box and Secure Wiring:
- Clean a flat area behind the driver’s side taillight assembly with rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the T-Connector harness with cable ties to prevent damage or rattling, avoiding areas that could cut or pinch the wire.
-
Reinstall the Taillight Assemblies:
- Position the vehicle wiring harness between the housing and the vehicle body.
- Reinstall the taillight housing assemblies.
-
Test the Installation:
- Verify the T-Connector functionality using a test light or trailer.
Specifications:
- Max. Stop/Turn Light: 1 per side (2.1 amps)
- Max. Tail Lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
