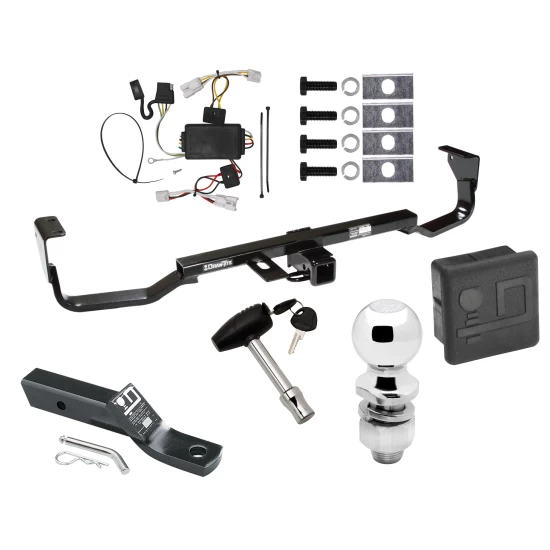

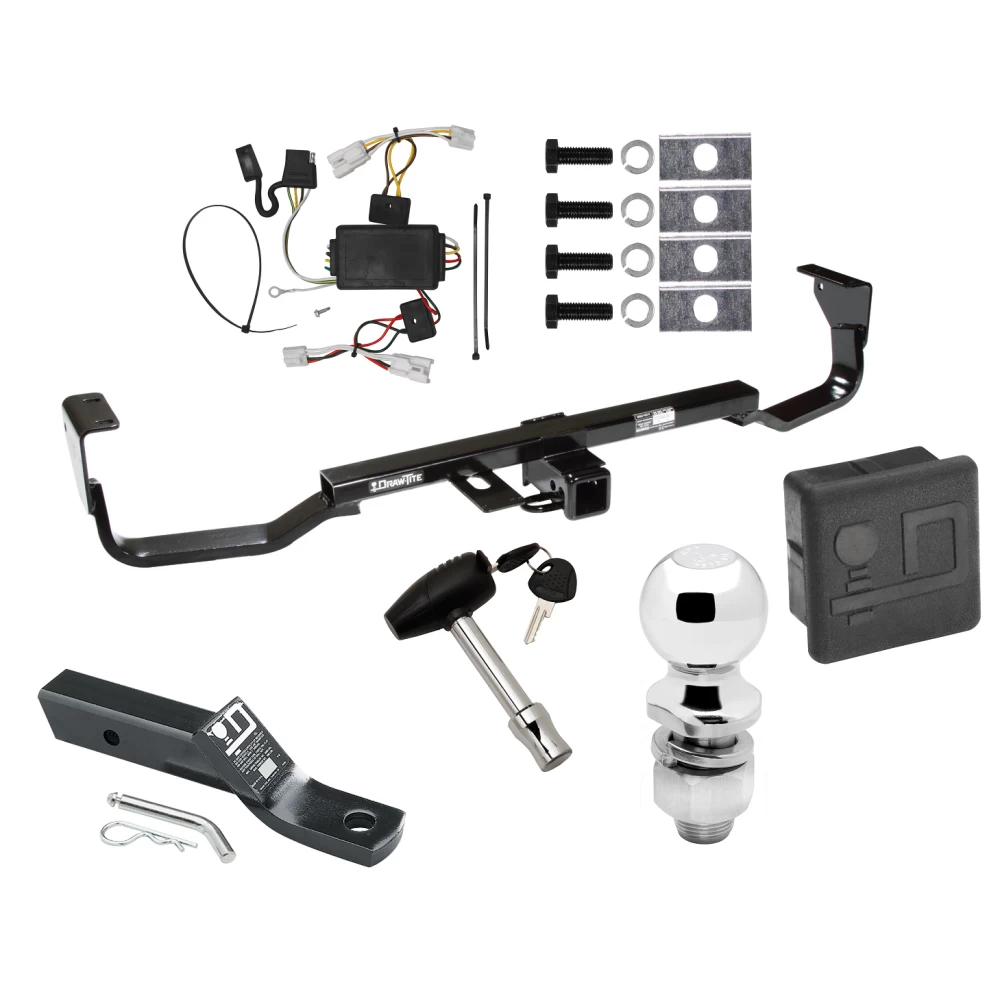

Trailer Tow Hitch For 07‑09 Hyundai Santa Fe Deluxe Package Wiring 2" Ball and Lock
Model: 75471 118415 23 63845 580407 7010Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Hyundai, Santa Fe, All Styles
Trailer Hitch Specs:
| Part Number | 75471 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118415 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$356 66 $549.73 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$549.73 $356 66
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $89.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75471 118415 23 63845 580407 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Hyundai, Santa Fe, All Styles
Trailer Hitch Specs:
| Part Number | 75471 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118415 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help

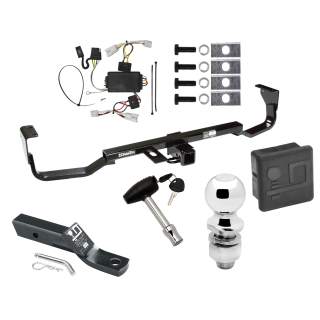

Trailer Tow Hitch For 07-09 Hyundai Santa Fe Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Hyundai Santa Fe
Part Numbers:
- 44549
- 75471
- 87414 (Fascia)
- 75221 (U-Haul)
Tools Required:
- Wrenches: 16mm
- Drill Bits: None
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Align the hitch with the existing weldnuts located inside the vehicle frame rails.
-
Install Fasteners:
- Attach the hitch using the following components:
- (4) M10 x 1.25 x 30mm CL10.9 Hex Bolts
- (4) 7/16” Lock Washers
- (4) 3/16” x 1.00” x 2.00” Spacer Blocks
- Tighten bolts finger-tight to hold the hitch in place.
- Attach the hitch using the following components:
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 CL10.9 fasteners to 59 lb-ft (80 N·m).
-
Final Inspection:
- Verify all fasteners are properly tightened.
- Check for interference or misalignment and adjust as necessary.
Hardware List:
- (4) M10 x 1.25 x 30mm CL10.9 Hex Bolts
- (4) 7/16” Lock Washers
- (4) 3/16” x 1.00” x 2.00” Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Not for use with spring bars.
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 525 lbs (238 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 44549
- 75471
- 87414 (Fascia)
- 75221 (U-Haul)
Tools Required:
- Wrenches: 16mm
- Drill Bits: None
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Align the hitch with the existing weldnuts located inside the vehicle frame rails.
-
Install Fasteners:
- Attach the hitch using the following components:
- (4) M10 x 1.25 x 30mm CL10.9 Hex Bolts
- (4) 7/16” Lock Washers
- (4) 3/16” x 1.00” x 2.00” Spacer Blocks
- Tighten bolts finger-tight to hold the hitch in place.
- Attach the hitch using the following components:
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 CL10.9 fasteners to 59 lb-ft (80 N·m).
-
Final Inspection:
- Verify all fasteners are properly tightened.
- Check for interference or misalignment and adjust as necessary.
Hardware List:
- (4) M10 x 1.25 x 30mm CL10.9 Hex Bolts
- (4) 7/16” Lock Washers
- (4) 3/16” x 1.00” x 2.00” Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Not for use with spring bars.
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 525 lbs (238 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118415
Tools Required:
- 10mm Socket & Ratchet or Wrench
- Drill with 3/32” Drill Bit
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- On the driver’s side, remove the access panel to locate the rear of the taillight. Repeat on the passenger side.
- Remove the threshold, trunk floor panels, and trays. Set aside all items carefully to avoid damage.
-
Remove Trim Panels:
- Remove two screws in the threshold plate area to gain access behind the trim panels.
- Partially remove the lower interior trim panels on each side of the vehicle, being careful not to damage clips. Set aside all items carefully.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
- The harness will have a connection point matching the ends of the T-Connector.
- Separate these connectors, ensuring not to break the locking tabs. Clean all connector surfaces of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors.
- Lock the connectors into place, ensuring they are fully inserted and the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire to the passenger’s side.
- Repeat step 4 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember.
- Clean the area to remove dirt and rustproofing. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the Black Box:
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or damage the wire.
-
Reassemble the Vehicle:
- Reinstall the access panels, trays, trunk floor panels, and threshold.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk or rear cargo area when not in use.
-
Test the Installation:
- Test and verify the installation with a test light or trailer to ensure proper functionality.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.0 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional guidance.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118415
Tools Required:
- 10mm Socket & Ratchet or Wrench
- Drill with 3/32” Drill Bit
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- On the driver’s side, remove the access panel to locate the rear of the taillight. Repeat on the passenger side.
- Remove the threshold, trunk floor panels, and trays. Set aside all items carefully to avoid damage.
-
Remove Trim Panels:
- Remove two screws in the threshold plate area to gain access behind the trim panels.
- Partially remove the lower interior trim panels on each side of the vehicle, being careful not to damage clips. Set aside all items carefully.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
- The harness will have a connection point matching the ends of the T-Connector.
- Separate these connectors, ensuring not to break the locking tabs. Clean all connector surfaces of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors.
- Lock the connectors into place, ensuring they are fully inserted and the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire to the passenger’s side.
- Repeat step 4 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember.
- Clean the area to remove dirt and rustproofing. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the Black Box:
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or damage the wire.
-
Reassemble the Vehicle:
- Reinstall the access panels, trays, trunk floor panels, and threshold.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk or rear cargo area when not in use.
-
Test the Installation:
- Test and verify the installation with a test light or trailer to ensure proper functionality.
Specifications:
- Max. Stop/Turn Light: 1 per side (2.1 amps)
- Max. Tail Lights: (5.0 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
Related Products
