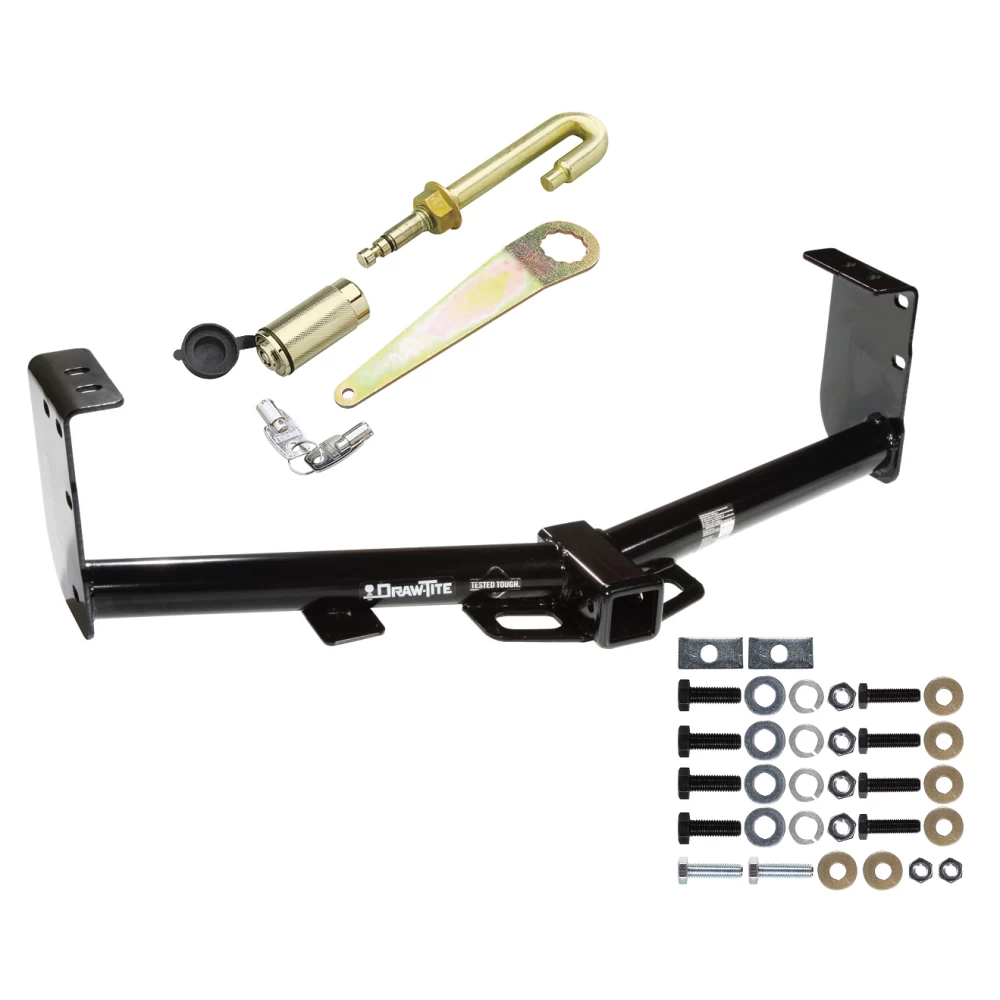

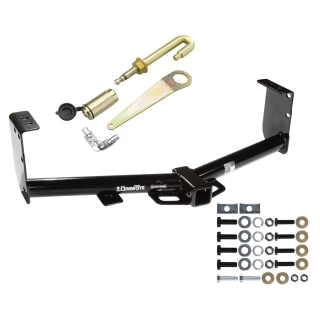

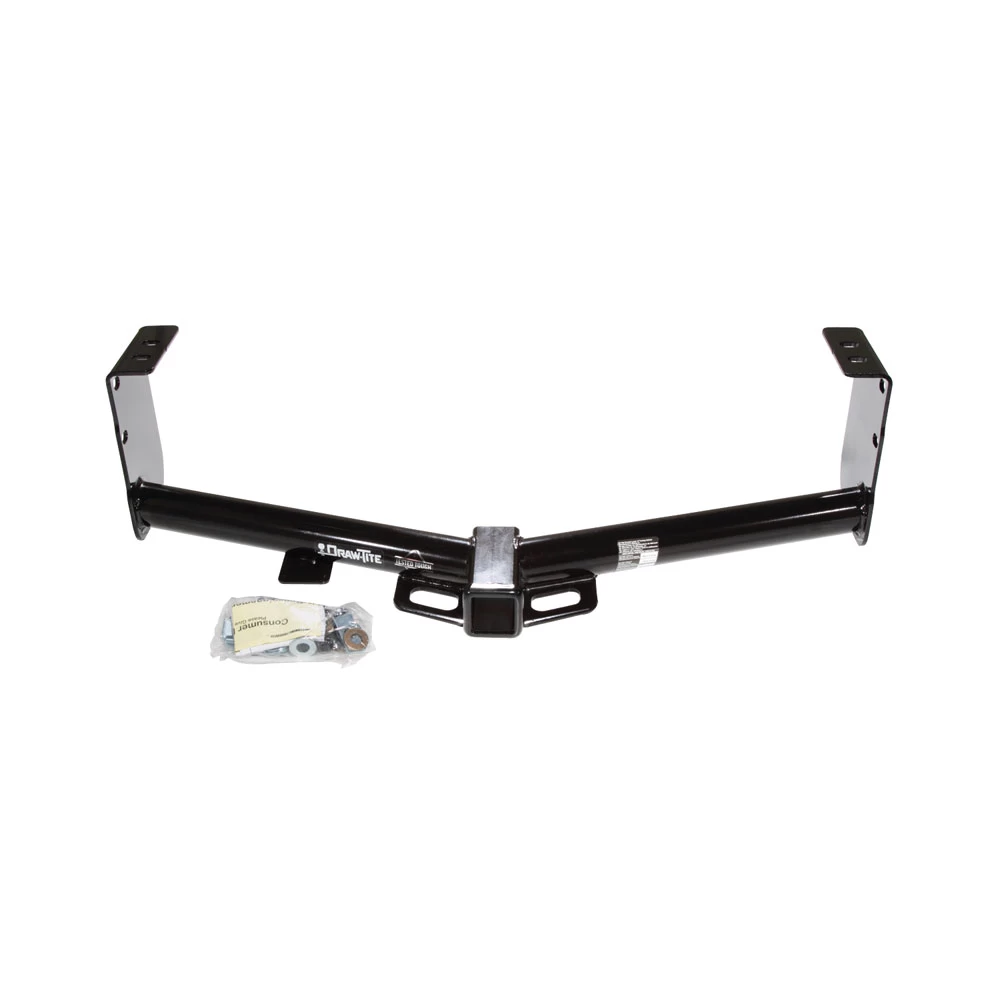

Trailer Tow Hitch For 07‑21 Toyota Class 3 2" Towing Receiver w/ J‑Pin Anti‑Rattle Lock
Model: 75527 63201Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2021 Toyota, Tundra, (See Footnote CP)
Trailer Hitch Specs:
| Part Number | 75527 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 600/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
$229 70 $366.20 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$366.20 $229 70
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75527 63201
- Includes: Class 4 Trailer Tow Hitch, J-Pin Anti-Rattle Device
Compatibility Chart
Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2021 Toyota, Tundra, (See Footnote CP)
Trailer Hitch Specs:
| Part Number | 75527 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 600/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 07-21 Toyota Class 3 2" Towing Receiver w/ J-Pin Anti-Rattle Lock Install Notes
Installation Instructions for Toyota Tundra
Part Numbers:
- 75527
- 44568
- 87434
- 78222 (U-Haul)
Tools Required:
- Wrenches: 17mm, 19mm, 22mm, 3/4", 7/8"
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Angle Brackets:
- Remove the angle brackets from the inside surface between the frame rails and bumper brackets.
-
Position the Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame.
-
Install M12 Bolts:
- Attach the hitch using M12 bolts and conical toothed washers into the weldnuts on both sides.
-
Secure Bumper Bracket Fasteners:
- Install M14 bolts through the vehicle bumper bracket and the hitch.
- Use flat washers, lock washers, and hex nuts to secure.
-
Install 1/2"-13 Bolts:
- Insert the 1/2"-13 hex bolts and 1/4” spacer blocks through the bumper bracket and hitch.
- Secure with conical toothed washers and hex nuts.
-
Torque Fasteners:
- Tighten all fasteners to the following specifications:
- M14 x 2.00 CL10.9 bolts: 115 lb-ft (156 N·m).
- M12 x 1.25 CL9.8 bolts: 105 lb-ft (142 N·m).
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N·m).
- Tighten all fasteners to the following specifications:
Hardware List:
- (4) M12 x 1.25 x 40mm CL9.8 Hex Bolts
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 5/8” Flat Washers
- (4) 5/8” Lock Washers
- (6) Conical Toothed Washers
- (2) 1/2”-13 x 1.75” Hex Bolts
- (2) 1/4” x 1” x 2” Spacer Blocks
- (2) 1/2”-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Toyota Tundra
Part Numbers:
- 75527
- 44568
- 87434
- 78222 (U-Haul)
Tools Required:
- Wrenches: 17mm, 19mm, 22mm, 3/4", 7/8"
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Angle Brackets:
- Remove the angle brackets from the inside surface between the frame rails and bumper brackets.
-
Position the Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame.
-
Install M12 Bolts:
- Attach the hitch using M12 bolts and conical toothed washers into the weldnuts on both sides.
-
Secure Bumper Bracket Fasteners:
- Install M14 bolts through the vehicle bumper bracket and the hitch.
- Use flat washers, lock washers, and hex nuts to secure.
-
Install 1/2"-13 Bolts:
- Insert the 1/2"-13 hex bolts and 1/4” spacer blocks through the bumper bracket and hitch.
- Secure with conical toothed washers and hex nuts.
-
Torque Fasteners:
- Tighten all fasteners to the following specifications:
- M14 x 2.00 CL10.9 bolts: 115 lb-ft (156 N·m).
- M12 x 1.25 CL9.8 bolts: 105 lb-ft (142 N·m).
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N·m).
- Tighten all fasteners to the following specifications:
Hardware List:
- (4) M12 x 1.25 x 40mm CL9.8 Hex Bolts
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 5/8” Flat Washers
- (4) 5/8” Lock Washers
- (6) Conical Toothed Washers
- (2) 1/2”-13 x 1.75” Hex Bolts
- (2) 1/4” x 1” x 2” Spacer Blocks
- (2) 1/2”-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
