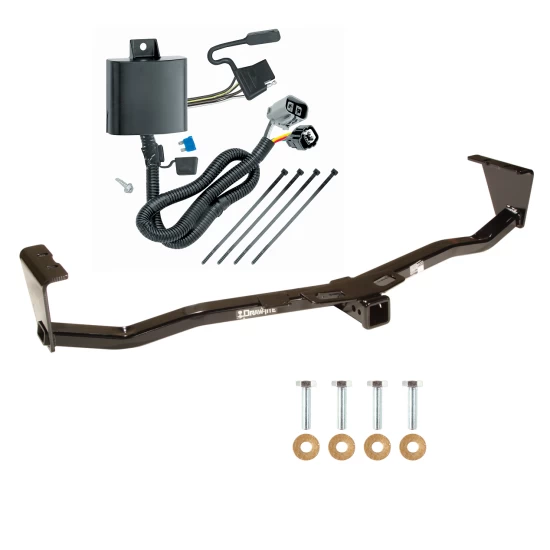

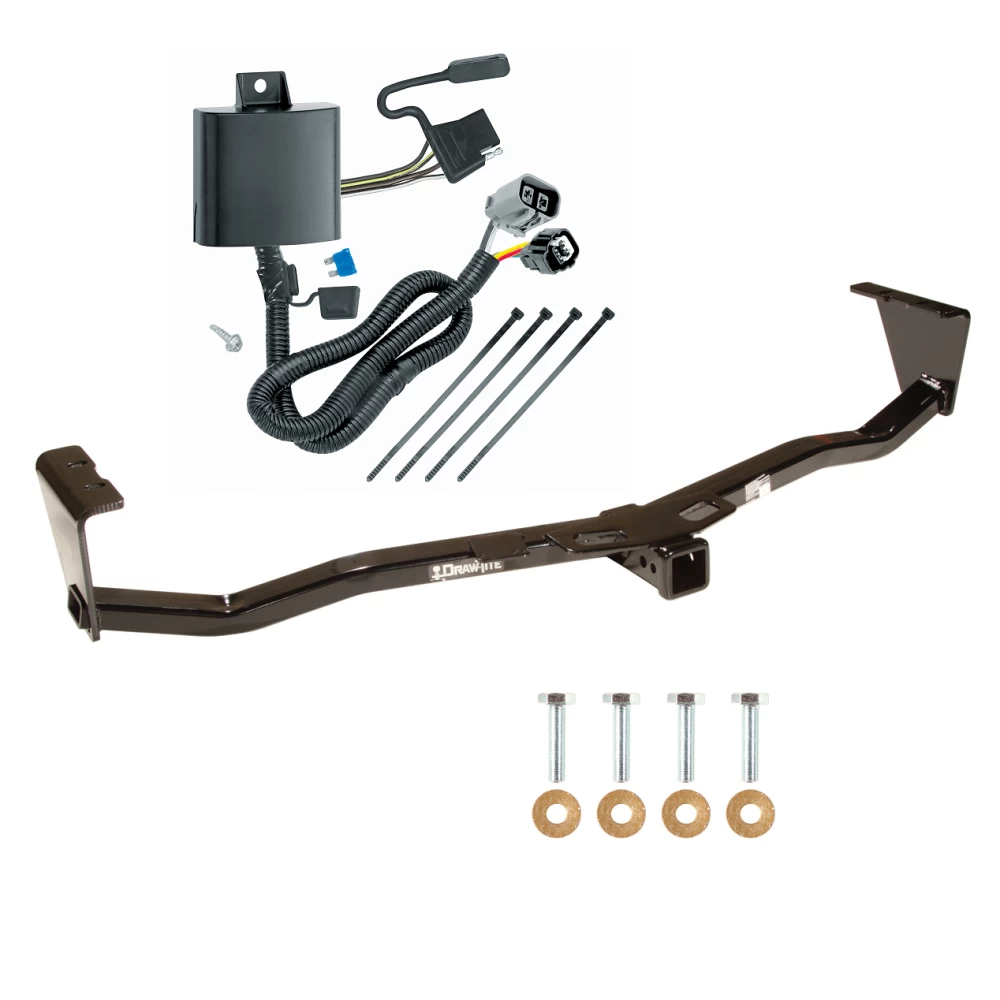

Trailer Tow Hitch For 07‑12 Hyundai Veracruz w/ Wiring Harness Kit
Model: 75532 118269Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2012 Hyundai, Veracruz, All Styles

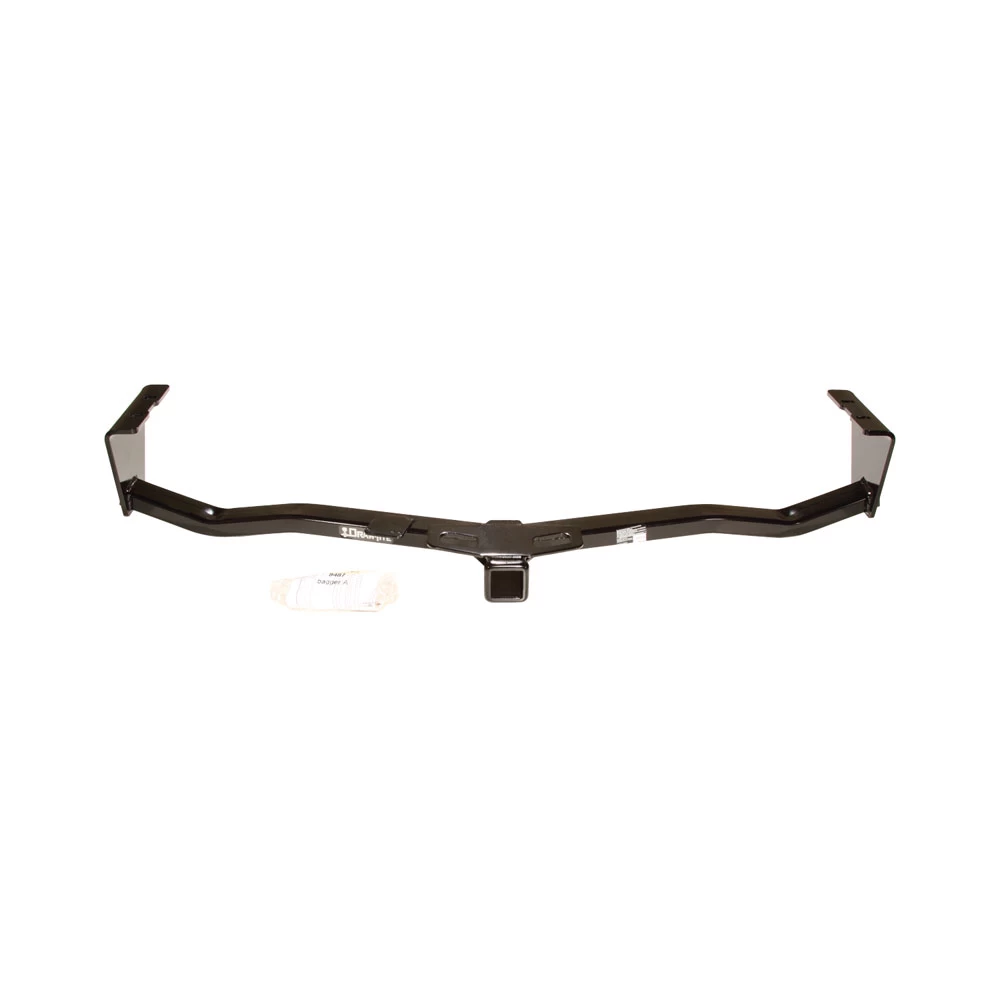

Trailer Hitch Specs:
| Part Number | 75532 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118269 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$336 94 $549.31 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$549.31 $336 94
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $84.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75532 118269
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2012 Hyundai, Veracruz, All Styles
Trailer Hitch Specs:
| Part Number | 75532 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118269 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 07-12 Hyundai Veracruz w/ Wiring Harness Kit Install Notes
Installation Instructions for Hyundai Veracruz
Part Numbers:
- 87439
- 75532
- 44573
Tools Required:
- Wrenches: 10mm, 14mm, 16mm
- Drill Bits: None
Wiring Access Location:
- SUV7
Step-by-Step Instructions:
-
Remove Tow Hook (if present):
- Remove the two bolts securing the tow hook to the frame rail.
- Lower the exhaust by detaching the rubber isolators in two locations.
- Remove the nuts holding the heat shield in place. Keep the nut on the frame rail for reinstallation. Return the tow hook and fasteners to the vehicle owner.
-
Lower Exhaust:
- Detach the rubber exhaust hangers to lower the rear portion of the exhaust system.
-
Remove Heat Shield Nuts:
- Remove the outboard nuts holding the heat shield in place on both sides. Retain the nuts for reinstallation.
-
Position Hitch:
- Rotate the hitch into position over the exhaust and align the hitch slots with the existing weld nuts on the frame.
- Ensure the hitch is placed between the heat shield and the frame rails.
-
Install Fasteners:
- Secure the hitch using M10 x 1.25 x 40mm bolts and conical washers into the existing weld nuts.
-
Reinstall Heat Shield Nuts:
- Reattach the heat shield using the previously removed nuts.
-
Raise Exhaust:
- Reinstall the exhaust hangers and ensure the exhaust system is securely back in position.
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 CL10.9 fasteners to 58 lb-ft (79 N·m).

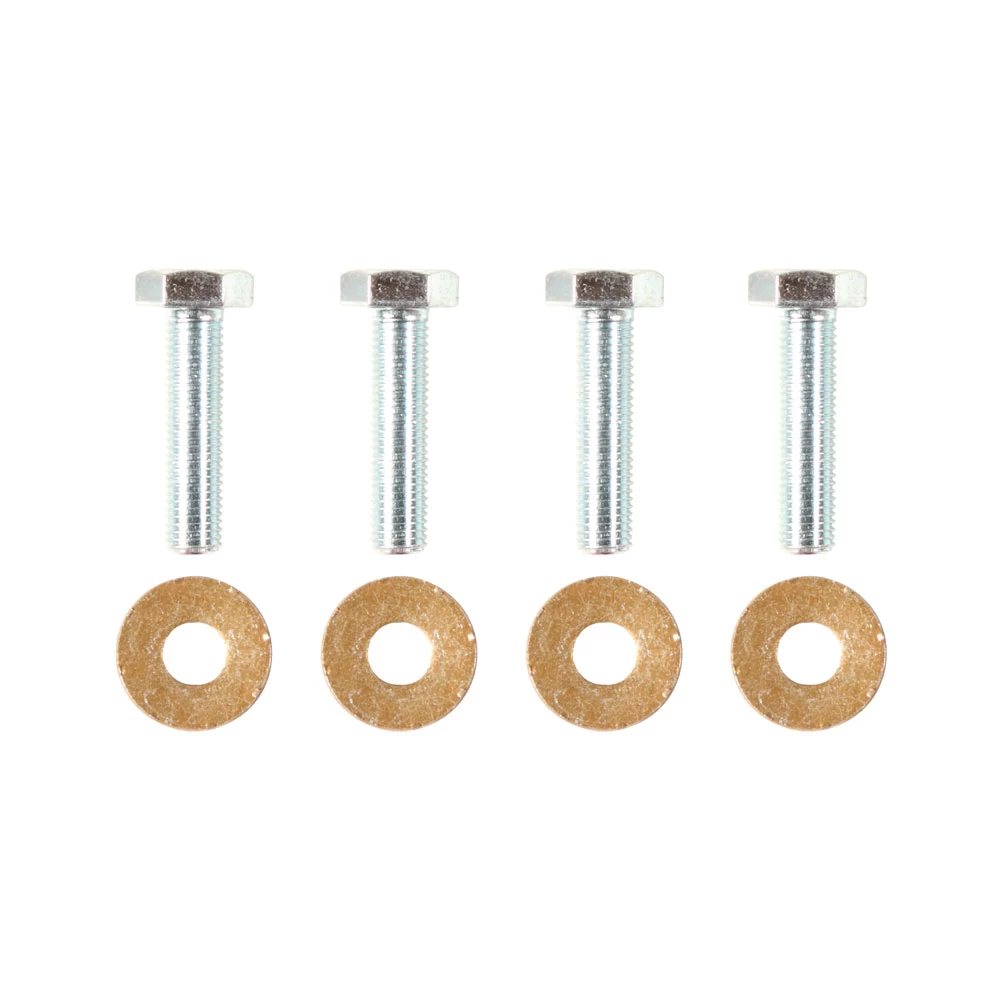

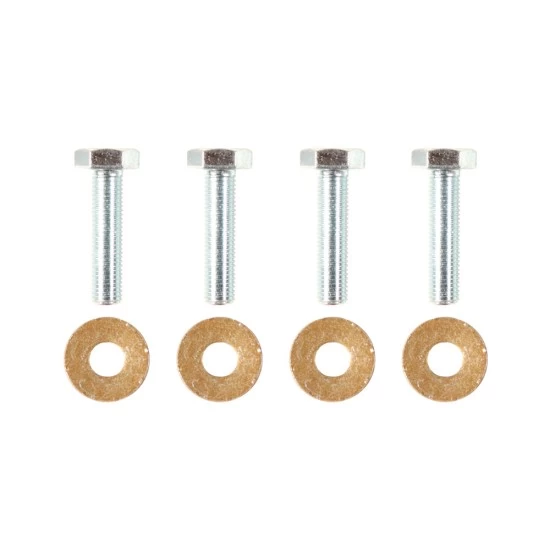

Hardware List:
- (4) M10 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 87439
- 75532
- 44573
Tools Required:
- Wrenches: 10mm, 14mm, 16mm
- Drill Bits: None
Wiring Access Location:
- SUV7
Step-by-Step Instructions:
-
Remove Tow Hook (if present):
- Remove the two bolts securing the tow hook to the frame rail.
- Lower the exhaust by detaching the rubber isolators in two locations.
- Remove the nuts holding the heat shield in place. Keep the nut on the frame rail for reinstallation. Return the tow hook and fasteners to the vehicle owner.
-
Lower Exhaust:
- Detach the rubber exhaust hangers to lower the rear portion of the exhaust system.
-
Remove Heat Shield Nuts:
- Remove the outboard nuts holding the heat shield in place on both sides. Retain the nuts for reinstallation.
-
Position Hitch:
- Rotate the hitch into position over the exhaust and align the hitch slots with the existing weld nuts on the frame.
- Ensure the hitch is placed between the heat shield and the frame rails.
-
Install Fasteners:
- Secure the hitch using M10 x 1.25 x 40mm bolts and conical washers into the existing weld nuts.
-
Reinstall Heat Shield Nuts:
- Reattach the heat shield using the previously removed nuts.
-
Raise Exhaust:
- Reinstall the exhaust hangers and ensure the exhaust system is securely back in position.
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 CL10.9 fasteners to 58 lb-ft (79 N·m).
Hardware List:
- (4) M10 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter for Kia Sorento and Hyundai Veracruz
Part Numbers:
- 118269
Tools Required:
- Trim Panel Remover
- Wire Cutters
- 10mm Socket & Ratchet or Wrench
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Vehicle Wiring:
- Kia Sorento: Lower the spare tire to access the vehicle wiring.
- Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.
-
Locate the Tow-Plug Harness:
- Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
- Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Remove the protective caps from the vehicle’s tow plug harness.
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the T-Connector Wiring:
- Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
- Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.
Warning:
- Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
- Secure all loose wires with cable ties to prevent damage or rattling.
-
Test the Installation:
- Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Test and verify the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual for additional information.
Manufacturer Notes:
- Ensure all connections are clean and secure.
- Follow all installation warnings and guidelines carefully.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118269
Tools Required:
- Trim Panel Remover
- Wire Cutters
- 10mm Socket & Ratchet or Wrench
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Vehicle Wiring:
- Kia Sorento: Lower the spare tire to access the vehicle wiring.
- Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.
-
Locate the Tow-Plug Harness:
- Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
- Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Remove the protective caps from the vehicle’s tow plug harness.
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the T-Connector Wiring:
- Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
- Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.
Warning:
- Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
- Secure all loose wires with cable ties to prevent damage or rattling.
-
Test the Installation:
- Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Test and verify the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual for additional information.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
