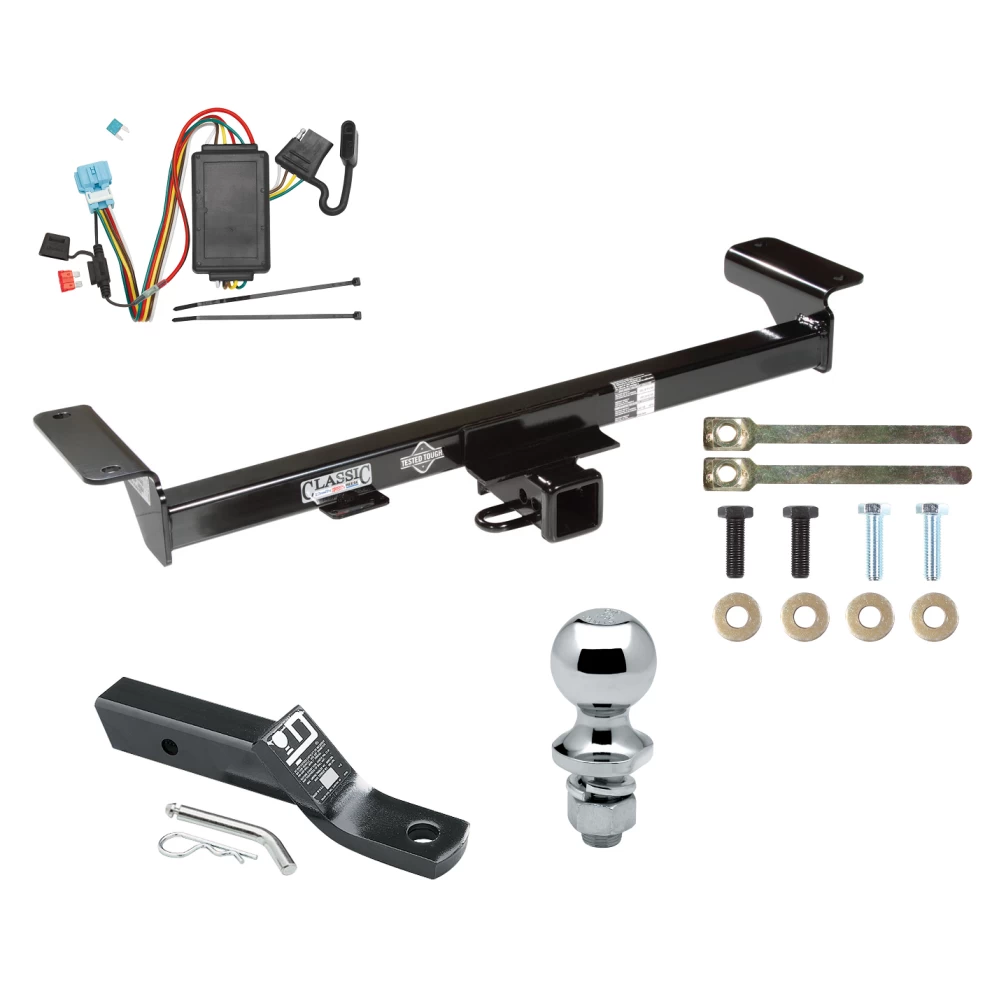

Trailer Tow Hitch For 07‑09 Acura RDX Complete Package w/ Wiring and 1‑7/8" Ball
Model: 75563 118500 23 63816 *Custom Fit Trailer Hitch

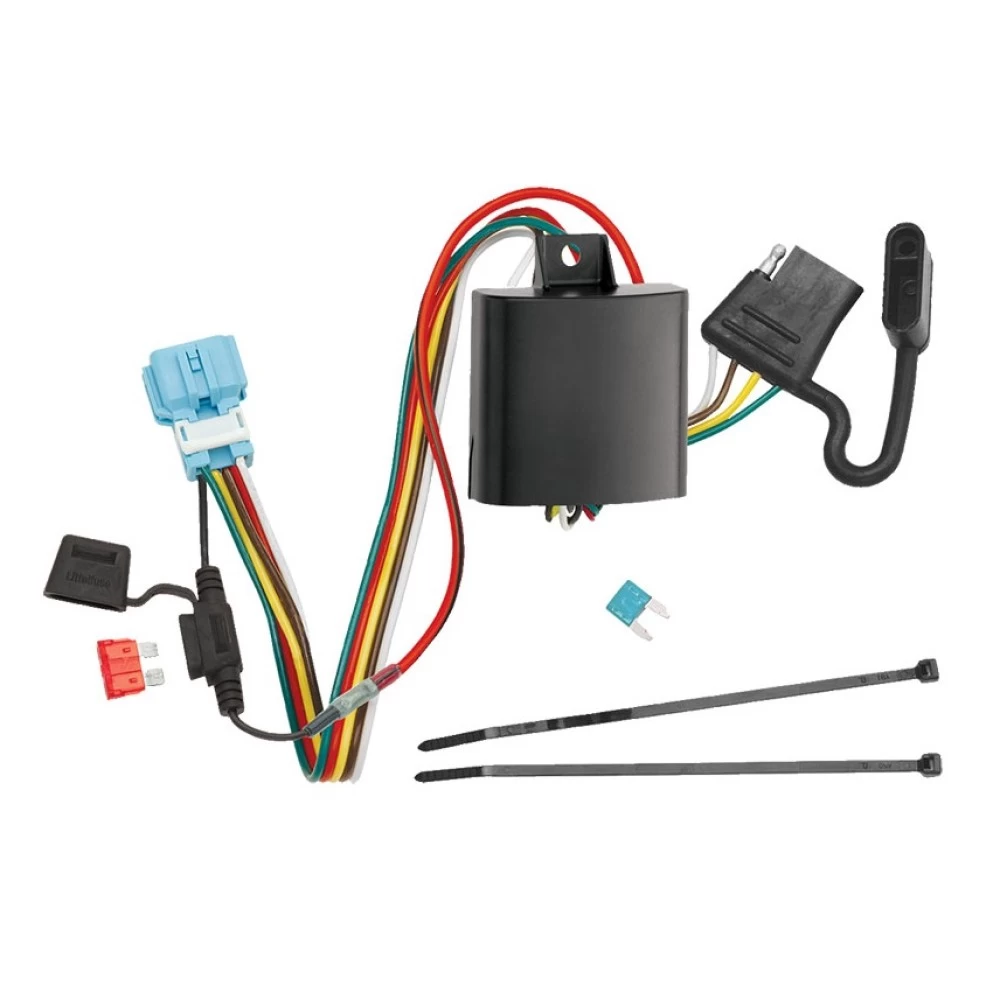

Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Acura, RDX, All Styles
Trailer Hitch Specs:
| Part Number | 75563 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118500 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$288 60 $438.92 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$438.92 $288 60
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $72.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75563 118500 23 63816 *
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Acura, RDX, All Styles
Trailer Hitch Specs:
| Part Number | 75563 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118500 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 07-09 Acura RDX Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Acura RDX
Part Numbers:
- 75563
- 87449
- 44584
Tools Required:
- Wrenches: 3/4", 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Position the Hitch:
- Raise the hitch into position and align the slots of the receiver with the weldnuts in the frame rail.
-
Install M12 Bolts:
- Insert the M12 x 1.25 x 40mm bolts and conical toothed washers through the hitch and into the weldnuts on the frame rail.
-
Insert Handle Nuts:
- Insert the 1/2" handle nuts through the large hole in the vehicle frame rail.
-
Secure with 1/2" Bolts:
- Install the 1/2"-13 x 1.75" bolts and conical toothed washers, securing the hitch to the frame.
-
Torque Fasteners:
- Tighten all M12 x 1.25 CL10.9 fasteners to 115 lb-ft (156 N·m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (2) 1/2"-13 x 1.75" GR5 Hex Bolts
- (4) 1/2" Conical Toothed Washers
- (2) 1/2" Handle Nuts
- (2) M12 x 1.25 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75563
- 87449
- 44584
Tools Required:
- Wrenches: 3/4", 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Position the Hitch:
- Raise the hitch into position and align the slots of the receiver with the weldnuts in the frame rail.
-
Install M12 Bolts:
- Insert the M12 x 1.25 x 40mm bolts and conical toothed washers through the hitch and into the weldnuts on the frame rail.
-
Insert Handle Nuts:
- Insert the 1/2" handle nuts through the large hole in the vehicle frame rail.
-
Secure with 1/2" Bolts:
- Install the 1/2"-13 x 1.75" bolts and conical toothed washers, securing the hitch to the frame.
-
Torque Fasteners:
- Tighten all M12 x 1.25 CL10.9 fasteners to 115 lb-ft (156 N·m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (2) 1/2"-13 x 1.75" GR5 Hex Bolts
- (4) 1/2" Conical Toothed Washers
- (2) 1/2" Handle Nuts
- (2) M12 x 1.25 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter for Honda Crosstour and Acura RDX
Part Numbers:
- 118500
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Test Probe
Step-by-Step Instructions:
For Honda Crosstour:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings and the center storage bin.
-
Locate the Tow Plug:
- Locate the blue tow plug at the rear of the vehicle under the driver’s side trim panel. The plug is taped to the wire harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Insert the Fuse:
- Open the hood and locate the fuse box on the driver’s side.
- Insert the 15-amp fuse provided into the empty fuse slot.
-
Route the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment. Store the connector there when not in use.
-
Mount the T-Connector Black Box:
- On the driver’s side, locate a flat surface in an out-of-the-way location.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
For Acura RDX:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings, exposing the spare tire compartment.
- Remove the spare tire.
-
Locate the Tow Plug:
- Locate the blue 6-pin tow plug near the foam cargo tray. It is taped to the vehicle's electrical harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Mount the T-Connector Black Box:
- Locate a flat surface under the foam cargo tray.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the spare tire compartment when not in use.
Both Honda Crosstour and Acura RDX:
-
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Be careful not to pinch or cut the wires.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
Manufacturer Notes:
- Follow all warnings and installation instructions carefully.
- Store the 4-flat connector in the appropriate compartment when not in use.
Installation Instructions for T-Connector Adapter for Vehicle
Part Numbers:
- 118500
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Test Probe
Step-by-Step Instructions:
For Honda Crosstour:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings and the center storage bin.
-
Locate the Tow Plug:
- Locate the blue tow plug at the rear of the vehicle under the driver’s side trim panel. The plug is taped to the wire harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Insert the Fuse:
- Open the hood and locate the fuse box on the driver’s side.
- Insert the 15-amp fuse provided into the empty fuse slot.
-
Route the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment. Store the connector there when not in use.
-
Mount the T-Connector Black Box:
- On the driver’s side, locate a flat surface in an out-of-the-way location.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
For Acura RDX:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings, exposing the spare tire compartment.
- Remove the spare tire.
-
Locate the Tow Plug:
- Locate the blue 6-pin tow plug near the foam cargo tray. It is taped to the vehicle's electrical harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Mount the T-Connector Black Box:
- Locate a flat surface under the foam cargo tray.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the spare tire compartment when not in use.
Both Honda Crosstour and Acura RDX:
-
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Be careful not to pinch or cut the wires.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Follow all warnings and installation instructions carefully.
- Store the 4-flat connector in the appropriate compartment when not in use.
Related Products
