Product Details
- Brand: Draw-Tite
- Model: 75614 118424 23 63845 580407 7010

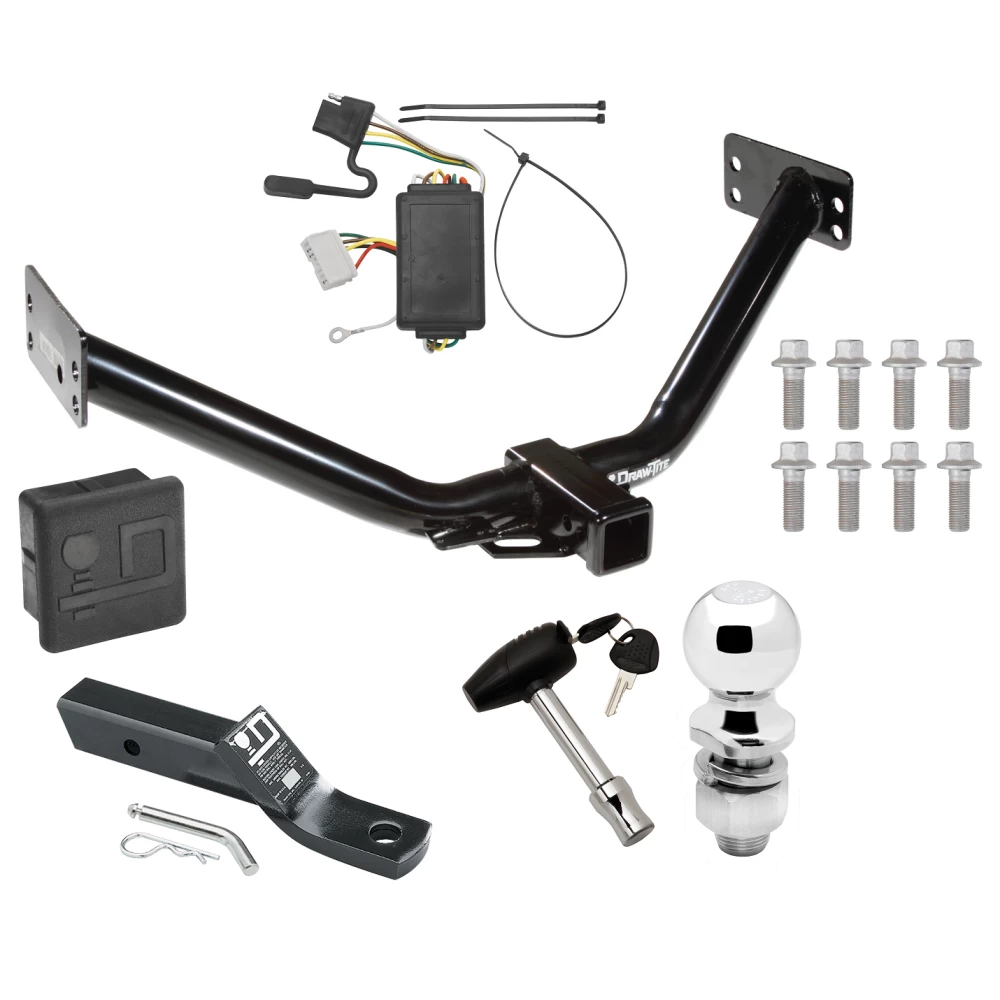

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 07-13 Acura MDX without Full Size Spare Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Acura MDX
(Fits with mini spare tire stowed under the vehicle. Will not fit with a full-size spare or rear sport bumper trim.)
Part Numbers:
- 87474
- 75614
- 44594
- 78217 (U-Haul)
Tools Required:
- Wrenches: 10mm, 19mm, 21mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Remove Spare Tire:
- Completely remove the mini spare tire for easier hitch installation.
-
Lower Exhaust:
- Detach the two rearmost rubber hangers on both sides to lower the exhaust system.
-
Remove Heat Shields:
- Detach and remove the heat shields from both sides of the vehicle.
-

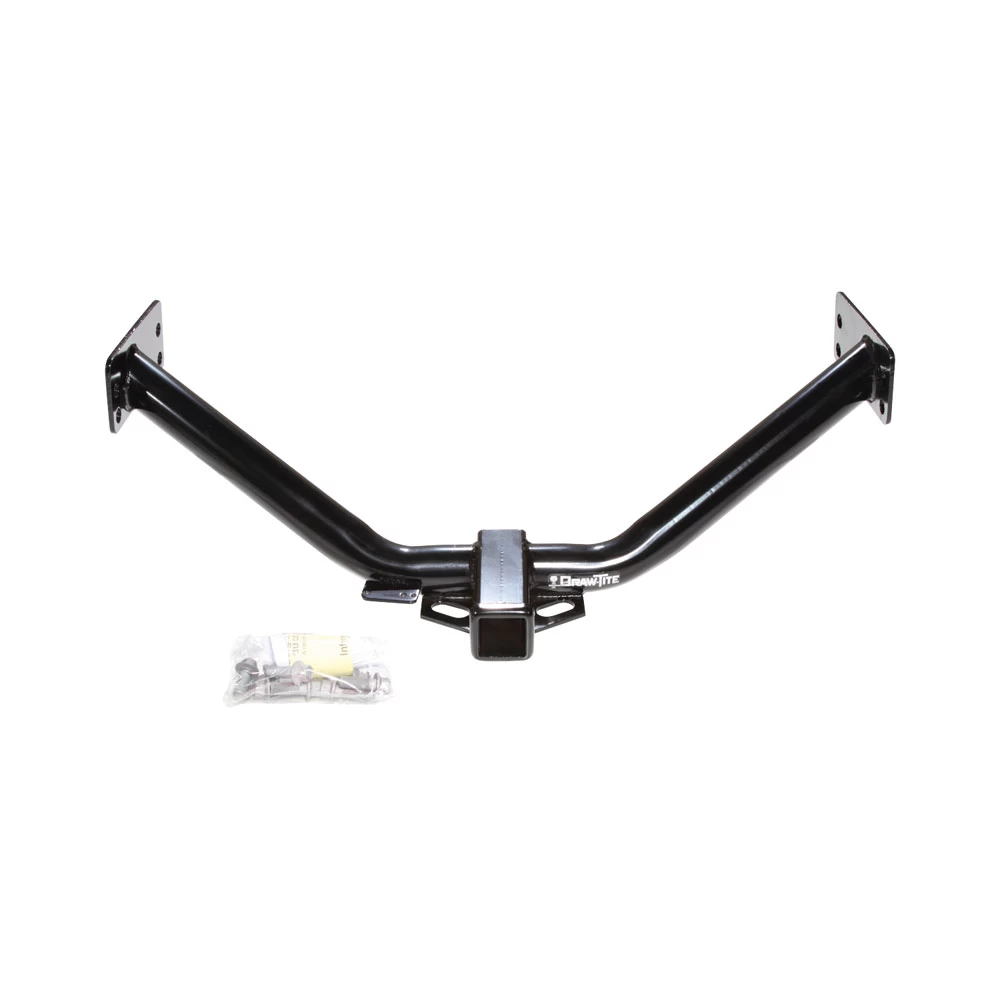

Position the Hitch:
- Raise the hitch into position under the vehicle frame.
- Secure the hitch using the provided hardware by installing eight (8) M14 x 1.50 x 45mm hex bolts and eight (8) flat washers into the existing weldnuts.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 90 lb-ft (122 N·m).
-
Reinstall Heat Shields:
- Reattach the heat shields to the frame and tighten the bolts.
-
Reinstall Exhaust:
- Raise the exhaust back into position and secure the rubber hangers.
-
Reinstall Spare Tire:
- Replace the mini spare tire back into its stowed position under the vehicle.

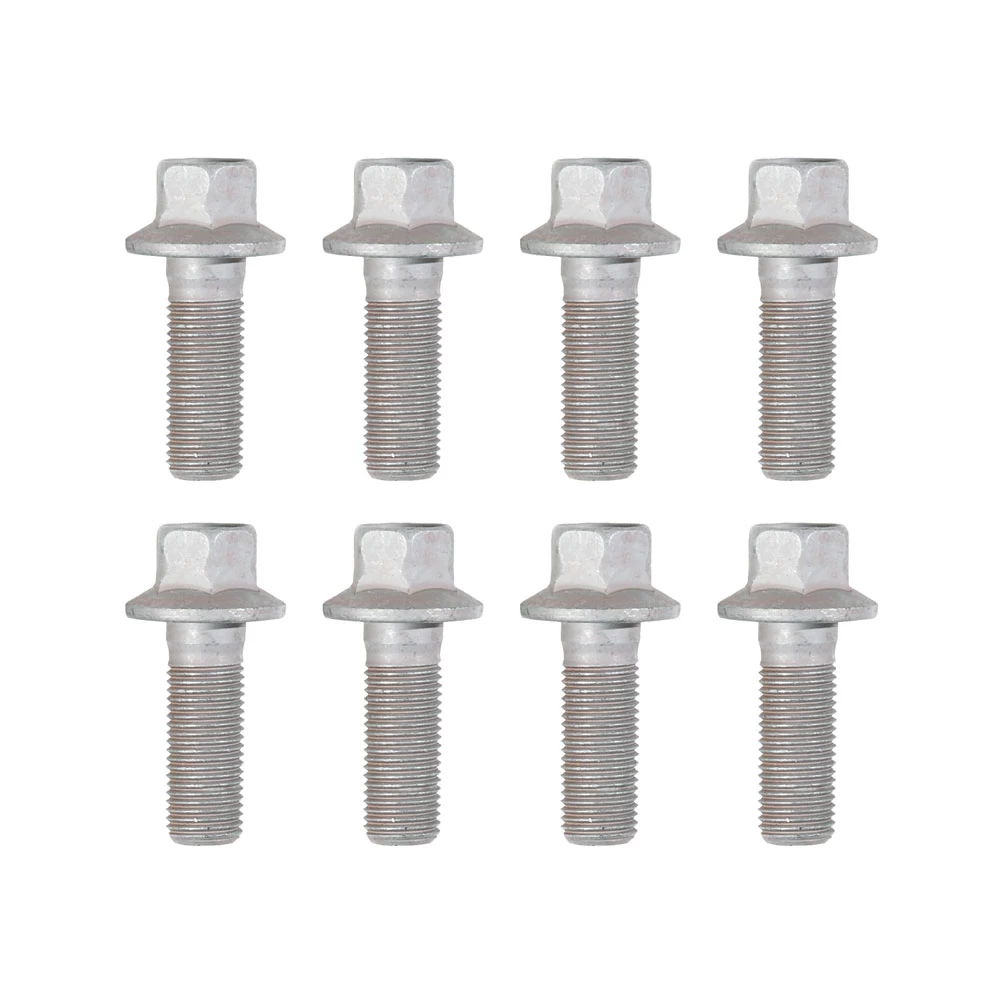

Hardware List:
- (8) M14 x 1.50 x 45mm CL10.9 Hex Bolts
- (8) Flat Washers (9/16” Hardened)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
(Fits with mini spare tire stowed under the vehicle. Will not fit with a full-size spare or rear sport bumper trim.)
Part Numbers:
- 87474
- 75614
- 44594
- 78217 (U-Haul)
Tools Required:
- Wrenches: 10mm, 19mm, 21mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Remove Spare Tire:
- Completely remove the mini spare tire for easier hitch installation.
-
Lower Exhaust:
- Detach the two rearmost rubber hangers on both sides to lower the exhaust system.
-
Remove Heat Shields:
- Detach and remove the heat shields from both sides of the vehicle.
-
Position the Hitch:
- Raise the hitch into position under the vehicle frame.
- Secure the hitch using the provided hardware by installing eight (8) M14 x 1.50 x 45mm hex bolts and eight (8) flat washers into the existing weldnuts.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 90 lb-ft (122 N·m).
-
Reinstall Heat Shields:
- Reattach the heat shields to the frame and tighten the bolts.
-
Reinstall Exhaust:
- Raise the exhaust back into position and secure the rubber hangers.
-
Reinstall Spare Tire:
- Replace the mini spare tire back into its stowed position under the vehicle.
Hardware List:
- (8) M14 x 1.50 x 45mm CL10.9 Hex Bolts
- (8) Flat Washers (9/16” Hardened)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

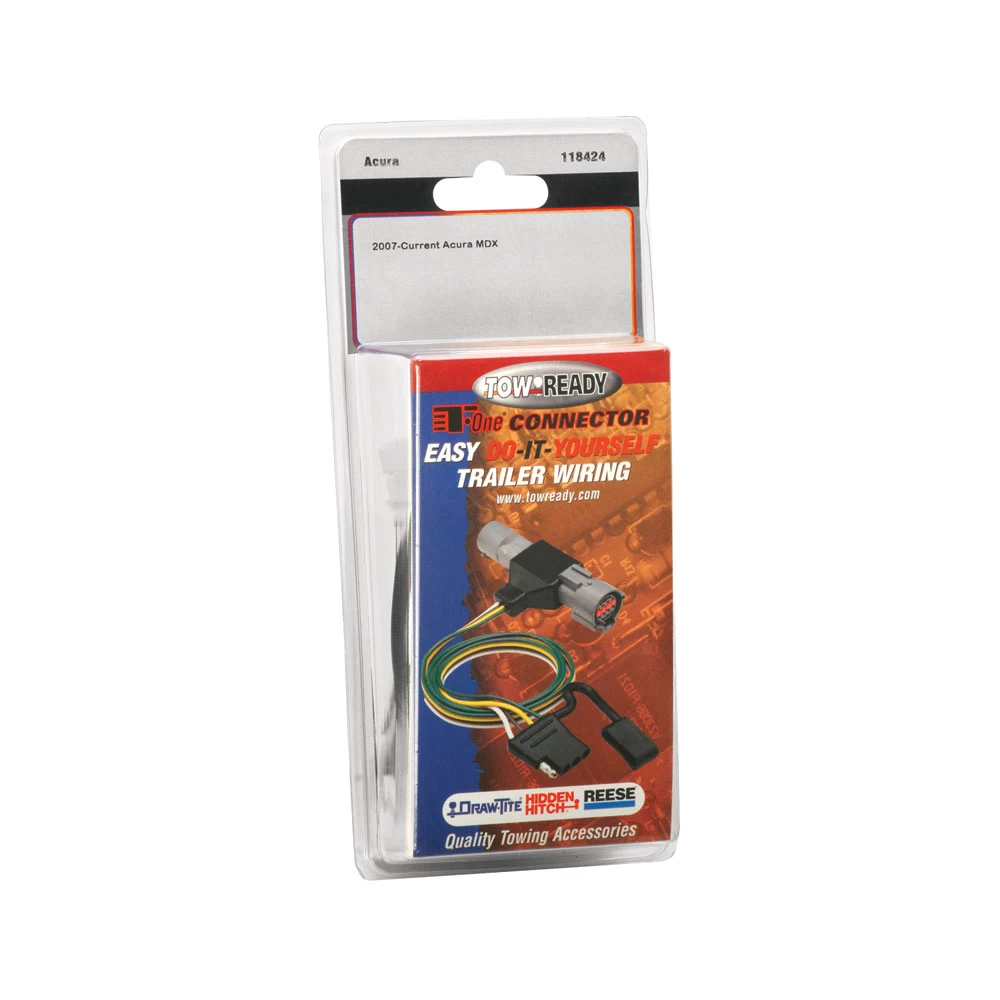

Installation Instructions for T-Connector Adapter
Part Numbers:
- 118424
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
Step-by-Step Instructions:
-
Access the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- On the driver’s side, remove the access door on the trim panel.
- Open the rear cargo door and remove the threshold, jack storage door, and pull back the black cargo liner.
- Set aside all items removed, being careful not to damage any parts.
-
Locate the Electric Junction Box:
- Inside the cargo area, locate the vehicle’s grey electric junction box behind the trim panel.
-

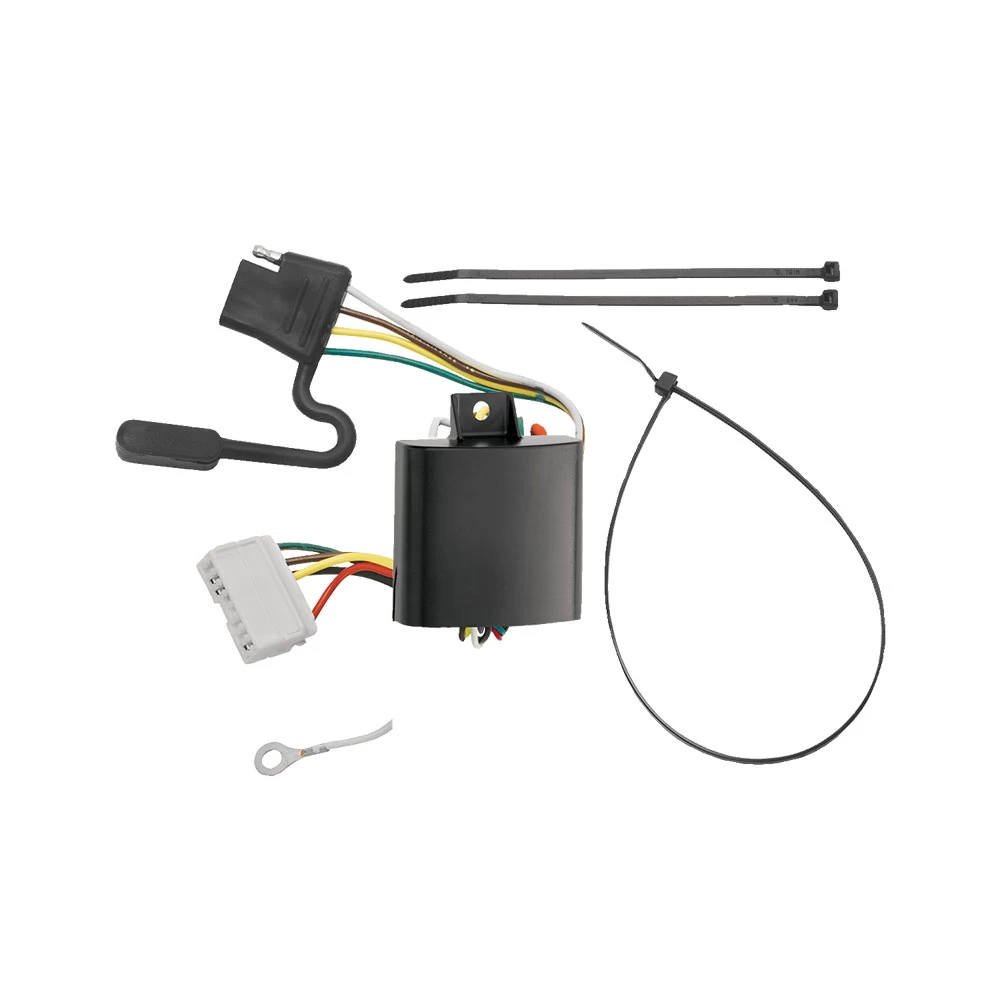

Connect the T-Connector:
- Starting from the cargo area, route the white T-Connector end up and behind the trim panel to the junction box area.
- Plug the white T-Connector end into the mating connection in the electric junction box.
-
Mount the T-Connector Black Box:
- On the driver’s side, under the trim panel area between the cargo area and the junction box, clean a flat surface using a mixture of rubbing alcohol and water.
- Mount the T-Connector’s black box using the provided double-sided tape.
-
Ground the White Wire:
- Route the white wire with the eyelet toward the center of the vehicle near the threshold area.
- Locate the existing ground stud and remove the bolt using a 10mm socket or wrench.
- Place the white wire with the eyelet around the bolt and re-tighten.
Warning:
- Ensure all other ground connections are secure when removing and reattaching the ground stud.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector over to the jack storage area.
- Replace the black cargo liner and store the 4-flat wire in the jack compartment when not in use.
-
Reassemble the Vehicle:
- Reinstall the jack storage door, access door, threshold, rear cargo door, and any other items removed during installation.
- Be careful not to pinch or cut the wires.
-
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
- For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (4.2 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional guidance.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118424
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
Step-by-Step Instructions:
-
Access the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- On the driver’s side, remove the access door on the trim panel.
- Open the rear cargo door and remove the threshold, jack storage door, and pull back the black cargo liner.
- Set aside all items removed, being careful not to damage any parts.
-
Locate the Electric Junction Box:
- Inside the cargo area, locate the vehicle’s grey electric junction box behind the trim panel.
-
Connect the T-Connector:
- Starting from the cargo area, route the white T-Connector end up and behind the trim panel to the junction box area.
- Plug the white T-Connector end into the mating connection in the electric junction box.
-
Mount the T-Connector Black Box:
- On the driver’s side, under the trim panel area between the cargo area and the junction box, clean a flat surface using a mixture of rubbing alcohol and water.
- Mount the T-Connector’s black box using the provided double-sided tape.
-
Ground the White Wire:
- Route the white wire with the eyelet toward the center of the vehicle near the threshold area.
- Locate the existing ground stud and remove the bolt using a 10mm socket or wrench.
- Place the white wire with the eyelet around the bolt and re-tighten.
Warning:
- Ensure all other ground connections are secure when removing and reattaching the ground stud.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector over to the jack storage area.
- Replace the black cargo liner and store the 4-flat wire in the jack compartment when not in use.
-
Reassemble the Vehicle:
- Reinstall the jack storage door, access door, threshold, rear cargo door, and any other items removed during installation.
- Be careful not to pinch or cut the wires.
-
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
- For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (4.2 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
