Description
Get Expert Help

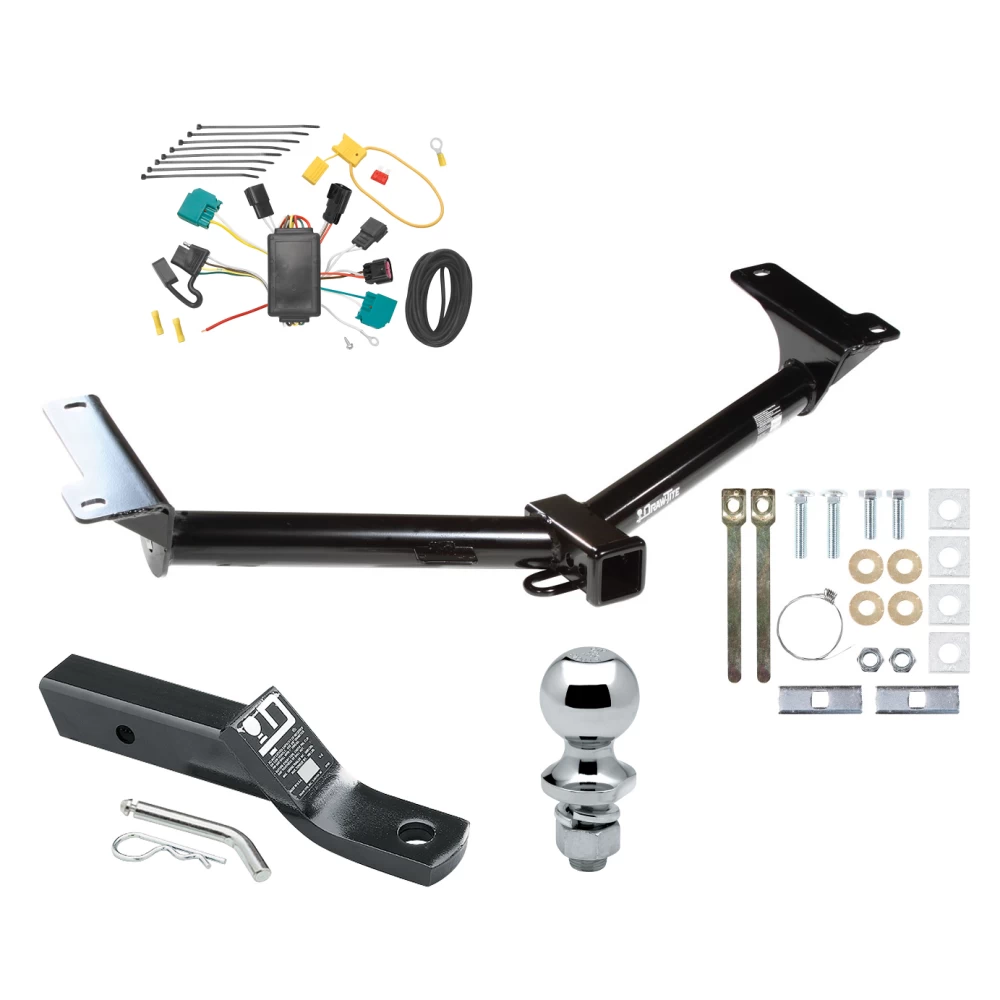

Trailer Tow Hitch For 2009 Dodge Journey Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Dodge Journey
Part Numbers:
- 75648
- 87487
- 44601
Tools Required:
- Wrenches: 3/4”
- Lubricant or soapy water
- Tape
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove all rubber isolators behind the rear axle (two or three depending on the vehicle).
- Be careful not to let the mufflers fall under their own weight.
- Tip: Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
-
Install Carriage Bolts:
- Feed spacers and carriage bolts into the impact bar using the pull wires provided (both sides).
- Leave the pull wire attached for alignment.
-
Tape Spacers to the Hitch:
- Tape the spacers in place on the hitch before raising it into position.
- Orient spacers as shown in the diagrams.
-
Raise the Hitch:
- Single exhaust: Raise the hitch on the passenger side over the exhaust pipe and slowly rotate it into position.
- Dual exhaust: Slide the hitch above the tailpipes.
- Secure the hitch with conical washers and nuts.
-
Insert Handle Nuts:
- Bend and insert handle nuts through access holes in the frame.
- Install two (2) 1/2"-13 bolts and conical washers as shown.
- Hold handle nuts in place to prevent rotation and bend the ends out of the way.
-
Tighten Fasteners:
- Tighten 1/2"-13 carriage bolts to 75 lb-ft (102 N·m).
- Tighten handle nuts to 50 lb-ft (68 N·m).
-
Reattach the Exhaust:
- Raise the exhaust back into position and reconnect the rubber isolators.
- Note: If additional exhaust clearance is needed, bend the exhaust hanger bracket (welded to the vehicle frame) downward.
Hardware List:
- (2) Carriage Bolts 1/2"-13 x 2.25” GR5
- (2) Hex Bolts 1/2"-13 x 1.50” GR5
- (4) Conical Washers
- (4) Bevel Spacers
- (2) Spacers
- (2) Handle Nuts
- (2) Pull Wires
- (2) Hex Nuts 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75648
- 87487
- 44601
Tools Required:
- Wrenches: 3/4”
- Lubricant or soapy water
- Tape
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove all rubber isolators behind the rear axle (two or three depending on the vehicle).
- Be careful not to let the mufflers fall under their own weight.
- Tip: Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
-
Install Carriage Bolts:
- Feed spacers and carriage bolts into the impact bar using the pull wires provided (both sides).
- Leave the pull wire attached for alignment.
-
Tape Spacers to the Hitch:
- Tape the spacers in place on the hitch before raising it into position.
- Orient spacers as shown in the diagrams.
-
Raise the Hitch:
- Single exhaust: Raise the hitch on the passenger side over the exhaust pipe and slowly rotate it into position.
- Dual exhaust: Slide the hitch above the tailpipes.
- Secure the hitch with conical washers and nuts.
-
Insert Handle Nuts:
- Bend and insert handle nuts through access holes in the frame.
- Install two (2) 1/2"-13 bolts and conical washers as shown.
- Hold handle nuts in place to prevent rotation and bend the ends out of the way.
-
Tighten Fasteners:
- Tighten 1/2"-13 carriage bolts to 75 lb-ft (102 N·m).
- Tighten handle nuts to 50 lb-ft (68 N·m).
-
Reattach the Exhaust:
- Raise the exhaust back into position and reconnect the rubber isolators.
- Note: If additional exhaust clearance is needed, bend the exhaust hanger bracket (welded to the vehicle frame) downward.
Hardware List:
- (2) Carriage Bolts 1/2"-13 x 2.25” GR5
- (2) Hex Bolts 1/2"-13 x 1.50” GR5
- (4) Conical Washers
- (4) Bevel Spacers
- (2) Spacers
- (2) Handle Nuts
- (2) Pull Wires
- (2) Hex Nuts 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

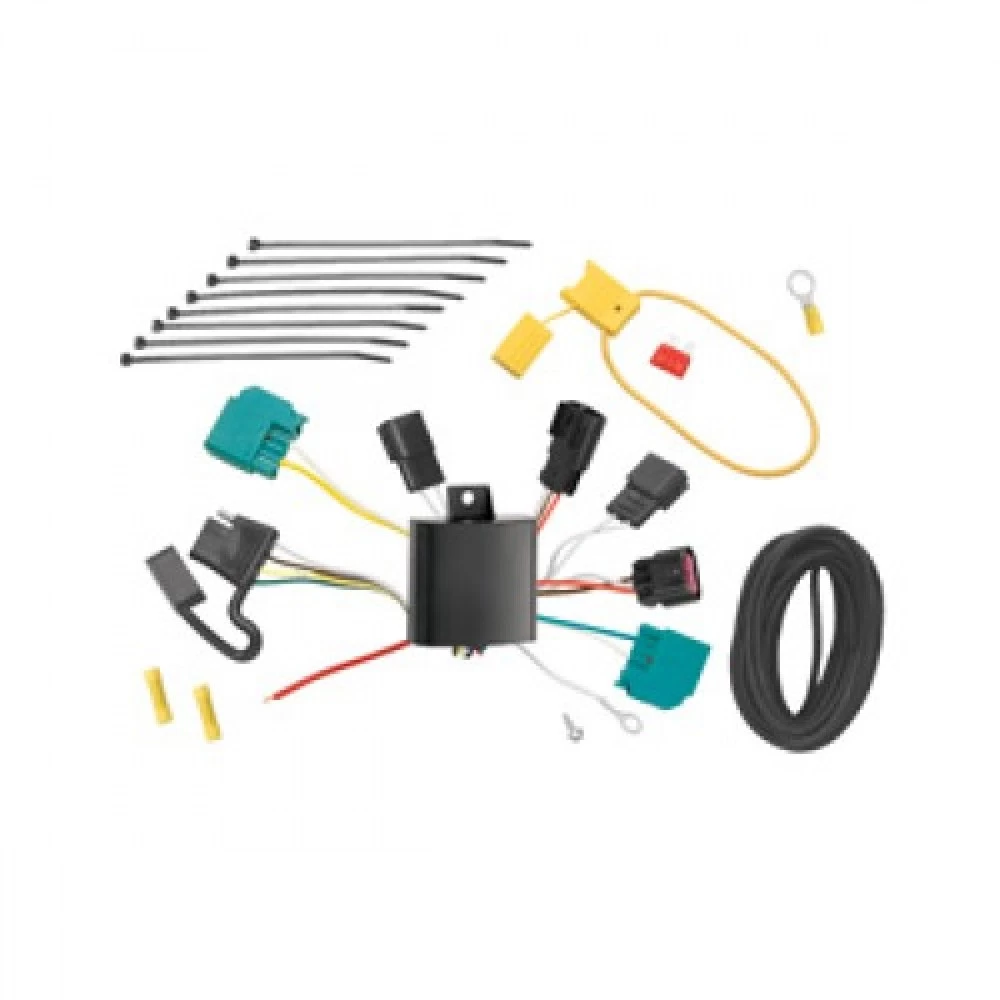

Installation Instructions for T-Connector Adapter for Dodge Journey
Part Numbers:
- 118474
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate and remove the vehicle’s right-side taillight assembly by removing the two clips holding it in place.
- Carefully pry the housing away from the vehicle, being careful not to break the alignment tabs.
- Repeat this process for the left-side taillight assembly.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness.
- The harness will have a connection point on both sides matching the T-Connector ends.
- Separate the connectors carefully to avoid breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side vehicle wiring connectors.
- Lock the connectors in place, ensuring the locking tabs are secure and the connectors are fully inserted.
-
Route the T-Connector Wiring:
- Route the harness containing the green wire and the 4-flat connector down the opening behind the taillight on the driver’s side.
- Route the 4-flat harness underneath to the center of the vehicle.
- Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger’s side taillight.
Warning:
- Avoid routing wires near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wires.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 for the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into any exposed surfaces.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Cut the fuse holder wire and attach the ring terminal to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Route the Power Wire:
- Route the black wire from the engine compartment to the rear driver’s side of the vehicle.
- Connect the black wire to the red power wire on the T-Connector’s black box using the yellow butt connector.
Warning:
- Avoid routing the wire near hot pipes, heat shields, or the fuel tank.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
-
Secure the T-Connector Harness:
- On the driver’s side, mount the T-Connector’s black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties, ensuring it is not pinched or cut.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body.
-
Mount the 4-Flat Connector:
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer to verify functionality.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional guidance.
Installation Instructions for T-Connector Adapter for Vehicle
Part Numbers:
- 118474
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate and remove the vehicle’s right-side taillight assembly by removing the two clips holding it in place.
- Carefully pry the housing away from the vehicle, being careful not to break the alignment tabs.
- Repeat this process for the left-side taillight assembly.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness.
- The harness will have a connection point on both sides matching the T-Connector ends.
- Separate the connectors carefully to avoid breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side vehicle wiring connectors.
- Lock the connectors in place, ensuring the locking tabs are secure and the connectors are fully inserted.
-
Route the T-Connector Wiring:
- Route the harness containing the green wire and the 4-flat connector down the opening behind the taillight on the driver’s side.
- Route the 4-flat harness underneath to the center of the vehicle.
- Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger’s side taillight.
Warning:
- Avoid routing wires near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wires.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 for the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into any exposed surfaces.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Cut the fuse holder wire and attach the ring terminal to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Route the Power Wire:
- Route the black wire from the engine compartment to the rear driver’s side of the vehicle.
- Connect the black wire to the red power wire on the T-Connector’s black box using the yellow butt connector.
Warning:
- Avoid routing the wire near hot pipes, heat shields, or the fuel tank.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
-
Secure the T-Connector Harness:
- On the driver’s side, mount the T-Connector’s black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties, ensuring it is not pinched or cut.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body.
-
Mount the 4-Flat Connector:
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer to verify functionality.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional guidance.
