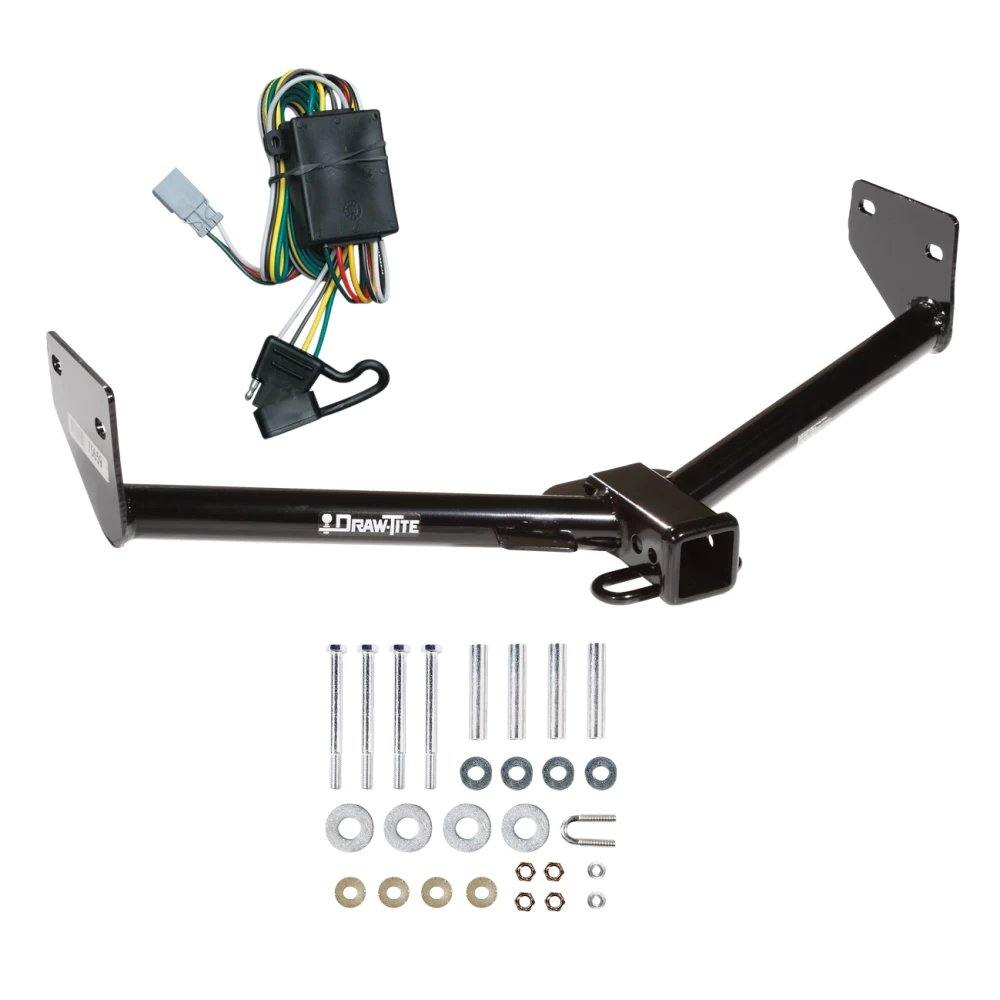

Trailer Tow Hitch For 03‑04 Honda Element w/ Wiring Harness Kit
Model: 75659 118336 *Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2004 Honda, Element, All Styles
Trailer Hitch Specs:
| Part Number | 75659 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118336 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$275 61 $441.93 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$441.93 $275 61
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $68.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75659 118336 *
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2004 Honda, Element, All Styles
Trailer Hitch Specs:
| Part Number | 75659 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118336 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 03-04 Honda Element w/ Wiring Harness Kit Install Notes
Installation Instructions for Honda Element (2003-2008, including SC model)
Part Numbers:
- 75659
- 87506
- 44612
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: None
Wiring Access Location:
- 2003-2004: SUV2
- 2005 and later: SUV1-2
Step-by-Step Instructions:
-
Install 1/2" Bolts and Washers:
- Insert 1/2"-13 x 5-1/2" Grade 5 hex bolts and 1/2" flat washers from the outside of the vehicle frame.
- Place tube spacers and 3/4" flat washers inside the frame.
- Ensure bolts barely stick through; repeat on both sides of the vehicle.
-
Raise the Hitch:
- Carefully lift the hitch into position without dislodging washers installed in Step 1.
- Alternatively, slide the 3/4" flat washers into place after raising the hitch. Washers should go over tube spacers between the vehicle frame and hitch brackets.
-
Secure Hitch Bolts:
- Push 1/2" bolts through the hitch brackets on both sides.
- Ensure 3/4" flat washers are correctly positioned over the tube spacers and between the inside of the frame and outside of the hitch bracket.
- Install 1/2" conical toothed washers and hex nuts. Loosely tighten.
-
Install U-Bolt:
- Place the 3/8" U-bolt over the vehicle trunk pan tie-down hook and through the center hitch bracket.
- Install 3/8" flanged hex locknuts on the U-bolt, ensuring even tightening.
-
Torque Fasteners:
- Tighten the U-bolt first to 30 lb-ft (41 N·m).
- Torque all 1/2"-13 Grade 5 bolts to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2"-13 x 5-1/2" Grade 5 Hex Bolts
- (4) Tube Spacers
- (4) 1/2" Flat Washers
- (4) 1/2" Conical Toothed Washers
- (4) 1/2" Hex Nuts
- (1) 3/8" U-Bolt
- (2) 3/8" Flanged Hex Locknuts
- (4) 3/4" Flat Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- SC model requires trimming of the plastic bumper fascia.
Installation Instructions for Honda Element (2003-2008, including SC model)
Part Numbers:
- 75659
- 87506
- 44612
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: None
Wiring Access Location:
- 2003-2004: SUV2
- 2005 and later: SUV1-2
Step-by-Step Instructions:
-
Install 1/2" Bolts and Washers:
- Insert 1/2"-13 x 5-1/2" Grade 5 hex bolts and 1/2" flat washers from the outside of the vehicle frame.
- Place tube spacers and 3/4" flat washers inside the frame.
- Ensure bolts barely stick through; repeat on both sides of the vehicle.
-
Raise the Hitch:
- Carefully lift the hitch into position without dislodging washers installed in Step 1.
- Alternatively, slide the 3/4" flat washers into place after raising the hitch. Washers should go over tube spacers between the vehicle frame and hitch brackets.
-
Secure Hitch Bolts:
- Push 1/2" bolts through the hitch brackets on both sides.
- Ensure 3/4" flat washers are correctly positioned over the tube spacers and between the inside of the frame and outside of the hitch bracket.
- Install 1/2" conical toothed washers and hex nuts. Loosely tighten.
-
Install U-Bolt:
- Place the 3/8" U-bolt over the vehicle trunk pan tie-down hook and through the center hitch bracket.
- Install 3/8" flanged hex locknuts on the U-bolt, ensuring even tightening.
-
Torque Fasteners:
- Tighten the U-bolt first to 30 lb-ft (41 N·m).
- Torque all 1/2"-13 Grade 5 bolts to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2"-13 x 5-1/2" Grade 5 Hex Bolts
- (4) Tube Spacers
- (4) 1/2" Flat Washers
- (4) 1/2" Conical Toothed Washers
- (4) 1/2" Hex Nuts
- (1) 3/8" U-Bolt
- (2) 3/8" Flanged Hex Locknuts
- (4) 3/4" Flat Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Additional Notes:
- SC model requires trimming of the plastic bumper fascia.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118336
Vehicle Compatibility:
- Acura: CL (1997-Current), RL (1996-2001), TL (1996-Current), Integra (1994-2001), MDX (2001-Current)
- Honda: Accord (1994-2002), Prelude (2001-2002), Odyssey (1995-Current), CR-V (1997-Current), Pilot (2003-Current), Element (2003-Current)
- Isuzu: Oasis (1996-1999)
Tools Required:
- Trim panel tool.
- Phillips screwdriver (varies by model).
- Wrench (varies by model).
Step-by-Step Instructions:
General Instructions for All Vehicles:
- Remove the tape securing the wiring harness connector from the wiring loom.
- Attach the T-Connector adapter to the vehicle’s wiring connector.
- Ensure the T-Connector adapter is fully inserted with locking tabs in place.
- Secure the black box with a screw or cable tie (provided).
- Tuck any excess wiring behind the access panel before securing it into place.
- Re-install any plastic trim panels, screws, or brackets that were removed for installation.
- Test the installation with a test light or trailer.
Vehicle-Specific Instructions:
Acura CL, RL, TL, Integra, Honda Accord, Prelude:
- Unscrew the knob securing the access panel on the driver’s side of the trunk.
- Remove the access panel to expose the vehicle’s wiring harness and connector.
Isuzu Oasis, Honda Odyssey (1995-1998):
- Remove the rear access panel inside the van behind the driver’s side tail light to expose the vehicle’s wiring harness and connector.
Honda Odyssey (1999-Current):
- Open the rear tailgate and remove the driver’s side cargo bracket screw.
- Carefully pull back the trim panel to expose the vehicle’s wiring harness and connector.
Honda CR-V (1997-2001):
- Remove the rear driver’s side speaker and cover.
- The speaker will be held in place with three screws.
- Locate the vehicle connector secured to the speaker wires.
Honda CR-V (2002-Current):
- Open the rear tailgate and remove the cargo door on the floor.
- Remove the storage container and rear threshold.
- Unscrew the driver’s side cargo bracket and trim panel screws to access the harness.
Acura MDX (2001-Current):
- Open the rear tailgate and remove the cargo door on the floor.
- Remove two clips inside the storage area on the threshold.
- Carefully pry off the threshold to access the wiring harness connector.
Honda Pilot (2003-Current):
- Open the rear tailgate and carefully pry the threshold to remove it.
- Locate the connector under the threshold plate on the driver’s side.
Honda Element (2003-Current):
-
Open the rear tailgate and remove the cargo door on the floor.
-
Remove the screws holding the spring-loaded hinge cover.
-
Remove three plastic clips and five screws from the passenger side trim panel to access the wiring harness.
- Specifications:
- This unit is rated for 4 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Black box.
- Cable ties.
- Screw.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118336
Vehicle Compatibility:
- Acura: CL (1997-Current), RL (1996-2001), TL (1996-Current), Integra (1994-2001), MDX (2001-Current)
- Honda: Accord (1994-2002), Prelude (2001-2002), Odyssey (1995-Current), CR-V (1997-Current), Pilot (2003-Current), Element (2003-Current)
- Isuzu: Oasis (1996-1999)
Tools Required:
- Trim panel tool.
- Phillips screwdriver (varies by model).
- Wrench (varies by model).
Step-by-Step Instructions:
General Instructions for All Vehicles:
- Remove the tape securing the wiring harness connector from the wiring loom.
- Attach the T-Connector adapter to the vehicle’s wiring connector.
- Ensure the T-Connector adapter is fully inserted with locking tabs in place.
- Secure the black box with a screw or cable tie (provided).
- Tuck any excess wiring behind the access panel before securing it into place.
- Re-install any plastic trim panels, screws, or brackets that were removed for installation.
- Test the installation with a test light or trailer.
Vehicle-Specific Instructions:
Acura CL, RL, TL, Integra, Honda Accord, Prelude:
- Unscrew the knob securing the access panel on the driver’s side of the trunk.
- Remove the access panel to expose the vehicle’s wiring harness and connector.
Isuzu Oasis, Honda Odyssey (1995-1998):
- Remove the rear access panel inside the van behind the driver’s side tail light to expose the vehicle’s wiring harness and connector.
Honda Odyssey (1999-Current):
- Open the rear tailgate and remove the driver’s side cargo bracket screw.
- Carefully pull back the trim panel to expose the vehicle’s wiring harness and connector.
Honda CR-V (1997-2001):
- Remove the rear driver’s side speaker and cover.
- The speaker will be held in place with three screws.
- Locate the vehicle connector secured to the speaker wires.
Honda CR-V (2002-Current):
- Open the rear tailgate and remove the cargo door on the floor.
- Remove the storage container and rear threshold.
- Unscrew the driver’s side cargo bracket and trim panel screws to access the harness.
Acura MDX (2001-Current):
- Open the rear tailgate and remove the cargo door on the floor.
- Remove two clips inside the storage area on the threshold.
- Carefully pry off the threshold to access the wiring harness connector.
Honda Pilot (2003-Current):
- Open the rear tailgate and carefully pry the threshold to remove it.
- Locate the connector under the threshold plate on the driver’s side.
Honda Element (2003-Current):
-
Open the rear tailgate and remove the cargo door on the floor.
-
Remove the screws holding the spring-loaded hinge cover.
-
Remove three plastic clips and five screws from the passenger side trim panel to access the wiring harness.
- Specifications:
- This unit is rated for 4 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Black box.
- Cable ties.
- Screw.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
Related Products
