Product Details
- Brand: Draw-Tite
- Model: 75678 118585 23 63816 *
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help

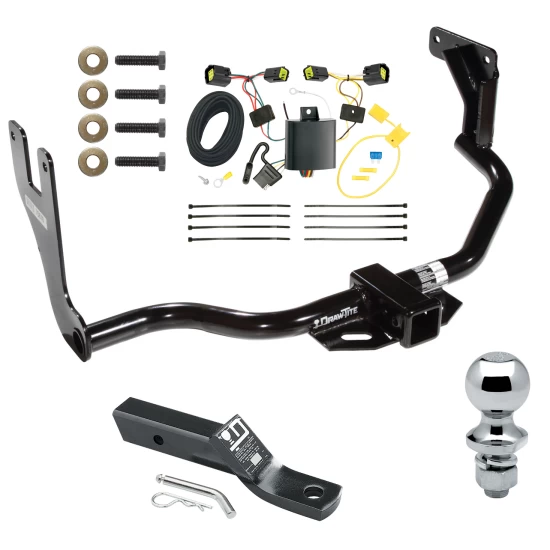

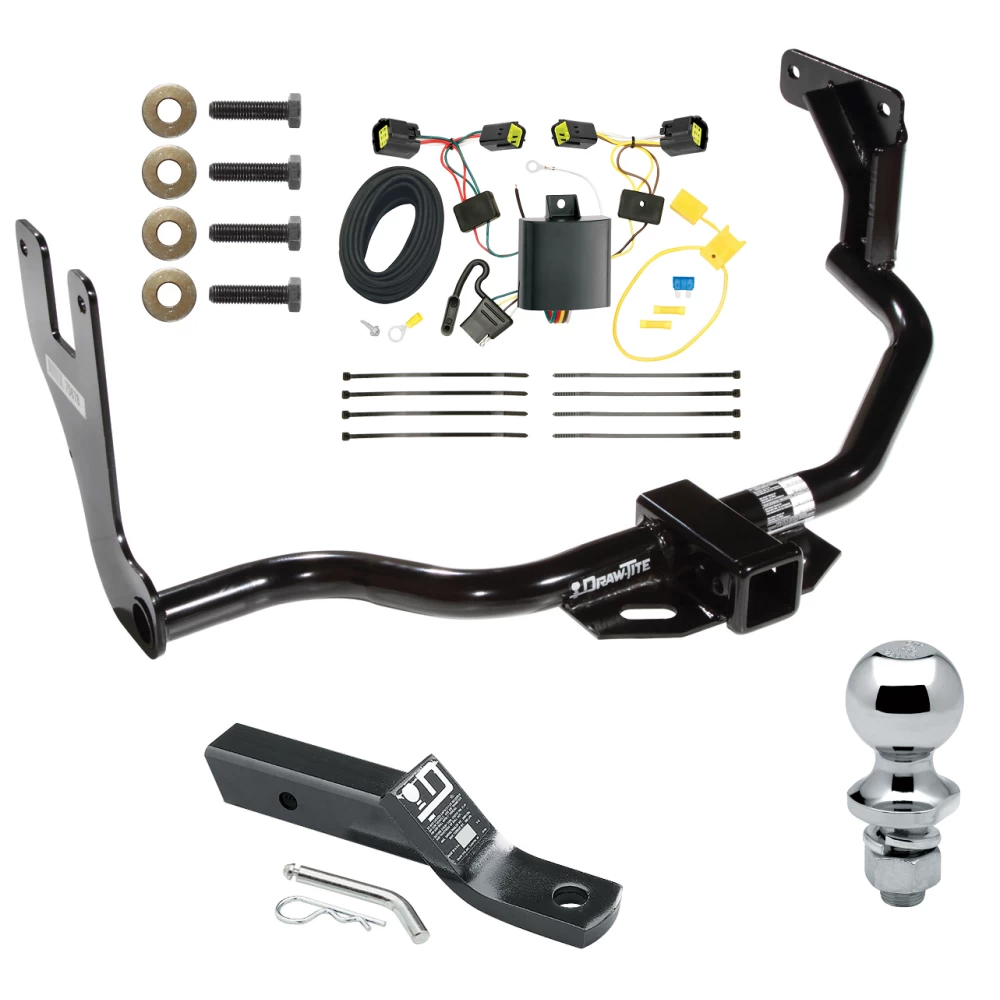

Trailer Tow Hitch For 10-13 Ford Transit Connect Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Ford Transit Connect
Part Numbers:
- 75678
- 87570
- 44634
- 78190 (U-Haul)
Tools Required:
- Wrenches: 18mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Spare Tire:
- Refer to the vehicle owner’s manual for instructions on lowering the spare tire.
-
Remove Wire Loom Retainer:
- Pull the wire loom retainer away from the inside of the right frame rail.
- Note: The retainer will not be reinserted after installation.
-
Position the Hitch:
- Lift the hitch into position:
- Place the right mounting bracket between the wire loom (previously pulled away) and the frame.
- Ensure the bracket is positioned above the fuel fill lines.
- Align the left mounting bracket, making sure to route the wire cable through the large notch in the side bracket between mounting holes.
- Lift the hitch into position:
-
Install Fasteners:
- Loosely install the M12 bolts and 1/2” conical toothed washers as shown in the instructions.
-
Align the Hitch:
- Pull the hitch rearward and upward to ensure the hitch receiver is level or slightly above.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 x 1.75 CL10.9 fasteners to 92 lb-ft (125 N·m).
-
Raise the Spare Tire:
- Return the spare tire to its original position.
- Note: The spare tire may rub against the right mounting bracket of the hitch when lifting. Ensure the tire is secure after installation.
Hardware List:
- (4) M12 x 1.75 x 45mm CL10.9 Hex Bolts
- (4) 1/2” Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75678
- 87570
- 44634
- 78190 (U-Haul)
Tools Required:
- Wrenches: 18mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Spare Tire:
- Refer to the vehicle owner’s manual for instructions on lowering the spare tire.
-
Remove Wire Loom Retainer:
- Pull the wire loom retainer away from the inside of the right frame rail.
- Note: The retainer will not be reinserted after installation.
-
Position the Hitch:
- Lift the hitch into position:
- Place the right mounting bracket between the wire loom (previously pulled away) and the frame.
- Ensure the bracket is positioned above the fuel fill lines.
- Align the left mounting bracket, making sure to route the wire cable through the large notch in the side bracket between mounting holes.
- Lift the hitch into position:
-
Install Fasteners:
- Loosely install the M12 bolts and 1/2” conical toothed washers as shown in the instructions.
-
Align the Hitch:
- Pull the hitch rearward and upward to ensure the hitch receiver is level or slightly above.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 x 1.75 CL10.9 fasteners to 92 lb-ft (125 N·m).
-
Raise the Spare Tire:
- Return the spare tire to its original position.
- Note: The spare tire may rub against the right mounting bracket of the hitch when lifting. Ensure the tire is secure after installation.
Hardware List:
- (4) M12 x 1.75 x 45mm CL10.9 Hex Bolts
- (4) 1/2” Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Ford Transit Connect
Part Numbers:
- 118585
Tools Required:
- 6mm Hex Wrench
- Phillips Head Screwdriver
- Test Probe
- Wire Cutters
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear door.
- Using a 6mm hex wrench, remove the two bolts securing the taillight housing.
- Carefully pry the taillight housing away from the vehicle, avoiding damage to the alignment tabs.
- Repeat for the passenger side.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
- Separate the connectors, ensuring not to damage the locking tabs. Clean the connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Connect the T-Connector harness containing the yellow wire between the driver’s side connectors.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 for the passenger side using the T-Connector with the green wire.
-
Route the Wiring Across the Vehicle:
- On the driver’s side, locate the black plug above the door hinge and remove it to expose a hole.
- Route the wires containing the green and red wires through the hole, down behind the bumper, across to the passenger side, and back up through the corresponding hole.
Warning:
- Avoid routing near hot pipes, heat shields, the fuel tank, or areas where the wire may be pinched or broken.
-
Connect the Green and Red Wires:
- On the passenger side, plug the green and red wires into the corresponding connectors on the T-Connector harness.
-
Store the 4-Flat Connector:
- Route the 4-flat connector into the driver’s side storage compartment.
- Store it there when not in use.
-
Ground the White Wire:
- Locate an existing ground stud near the driver’s side.
- Loosen the bolt, place the eyelet on the stud, and retighten the bolt.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the black 12-gauge wire to the other end of the fuse holder using the yellow butt connector.
-
Route the Power Wire:
- Route the black wire through the engine compartment to the battery, avoiding areas where the wire may be pinched or damaged.
-
Complete Power Connections:
- Connect the black power wire from the T-Connector’s black box to the routed black wire using the yellow butt connector.
- Reconnect the vehicle’s negative (-) battery cable and insert the 15-amp fuse into the fuse holder.
-
Mount the Black Box:
- Clean a flat area behind the driver’s side taillight assembly with a mixture of rubbing alcohol and water.
- Mount the black box using the provided double-sided tape.
-
Secure the Wiring:
- Use the silver tape provided to secure the green and red wires along cleaned areas of the vehicle.
- Notch and reinstall the black plugs removed earlier to accommodate the wires.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillights removed in step 1.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Always follow all safety precautions and use safety glasses during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional guidance.
Installation Instructions for T-Connector Adapter for Ford Transit Connect
Part Numbers:
- 118585
Tools Required:
- 6mm Hex Wrench
- Phillips Head Screwdriver
- Test Probe
- Wire Cutters
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear door.
- Using a 6mm hex wrench, remove the two bolts securing the taillight housing.
- Carefully pry the taillight housing away from the vehicle, avoiding damage to the alignment tabs.
- Repeat for the passenger side.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
- Separate the connectors, ensuring not to damage the locking tabs. Clean the connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Connect the T-Connector harness containing the yellow wire between the driver’s side connectors.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 for the passenger side using the T-Connector with the green wire.
-
Route the Wiring Across the Vehicle:
- On the driver’s side, locate the black plug above the door hinge and remove it to expose a hole.
- Route the wires containing the green and red wires through the hole, down behind the bumper, across to the passenger side, and back up through the corresponding hole.
Warning:
- Avoid routing near hot pipes, heat shields, the fuel tank, or areas where the wire may be pinched or broken.
-
Connect the Green and Red Wires:
- On the passenger side, plug the green and red wires into the corresponding connectors on the T-Connector harness.
-
Store the 4-Flat Connector:
- Route the 4-flat connector into the driver’s side storage compartment.
- Store it there when not in use.
-
Ground the White Wire:
- Locate an existing ground stud near the driver’s side.
- Loosen the bolt, place the eyelet on the stud, and retighten the bolt.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the black 12-gauge wire to the other end of the fuse holder using the yellow butt connector.
-
Route the Power Wire:
- Route the black wire through the engine compartment to the battery, avoiding areas where the wire may be pinched or damaged.
-
Complete Power Connections:
- Connect the black power wire from the T-Connector’s black box to the routed black wire using the yellow butt connector.
- Reconnect the vehicle’s negative (-) battery cable and insert the 15-amp fuse into the fuse holder.
-
Mount the Black Box:
- Clean a flat area behind the driver’s side taillight assembly with a mixture of rubbing alcohol and water.
- Mount the black box using the provided double-sided tape.
-
Secure the Wiring:
- Use the silver tape provided to secure the green and red wires along cleaned areas of the vehicle.
- Notch and reinstall the black plugs removed earlier to accommodate the wires.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillights removed in step 1.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Always follow all safety precautions and use safety glasses during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional guidance.
