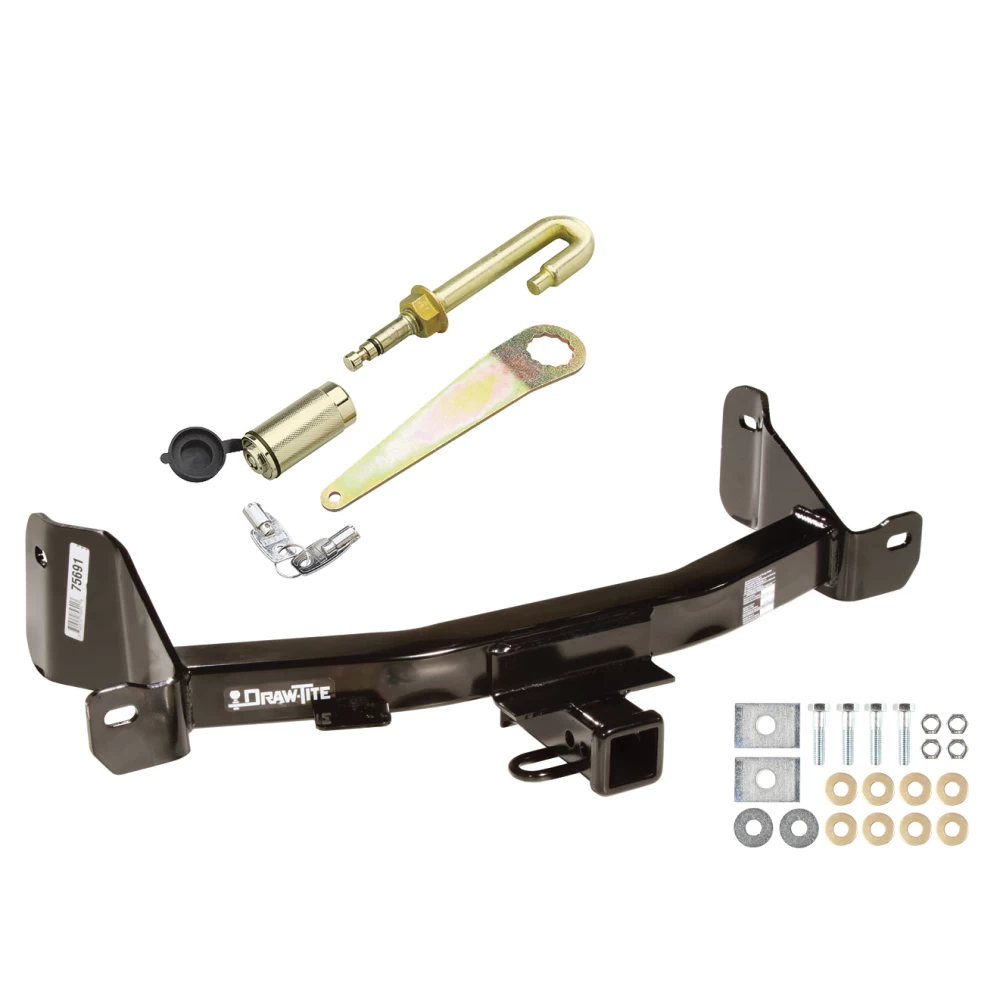

Trailer Tow Hitch For 09‑14 Ford F‑150 All Styles Class 3 2" Towing Receiver New w/ J‑Pin Anti‑Rattle Lock
Model: 75691 63201Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 - 2014 Ford, F-150, All Styles, w/o Factory Hitch
2010 - 2014 Ford, F-150 Raptor, All Styles, w/o Factory Hitch
Trailer Hitch Specs:
| Part Number | 75691 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 600/1200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 14 2009 2010 2011 2012 2013 2014
$202 62 $323.86 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$323.86 $202 62
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $50.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75691 63201
- Includes: Class 4 Trailer Tow Hitch, J-Pin Anti-Rattle Device
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 - 2014 Ford, F-150, All Styles, w/o Factory Hitch
2010 - 2014 Ford, F-150 Raptor, All Styles, w/o Factory Hitch
Trailer Hitch Specs:
| Part Number | 75691 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 600/1200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 14 2009 2010 2011 2012 2013 2014
Get Expert Help
Trailer Tow Hitch For 09-14 Ford F-150 All Styles Class 3 2" Towing Receiver New w/ J-Pin Anti-Rattle Lock Install Notes
Installation Instructions for Ford F-150
Part Numbers:
- 75691
- 87583
- 44645
Tools Required:
- Wrenches: Open-end 3/4” and 7/8”
Wiring Access Location:
- PC3
Step-by-Step Instructions:
-
Position the Hitch:
- Raise the hitch into position as shown in Figure 1.
- Use the fasteners to attach the hitch uprights to the bumper bracket.
-
Install Remaining Fasteners:
- Attach the remaining fasteners as shown in the instructions.
- Ensure the round spacer washer (Item 4) fits into the slot on the bumper bracket and is sandwiched between the bumper and hitch brackets.
-
Tighten Fasteners:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
-
Reinstall Spare Tire:
- If the spare tire was removed for installation, reinstall it. Ensure the spare tire does not contact the bolts.
Hardware List:
- (4) 1/2”-13 x 2.0” GR5 Hex Bolts
- (8) 1/2” Conical Washers
- (4) 1/2”-13 Hex Nuts
- (2) Round Spacers
- (2) Spacers 1/4” x 2.50” x 1.75”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 12,000 lbs (5,448 kg), Max Tongue Weight 1,200 lbs (545 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Removal of the spare tire is optional and may make installation easier.
Installation Instructions
Part Numbers:
- 75691
- 87583
- 44645
Tools Required:
- Wrenches: Open-end 3/4” and 7/8”
Wiring Access Location:
- PC3
Step-by-Step Instructions:
-
Position the Hitch:
- Raise the hitch into position as shown in Figure 1.
- Use the fasteners to attach the hitch uprights to the bumper bracket.
-
Install Remaining Fasteners:
- Attach the remaining fasteners as shown in the instructions.
- Ensure the round spacer washer (Item 4) fits into the slot on the bumper bracket and is sandwiched between the bumper and hitch brackets.
-
Tighten Fasteners:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
-
Reinstall Spare Tire:
- If the spare tire was removed for installation, reinstall it. Ensure the spare tire does not contact the bolts.
Hardware List:
- (4) 1/2”-13 x 2.0” GR5 Hex Bolts
- (8) 1/2” Conical Washers
- (4) 1/2”-13 Hex Nuts
- (2) Round Spacers
- (2) Spacers 1/4” x 2.50” x 1.75”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 12,000 lbs (5,448 kg), Max Tongue Weight 1,200 lbs (545 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Removal of the spare tire is optional and may make installation easier.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
