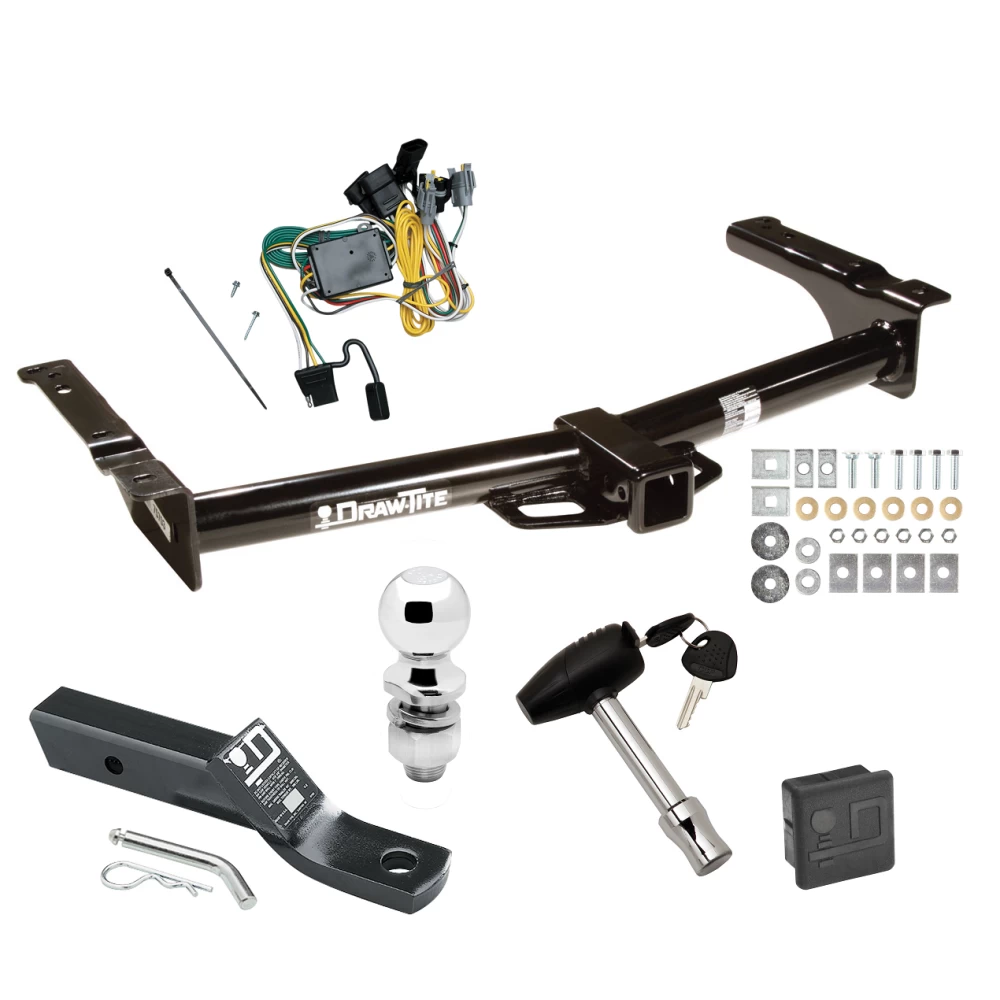

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Trailer Tow Hitch For 92-94 Ford Van E150 E250 E350 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Ford Van (Full Size)
(Includes E-150, E-250, and E-350 Models with Factory Step Bumper)
Part Numbers:
- 75703
- 44652
- 87599
Tools Required:
- Wrenches: 3/4”, 7/8”
- Drill Bits: 1/2” (on some models)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
1992 and Newer Models:
-
Prepare the Frame:
- Locate the existing holes in the vehicle frame. On some models, use the forward hole in the hitch that lines up with existing frame holes.
-
Install Hitch:
- Position the hitch on the vehicle, ensuring it lines up with the frame holes.
- Install carriage bolts, blocks, flat washers, and conical toothed washers as shown in Figure 1.
-
Secure Fasteners:
- Loosely install all bolts and blocks as necessary. Ensure proper alignment before tightening.
-
Tighten Bolts:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
-
Optional Steps for Exhaust Modifications:
- For vehicles with thin tip exhausts, modifications to the exhaust may be necessary.
Pre-1992 Models:
-
Install Adapter Kit (Part No. 2626, Sold Separately):
- For E-350 and 124” wheelbase models, the adapter kit is required.
-
Modify Carbon Canister:
- If present, relocate or modify the carbon canister to ensure clearance with the hitch bolts.
-
Install Hitch:
- Position the hitch on the frame, drill additional holes if required (refer to Figure 3 and Figure 4).
-
Tighten Fasteners:
- Torque all fasteners to the specified torque (75 lb-ft).
Hardware List:
- (6) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (6) Blocks 1/4” x 1” x 2” (1097-002)
- (6) Conical Toothed Washers
- (6) 1/2”-13 Hex Nuts
- (4) Flat Washers (depending on configuration)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation of the hitch may require relocation of the tailpipe or modifications to the carbon canister.
- Obtain approval before any drilling or cutting on the vehicle frame.
Installation Instructions
Part Numbers:
- 75703
- 44652
- 87599
Tools Required:
- Wrenches: 3/4”, 7/8”
- Drill Bits: 1/2” (on some models)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
1992 and Newer Models:
-
Prepare the Frame:
- Locate the existing holes in the vehicle frame. On some models, use the forward hole in the hitch that lines up with existing frame holes.
-
Install Hitch:
- Position the hitch on the vehicle, ensuring it lines up with the frame holes.
- Install carriage bolts, blocks, flat washers, and conical toothed washers as shown in Figure 1.
-
Secure Fasteners:
- Loosely install all bolts and blocks as necessary. Ensure proper alignment before tightening.
-
Tighten Bolts:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
-
Optional Steps for Exhaust Modifications:
- For vehicles with thin tip exhausts, modifications to the exhaust may be necessary.
Pre-1992 Models:
-
Install Adapter Kit (Part No. 2626, Sold Separately):
- For E-350 and 124” wheelbase models, the adapter kit is required.
-
Modify Carbon Canister:
- If present, relocate or modify the carbon canister to ensure clearance with the hitch bolts.
-
Install Hitch:
- Position the hitch on the frame, drill additional holes if required (refer to Figure 3 and Figure 4).
-
Tighten Fasteners:
- Torque all fasteners to the specified torque (75 lb-ft).
Hardware List:
- (6) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (6) Blocks 1/4” x 1” x 2” (1097-002)
- (6) Conical Toothed Washers
- (6) 1/2”-13 Hex Nuts
- (4) Flat Washers (depending on configuration)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation of the hitch may require relocation of the tailpipe or modifications to the carbon canister.
- Obtain approval before any drilling or cutting on the vehicle frame.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
