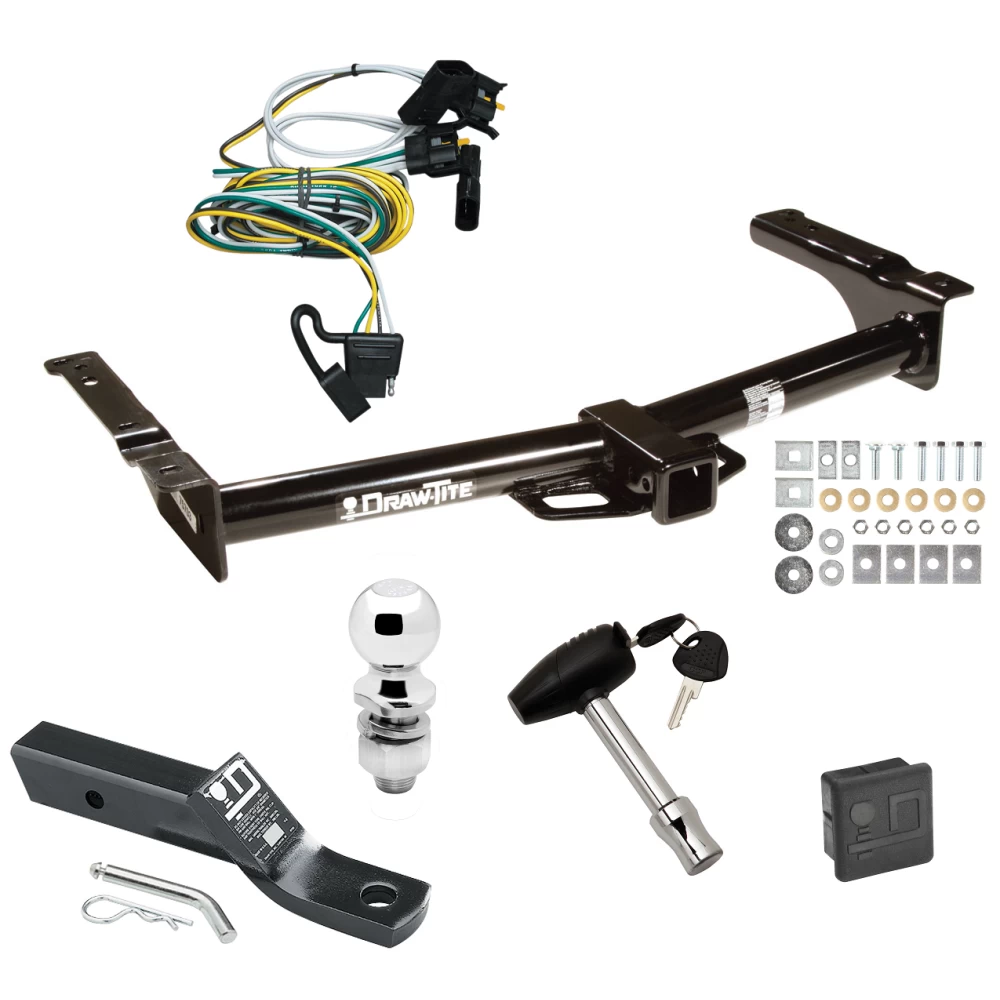

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 95-02 Ford Van E150 E250 E350 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Ford Van (Full Size)
(Includes E-150, E-250, and E-350 Models with Factory Step Bumper)
Part Numbers:
- 75703
- 44652
- 87599
Tools Required:
- Wrenches: 3/4”, 7/8”
- Drill Bits: 1/2” (on some models)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
1992 and Newer Models:
-
Prepare the Frame:
- Locate the existing holes in the vehicle frame. On some models, use the forward hole in the hitch that lines up with existing frame holes.
-
Install Hitch:
- Position the hitch on the vehicle, ensuring it lines up with the frame holes.
- Install carriage bolts, blocks, flat washers, and conical toothed washers as shown in Figure 1.
-
Secure Fasteners:
- Loosely install all bolts and blocks as necessary. Ensure proper alignment before tightening.
-
Tighten Bolts:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
-
Optional Steps for Exhaust Modifications:
- For vehicles with thin tip exhausts, modifications to the exhaust may be necessary.
Pre-1992 Models:
-
Install Adapter Kit (Part No. 2626, Sold Separately):
- For E-350 and 124” wheelbase models, the adapter kit is required.
-
Modify Carbon Canister:
- If present, relocate or modify the carbon canister to ensure clearance with the hitch bolts.
-
Install Hitch:
- Position the hitch on the frame, drill additional holes if required (refer to Figure 3 and Figure 4).
-
Tighten Fasteners:
- Torque all fasteners to the specified torque (75 lb-ft).
Hardware List:
- (6) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (6) Blocks 1/4” x 1” x 2” (1097-002)
- (6) Conical Toothed Washers
- (6) 1/2”-13 Hex Nuts
- (4) Flat Washers (depending on configuration)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation of the hitch may require relocation of the tailpipe or modifications to the carbon canister.
- Obtain approval before any drilling or cutting on the vehicle frame.
Installation Instructions
Part Numbers:
- 75703
- 44652
- 87599
Tools Required:
- Wrenches: 3/4”, 7/8”
- Drill Bits: 1/2” (on some models)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
1992 and Newer Models:
-
Prepare the Frame:
- Locate the existing holes in the vehicle frame. On some models, use the forward hole in the hitch that lines up with existing frame holes.
-
Install Hitch:
- Position the hitch on the vehicle, ensuring it lines up with the frame holes.
- Install carriage bolts, blocks, flat washers, and conical toothed washers as shown in Figure 1.
-
Secure Fasteners:
- Loosely install all bolts and blocks as necessary. Ensure proper alignment before tightening.
-
Tighten Bolts:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
-
Optional Steps for Exhaust Modifications:
- For vehicles with thin tip exhausts, modifications to the exhaust may be necessary.
Pre-1992 Models:
-
Install Adapter Kit (Part No. 2626, Sold Separately):
- For E-350 and 124” wheelbase models, the adapter kit is required.
-
Modify Carbon Canister:
- If present, relocate or modify the carbon canister to ensure clearance with the hitch bolts.
-
Install Hitch:
- Position the hitch on the frame, drill additional holes if required (refer to Figure 3 and Figure 4).
-
Tighten Fasteners:
- Torque all fasteners to the specified torque (75 lb-ft).
Hardware List:
- (6) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (6) Blocks 1/4” x 1” x 2” (1097-002)
- (6) Conical Toothed Washers
- (6) 1/2”-13 Hex Nuts
- (4) Flat Washers (depending on configuration)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation of the hitch may require relocation of the tailpipe or modifications to the carbon canister.
- Obtain approval before any drilling or cutting on the vehicle frame.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
