Product Details
- Brand: Draw-Tite
- Model: 75725 118384

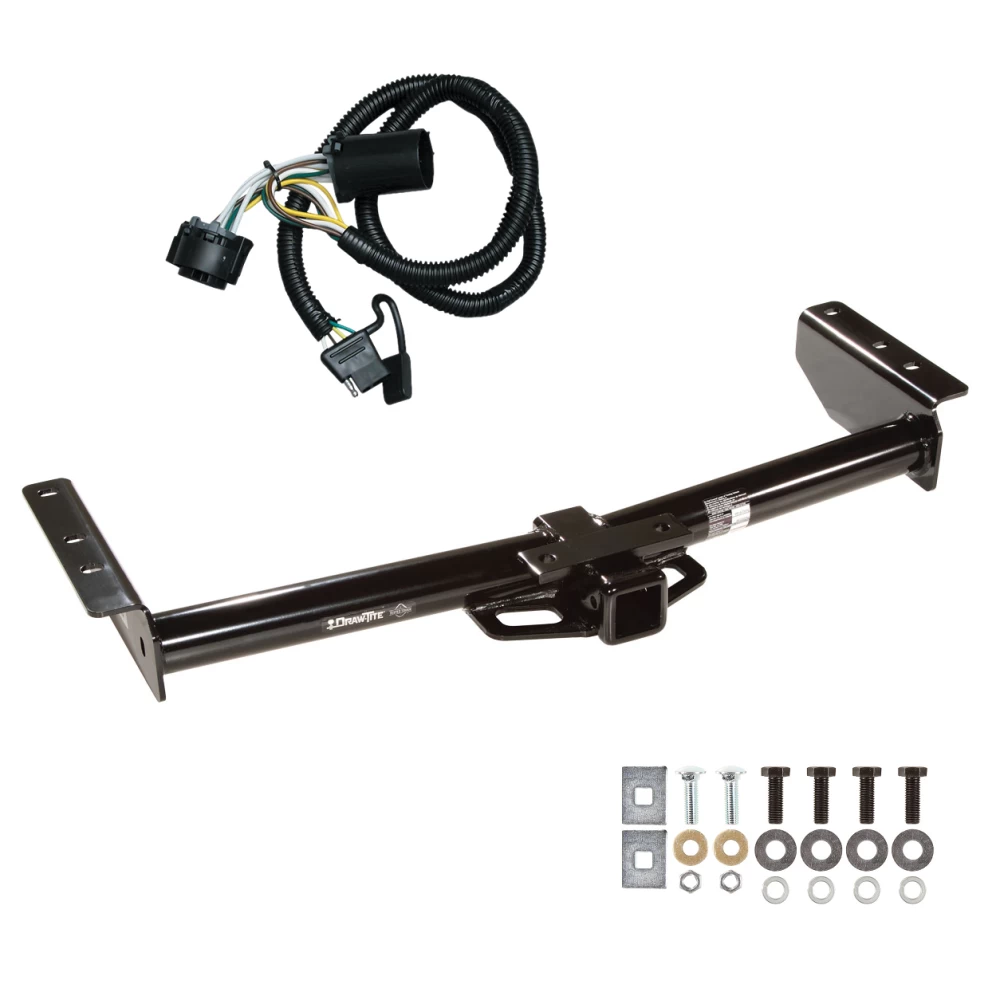

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 00-06 Chevy GMC Tahoe Yukon XL Denali Suburban Escalade Avalanche 1500 2500 w/ Wiring Harness Kit Install Notes
Installation Instructions for Chevrolet Suburban, Chevrolet Tahoe, GMC Yukon XL, GMC Yukon, Cadillac Escalade, and Chevrolet Avalanche
Part Numbers:
- 75725
- 87614
- 44668
Wiring Access Location:
- SUV6
Tools Required:
- Wrenches: 7/8", 22mm
- Drill Bits: None
Step-by-Step Instructions:
- Remove the existing M14 bumper bracket bolts from the bottom surface of the frame on both sides and return them to the vehicle owner.
- Raise the hitch into position and align it with the existing weldnuts inside the bumper.
- Install the provided fasteners as shown. Ensure all bolts are secured evenly on both sides.
Hardware List:
- Qty (2): Carriage Bolts 1/2-13 x 1.75 GR5
- Qty (2): Spacers
- Qty (2): Conical Washers
- Qty (2): Hex Nuts 1/2-13
- Qty (4): Hex Bolts M14 x 2.00 x 40mm CL10.9
- Qty (4): Lock Washers
- Qty (4): Flat Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
Manufacturer Notes:
- All vehicles require the OEM bumper.
- Tighten all 1/2 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N*m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75725
- 87614
- 44668
Wiring Access Location:
- SUV6
Tools Required:
- Wrenches: 7/8", 22mm
- Drill Bits: None
Step-by-Step Instructions:
- Remove the existing M14 bumper bracket bolts from the bottom surface of the frame on both sides and return them to the vehicle owner.
- Raise the hitch into position and align it with the existing weldnuts inside the bumper.
- Install the provided fasteners as shown. Ensure all bolts are secured evenly on both sides.
Hardware List:
- Qty (2): Carriage Bolts 1/2-13 x 1.75 GR5
- Qty (2): Spacers
- Qty (2): Conical Washers
- Qty (2): Hex Nuts 1/2-13
- Qty (4): Hex Bolts M14 x 2.00 x 40mm CL10.9
- Qty (4): Lock Washers
- Qty (4): Flat Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
Manufacturer Notes:
- All vehicles require the OEM bumper.
- Tighten all 1/2 GR5 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N·m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the tow vehicle’s trailer harness connector (A).
- This is located under the vehicle, behind the bumper, on the driver’s side.
-
Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure the mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector adapter end (B) to the vehicle’s connector (A).
- Ensure the T-Connector is fully inserted with locking tabs in place.
-
Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way attached to the hitch on the driver’s side.
-
Separate the factory socket (A) and the 7-Way (C).
-
Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Protective cap.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the Trailer Harness Connector:
- Find the vehicle’s trailer harness connector (A) under the vehicle, behind the bumper, on the driver’s side.
-
Remove Protective Cap:
- Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure all mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector:
- Attach the T-Connector adapter end (B) to the vehicle’s connector (A).
- Make sure the T-Connector is fully inserted with locking tabs secured.
-
Replace the Protective Cap:
- Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way:
- The Factory 7-Way is attached to the hitch on the driver’s side.
-
Separate the Factory Socket and 7-Way:
- Disconnect the factory socket (A) from the 7-Way (C).
-
Install the T-Connector:
- Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
- Test the Installation:
- Use a test light or trailer to verify the functionality of the installed T-Connector.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Protective cap
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
