Product Details
- Brand: Draw-Tite
- Model: 75742 118561

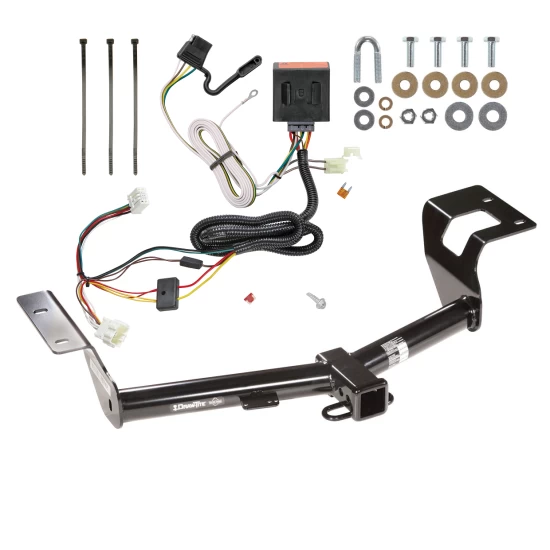

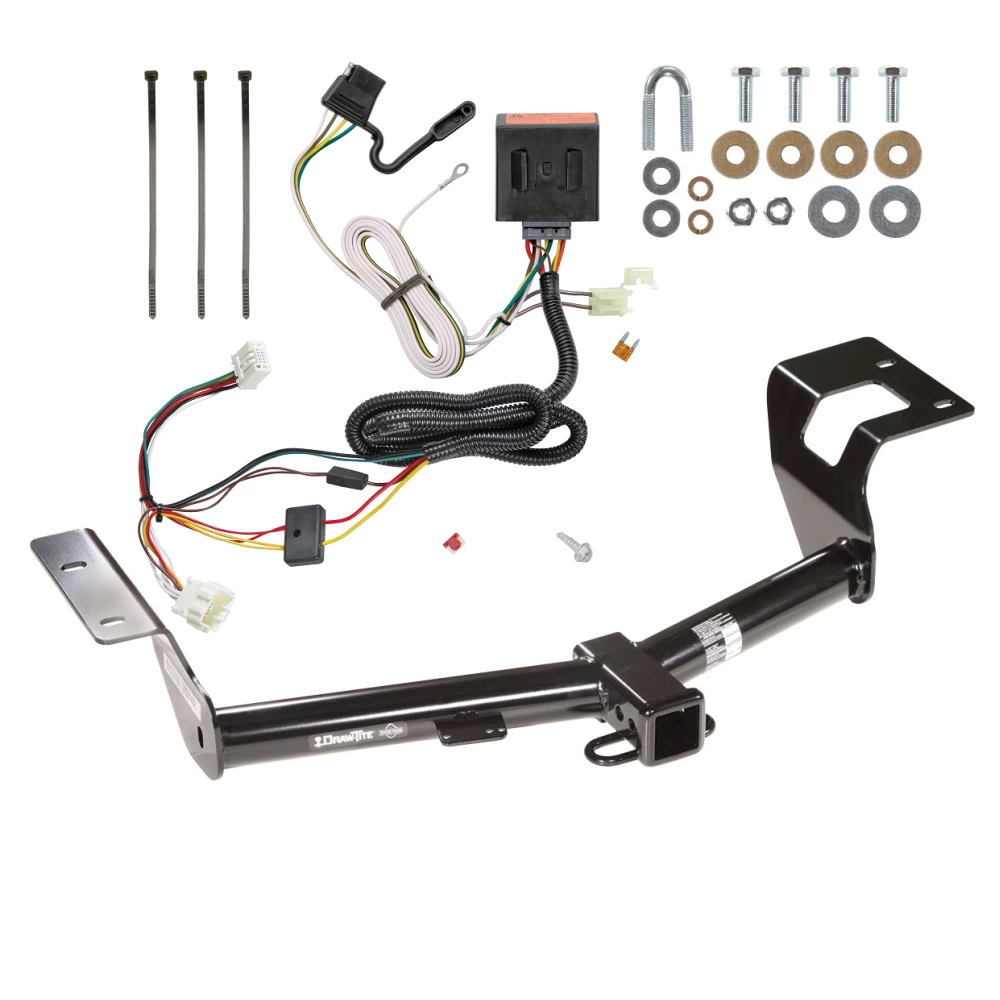

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 12-16 Honda CR-V w/ Wiring Harness Kit Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 75742
- 87621
- 44675
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 17mm, 11/16
- Other Tools: Tape, Utility Knife, Tape Measure, Marking Pencil, Lubricant or Soapy Water, Small Phillips Head Screwdriver
Step-by-Step Instructions:
- Remove appearance panel:
- Remove the appearance panel on the driver’s side by detaching 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the rear tire. This panel needs to be trimmed and reinstalled.
- Clear weld nut threads:
- Run the provided M10 bolt (item 1) into existing weld nuts to clear the threads.
- Reinstall appearance panel:
- If trimmed, reinstall the appearance panel.
- Lower exhaust:
- Remove the rubber isolators from the muffler hangers. Remove the outer isolator first, then the inner isolator. Use lubricant or soapy water to ease removal.
- Prepare frame:
- Tape a flat washer (item 7) to the rearward weld nut location on both frame rails.
- Position hitch:
- Raise the hitch into position under the vehicle.
- Install M10 fasteners:
- Attach the M10 bolts, conical washers, and other hardware as shown in the instructions.
- Install U-bolt:
- Insert the 3/8-16 U-bolt through the vehicle’s tie-down hook and the receiver’s tie-down hook attachment. Secure with flat washers, lock washers, and hex nuts.
- Torque all fasteners:
- Tighten all bolts to the specified torque values.
- Reinstall exhaust:
- Raise the exhaust system back into position and reattach the rubber isolators.
Hardware List:
- Qty (4): Hex Bolt M10X1.25X30 CL8.8
- Qty (4): Conical Washers
- Qty (2): Lock Washers
- Qty (2): Hex Nut 3/8
- Qty (1): 3/8-16 U-Bolt
- Qty (2): Flat Washer 3/8”
- Qty (2): Flat Washer 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 3/8-16 GR5 fasteners to 30 lb-ft (41 N*m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75742
- 87621
- 44675
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 17mm, 11/16
- Other Tools: Tape, Utility Knife, Tape Measure, Marking Pencil, Lubricant or Soapy Water, Small Phillips Head Screwdriver
Step-by-Step Instructions:
- Remove appearance panel:
- Remove the appearance panel on the driver’s side by detaching 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the rear tire. This panel needs to be trimmed and reinstalled.
- Clear weld nut threads:
- Run the provided M10 bolt (item 1) into existing weld nuts to clear the threads.
- Reinstall appearance panel:
- If trimmed, reinstall the appearance panel.
- Lower exhaust:
- Remove the rubber isolators from the muffler hangers. Remove the outer isolator first, then the inner isolator. Use lubricant or soapy water to ease removal.
- Prepare frame:
- Tape a flat washer (item 7) to the rearward weld nut location on both frame rails.
- Position hitch:
- Raise the hitch into position under the vehicle.
- Install M10 fasteners:
- Attach the M10 bolts, conical washers, and other hardware as shown in the instructions.
- Install U-bolt:
- Insert the 3/8-16 U-bolt through the vehicle’s tie-down hook and the receiver’s tie-down hook attachment. Secure with flat washers, lock washers, and hex nuts.
- Torque all fasteners:
- Tighten all bolts to the specified torque values.
- Reinstall exhaust:
- Raise the exhaust system back into position and reattach the rubber isolators.
Hardware List:
- Qty (4): Hex Bolt M10X1.25X30 CL8.8
- Qty (4): Conical Washers
- Qty (2): Lock Washers
- Qty (2): Hex Nut 3/8
- Qty (1): 3/8-16 U-Bolt
- Qty (2): Flat Washer 3/8”
- Qty (2): Flat Washer 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 3/8-16 GR5 fasteners to 30 lb-ft (41 N·m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.

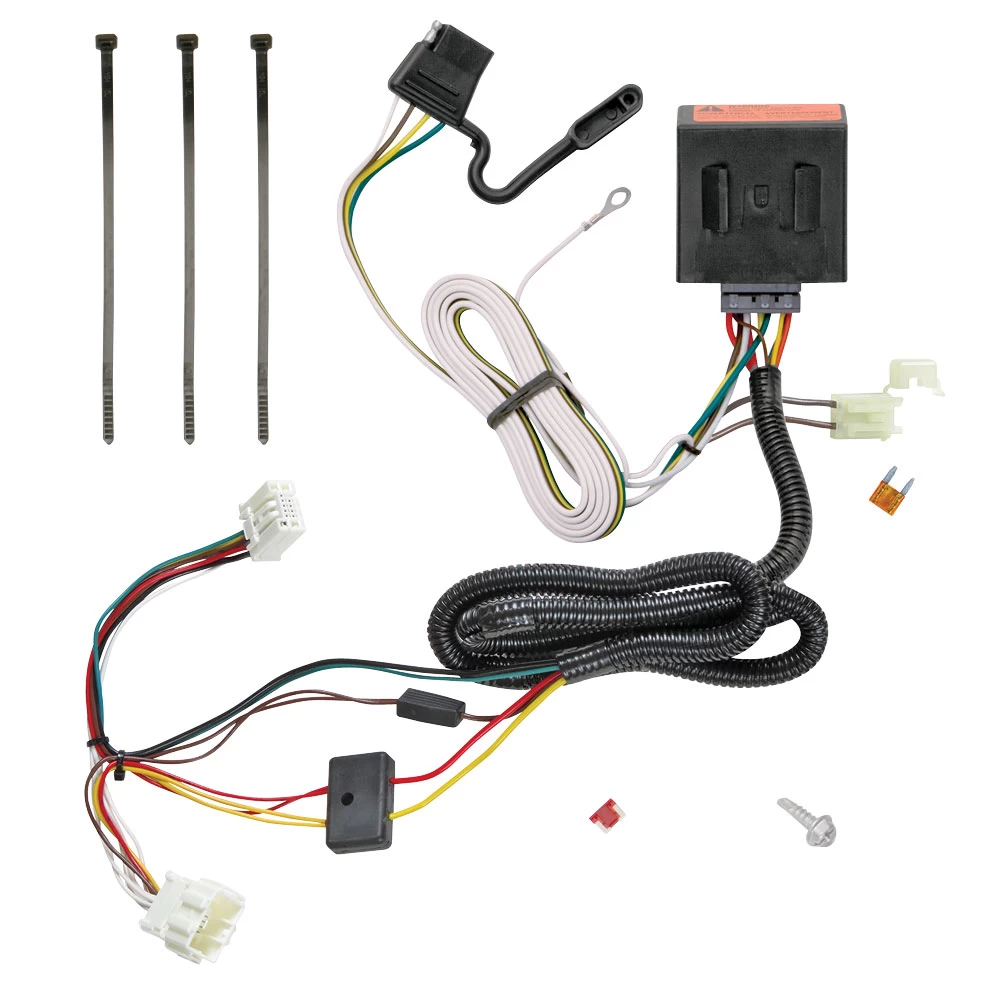

Installation Instructions for T-Connector Adapter for CR-V
Part Numbers:
- 118561
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear door of the vehicle and remove the rear threshold, cargo net, and cargo cover to access the driver’s side rear interior trim panel.
Note:
- Folding the rear seat forward may provide easier access.
-
Remove Interior Trim Panels:
- Use a trim panel remover to carefully remove two plastic panels.
- Partially remove the main trim panel by unscrewing one 10mm bolt, two screws behind the seat lever, one clip, and one cargo hook.
-
Locate the Vehicle’s Wiring Connectors:
- Gently pull back the upper trim panel to reveal the vehicle’s 13-pin connectors.
- Verify that the connectors match the T-Connector ends and are clean.
-
Install the T-Connector:
- Locate the T-Connector’s grey 12-pin connector and insert it into the mating connector on the black box module.
- Ensure all connections are fully inserted and secured with locking tabs.
-
Mount the Black Box Module:
- Mount the black box below the rear threshold in the spare tire compartment in an area free from moisture and away from direct water or liquids.
Warning:
- The black box must only be mounted inside the vehicle to prevent damage.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage.
-
Install the Fuse:
- Locate the fuse compartment under the driver-side dashboard.
- Insert the provided 7.5-amp fuse into the appropriate fuse box slot.
-
Route and Mount the 4-Flat Connector:
- Route the 4-flat connector through the driver-side trim panel into the side storage compartment.
- Store the 4-flat connector in this compartment when not in use.
-
Test the Installation:
- Test the T-Connector with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition, reinserting it, and turning it to the proper position.
-
Reassemble the Vehicle:
- Reinstall the threshold, trim panel, cargo net, and cargo cover, ensuring no wires are pinched or cut.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: 5 amps
Safety Notes:
- Do not exceed the manufacturer’s ratings for towing.
- Follow all vehicle warnings and installation instructions.
- Wear safety glasses and take safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
Installation Instructions for T-Connector Adapter for CR-V
Part Numbers:
- 118561
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear door of the vehicle and remove the rear threshold, cargo net, and cargo cover to access the driver’s side rear interior trim panel.
Note:
- Folding the rear seat forward may provide easier access.
-
Remove Interior Trim Panels:
- Use a trim panel remover to carefully remove two plastic panels.
- Partially remove the main trim panel by unscrewing one 10mm bolt, two screws behind the seat lever, one clip, and one cargo hook.
-
Locate the Vehicle’s Wiring Connectors:
- Gently pull back the upper trim panel to reveal the vehicle’s 13-pin connectors.
- Verify that the connectors match the T-Connector ends and are clean.
-
Install the T-Connector:
- Locate the T-Connector’s grey 12-pin connector and insert it into the mating connector on the black box module.
- Ensure all connections are fully inserted and secured with locking tabs.
-
Mount the Black Box Module:
- Mount the black box below the rear threshold in the spare tire compartment in an area free from moisture and away from direct water or liquids.
Warning:
- The black box must only be mounted inside the vehicle to prevent damage.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage.
-
Install the Fuse:
- Locate the fuse compartment under the driver-side dashboard.
- Insert the provided 7.5-amp fuse into the appropriate fuse box slot.
-
Route and Mount the 4-Flat Connector:
- Route the 4-flat connector through the driver-side trim panel into the side storage compartment.
- Store the 4-flat connector in this compartment when not in use.
-
Test the Installation:
- Test the T-Connector with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition, reinserting it, and turning it to the proper position.
-
Reassemble the Vehicle:
- Reinstall the threshold, trim panel, cargo net, and cargo cover, ensuring no wires are pinched or cut.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: 5 amps
Safety Notes:
- Do not exceed the manufacturer’s ratings for towing.
- Follow all vehicle warnings and installation instructions.
- Wear safety glasses and take safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
Important Notices:
-
Installation Summary: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
-
Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
-
Warranty Information: For complete warranty instructions, please download the full installation PDF.
