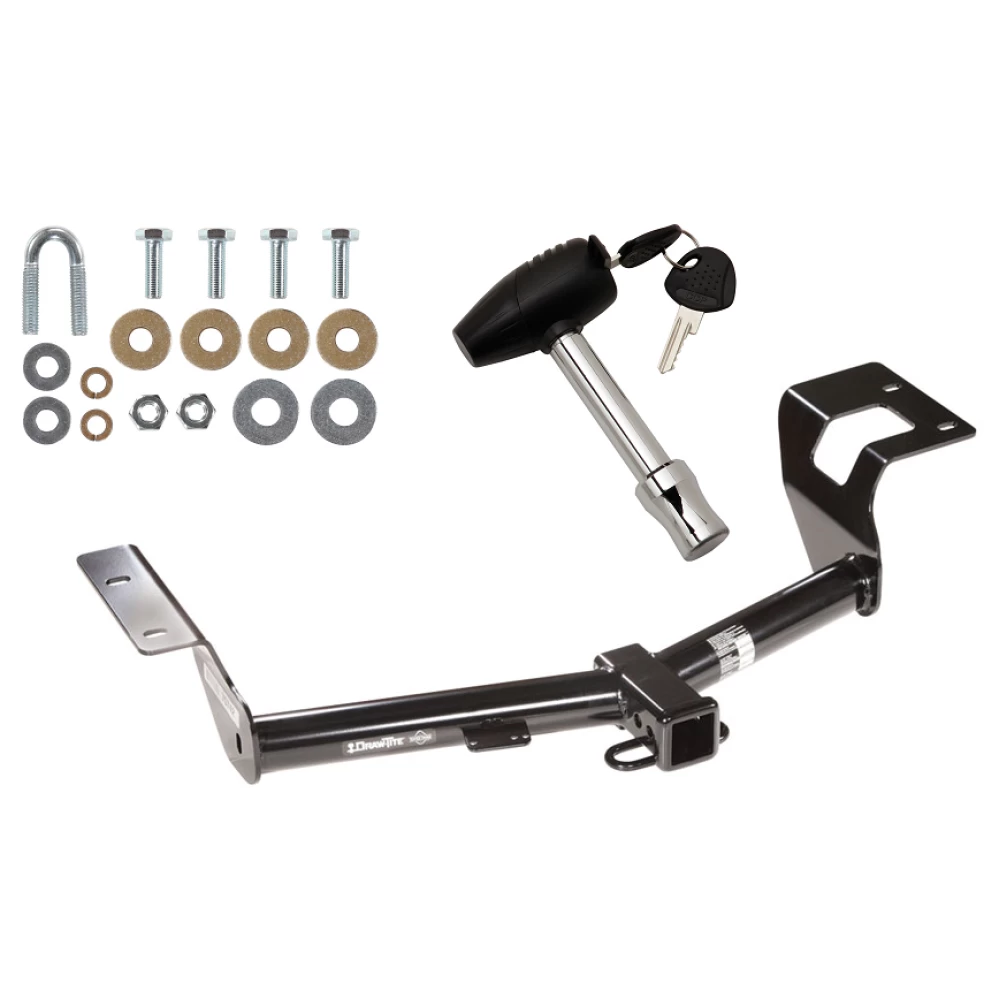

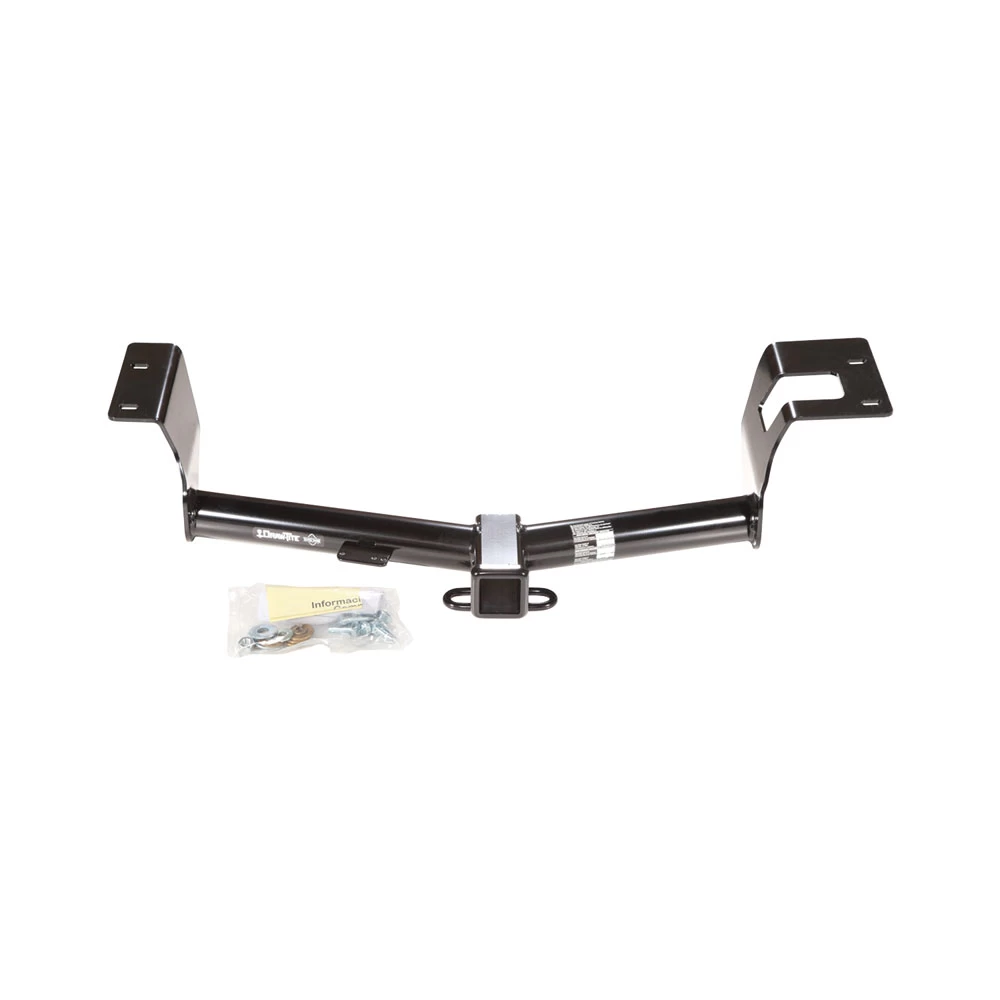

Trailer Tow Hitch For 12‑16 Honda CR‑V w/ Security Lock Pin Key
Model: 75742 580407 *Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2016 Honda, CR-V, All Styles
Trailer Hitch Specs:
| Part Number | 75742 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 2012 2013 2014 2015 2016
$178 20 $280.91 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$280.91 $178 20
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $44.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75742 580407 *
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Description
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2016 Honda, CR-V, All Styles
Trailer Hitch Specs:
| Part Number | 75742 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 2012 2013 2014 2015 2016
Get Expert Help
Trailer Tow Hitch For 12-16 Honda CR-V w/ Security Lock Pin Key Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 75742
- 87621
- 44675
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 17mm, 11/16
- Other Tools: Tape, Utility Knife, Tape Measure, Marking Pencil, Lubricant or Soapy Water, Small Phillips Head Screwdriver
Step-by-Step Instructions:
- Remove appearance panel:
- Remove the appearance panel on the driver’s side by detaching 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the rear tire. This panel needs to be trimmed and reinstalled.
- Clear weld nut threads:
- Run the provided M10 bolt (item 1) into existing weld nuts to clear the threads.
- Reinstall appearance panel:
- If trimmed, reinstall the appearance panel.
- Lower exhaust:
- Remove the rubber isolators from the muffler hangers. Remove the outer isolator first, then the inner isolator. Use lubricant or soapy water to ease removal.
- Prepare frame:
- Tape a flat washer (item 7) to the rearward weld nut location on both frame rails.
- Position hitch:
- Raise the hitch into position under the vehicle.
- Install M10 fasteners:
- Attach the M10 bolts, conical washers, and other hardware as shown in the instructions.
- Install U-bolt:
- Insert the 3/8-16 U-bolt through the vehicle’s tie-down hook and the receiver’s tie-down hook attachment. Secure with flat washers, lock washers, and hex nuts.
- Torque all fasteners:
- Tighten all bolts to the specified torque values.
- Reinstall exhaust:
- Raise the exhaust system back into position and reattach the rubber isolators.

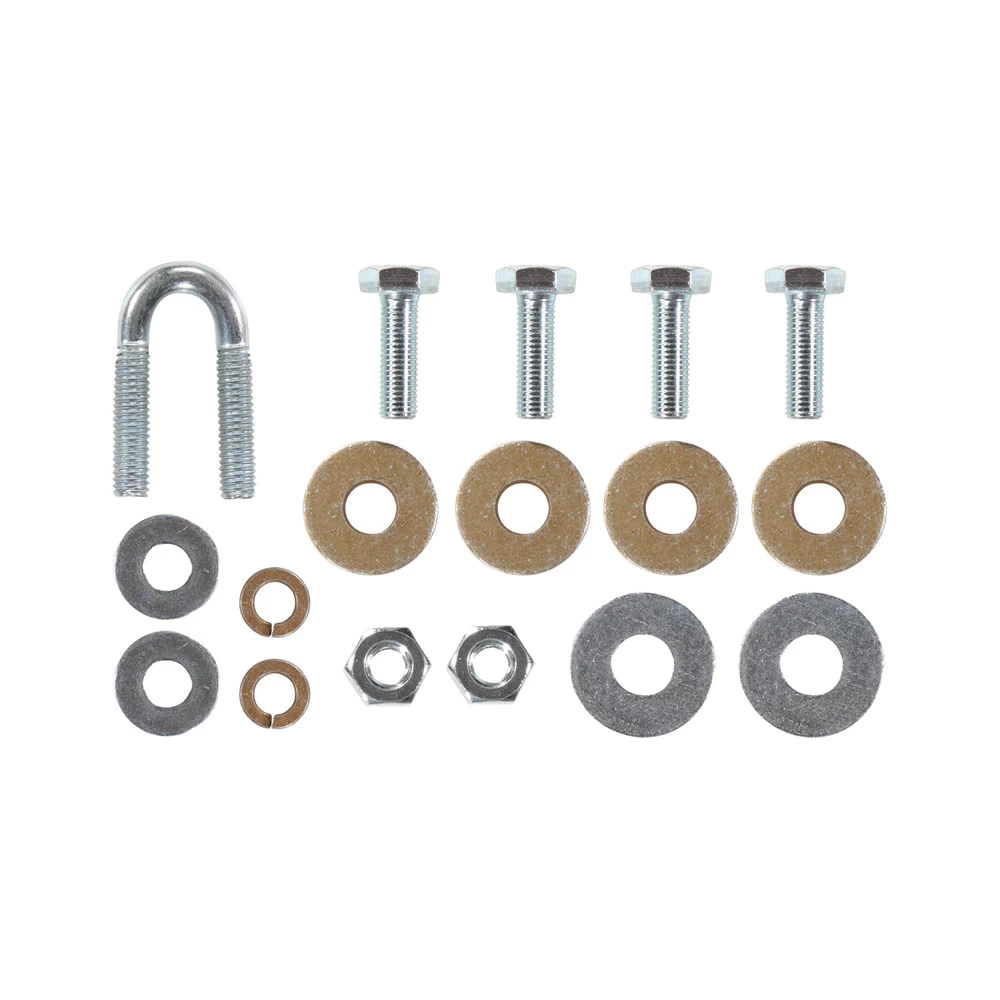

Hardware List:
- Qty (4): Hex Bolt M10X1.25X30 CL8.8
- Qty (4): Conical Washers
- Qty (2): Lock Washers
- Qty (2): Hex Nut 3/8
- Qty (1): 3/8-16 U-Bolt
- Qty (2): Flat Washer 3/8”
- Qty (2): Flat Washer 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 3/8-16 GR5 fasteners to 30 lb-ft (41 N*m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75742
- 87621
- 44675
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 17mm, 11/16
- Other Tools: Tape, Utility Knife, Tape Measure, Marking Pencil, Lubricant or Soapy Water, Small Phillips Head Screwdriver
Step-by-Step Instructions:
- Remove appearance panel:
- Remove the appearance panel on the driver’s side by detaching 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the rear tire. This panel needs to be trimmed and reinstalled.
- Clear weld nut threads:
- Run the provided M10 bolt (item 1) into existing weld nuts to clear the threads.
- Reinstall appearance panel:
- If trimmed, reinstall the appearance panel.
- Lower exhaust:
- Remove the rubber isolators from the muffler hangers. Remove the outer isolator first, then the inner isolator. Use lubricant or soapy water to ease removal.
- Prepare frame:
- Tape a flat washer (item 7) to the rearward weld nut location on both frame rails.
- Position hitch:
- Raise the hitch into position under the vehicle.
- Install M10 fasteners:
- Attach the M10 bolts, conical washers, and other hardware as shown in the instructions.
- Install U-bolt:
- Insert the 3/8-16 U-bolt through the vehicle’s tie-down hook and the receiver’s tie-down hook attachment. Secure with flat washers, lock washers, and hex nuts.
- Torque all fasteners:
- Tighten all bolts to the specified torque values.
- Reinstall exhaust:
- Raise the exhaust system back into position and reattach the rubber isolators.
Hardware List:
- Qty (4): Hex Bolt M10X1.25X30 CL8.8
- Qty (4): Conical Washers
- Qty (2): Lock Washers
- Qty (2): Hex Nut 3/8
- Qty (1): 3/8-16 U-Bolt
- Qty (2): Flat Washer 3/8”
- Qty (2): Flat Washer 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 3/8-16 GR5 fasteners to 30 lb-ft (41 N·m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
