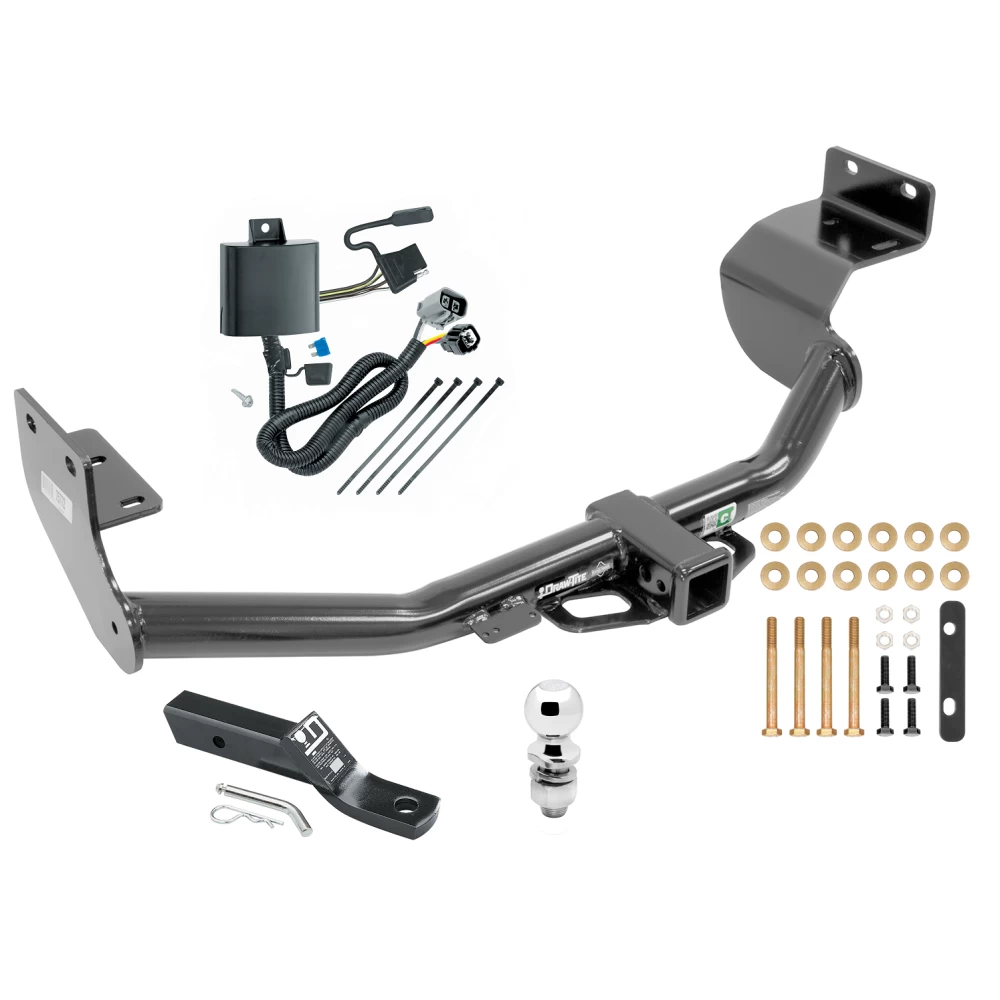

Installation Instructions for Kia Sorento and Hyundai Santa Fe Sport (5 Passenger)

Part Numbers:

• 75772
• 44689
• 87634

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• 2 Phillips Screwdriver

• Wrenches: 17mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Lower and remove the spare tire. The tire release is located under the storage compartment in the back of the vehicle.

2. Remove Rear Plastic Covers:

   • Remove the driver-side rear plastic cover by unscrewing the fasteners with a #2 Phillips screwdriver and removing (4) plastic push pins.
   • Repeat for the passenger-side rear plastic cover, removing the fasteners and (3) plastic push pins. Save all removed items.

3. Lower Exhaust:

   • Detach the rear and side exhaust hangers to lower the exhaust system.

4. Raise Hitch into Position:

   • Lift the hitch into position and insert M12 bolts through the bracket and frame.
   • Note: If the bumper locator pin interferes with the hardware, trim it with an angle grinder at the shoulder for proper clearance.

5. Insert M10 Bolts:

   • Insert M10 bolts through the bracket into the frame. Hand-tighten the bolts.

6. Torque Bolts:

   • Tighten the M10 bolts first, then the M12 bolts, to the specified torque values below.

7. Reinstall Exhaust Hangers:

   • Reattach the exhaust hangers to their mounts.

8. Trim and Reinstall Plastic Covers:

   • Trim the rear plastic covers as shown in Figure 2. Raise them back into position and reinstall the fasteners and push pins removed earlier.
   • Note: Obtain the vehicle owner's approval before cutting the plastic covers.

9. Reinstall Spare Tire:

   • Ensure the spare tire is seated properly when reinstalling.

Hardware List:

• Qty (4): Bolt M12 x 1.75 x 120 CL8.8
• Qty (4): Bolt M10 x 1.25 x 30 CL10.9
• Qty (8): Conical Washer – 1/2"
• Qty (4): Conical Washer – 7/16"
• Qty (4): Nut M12 x 1.75 CL10
• Qty (1): Spacer Plate

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 5,250 lbs (2,381 kg)
  • Max Tongue Weight: 525 lbs (238 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
  • Max Tongue Weight: 525 lbs (238 kg)

Manufacturer Notes:

• Tighten all M12 CL8.8 fasteners to 72 lb-ft (98 N*m).
• Tighten all M10 CL10.9 fasteners to 40 lb-ft (54 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75772
• 44689
• 87634

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• 2 Phillips Screwdriver

• Wrenches: 17mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Lower and remove the spare tire. The tire release is located under the storage compartment in the back of the vehicle.

2. Remove Rear Plastic Covers:

   • Remove the driver-side rear plastic cover by unscrewing the fasteners with a #2 Phillips screwdriver and removing (4) plastic push pins.
   • Repeat for the passenger-side rear plastic cover, removing the fasteners and (3) plastic push pins. Save all removed items.

3. Lower Exhaust:

   • Detach the rear and side exhaust hangers to lower the exhaust system.

4. Raise Hitch into Position:

   • Lift the hitch into position and insert M12 bolts through the bracket and frame.
   • Note: If the bumper locator pin interferes with the hardware, trim it with an angle grinder at the shoulder for proper clearance.

5. Insert M10 Bolts:

   • Insert M10 bolts through the bracket into the frame. Hand-tighten the bolts.

6. Torque Bolts:

   • Tighten the M10 bolts first, then the M12 bolts, to the specified torque values below.

7. Reinstall Exhaust Hangers:

   • Reattach the exhaust hangers to their mounts.

8. Trim and Reinstall Plastic Covers:

   • Trim the rear plastic covers as shown in Figure 2. Raise them back into position and reinstall the fasteners and push pins removed earlier.
   • Note: Obtain the vehicle owner's approval before cutting the plastic covers.

9. Reinstall Spare Tire:

   • Ensure the spare tire is seated properly when reinstalling.

Hardware List:

• Qty (4): Bolt M12 x 1.75 x 120 CL8.8
• Qty (4): Bolt M10 x 1.25 x 30 CL10.9
• Qty (8): Conical Washer – 1/2"
• Qty (4): Conical Washer – 7/16"
• Qty (4): Nut M12 x 1.75 CL10
• Qty (1): Spacer Plate

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 5,250 lbs (2,381 kg)
  • Max Tongue Weight: 525 lbs (238 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
  • Max Tongue Weight: 525 lbs (238 kg)

Manufacturer Notes:

• Tighten all M12 CL8.8 fasteners to 72 lb-ft (98 N·m).
• Tighten all M10 CL10.9 fasteners to 40 lb-ft (54 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-Connector Adapter for Kia Sorento and Hyundai Veracruz

Part Numbers:

• 118269

Tools Required:

• Trim Panel Remover
• Wire Cutters
• 10mm Socket & Ratchet or Wrench
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Vehicle Wiring:

   • Kia Sorento: Lower the spare tire to access the vehicle wiring.
   • Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.

2. Locate the Tow-Plug Harness:

   • Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
   • Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.

3. Connect the T-Connector:

   • Remove the protective caps from the vehicle’s tow plug harness.
   • Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
   • Ensure the connectors are fully inserted with locking tabs secure.

4. Route the T-Connector Wiring:

   • Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
   • Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.

   Warning:

   • Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

5. Mount the Black Box:

   • Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
   • Secure all loose wires with cable ties to prevent damage or rattling.

6. Test the Installation:

   • Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
   • Test and verify the installation with a test light or trailer.

   Specifications:

   • Max. stop/turn light: 2 per side (4.2 amps)
   • Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual for additional information.

Manufacturer Notes:

• Ensure all connections are clean and secure.
• Follow all installation warnings and guidelines carefully.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118269

Tools Required:

• Trim Panel Remover
• Wire Cutters
• 10mm Socket & Ratchet or Wrench
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Vehicle Wiring:

   • Kia Sorento: Lower the spare tire to access the vehicle wiring.
   • Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.

2. Locate the Tow-Plug Harness:

   • Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
   • Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.

3. Connect the T-Connector:

   • Remove the protective caps from the vehicle’s tow plug harness.
   • Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
   • Ensure the connectors are fully inserted with locking tabs secure.

4. Route the T-Connector Wiring:

   • Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
   • Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.

   Warning:

   • Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

5. Mount the Black Box:

   • Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
   • Secure all loose wires with cable ties to prevent damage or rattling.

6. Test the Installation:

   • Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
   • Test and verify the installation with a test light or trailer.

   Specifications:

   • Max. stop/turn light: 2 per side (4.2 amps)
   • Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual for additional information.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For warranty duration and coverage details, please download the full installation PDF.
