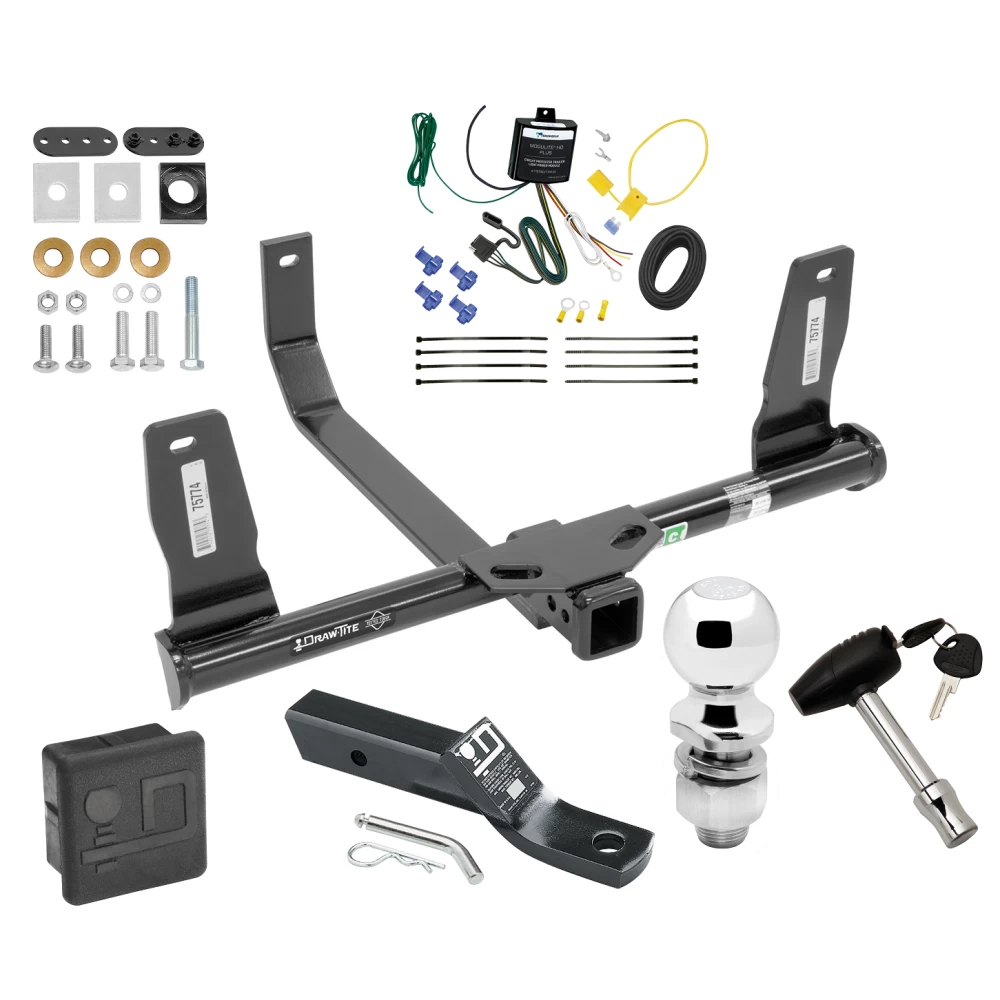

Installation Instructions for Mercedes GLK350 (All Models, Including 4-Matic & RWD)

Part Numbers:

• 75774
• 87636
• 44690
• 78303 U-Haul

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Wrenches: 3/4", 7/8"
• Other Tools: Tape
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Remove or bend up small plastic fascia tabs protruding from the bottom of the bumper fascia before installing the hitch.

2. Install Clamp Brackets:

   • Attach the clamp brackets to the vehicle's crossmember using bolts and lock washers.
   • Torque the bolts to 75 lb-ft (102 N*m) before raising the hitch into place.
   • Ensure the bracket with weld nuts is on the forward side of the crossmember. The offset hole should face the passenger side.

3. Prepare the Hitch:

   • Tape blocks and bolts to the hitch uprights as shown in the instructions. Ensure the blocks are positioned with their long sides vertical.

4. Position the Hitch:

   • Raise the hitch under the vehicle, being careful not to dislodge the taped bolts.
   • Loosely attach conical washers and nuts to hold the hitch in place.

5. Secure the Forward Block:

   • Rotate the hitch and insert a 5/8” thick block vertically between the hitch bar and the clamp bracket.
   • Secure with a 3” long hex bolt and conical washer. Torque the 3” bolt and the two rearward 1/2” nuts to 75 lb-ft (102 N*m).

6. Final Torque:

   • Tighten all fasteners to the specified torque values.

Hardware List:

• Qty (2): Carriage Bolt – 1/2"-13 x 1-1/2" GR5
• Qty (2): Lock Washer – 1/2"
• Qty (3): Conical Toothed Washer – 1/2"
• Qty (1): Hex Bolt – 1/2"-13 x 3" GR5
• Qty (2): Hex Nut – 1/2"-13
• Qty (1): Block – 5/8" x 1-1/2" x 2"
• Qty (2): Hex Bolt – 1/2"-13 x 1-1/2" GR5
• Qty (2): Block – 1/4" x 1-1/2" x 2"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,000 lbs (1,814 kg)
  • Max Tongue Weight: 600 lbs (272 kg)

Manufacturer Notes:

• Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75774
• 87636
• 44690
• 78303 U-Haul

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Wrenches: 3/4", 7/8"
• Other Tools: Tape
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Remove or bend up small plastic fascia tabs protruding from the bottom of the bumper fascia before installing the hitch.

2. Install Clamp Brackets:

   • Attach the clamp brackets to the vehicle's crossmember using bolts and lock washers.
   • Torque the bolts to 75 lb-ft (102 N·m) before raising the hitch into place.
   • Ensure the bracket with weld nuts is on the forward side of the crossmember. The offset hole should face the passenger side.

3. Prepare the Hitch:

   • Tape blocks and bolts to the hitch uprights as shown in the instructions. Ensure the blocks are positioned with their long sides vertical.

4. Position the Hitch:

   • Raise the hitch under the vehicle, being careful not to dislodge the taped bolts.
   • Loosely attach conical washers and nuts to hold the hitch in place.

5. Secure the Forward Block:

   • Rotate the hitch and insert a 5/8” thick block vertically between the hitch bar and the clamp bracket.
   • Secure with a 3” long hex bolt and conical washer. Torque the 3” bolt and the two rearward 1/2” nuts to 75 lb-ft (102 N·m).

6. Final Torque:

   • Tighten all fasteners to the specified torque values.

Hardware List:

• Qty (2): Carriage Bolt – 1/2"-13 x 1-1/2" GR5
• Qty (2): Lock Washer – 1/2"
• Qty (3): Conical Toothed Washer – 1/2"
• Qty (1): Hex Bolt – 1/2"-13 x 3" GR5
• Qty (2): Hex Nut – 1/2"-13
• Qty (1): Block – 5/8" x 1-1/2" x 2"
• Qty (2): Hex Bolt – 1/2"-13 x 1-1/2" GR5
• Qty (2): Block – 1/4" x 1-1/2" x 2"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,000 lbs (1,814 kg)
  • Max Tongue Weight: 600 lbs (272 kg)

Manufacturer Notes:

• Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 119191

Wiring Access Location:

• Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.

Tools Required:

• Drill with a 3/32" drill bit.
• Phillips head #2 screwdriver.
• Wire cutters, wire strippers/crimpers.
• Tester or volt meter.
• Socket and ratchet set.
• Double-sided tape (provided).

Step-by-Step Instructions:

Installation of the Module:

1. Determine the mounting location for the module.

   • Use the provided double-sided tape to secure the module.
   • Ensure the epoxy side of the module faces downward to prevent water buildup.

2. Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.

3. Locate a suitable grounding point near the module:

   • Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
   • Clean the grounding area of dirt and rustproofing.

   Caution: Verify what is behind the surface before drilling to avoid damage or injury.

Routing Power to the Battery:

4. Route the power wire to the vehicle’s positive battery terminal:

   • Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15-amp fuse yet.

   Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.

Finalizing Installation:

5. Secure the wiring harness with the provided cable ties to prevent damage or rattling.

   • Avoid areas where wires may be pinched, cut, or melted.

6. Reconnect the vehicle’s negative (-) battery cable.

7. Insert the 15-amp fuse into the fuse holder and close the cap.

8. Test the installation with a test light or trailer to verify functionality.

   • Test each function independently and in combination.

   Specifications:

   • Max. stop/turn light: 2 per side (4.2 amps).
   • Max. tail lights: (7.5 amps).

Hardware List:

• T-Connector adapter.
• 15-amp fuse.
• Fuse holder.
• Eyelet and self-tapping screw.
• Double-sided tape.
• Cable ties.

Safety Notes:

• Handle all components with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

• Read and follow all vehicle warnings and installation instructions.
• Use a test light or trailer to confirm proper installation.
• Consult the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 119191

Wiring Access Location:

• Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.

Tools Required:

• Drill with a 3/32" drill bit.
• Phillips head #2 screwdriver.
• Wire cutters, wire strippers/crimpers.
• Tester or volt meter.
• Socket and ratchet set.
• Double-sided tape (provided).

Step-by-Step Instructions:

Installation of the Module:

1. Determine the mounting location for the module.

   • Use the provided double-sided tape to secure the module.
   • Ensure the epoxy side of the module faces downward to prevent water buildup.

2. Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.

3. Locate a suitable grounding point near the module:

   • Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
   • Clean the grounding area of dirt and rustproofing.

   Caution: Verify what is behind the surface before drilling to avoid damage or injury.

Routing Power to the Battery:

4. Route the power wire to the vehicle’s positive battery terminal:

   • Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15-amp fuse yet.

   Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.

Finalizing Installation:

5. Secure the wiring harness with the provided cable ties to prevent damage or rattling.

   • Avoid areas where wires may be pinched, cut, or melted.

6. Reconnect the vehicle’s negative (-) battery cable.

7. Insert the 15-amp fuse into the fuse holder and close the cap.

8. Test the installation with a test light or trailer to verify functionality.

   • Test each function independently and in combination.

   Specifications:

   • Max. stop/turn light: 2 per side (4.2 amps).
   • Max. tail lights: (7.5 amps).

Hardware List:

• T-Connector adapter.
• 15-amp fuse.
• Fuse holder.
• Eyelet and self-tapping screw.
• Double-sided tape.
• Cable ties.

Safety Notes:

• Handle all components with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Manufacturer Notes:

• Read and follow all vehicle warnings and installation instructions.
• Use a test light or trailer to confirm proper installation.
• Consult the vehicle owner’s manual for additional details.
