Product Details
- Brand: Draw-Tite
- Model: 75790 118654 23 63816 *
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help

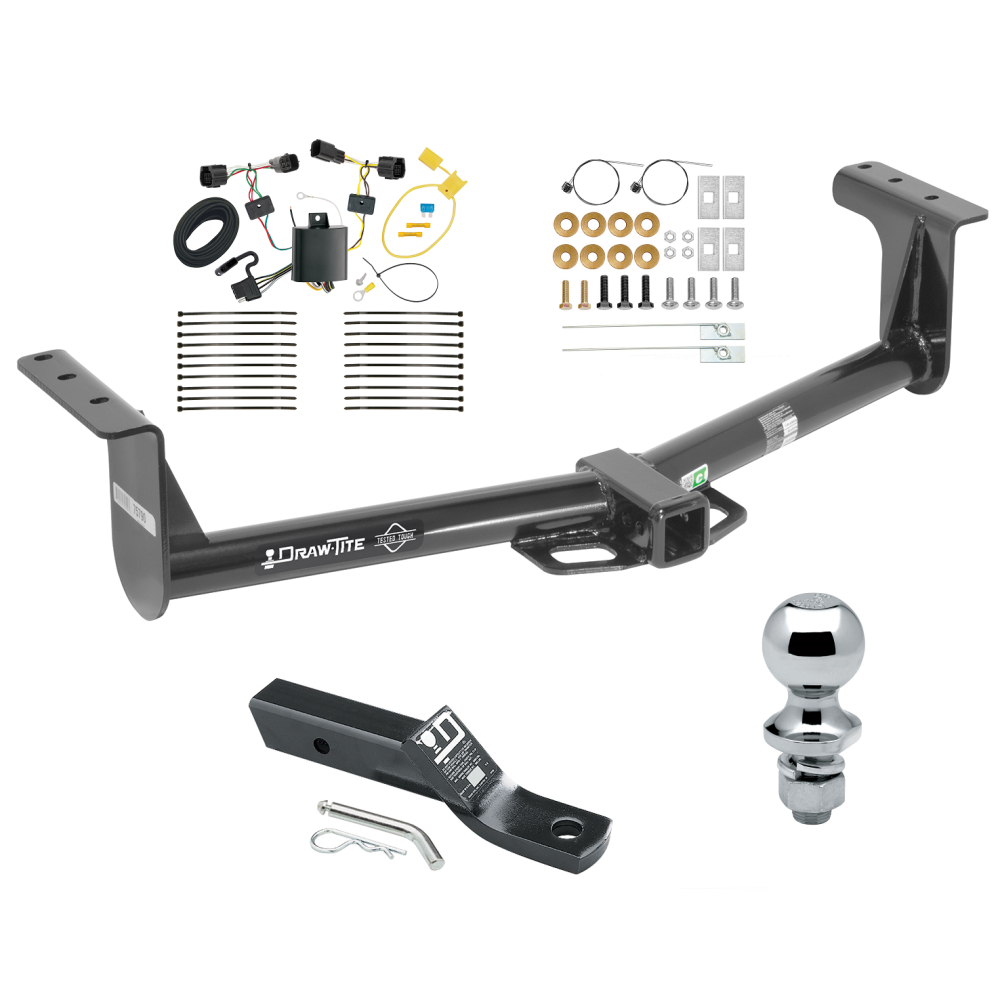

Trailer Tow Hitch For 13-16 Ford Ranger Complete Package w/ Wiring and 1-7/8" Ball Install Notes

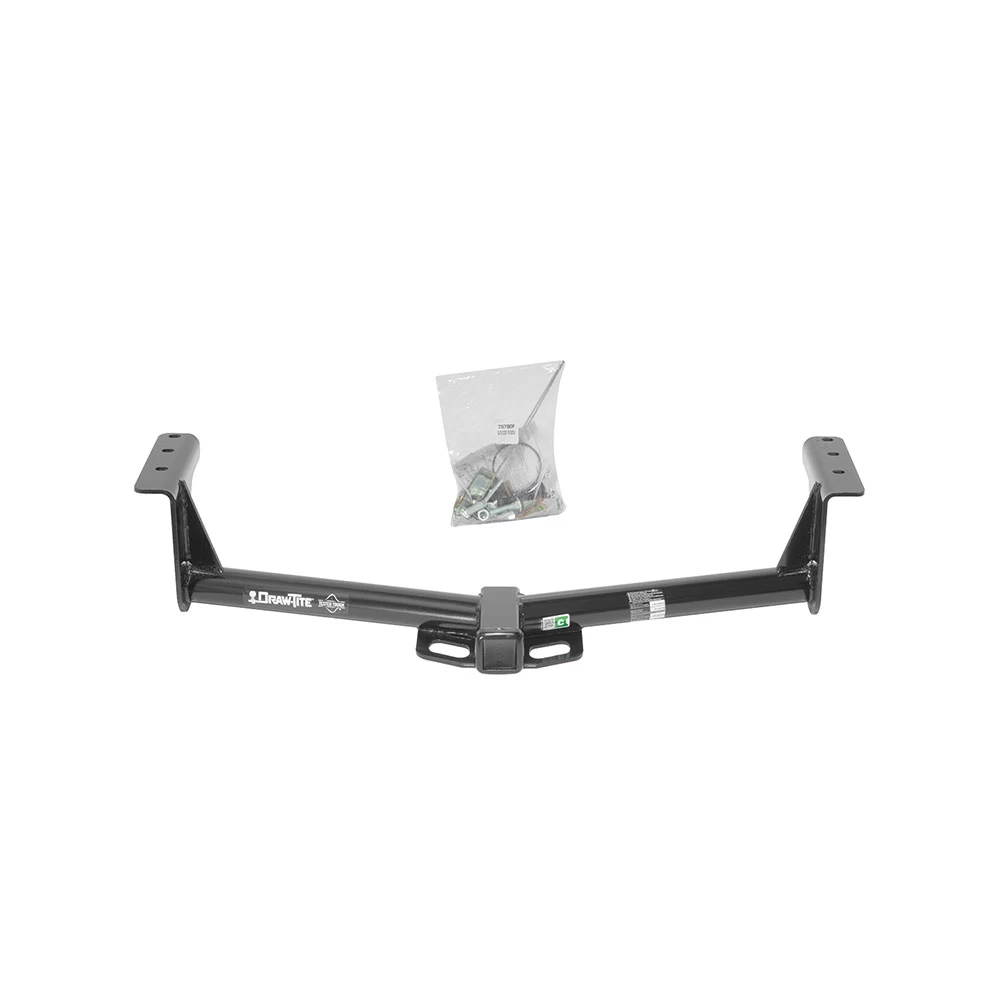

Installation Instructions for Ford Ranger
Part Numbers:
- 75790
Wiring Access Location:
- PU3, PU4
Tools Required:
- Wrenches: 11/16”, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove OE Tow Bar Bracket:
- If equipped, remove the existing tow bar bracket.
-
Position the Hitch:
- Align the hitch on the frame rail as shown in the diagrams.
-
Install M12 Fasteners:
- Attach the hitch to the frame rail using M12 x 1.75mm hex bolts and 1/2” conical washers. Hand-tighten to hold the hitch in place.
-
Install Blocks and Carriage Bolts:
- Use the pull wire procedure to install 7/16” carriage bolts and blocks. Leave the pull wires attached.
-
Position Fasteners Using Pull Wires:
- Use the pull wires to insert the 7/16” carriage bolts through the hitch’s attachment holes. Remove the pull wires.
-
Attach 7/16” Hardware:
- Secure the hitch using 7/16” conical washers and hex nuts.
-
Install Nut-Block-Handle Assemblies:
- Insert the nut-block-handle assemblies through the rear opening of the frame rails. Position them over the rear-most holes and ensure they lie flat against the frame rail.
-
Secure Nut-Block-Handle Assemblies:
- While holding the nut-block-handle assemblies in place, install the M12 x 1.25mm hex bolts and 1/2” conical washers.
-
Torque All Fasteners:
- Tighten fasteners to the specified torque values:
- M12 x 1.25mm CL10.9: 130 lb-ft (176 N*m)
- M12 x 1.75mm CL10.9: 92 lb-ft (125 N*m)
- 7/16” GR5: 50 lb-ft (68 N*m)
- Tighten fasteners to the specified torque values:

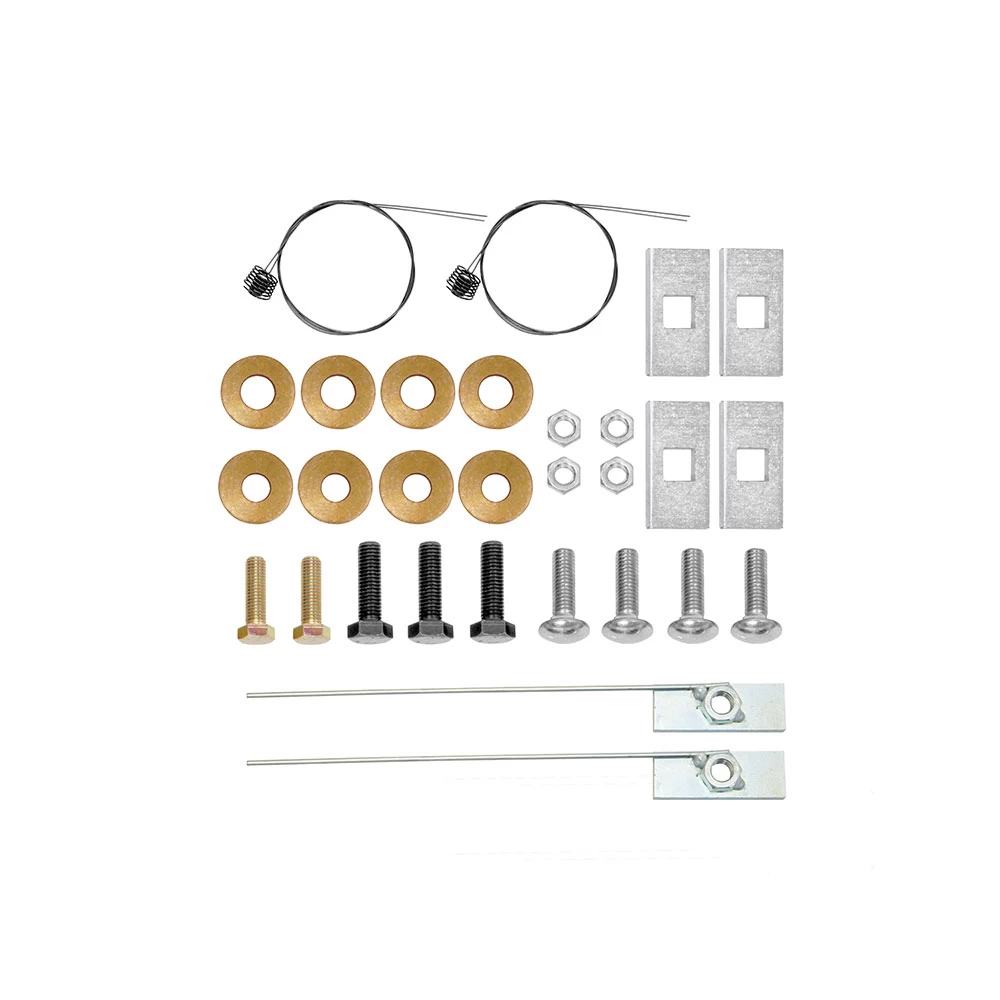

Hardware List:
- Qty (4): Conical Washer – 1/2”
- Qty (4): Hex Nut – 7/16”-14
- Qty (3): Hex Bolt – M12 x 1.75mm x 45mm CL10.9
- Qty (4): Carriage Bolt – 7/16”-14 x 1.75” GR5
- Qty (4): Block – 3/16” x 1” x 2”
- Qty (4): Conical Washer – 7/16”
- Qty (2): Nut-Block-Handle Assembly
- Qty (4): Pull Wire – 7/16”-14
- Qty (2): Hex Bolt – M12 x 1.25mm x 40mm CL10.9
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Note: A 19mm open-end style wrench may be required to allow removal of the spare tire after hitch installation.
Installation Instructions
Part Numbers:
- 75790
Wiring Access Location:
- PU3, PU4
Tools Required:
- Wrenches: 11/16”, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove OE Tow Bar Bracket:
- If equipped, remove the existing tow bar bracket.
-
Position the Hitch:
- Align the hitch on the frame rail as shown in the diagrams.
-
Install M12 Fasteners:
- Attach the hitch to the frame rail using M12 x 1.75mm hex bolts and 1/2” conical washers. Hand-tighten to hold the hitch in place.
-
Install Blocks and Carriage Bolts:
- Use the pull wire procedure to install 7/16” carriage bolts and blocks. Leave the pull wires attached.
-
Position Fasteners Using Pull Wires:
- Use the pull wires to insert the 7/16” carriage bolts through the hitch’s attachment holes. Remove the pull wires.
-
Attach 7/16” Hardware:
- Secure the hitch using 7/16” conical washers and hex nuts.
-
Install Nut-Block-Handle Assemblies:
- Insert the nut-block-handle assemblies through the rear opening of the frame rails. Position them over the rear-most holes and ensure they lie flat against the frame rail.
-
Secure Nut-Block-Handle Assemblies:
- While holding the nut-block-handle assemblies in place, install the M12 x 1.25mm hex bolts and 1/2” conical washers.
-
Torque All Fasteners:
- Tighten fasteners to the specified torque values:
- M12 x 1.25mm CL10.9: 130 lb-ft (176 N·m)
- M12 x 1.75mm CL10.9: 92 lb-ft (125 N·m)
- 7/16” GR5: 50 lb-ft (68 N·m)
- Tighten fasteners to the specified torque values:
Hardware List:
- Qty (4): Conical Washer – 1/2”
- Qty (4): Hex Nut – 7/16”-14
- Qty (3): Hex Bolt – M12 x 1.75mm x 45mm CL10.9
- Qty (4): Carriage Bolt – 7/16”-14 x 1.75” GR5
- Qty (4): Block – 3/16” x 1” x 2”
- Qty (4): Conical Washer – 7/16”
- Qty (2): Nut-Block-Handle Assembly
- Qty (4): Pull Wire – 7/16”-14
- Qty (2): Hex Bolt – M12 x 1.25mm x 40mm CL10.9
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Note: A 19mm open-end style wrench may be required to allow removal of the spare tire after hitch installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.

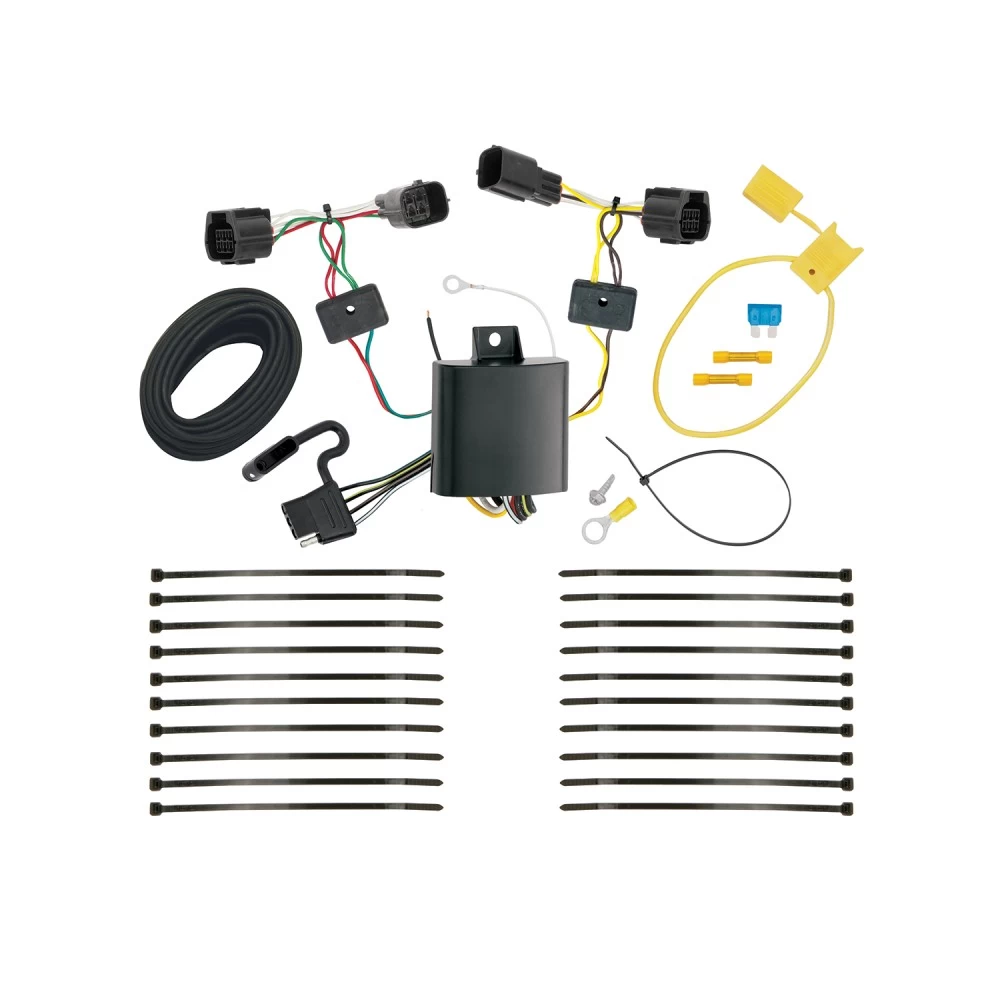

Installation Instructions for T-Connector Adapter for Ford Ranger
Part Numbers:
- 118654
Tools Required:
- 10mm Socket & Ratchet or 10mm Wrench
Step-by-Step Instructions:
-
Locate the Vehicle’s Wiring Harness:
- Locate the taillight wiring harness near the rear of the frame. This harness will have connection points on both sides of the frame with connectors matching the T-Connector adapter.
-
Separate the Connections:
- Carefully separate the connections without breaking the locking tabs.
- Ensure that all surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver-side wiring connections.
- Ensure the T-Connector is fully inserted, and the locking tabs are secure.
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle.
- Secure the black box to the vehicle using the cable tie provided.
- Use additional cable ties to secure the T-Connector harness, preventing damage or rattling. Avoid areas that could pinch or cut the wire.
Warning:
- Ensure the epoxy side of the black box module is pointed towards the ground to prevent water buildup.
- When mounting under the vehicle, make sure the module is in a protected area safe from road debris.
-
Connect the Passenger-Side T-Connector:
- Repeat step 3 on the passenger side, connecting the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the adapter, such as the vehicle frame or crossmember.
- Do not drill into the vehicle floor or bed.
- Clean the area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Connect the Black Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment and battery.
Warning:
- Avoid routing near hot pipes, heat shields, or areas where the wire could be pinched.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the vehicle’s positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable and install the 15-amp fuse into the fuse holder.
Warning:
- All connections must be complete for proper functionality. Test the installation with a test light or trailer.
-
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or specified maximum circuit ratings.
- Wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter for Ford Ranger
Part Numbers:
- 118654
Tools Required:
- 10mm Socket & Ratchet or 10mm Wrench
Step-by-Step Instructions:
-
Locate the Vehicle’s Wiring Harness:
- Locate the taillight wiring harness near the rear of the frame. This harness will have connection points on both sides of the frame with connectors matching the T-Connector adapter.
-
Separate the Connections:
- Carefully separate the connections without breaking the locking tabs.
- Ensure that all surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver-side wiring connections.
- Ensure the T-Connector is fully inserted, and the locking tabs are secure.
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle.
- Secure the black box to the vehicle using the cable tie provided.
- Use additional cable ties to secure the T-Connector harness, preventing damage or rattling. Avoid areas that could pinch or cut the wire.
Warning:
- Ensure the epoxy side of the black box module is pointed towards the ground to prevent water buildup.
- When mounting under the vehicle, make sure the module is in a protected area safe from road debris.
-
Connect the Passenger-Side T-Connector:
- Repeat step 3 on the passenger side, connecting the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the adapter, such as the vehicle frame or crossmember.
- Do not drill into the vehicle floor or bed.
- Clean the area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Connect the Black Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment and battery.
Warning:
- Avoid routing near hot pipes, heat shields, or areas where the wire could be pinched.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the vehicle’s positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable and install the 15-amp fuse into the fuse holder.
Warning:
- All connections must be complete for proper functionality. Test the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or specified maximum circuit ratings.
- Wear safety glasses and follow safety precautions during installation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional details.
