Product Details
- Brand: Draw-Tite
- Model: 75790 118654 23 63845 580407 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help

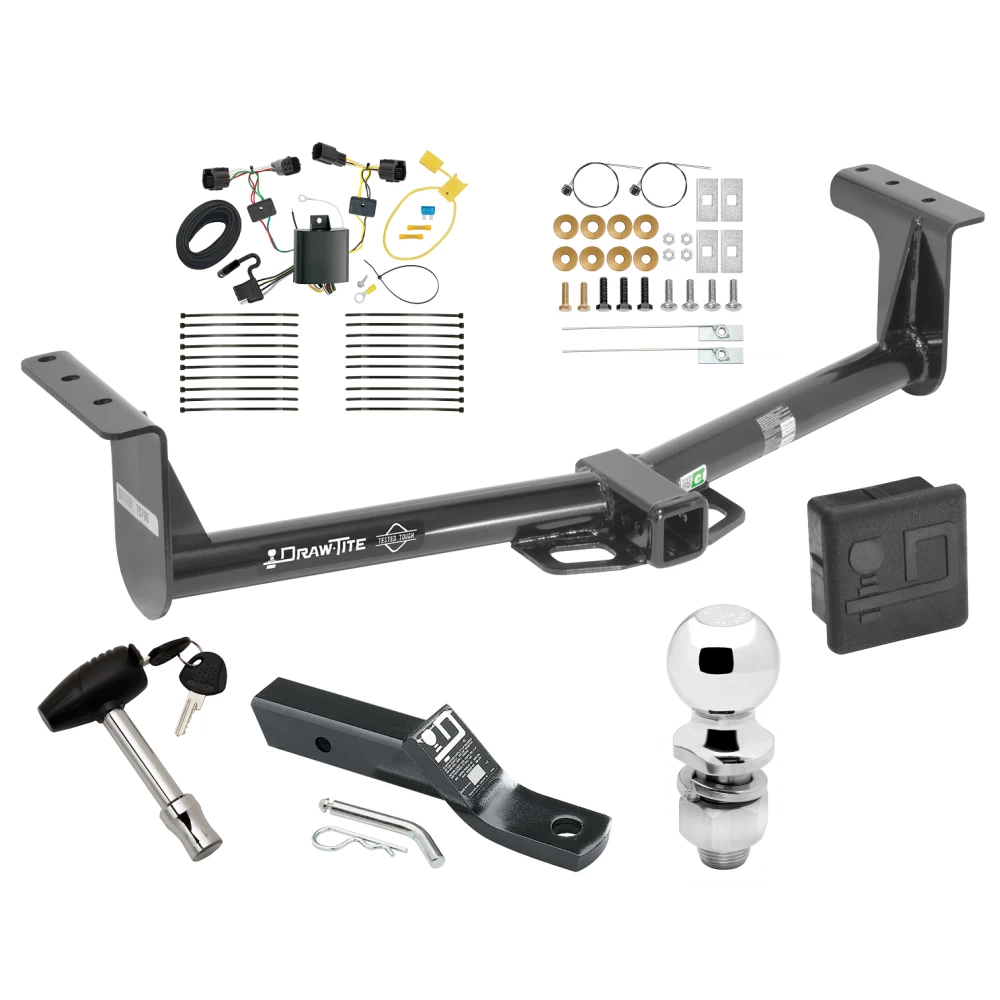

Trailer Tow Hitch For 13-16 Ford Ranger Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Ford Ranger
Part Numbers:
- 75790
Wiring Access Location:
- PU3, PU4
Tools Required:
- Wrenches: 11/16”, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove OE Tow Bar Bracket:
- If equipped, remove the existing tow bar bracket.
-
Position the Hitch:
- Align the hitch on the frame rail as shown in the diagrams.
-
Install M12 Fasteners:
- Attach the hitch to the frame rail using M12 x 1.75mm hex bolts and 1/2” conical washers. Hand-tighten to hold the hitch in place.
-
Install Blocks and Carriage Bolts:
- Use the pull wire procedure to install 7/16” carriage bolts and blocks. Leave the pull wires attached.
-
Position Fasteners Using Pull Wires:
- Use the pull wires to insert the 7/16” carriage bolts through the hitch’s attachment holes. Remove the pull wires.
-
Attach 7/16” Hardware:
- Secure the hitch using 7/16” conical washers and hex nuts.
-
Install Nut-Block-Handle Assemblies:
- Insert the nut-block-handle assemblies through the rear opening of the frame rails. Position them over the rear-most holes and ensure they lie flat against the frame rail.
-
Secure Nut-Block-Handle Assemblies:
- While holding the nut-block-handle assemblies in place, install the M12 x 1.25mm hex bolts and 1/2” conical washers.
-
Torque All Fasteners:
- Tighten fasteners to the specified torque values:
- M12 x 1.25mm CL10.9: 130 lb-ft (176 N*m)
- M12 x 1.75mm CL10.9: 92 lb-ft (125 N*m)
- 7/16” GR5: 50 lb-ft (68 N*m)
- Tighten fasteners to the specified torque values:
Hardware List:
- Qty (4): Conical Washer – 1/2”
- Qty (4): Hex Nut – 7/16”-14
- Qty (3): Hex Bolt – M12 x 1.75mm x 45mm CL10.9
- Qty (4): Carriage Bolt – 7/16”-14 x 1.75” GR5
- Qty (4): Block – 3/16” x 1” x 2”
- Qty (4): Conical Washer – 7/16”
- Qty (2): Nut-Block-Handle Assembly
- Qty (4): Pull Wire – 7/16”-14
- Qty (2): Hex Bolt – M12 x 1.25mm x 40mm CL10.9
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Note: A 19mm open-end style wrench may be required to allow removal of the spare tire after hitch installation.
Installation Instructions
Part Numbers:
- 75790
Wiring Access Location:
- PU3, PU4
Tools Required:
- Wrenches: 11/16”, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove OE Tow Bar Bracket:
- If equipped, remove the existing tow bar bracket.
-
Position the Hitch:
- Align the hitch on the frame rail as shown in the diagrams.
-
Install M12 Fasteners:
- Attach the hitch to the frame rail using M12 x 1.75mm hex bolts and 1/2” conical washers. Hand-tighten to hold the hitch in place.
-
Install Blocks and Carriage Bolts:
- Use the pull wire procedure to install 7/16” carriage bolts and blocks. Leave the pull wires attached.
-
Position Fasteners Using Pull Wires:
- Use the pull wires to insert the 7/16” carriage bolts through the hitch’s attachment holes. Remove the pull wires.
-
Attach 7/16” Hardware:
- Secure the hitch using 7/16” conical washers and hex nuts.
-
Install Nut-Block-Handle Assemblies:
- Insert the nut-block-handle assemblies through the rear opening of the frame rails. Position them over the rear-most holes and ensure they lie flat against the frame rail.
-
Secure Nut-Block-Handle Assemblies:
- While holding the nut-block-handle assemblies in place, install the M12 x 1.25mm hex bolts and 1/2” conical washers.
-
Torque All Fasteners:
- Tighten fasteners to the specified torque values:
- M12 x 1.25mm CL10.9: 130 lb-ft (176 N·m)
- M12 x 1.75mm CL10.9: 92 lb-ft (125 N·m)
- 7/16” GR5: 50 lb-ft (68 N·m)
- Tighten fasteners to the specified torque values:
Hardware List:
- Qty (4): Conical Washer – 1/2”
- Qty (4): Hex Nut – 7/16”-14
- Qty (3): Hex Bolt – M12 x 1.75mm x 45mm CL10.9
- Qty (4): Carriage Bolt – 7/16”-14 x 1.75” GR5
- Qty (4): Block – 3/16” x 1” x 2”
- Qty (4): Conical Washer – 7/16”
- Qty (2): Nut-Block-Handle Assembly
- Qty (4): Pull Wire – 7/16”-14
- Qty (2): Hex Bolt – M12 x 1.25mm x 40mm CL10.9
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Note: A 19mm open-end style wrench may be required to allow removal of the spare tire after hitch installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Ford Ranger
Part Numbers:
- 118654
Tools Required:
- 10mm Socket & Ratchet or 10mm Wrench
Step-by-Step Instructions:
-
Locate the Vehicle’s Wiring Harness:
- Locate the taillight wiring harness near the rear of the frame. This harness will have connection points on both sides of the frame with connectors matching the T-Connector adapter.
-
Separate the Connections:
- Carefully separate the connections without breaking the locking tabs.
- Ensure that all surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver-side wiring connections.
- Ensure the T-Connector is fully inserted, and the locking tabs are secure.
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle.
- Secure the black box to the vehicle using the cable tie provided.
- Use additional cable ties to secure the T-Connector harness, preventing damage or rattling. Avoid areas that could pinch or cut the wire.
Warning:
- Ensure the epoxy side of the black box module is pointed towards the ground to prevent water buildup.
- When mounting under the vehicle, make sure the module is in a protected area safe from road debris.
-
Connect the Passenger-Side T-Connector:
- Repeat step 3 on the passenger side, connecting the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the adapter, such as the vehicle frame or crossmember.
- Do not drill into the vehicle floor or bed.
- Clean the area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Connect the Black Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment and battery.
Warning:
- Avoid routing near hot pipes, heat shields, or areas where the wire could be pinched.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the vehicle’s positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable and install the 15-amp fuse into the fuse holder.
Warning:
- All connections must be complete for proper functionality. Test the installation with a test light or trailer.
-
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or specified maximum circuit ratings.
- Wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter for Ford Ranger
Part Numbers:
- 118654
Tools Required:
- 10mm Socket & Ratchet or 10mm Wrench
Step-by-Step Instructions:
-
Locate the Vehicle’s Wiring Harness:
- Locate the taillight wiring harness near the rear of the frame. This harness will have connection points on both sides of the frame with connectors matching the T-Connector adapter.
-
Separate the Connections:
- Carefully separate the connections without breaking the locking tabs.
- Ensure that all surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver-side wiring connections.
- Ensure the T-Connector is fully inserted, and the locking tabs are secure.
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle.
- Secure the black box to the vehicle using the cable tie provided.
- Use additional cable ties to secure the T-Connector harness, preventing damage or rattling. Avoid areas that could pinch or cut the wire.
Warning:
- Ensure the epoxy side of the black box module is pointed towards the ground to prevent water buildup.
- When mounting under the vehicle, make sure the module is in a protected area safe from road debris.
-
Connect the Passenger-Side T-Connector:
- Repeat step 3 on the passenger side, connecting the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the adapter, such as the vehicle frame or crossmember.
- Do not drill into the vehicle floor or bed.
- Clean the area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Connect the Black Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment and battery.
Warning:
- Avoid routing near hot pipes, heat shields, or areas where the wire could be pinched.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the vehicle’s positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable and install the 15-amp fuse into the fuse holder.
Warning:
- All connections must be complete for proper functionality. Test the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or specified maximum circuit ratings.
- Wear safety glasses and follow safety precautions during installation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional details.
