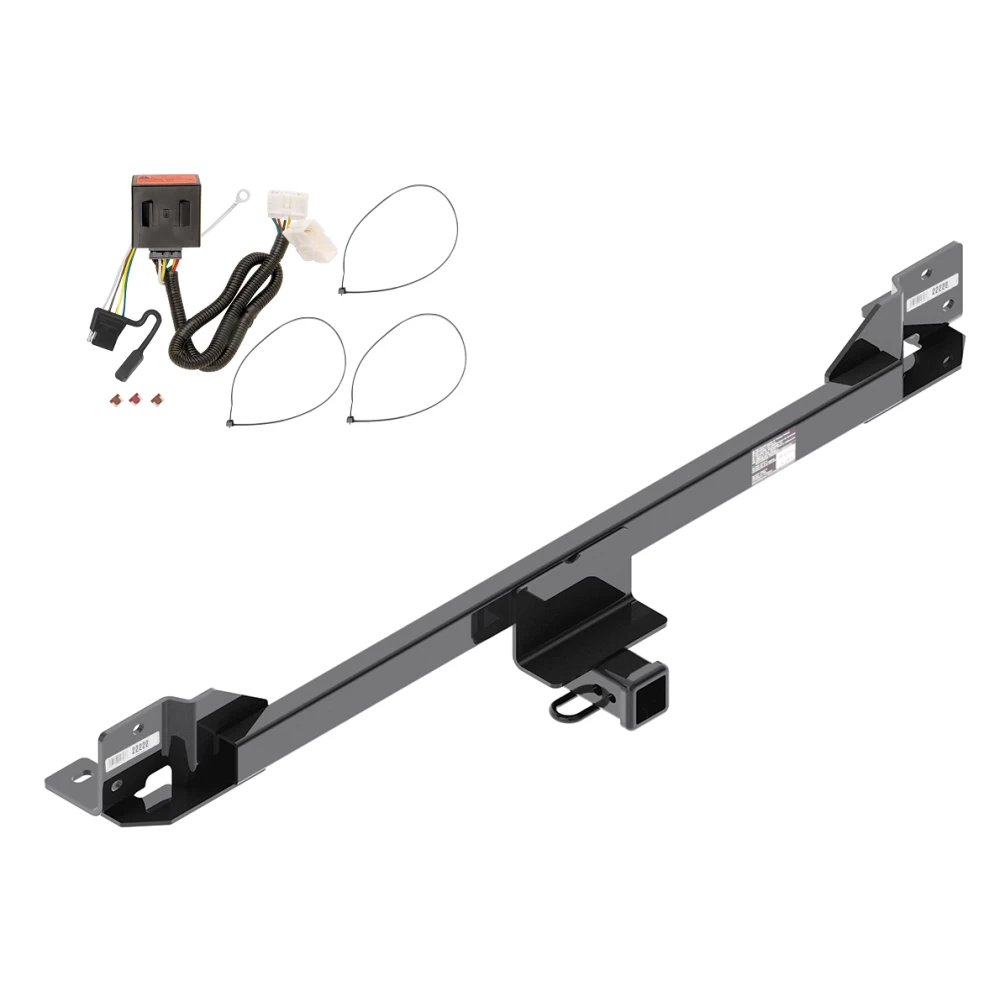

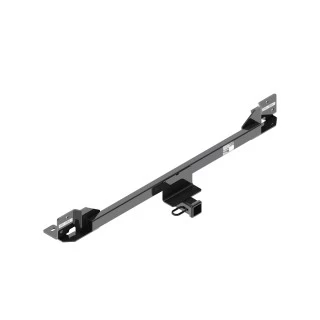

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76025 & #84025

Part Numbers:

• 76025
• 84025

Applications:

• Years: 2011-2016
• Make: Honda
• Model: Odyssey

For updated information on application years and trim levels, refer to the manufacturer's website.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 17 mm, 18 mm
• 6" Socket Extension
• Panel Removal Tool
• Plastic Trim Tools
• Phillips Screwdriver
• Utility Knife
• 3/16" Hex Bits
• Hammer

Step-by-Step Instructions:

1. Bottom Panel and Mud Flap Removal:

• Use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove three rivets and two bolts from the bottom panel on the driver side.
• Remove the mud flap on each side, if present.
• Retain the bottom panel and mud flaps for reinstallation.

2. Bumper Fascia Removal:

• Remove two plastic rivets from the center bottom fascia using a panel removal tool.
• Use a Phillips screwdriver and 10 mm socket to remove four bolts from each wheel well liner.
• Open the trunk and remove two screws from each side using 3/16" hex bits.
• Use plastic trim tools to gently remove the plastic fascia, starting from the wheel well edges.
• Disconnect the fascia wiring if equipped.

3. Bumper Beam Removal:

• Use a 14 mm socket to remove four factory bolts from the bumper beam and set them aside for reinstallation.

4. Hitch Installation:

• Tape four flat washers (#1) to the end panel where the holes are located.
• Tape one spacer block (#2) to the hitch tab on each side.
• Raise the hitch above the exhaust pipe and loosely install:
  • M10 bolts (#5) and 3/8" conical washers (#6) to the upper attachment holes on the end panel.
  • M12 bolts (#3) and 1/2" conical washers (#4) to the frame rails.
• Raise the bumper beam to sandwich the hitch and loosely secure it with the remaining M10 fasteners in the lower attachment holes.

5. Tighten Fasteners:

• Torque all M10 fasteners to 59 lb-ft (80 N·m).
• Torque all M12 fasteners to 76 lb-ft (103 N·m).

6. Bumper Beam Height Adjustment:

• Use a hammer to bend the three raised brackets on the bumper beam, reducing the height by approximately 1/4".
• Trim the foam piece to fit on the bumper beam.

7. Bottom Fascia Trimming:

• Locate the center of the bottom panel and trim an area 3.0" tall by 8.5" wide.
• Trim the fascia area above the muffler.

8. Reinstallation:

• Reinstall all fasteners, fascia, appearance bottom panel, and mud flaps removed in Steps 1 and 2.

Hardware List:

• 4 × Flat Washers (#1) – 1/2"
• 2 × Spacer Blocks (#2) – 0.375" × 1.50" × 3.00"
• 2 × M12 Bolts (#3) – 1.25 × 45 mm, Class 8.8
• 2 × Conical Washers (#4) – 1/2"
• 4 × M10 Bolts (#5) – 1.25 × 40 mm, Class 10.9
• 4 × Conical Washers (#6) – 3/8"

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to keep the hitch secure to the vehicle.
• Do not cut access or attachment holes with a torch.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.

Specifications:

• Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
• Max Tongue Weight: 525 lbs (238 kg)
• Weight Distribution: Not Applicable
• Installation Time: Approximately 80 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support, contact us at 877-869-6690 or visit www.trailerjacks.com.

Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.

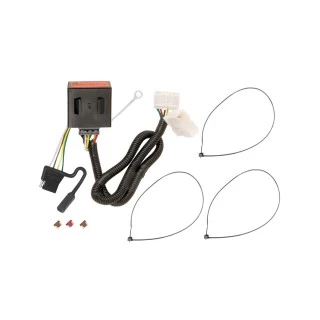

Installation Instructions for T-Connector Adapter for Honda Odyssey

Part Numbers:

• 118521

Tools Required:

• Trim Panel Remover
• Flat Screwdriver
• Test Probe
• Pliers
• Protective Cloth
• 10mm Socket or Wrench

Step-by-Step Instructions:

1. Open the Rear Door:

   • Fold the rear seat forward.
   • Temporarily remove the rear threshold plate using a trim panel remover.

   Note:

   • Use pliers and a protective cloth to remove threaded cargo net hooks. Set aside all removed items carefully to avoid damage.

2. Locate the Fuse Panel:

   • Locate the fuse panel cover near the rear seat on the driver’s side.
   • Open the cover to access the relays and fuses.
   • Partially remove the lower interior trim panels, being careful not to damage the clips.

3. Route the T-Connector Wiring:

   • Starting from the cargo area, route the white T-Connector end up and behind the trim panel to the rear fuse box.

4. Connect Backup Sensor Harness (if equipped):

   • If the vehicle has accessory backup sensors, unplug the sensor harness 14-pin connector from the rear fuse box.
   • Plug the backup sensor harness into the mating T-Connector end.

5. Connect the T-Connector:

   • Plug the white 14-pin T-Connector end into the mating connection in the fuse box connector.

6. Ground the White Wire:

   • Route the white wire with the eyelet towards the back of the vehicle near the threshold area.
   • Locate the existing ground stud. Loosen the bolt, place the eyelet on the stud, and re-tighten the bolt.

   Warning:

   • Ensure all other ground connections are secure when removing and reattaching the ground stud.

7. Connect the Grey 12-Pin Connector:

   • Insert the grey 12-pin connector into the mating connector on the black box module.
   • Ensure all connector surfaces are clean and fully inserted with locking tabs secure.

8. Mount the Black Box Module:

   • Locate a flat, dry surface inside the vehicle to mount the black box using the provided double-sided tape.
   • Secure the remaining T-Connector harness with cable ties to prevent damage or rattling.

   Warning:

   • The black box module must be mounted inside the vehicle to avoid damage from moisture or exposure to elements.

9. Install the Fuses:

   • Install a 10-amp fuse into the rear fuse box position #8.
   • Install two 7.5-amp fuses into rear fuse box positions #2 and #11.

   Warning:

   • Overloading circuits can cause fires. Do not exceed the manufacturer’s ratings.

10. Test the Installation:

    • Test the T-Connector with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition, reinserting it, and turning it to the proper position.

11. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in an accessible location.
    • If routing through a grommet and along the vehicle exterior, avoid hot pipes, heat shields, or areas where the wire could pinch or break.

12. Reassemble the Vehicle:

    • Reinstall the threshold plate, trim panels, cargo net, and cover.
    • Ensure no wires are pinched or cut during reassembly.

    Specifications:

    • Max. stop/turn light: 2 per side (4.2 amps)
    • Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
• Always wear safety glasses and follow all safety precautions.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Installation Instructions for T-Connector Adapter for Generic Vehicle

Part Numbers:

• 118521

Tools Required:

• Trim Panel Remover
• Flat Screwdriver
• Test Probe
• Pliers
• Protective Cloth
• 10mm Socket or Wrench

Step-by-Step Instructions:

1. Open the Rear Door:

   • Fold the rear seat forward.
   • Temporarily remove the rear threshold plate using a trim panel remover.

   Note:

   • Use pliers and a protective cloth to remove threaded cargo net hooks. Set aside all removed items carefully to avoid damage.

2. Locate the Fuse Panel:

   • Locate the fuse panel cover near the rear seat on the driver’s side.
   • Open the cover to access the relays and fuses.
   • Partially remove the lower interior trim panels, being careful not to damage the clips.

3. Route the T-Connector Wiring:

   • Starting from the cargo area, route the white T-Connector end up and behind the trim panel to the rear fuse box.

4. Connect Backup Sensor Harness (if equipped):

   • If the vehicle has accessory backup sensors, unplug the sensor harness 14-pin connector from the rear fuse box.
   • Plug the backup sensor harness into the mating T-Connector end.

5. Connect the T-Connector:

   • Plug the white 14-pin T-Connector end into the mating connection in the fuse box connector.

6. Ground the White Wire:

   • Route the white wire with the eyelet towards the back of the vehicle near the threshold area.
   • Locate the existing ground stud. Loosen the bolt, place the eyelet on the stud, and re-tighten the bolt.

   Warning:

   • Ensure all other ground connections are secure when removing and reattaching the ground stud.

7. Connect the Grey 12-Pin Connector:

   • Insert the grey 12-pin connector into the mating connector on the black box module.
   • Ensure all connector surfaces are clean and fully inserted with locking tabs secure.

8. Mount the Black Box Module:

   • Locate a flat, dry surface inside the vehicle to mount the black box using the provided double-sided tape.
   • Secure the remaining T-Connector harness with cable ties to prevent damage or rattling.

   Warning:

   • The black box module must be mounted inside the vehicle to avoid damage from moisture or exposure to elements.

9. Install the Fuses:

   • Install a 10-amp fuse into the rear fuse box position #8.
   • Install two 7.5-amp fuses into rear fuse box positions #2 and #11.

   Warning:

   • Overloading circuits can cause fires. Do not exceed the manufacturer’s ratings.

10. Test the Installation:

    • Test the T-Connector with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition, reinserting it, and turning it to the proper position.

11. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in an accessible location.
    • If routing through a grommet and along the vehicle exterior, avoid hot pipes, heat shields, or areas where the wire could pinch or break.

12. Reassemble the Vehicle:

    • Reinstall the threshold plate, trim panels, cargo net, and cover.
    • Ensure no wires are pinched or cut during reassembly.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
• Always wear safety glasses and follow all safety precautions.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Note: Refer to the vehicle owner’s manual and instruction sheet for additional details.
