Trailer Tow Hitch For 94‑02 Dodge Ram 2500 3500 94‑01 1500 2" Receiver Class V
Model: 419231994 - 2001 Dodge, Ram 1500, All Styles
1994 - 2002 Dodge, Ram 2500, All Styles
1994 - 2002 Dodge, Ram 3500, All Styles
Trailer Hitch Specs:
| Part Number | 41923 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 94 95 96 97 98 99 00 01 02 1994 1995 1996 1997 1998 1999 2000 2001 2002
$282 33 $418.84 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$418.84 $282 33
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41923
- UPC: 742512419238

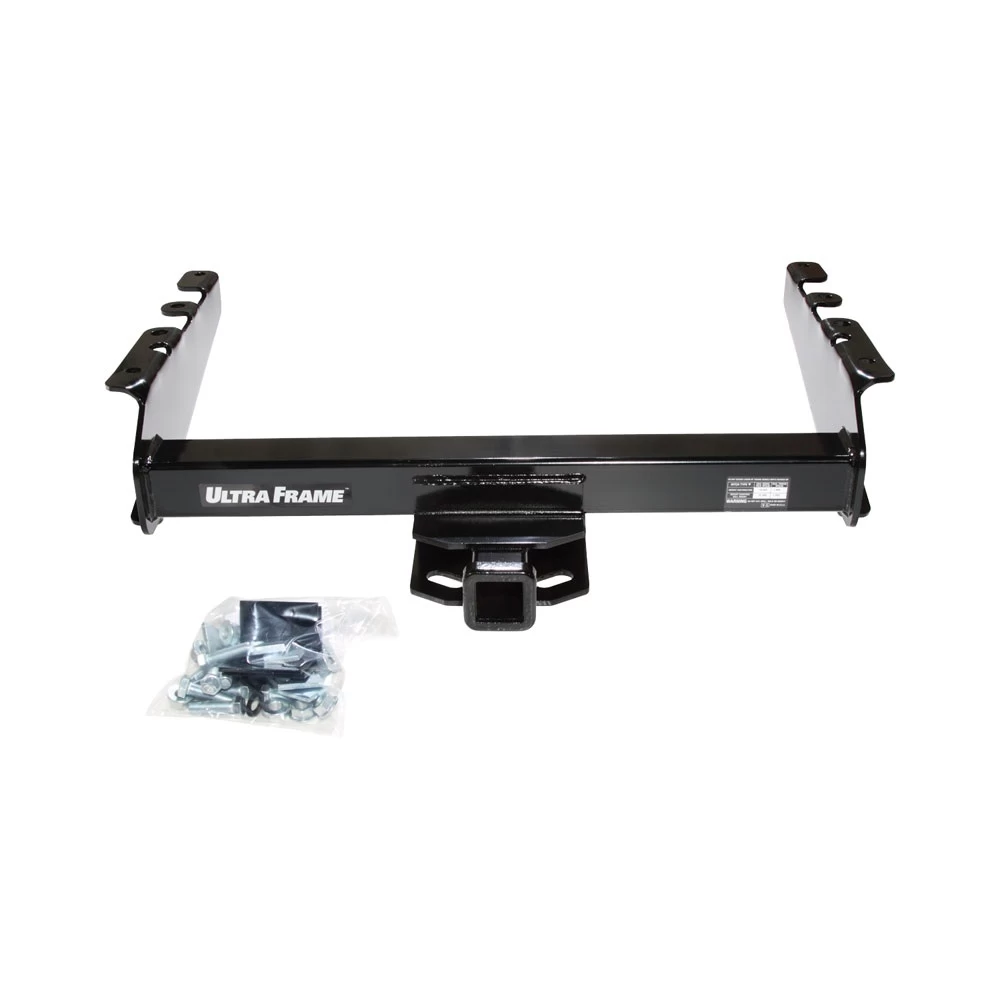

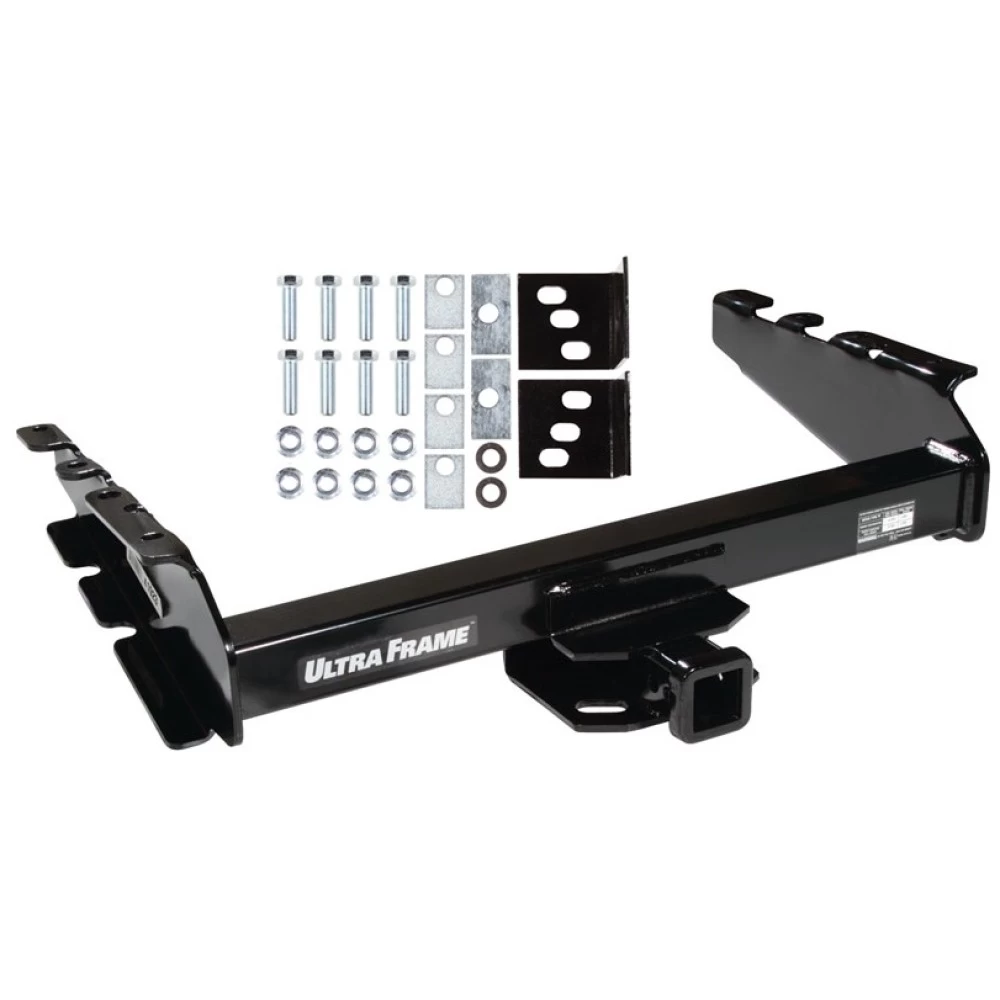

- Includes: Ultra Frame Class 5 Trailer Tow Hitch
Compatibility Chart
1994 - 2001 Dodge, Ram 1500, All Styles
1994 - 2002 Dodge, Ram 2500, All Styles
1994 - 2002 Dodge, Ram 3500, All Styles
Trailer Hitch Specs:
| Part Number | 41923 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 94 95 96 97 98 99 00 01 02 1994 1995 1996 1997 1998 1999 2000 2001 2002
Get Expert Help
Trailer Tow Hitch For 94-02 Dodge Ram 2500 3500 94-01 1500 2" Receiver Class V Install Notes
Installation Instructions for Dodge Ram Pickup Truck
Part Numbers:
- 41923
- 96923
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 13/16", 7/8"
- Drill Bits: 9/16"
Step-by-Step Instructions:
-
Prepare Frame Holes:
- If necessary, enlarge existing 12mm (0.47") holes in the frame to 9/16" (0.56").
-
Modify Bolt Strap:
- Remove the bumper bolt strap and bolt from the bumper frame assembly on one side only.
- Cut the bolt strap in half as shown in Figure 2.
- Loosely reinstall bumper fasteners and the reinforcement bracket inside the frame.
-
Repeat Steps for the Opposite Side:
- Repeat steps 1 and 2 on the opposite side of the vehicle.
-
Insert Hex Bolts:
- Insert one 9/16"-18 x 2.00 GR5 hex bolt and a hardened flat washer into the first attachment holes in each frame rail (see Figure 1).
- Insert one 9/16"-18 x 2.00 GR5 hex bolt and a spacer into the forward attachment holes in each frame rail.
-
Position Hitch:
- Raise the hitch into position and loosely attach fasteners to bolts as shown in Figure 1.
-
Center Hitch and Secure Fasteners:
- Center the hitch and install the remaining fasteners as shown in Figure 1.
- Tighten all 9/16"-18 GR5 fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 9/16"-18 GR5 bolts: 110 lb-ft (149 N*m)

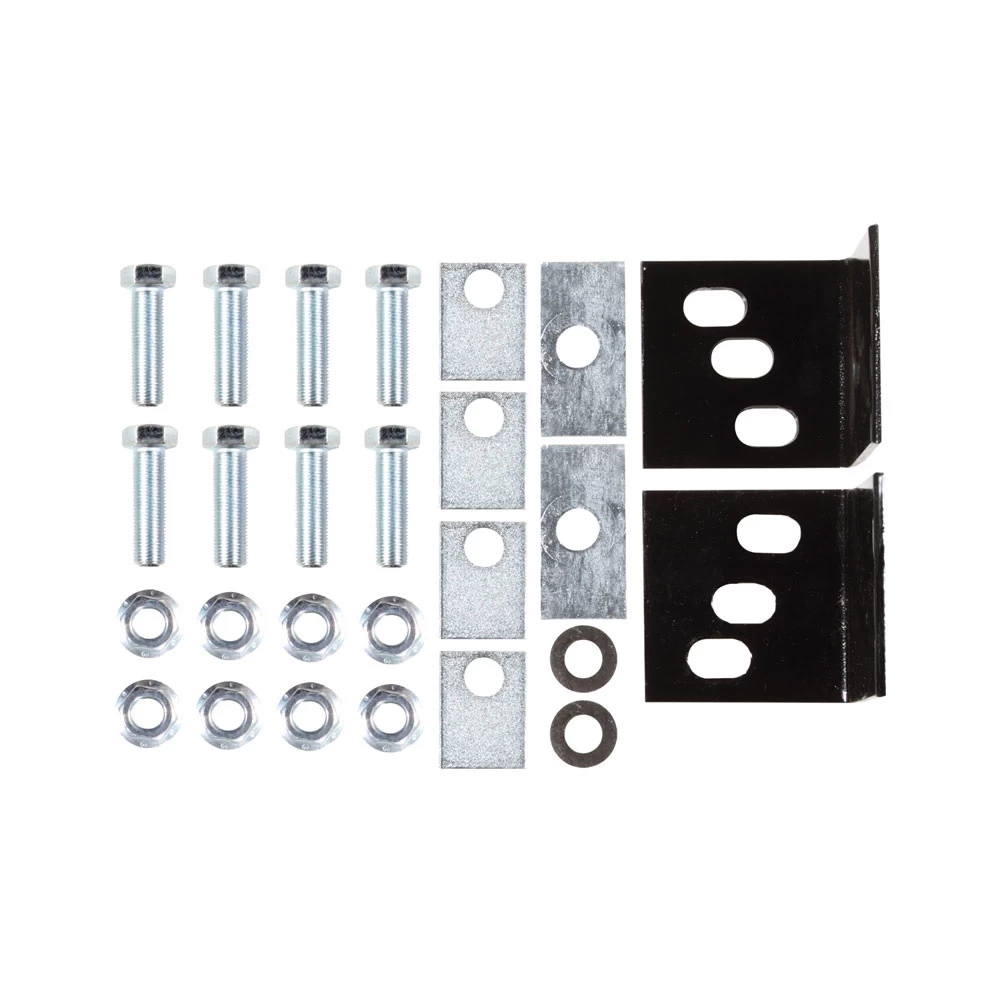

Hardware List:
- (8) Hex Bolts, 9/16"-18 x 2.00 GR5
- (2) Spacers, 3/8" x 1-1/2" x 3"
- (4) Spacers, 1/4" x 1-1/2" x 2"
- (8) Flanged Locknuts, 9/16"-18
- (1) Reinforcement Bracket (Driver Side)
- (1) Reinforcement Bracket (Passenger Side)
- (2) Hardened Flat Washers, 9/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the frame rails or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb
- Max Tongue Weight: 1,200 lb
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb
- Max Tongue Weight: 1,400 lb
Additional Notes:
- Reinforcement brackets are required for proper installation.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks
Part Numbers:
- 41923
- 96923
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 13/16", 7/8"
- Drill Bits: 9/16"
Step-by-Step Instructions:
-
Prepare Frame Holes:
- If necessary, enlarge existing 12mm (0.47") holes in the frame to 9/16" (0.56").
-
Modify Bolt Strap:
- Remove the bumper bolt strap and bolt from the bumper frame assembly on one side only.
- Cut the bolt strap in half as shown in Figure 2.
- Loosely reinstall bumper fasteners and the reinforcement bracket inside the frame.
-
Repeat Steps for the Opposite Side:
- Repeat steps 1 and 2 on the opposite side of the vehicle.
-
Insert Hex Bolts:
- Insert one 9/16"-18 x 2.00 GR5 hex bolt and a hardened flat washer into the first attachment holes in each frame rail (see Figure 1).
- Insert one 9/16"-18 x 2.00 GR5 hex bolt and a spacer into the forward attachment holes in each frame rail.
-
Position Hitch:
- Raise the hitch into position and loosely attach fasteners to bolts as shown in Figure 1.
-
Center Hitch and Secure Fasteners:
- Center the hitch and install the remaining fasteners as shown in Figure 1.
- Tighten all 9/16"-18 GR5 fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 9/16"-18 GR5 bolts: 110 lb-ft (149 N*m)
Hardware List:
- (8) Hex Bolts, 9/16"-18 x 2.00 GR5
- (2) Spacers, 3/8" x 1-1/2" x 3"
- (4) Spacers, 1/4" x 1-1/2" x 2"
- (8) Flanged Locknuts, 9/16"-18
- (1) Reinforcement Bracket (Driver Side)
- (1) Reinforcement Bracket (Passenger Side)
- (2) Hardened Flat Washers, 9/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the frame rails or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb
- Max Tongue Weight: 1,200 lb
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb
- Max Tongue Weight: 1,400 lb
Additional Notes:
- Reinforcement brackets are required for proper installation.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
