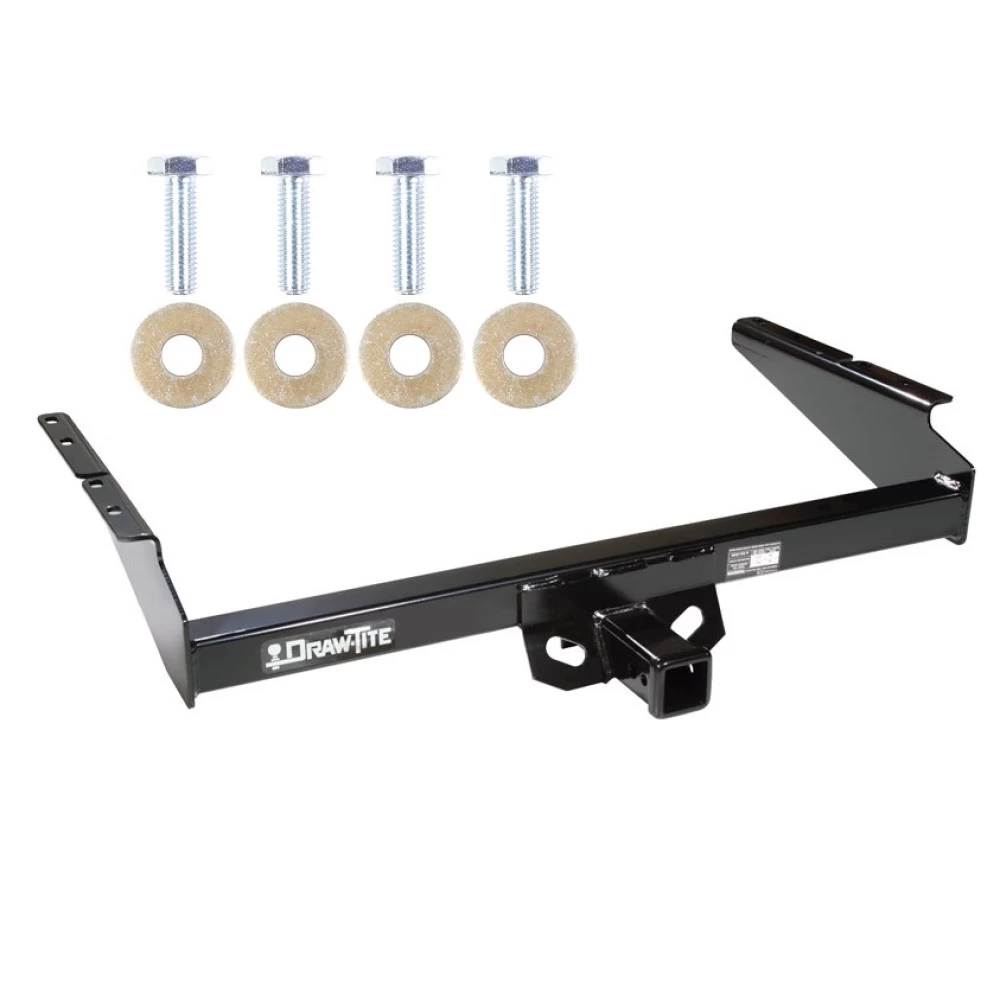

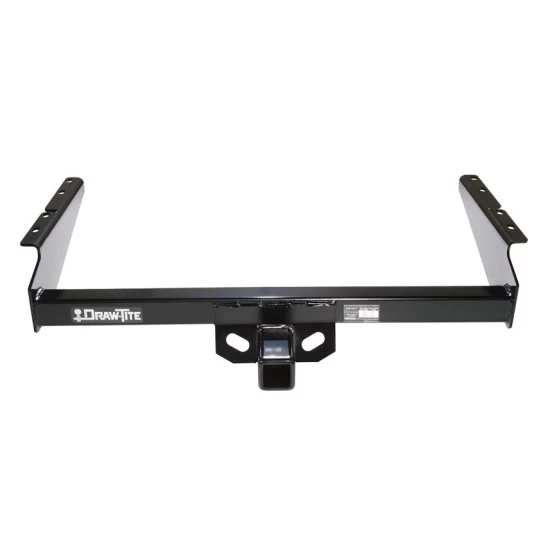

Trailer Tow Hitch For 90‑05 Chevy Astro GMC Safari 2" Towing Receiver Class 3
Model: 751221990 - 2005 Chevrolet, Astro, Extended Body
1990 - 2005 GMC, Safari, Extended Body
Trailer Hitch Specs:
| Part Number | 75122 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 300/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005
$242 04 $377.98 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$377.98 $242 04
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75122
- UPC: 742512751222
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
1990 - 2005 Chevrolet, Astro, Extended Body
1990 - 2005 GMC, Safari, Extended Body
Trailer Hitch Specs:
| Part Number | 75122 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 300/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005
Get Expert Help
Trailer Tow Hitch For 90-05 Chevy Astro GMC Safari 2" Towing Receiver Class 3 Install Notes
Installation Instructions for GMC Safari Van and Chevrolet Astro Van (Extended Body)
Part Numbers:
- N75122
- Fastener Kit: F75122
Wiring Access Location:
- SUV4
Tools Required:
- Wrenches: 15mm, 17mm
- Drill Bits: None required
Step-by-Step Instructions:
- Remove two bolts per side attaching the bumper bracket to the frame.
- Note: The bumper and bracket will remain rigidly attached to the vehicle when these bolts are removed.
- Lift the receiver into position, centering slots in the side bracket over the weldnuts in the frame.
- Install the M10 bolts removed in Step #1.
- Install M10 x 1.50 x 35mm hex bolts and conical toothed washers through the slots in the frame into the weldnuts.
- Tighten all M10 fasteners to 42 lb-ft.
Hardware List:
- (2) M10 x 1.50 x 35mm CL10.9 Hex Bolts
- (2) Conical Toothed Washers
- (2) Existing M10 Bolts (removed in Step #1)
Safety Notes:
- Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent the entry of water and exhaust fumes.
- Replace any hitch or ball that has been damaged.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Follow the vehicle manufacturer's specifications for maximum trailer weight and tongue weight.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 3,500 lbs (1,588 kg)
- Tongue Weight: 300 lbs (136 kg)
- Weight Distributing:
- Hitch Type: Class III
- Approximate Hitch Weight: 47 lbs
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the towing vehicle manufacturer’s weight rating or the hitch's maximum load rating, whichever is lower.
Installation Instructions for GMC Safari Van and Chevrolet Astro Van (Extended Body)
Part Numbers:
- N75122
- Fastener Kit: F75122
Wiring Access Location:
- SUV4
Tools Required:
- Wrenches: 15mm, 17mm
- Drill Bits: None required
Step-by-Step Instructions:
- Remove two bolts per side attaching the bumper bracket to the frame.
- Note: The bumper and bracket will remain rigidly attached to the vehicle when these bolts are removed.
- Lift the receiver into position, centering slots in the side bracket over the weldnuts in the frame.
- Install the M10 bolts removed in Step #1.
- Install M10 x 1.50 x 35mm hex bolts and conical toothed washers through the slots in the frame into the weldnuts.
- Tighten all M10 fasteners to 42 lb-ft.
Hardware List:
- (2) M10 x 1.50 x 35mm CL10.9 Hex Bolts
- (2) Conical Toothed Washers
- (2) Existing M10 Bolts (removed in Step #1)
Safety Notes:
- Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent the entry of water and exhaust fumes.
- Replace any hitch or ball that has been damaged.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Follow the vehicle manufacturer's specifications for maximum trailer weight and tongue weight.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 3,500 lbs (1,588 kg)
- Tongue Weight: 300 lbs (136 kg)
- Weight Distributing:
- Hitch Type: Class III
- Approximate Hitch Weight: 47 lbs
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the towing vehicle manufacturer’s weight rating or the hitch's maximum load rating, whichever is lower.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
